Advanced 3D Printing Kit for Ultimaker 2/2+ Family

Product SKU: 9521

Available Stock:
Loading...
Model
Advanced 3D Printing Kit for the Ultimaker 2+ / 2+ Extended Family

Ultimaker’s Advanced 3D Printing Kit has been designed to help you get consistent, reliable print results – every time. Special adhesion sheets included in the kit minimize warping and achieve better bed adhesion – a welcome alternative to glue! And the door creates a more controlled environment inside your 3D printer; which means a more stable temperature and a higher print success rate. Quality and performance of the printed parts will be also improved as a result. The kit will be available in September and is recommended for use with our new materials.

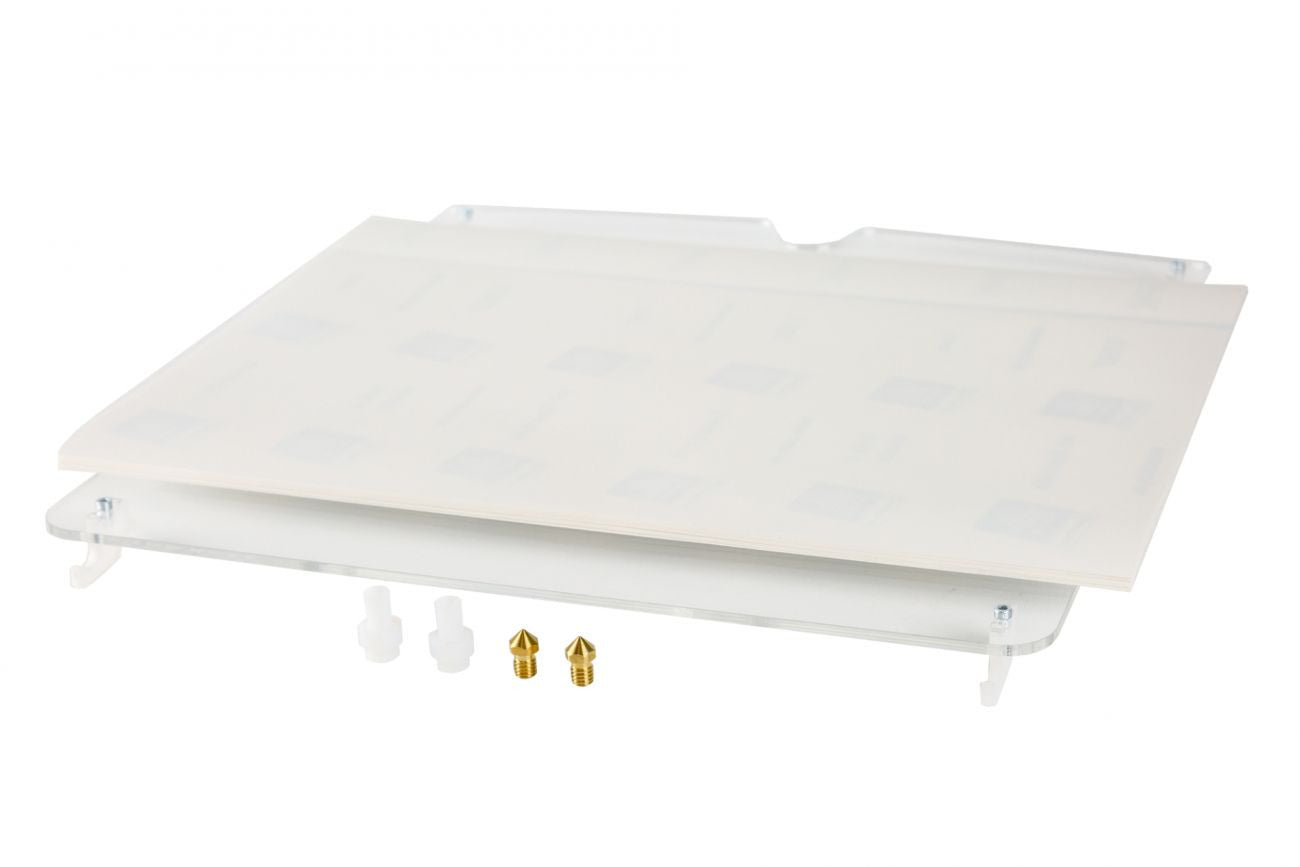

What's Included
  • 2 x 0.4 mm nozzle
  • 2 x TFM coupler
  • 25 x adhesion sheet
  • 1 x door
When to Use
The Advanced 3D Printing Kit can be used in combination with all Ultimaker filaments, although the benefits are greater for some materials than for others. See the table below for an overview of the compatibility and advice:

Material Front enclosure Adhesion sheet
PLA Optional Optional
ABS Highly recommended Optional
CPE Optional Optional
CPE+ Highly recommended Recommended
PC Highly recommended Highly recommended
Nylon Optional Optional
TPU 95A     Optional Not advised
Overview
FRONT ENCLOSURE
The front enclosure is very effective when printing with materials that are prone to warping and delaminating. This front enclosure keeps the warmth from the heated bed inside the printer and protects the print from external influences, consequently creating a stable environment with a constant temperature of 45ºC. Because of this, the printed material will cool down slower and the temperature is more equal throughout the print. This leads to lower shrinkage and a decreased chance of warping and delamination. You can find instructions on how to install the front enclosure here.
ADHESION SHEETS

The adhesion sheets can be used for most materials to improve adhesion to the build plate. They replace the glue stick and can be used multiple times. It is important that the sheet is applied correctly to prevent air bubbles and to ensure a flat printing surface. You can find instructions on how to apply the sheet here.

NOZZLE
If your nozzle has become blocked and the Atomic Method no longer helps, you need to replace your nozzle. Or perhaps you prefer to use a different nozzle for the different materials you want to work with. Instructions on how to replace the nozzle on the Ultimaker 2+ can be found here.

TFM COUPLER
Many of the industrial materials print at higher temperatures. This could decrease the lifespan of the TFM coupler. There are two new couplers included in the Advanced 3D Printing Kit, to minimize your Ultimaker’s downtime when the TFM couplers are due for a replacement. Instructions on how to replace it can be found here.

The use of the front enclosure is strongly advised for most filaments that print at higher temperatures and which are likely to have problems with layer bonding. Because the front enclosure controls the temperature inside the printer, it prevents delamination and improves the surface quality of the prints.

For the other materials (PLA, CPE, Nylon and TPU 95A) the front enclosure is not necessary but can be used optionally. The use of the front enclosure will not negatively impact print quality and may even lead to more reliable print results. The adhesion sheets are (highly) recommended for CPE+ and PC.

These materials require a bed temperature of 110 ºC, but despite this high temperature may still have problems with adhesion to the build plate. For most other materials the sheets are optional as they replace the use of the glue stick.

Only for TPU 95A we advise against printing on the adhesion sheet; this material simply sticks too well to the sheet and removing the print from the platform is extremely difficult.
