Zmorph Fab Two-In-One 3D Printer

Product SKU: ZmorphFab2-1

Available Stock:
Zmorph Fab is no longer a 3 in 1 out of the box, it is a 2 in 1 (3D Printer + CNC Rotary Tool) The laser is available as an addon and will ship in a separate container.
Zmorph Fab Two-In-One 3D Printer

Two tools in one device for learning and prototyping. This machine can do it all. Switch the toolheads to use a 3D printer, or CNC milling machine. With stellar built quality, user friendly interface, and industry standard electronics, Zmorph Fab is the most versatile and reliable two-in-one 3D printer on the market.

Technical Specs
Two-In-One Brochure | Technical Data Sheet
  • 3D Printing
    • Technology: Fused filament fabrication (FFF)
    • Print head: Single Extruder Toolhead 1.75 mm
    • Nozzle Diameter: 0.3, 0.4, 0.6 mm
    • Build volume (XYZ): 235 x 250 x 165 mm (9.3 x 9.8 x 6.5 in)
    • Layer resolution: 50 - 400 microns
    • Dimensional Accuracy: +/- 0.2 mm
    • Max build plate temperature: 115 °C
    • Max printing temperature: 250 °C
    • Bed leveling: Automatic, Manual
    • Filter type: HEPA/Carbon
    • Operating sound: 45 dBA
    • Power input: 100 - 240 VAC, 50 - 60 Hz
    • Connectivity: SD Card, Ethernet, USB
  • CNC Milling
    • Toolhead: CNC Spindle
    • Spindle max power: 300 W
    • Noise: 70 dB
    • Work Area: 235 x 250 x 85 mm (9.3 x 9.8 x 3.3 in)
    • Work Area Leveling: Manual
    • Tool holding: ER-11 collet
  • Laser Engraving / Cutting Sold Separately )
    • Toolhead: Laser ( Sold Separately )
    • Wavelength: 450 nm
    • Laser Power: 2.8 W
    • Laser Class: 4
    • Noise: 40 dB
    • Work Area: 235 x 250 x 85 mm (9.3 x 9.8 x 3.3 in)
    • Work Area Leveling: Manual
What's Included
  • Zmorph Fab Two-In-One 3D Printer
  • Single Extruder Toolhead 1.75mm
  • CNC Milling Toolhead
  • Laser Engraving Module (optional)
  • Heated worktable
  • CNC Worktable
  • Spool holder
  • 0.5kg PLA
  • Cleaning Needle
  • 0.4mm nozzle
  • PrintaStick Adhesive
  • Cooling fan
  • Protective goggles
  • 1 x plywood
  • CNC cutter
  • 3x CNC clamps
  • Adjustable wrench
  • 8 mm spanner
  • 13 mm spanner
  • Spatula
  • 4 x Allen key
  • SD card
  • Power cord
  • Right cover

Turn your desk into a workshop

  • 2 tools in 1 machine - 3D printer, aCNC unit, - that fits on your desk.
  • Quick and easy changing between tools - no more than 60 seconds.
  • Create with materials inaccessible to single-purpose 3D printers.

 Click to work - out of the box ready.

Easy to get started with, no tinkering needed. Place Zmorph Fab on the desk and start working. Smart features like automatic tool detection and autocalibration do the job, while you can focus on ideas.

Zmorph Reliability

Designed for Reliability

Hassle-free 3D printing

  1. Works with almost every plastic filament available on the market.
  2. Autocalibration makes 3D printing easy and fast, even for beginners.
  3. Multi-material capabilities let you 3D print with water soluble support.

Stellar build quality

  1. Heavy duty aluminum plates provide amazing rigidity, and keep electronics safe from dust and leftovers from CNC machining.
  2. Sturdy construction designed to deliver both 3D printing and withstand CNC operations.
  3. Reinforced Cartesian XZ-head motion system doubled up with dual glass-fiber reinforced belts.

Two-in-One Software

  1. One software for 3D printing & CNC machining.
  2. Ready for multi-material 3D printing.
  3. Slick and easy user interface.

Air Filters

  1. Combination of HEPA/Carbon filters that removes particles and fumes from 3D printing.
  2. Zmorph Fab notifies you when to change the filter.

Zmorph All-In-One


1. CNC Environment

Zmorph Fab is equipped with a professional CNC worktable with a simple solution for materials mounting. Safely work with various shapes and sizes of different materials. Zmorph’s Software now features CAM-standard workflow for CNC procedures with STEP operations, ability to change the tool within one G-code, and path visualisation.

 2. Seamless UI

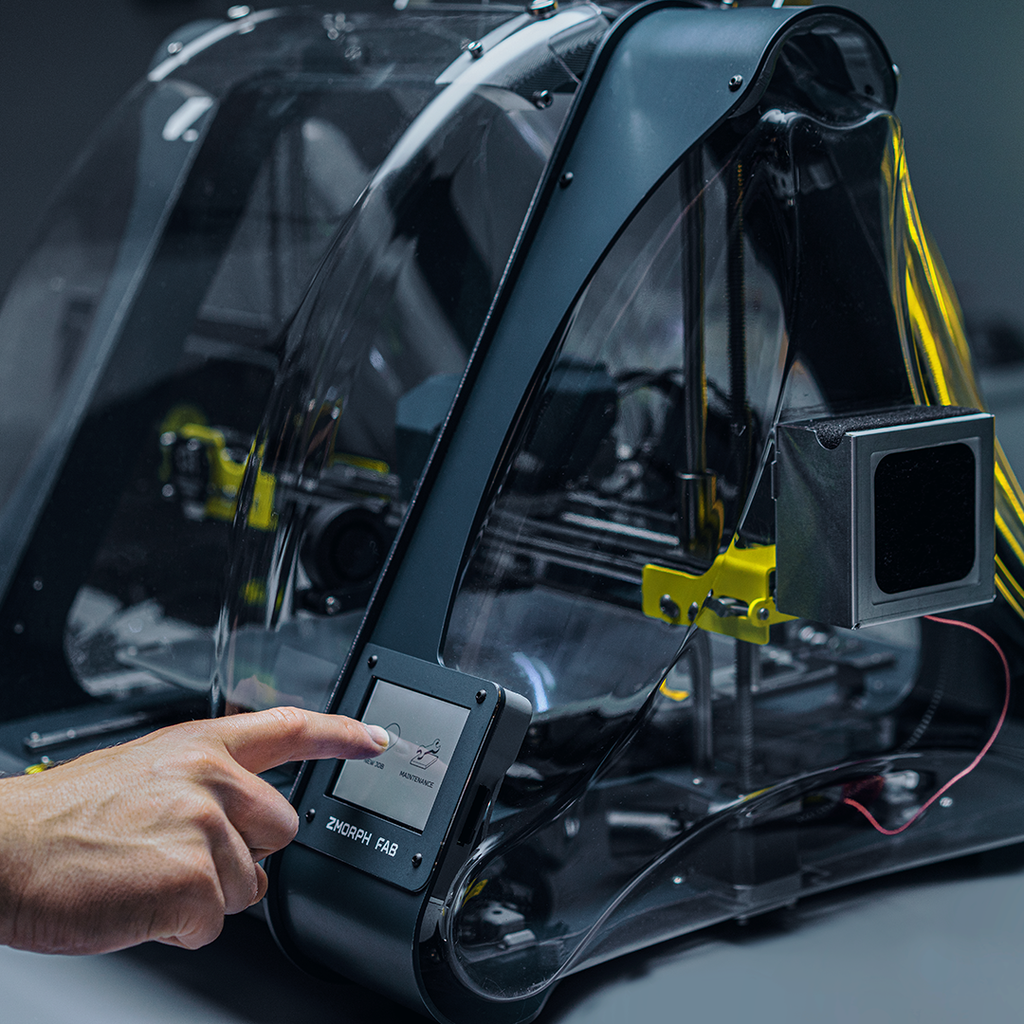

Accessible and intuitive user interface is designed for both professionals and first-timers. Effortlessly maneuver through the menu.

 3. Voxelizer

The all-in-one software for 3D printing & CNC milling. All Zmorph toolheads supported. Try the materials presets or work on your own. Voxelizer has an optimized workflow for Zmorph 3D printers ensuring the best and fastest results.

 4. SMART Toolheads

Changing workflows in Zmorph Fab is fast and easy with the automatic toolhead detection. Switching tools takes just a few easy steps and no more than a minute. You can work right away without extra tinkering.

 5. Quiet Work

You can comfortably work next to the machine as Zmorph Fab generates almost no noise. Behind the quiet work stands the design of the 3D printer enhanced by high-quality electronics and carefully programmed drivers.

 6. Electronics

Zmorph Fab is a desktop all-in-one 3D printer, but has a heart of an industry-grade machine. The electronics provide reliability and repeatability. No need to worry about the outcome.

Zmorph All-In-One Worktable

Manufacturer’s Warranty and Liability
3.1 Scope of the warranty

Zmorph Fab Multitool 3D Printer is designed to be modular and easy to service. In case of technical difficulty with any parts, it can be easily removed and shipped to manufacturer for maintenance.

3.1.1 Guarantor is only liable for the physical defects resulting from the inherent causes in the sold product.

3.1.2 Duration of the warranty starts at the date of purchase of the product by the initial Buyer. The Date of Purchase is the date specified in the sales invoice. The warranty period of the repaired product is extended by the time which was required to repair the product (which includes the time from the delivery of the defective product with the complete warranty claim until the date of returning the repaired product to the Customer).

3.1.3 Warranty does not cover defects resulting from other causes than indicated in clause 3.1.2, especially any defects resulting from:

  1. a) improper use or application of the product;
  2. b) improper product selection for the existing installation site conditions;
  3. c) improper or inconsistent with User Guide installation (including improper connection to the main power supply), maintenance, storage or transport;
  1. d) mechanical, chemical or thermal damages;
  2. e) deliberate product damages;
  3. f) damages ensuing as a result of non-original or inconsistent with Zmorphs recommendations or with the User Guide product use;
  1. g) random events;
  2. h) factors being result of major force, random events or any other external factors;
  3. i) use of non-original parts or consumables;
  4. j) modifications, repair attempts, interference in the product carried out by any other person than Zmorph representative or other representative authorized by Zmorph to carry out any of the above mentioned actions;
  1. k) continued usage of the product despite occurrences indicating an obvious defect;
  2. l) improper transport methods provided by the Customer;

3.1.4 The warranty does not apply to the consumable parts (such as nozzle, PTFE tube, jagger, toothed belts, glass part of the table, bearing, filter) unless failure has occurred due to a defect in materials or manufacture.

3.1.5 The warranty shall cease to apply in the event of:

  1. a) any product modification by any person not authorized by Zmorph;
  2. b) any repair attempts of product by any person not authorized by Zmorph;
  3. c) other interference in the product carried out by any person not authorized by Zmorph.

3.1.6 The warranty service does not apply to the actions stipulated in the User Guide which the user is obligated to perform on their own and at their own expense.

3.1.7 The warranty applies without territorial restrictions.

3.2 Acceptance of warranty claim

3.2.1 The warranty claims may be accepted either at the shop where the product was purchased or at the authorized service or at Zmorphs registered office

3.2.2 Acceptance of warranty claim requires:

  1. a) returning a completed warranty claim during a warranty period to the Service Center;
  2. b) including the name of the product, the date of purchase, a detailed description of the damage, as well as the description of the defect in the warranty claim;
  1. c) attaching the original proof of purchase to the warranty claim;
  2. d) delivering the defective product to Zmorphs registered office at the Customers expense.

3.3 Claim processing period

3.3.1 The Service Team shall repair the defective product within 14 working days from the date of delivery of the defective product with the complete warranty claim to the correct Service Center.

3.3.2 The claim processing period may be extended by the time necessary to import the required replacement parts of the product. In all cases the Customer shall be informed on the extended claim processing period.

3.4 Zmorph’s liability

3.4.1 Zmorph is not required to modernize or modify the existing products after launching their new versions.

3.4.2 Zmorph shall not be liable for any damages incurred by the Buyer due to the defect of the product, especially damages related to damage of other devices, loss of potential benefits or cost of replacement of the product. The clause shall not apply to the Buyer who is a Consumer.

3.4.2 The warranty does not waive, restrict or suspend any rights of the Buyer who is a Consumer due to the product being non-compliant with the contract.
