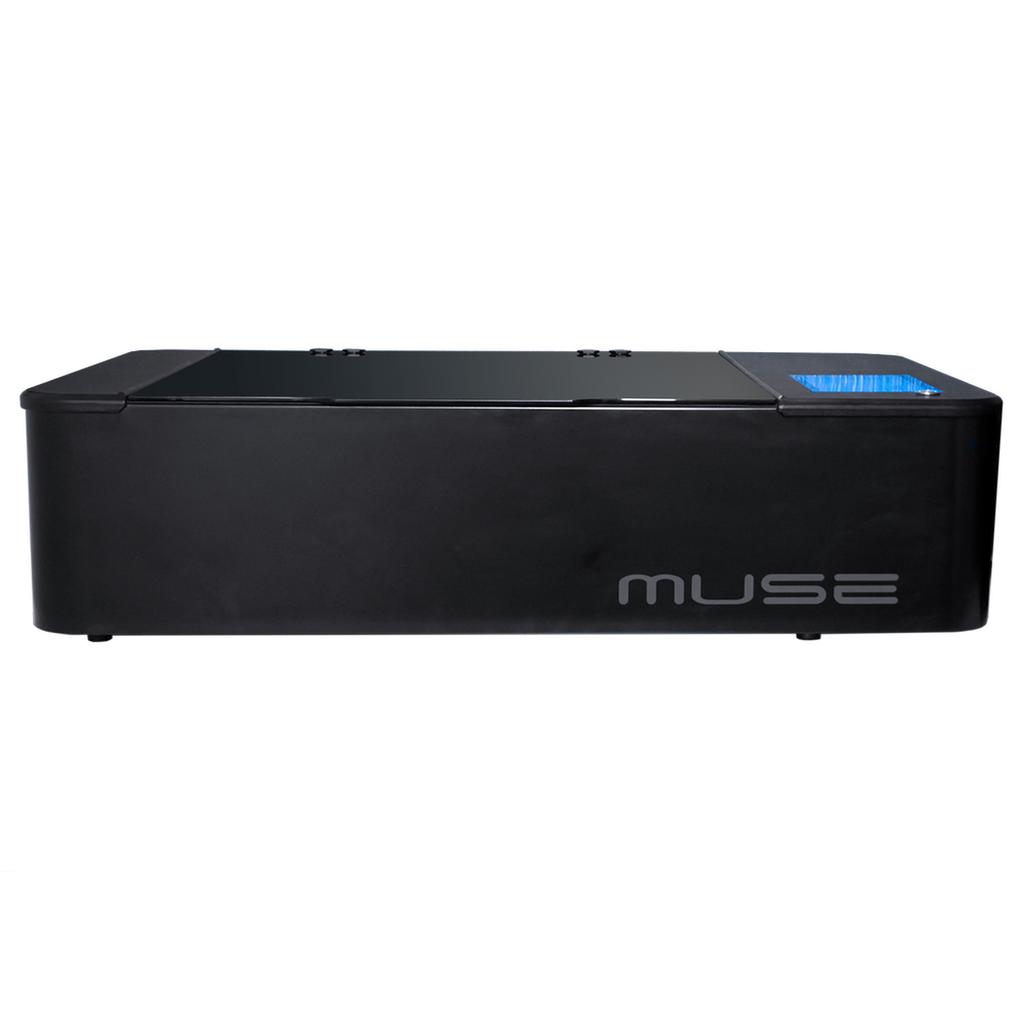

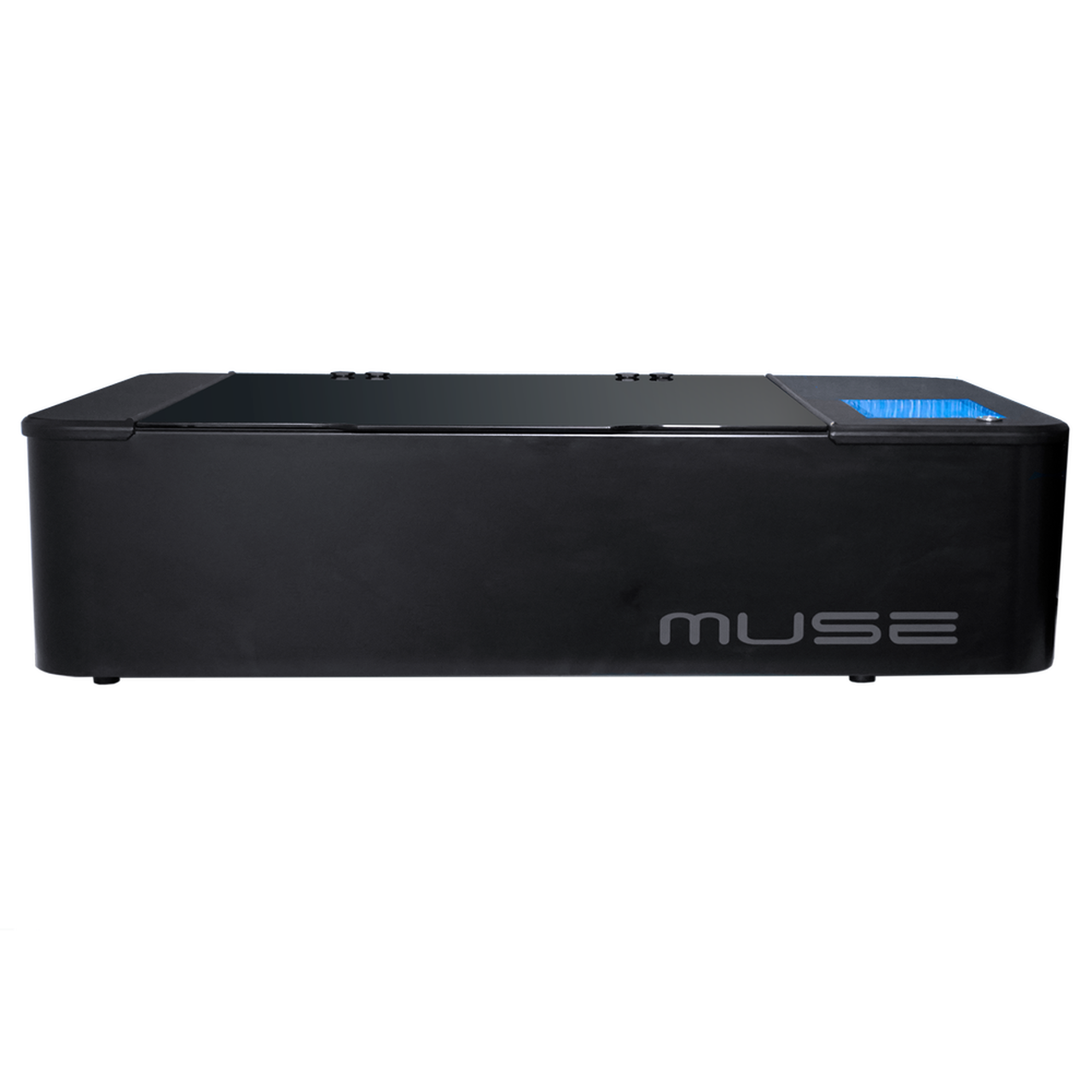

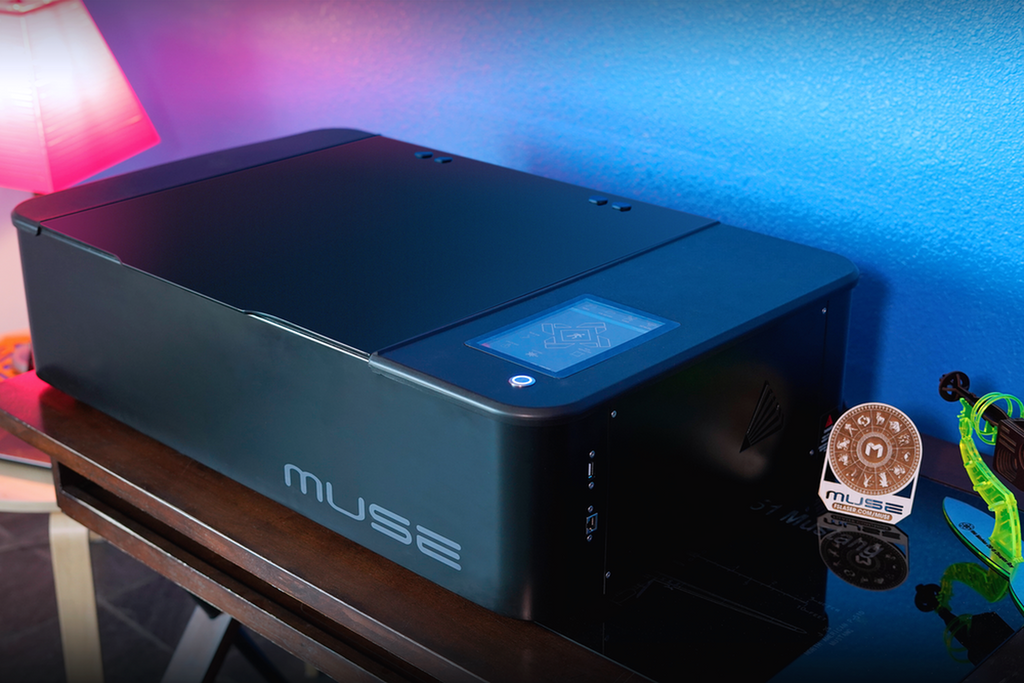

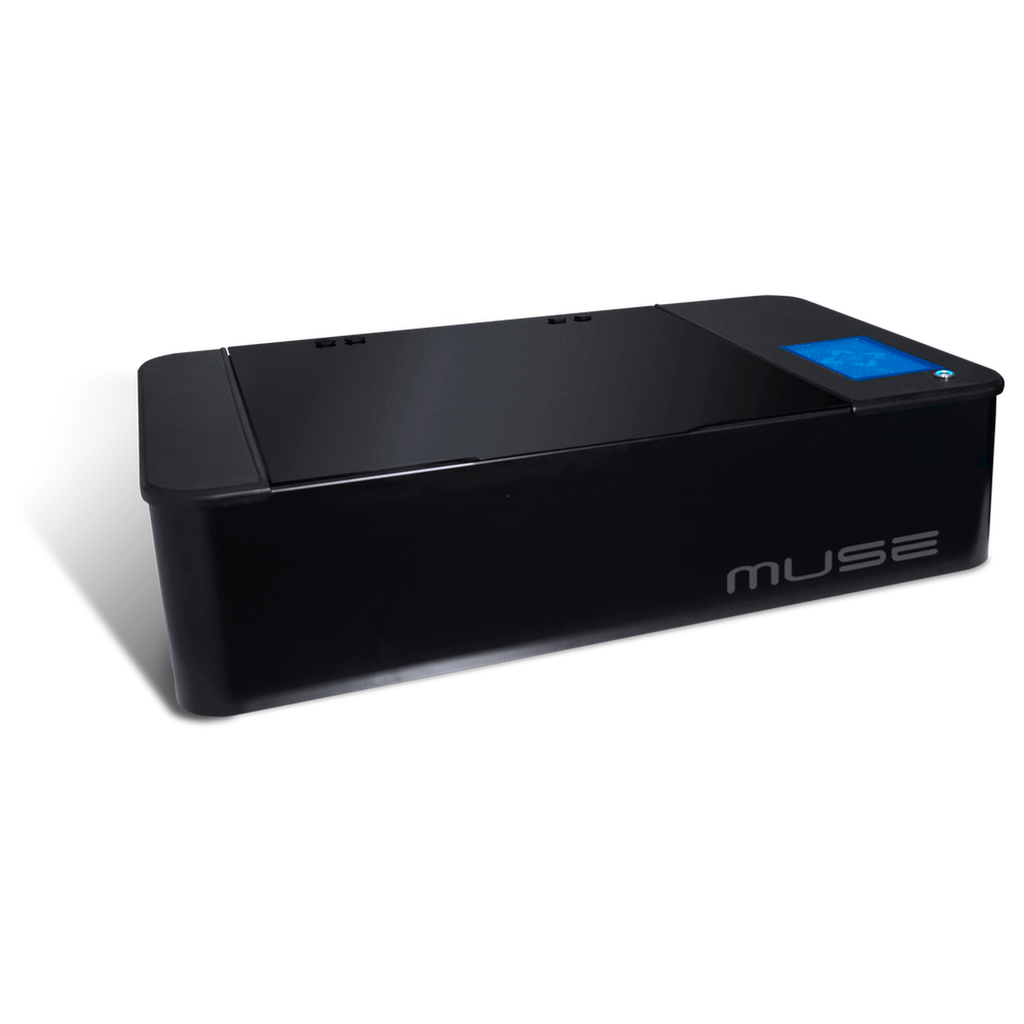

FSL Muse 40W Core Desktop CO2 Laser Cutter

Product SKU: MUSE-40

Available Stock:
Loading... is the Canadian distributor for FSL Muse Lasers. Each unit is slightly modified in consultation with FS Lasers and certified by UL / Intertek / ESafe for electrical safety in Canada and authorized for sale in the Canadian Market. Other US models are not certified for sale in Canada.

Turning Dreamers Into Makers

With a removable floor, industry leading RetinaEngrave software, and sturdy metal construction, the Muse Core will allow you to take your creativity to the next level.

Technical Specs
  • Engraving Area: 20" x 12" (508mm x 305mm)
  • Z Height: 2.5"
  • Machine Dimensions: W 32.3" x D 20.3" x H 8.5" (820mm x 515mm x 215mm)
  • Weight: 54 lbs (24.5 kg)
  • Laser Classification: Class 3
  • Laser Type: Sealed CO2 Laser Tube
  • Laser Power: 40W
  • Focus Lens Included: 2"
  • Resolution: Up to 1000 dpi
  • Power Supply: AC 110V native
  • Gross Power: < 1000W
  • Operation Modes: Precision Raster, Vector or Combined Modes
  • Motion Control: High-speed, High-precision stepper motors
  • Operating Temperature: 0°C - 45°C
  • Laser: Integrated Red Guiding Laser and Beam Combiner
  • Hobby Kit includes (Air Compressor, Water Pump & Exhaust Fan) or Upgrade to Coolbox
  • Tube Type: 40W
  • Software: 6EU-00036 RE3 Locally Hosted Web Software ($1500 value)
Coolbox vs. Hobby kit (water cooling and air assist)
  • The laser requires Water cooling, Air compressor, and exhaust to run. Either Hobby kit or Coolbox option is REQUIRED for operation.
  • Hobby Kit is a great way to save on a minimal setup. It includes all components separately. water pump, air compressor, and fan assist are all separate units to install the way you prefer. You will need to provide your own water bucket or container (not included)
  • CoolBox - is a more self contained unit. It is a single box housing the air compressor, water basin and water pump in one compact unit. Creating a much cleaner look and easier setup at a slightly higher cost.
  • Still not sure which is right for you? Watch this video for more information
Software Specs:
  • Software: RetinaEngrave v3.0
  • Compatibility: PC, Mac & Linux
  • Browser Compatibility: Google Chrome (recommended), Safari, Firefox, Edge
  • File Import Options: JPG, PNG, BMP, TIFF, SVG, DXF, DWG
  • Minimum Screen Resolution: 1024 x 768 Pixels
  • Wireless Compatibility: Ability to Connect Through Local Network (Ethernet or Wireless) without Internet Connection 802.11n
Material Compatibility Chart

Muse 3D Material Compatibility Chart

Inspire. Design. Create.

Muse is the best desktop laser on the market and keeps getting better with 3D camera features, autofocus (Muse 3D only), LCD touchscreen functions and the powerful, yet easy-to-use, self-hosted browser based RetinaEngrave v3.0 laser control and design software. From creating original art to starting your own small business, Muse offers the best, most innovative technology in the desktop laser market.

Laser Cutter Line Drawing
Internal Components of Laser Cutter

A Plethora of Accessories

To acquire peak performance with your laser cutter, you can easily upgrade your cooling system or use the rotary attachment to engrave curved objects. You can also Increase your laser tube power to accelerate cutting speed and marking ability. Don't forget about fume extractors or specialty focus lenses too!

The Best Laser Control Software on the Market

The powerful, easy-to-use RetinaEngrave v3.0 software lives right on your laser and is accessed using your favorite web browser and operating system. Simply input the IP address of your machine into your browser address bar and you are ready to go. Best part? There's nothing to download, ever.

Welcome to the future of laser control & design software!

Laser Cutting set up on PC
Removable Floor for More Space

The Muse's patented removable floor allows you to engrave on material larger than the internal work area, meaning you are able to cut those extra large pieces!

Browser Based Laser Control
The Muse utilizes RetinaEngrave v3.0, which is a self-hosted browser-based laser control and design software which is able to operate with or without a live Internet connection.

3D Scan Technology Improves Accuracy
The Muse's Intel RealSense™ 3D Camera option can 3D scans every pixel for precision XY and focused positioning (Muse 3D Only).

Many Accessories
The Muse has a plethora of optional accessories that will allow you to streamline your Laser Cutting process. For example, you can use the rotary and riser engrave on rounded or larger objects!

What does Full Spectrum Laser do?

FSL produces and sells several types of laser systems for cutting and engraving. They are most widely known for their highly affordable line of CO2 lasers including the widely popular “Hobby Laser”. However FSL also sells higher volume items like large format CO2 lasers and fiber lasers for marking metal directly.

Why should I choose Full Spectrum Laser?

FSL offers the most functional and best supported lasers in within their price range. When you go with Full Spectrum Laser you get a quality machine tested which is shipped locally and backed by customer support from our team of engineers and technicians right here at Shop3D.

What materials can I cut and engrave?

The list of compatible laser materials you can cut and engrave using your Full Spectrum Laser machine is endless. Full Spectrum Laser's CO2 lasers are able to cut and engrave on most non-metallic materials. Metal can also be marked if it is color anodized or if it is first coated with Laser Engraving Spray. FSL's Fiber lasers now open new doors to more materials and options.

Why Choose Muse

Cutting Technology

Muse is the laser cutter micro-manufacturers and creative makers have been waiting for, and you can have it today. From creating original art to replicating pieces for rapid construction, Muse offers the best innovative technology on the market.

Marking Technology
The Muse's marking technology allows you to easily mark material by using quick pulses of the laser, which in turn is capable of creating sharp images from pictures or original art.

Wide Range of Applications
The Muse is a versatile machine which is capable of cutting a wide range of materials. These can range from surfaces such as Wood, Acrylic, Fabric, or Leather, Paper or Cardboard.

3D Engraving Technology
Muse takes engraving to a whole new level, creating pieces of amazing craftsmanship with simulating 3D effects.
