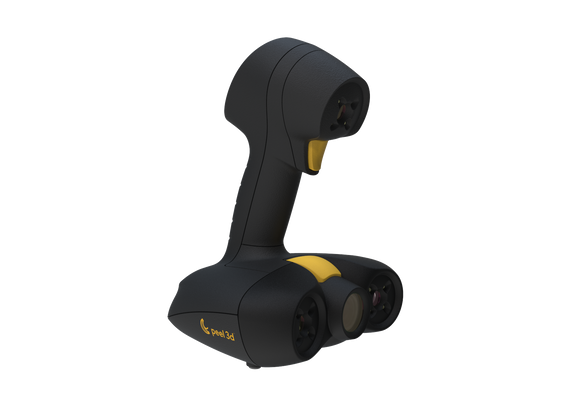

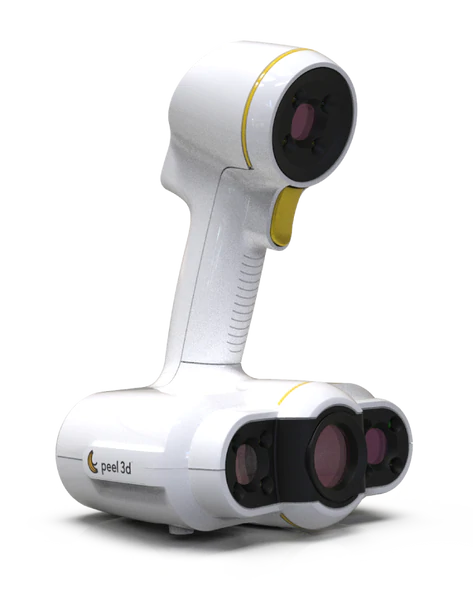

Peel 2 3D Scanner

Product SKU: SYS-P3D-PEE2S

Available Stock:
Loading...
Peel 2 3D Scanner

The evolution of the peel 1, peel 2 is capable of a lot more and perfect for mechanical components. Improved tracking, better geometry capabilities and enhanced means to capture colors. This portable 3D scanner has it all! Interested in Reverse Engineering? Have a look at peel 2 CAD, the perfect solution to take your scan to your favorite CAD software. Everything you can do with a peel 1 you can do with a peel 2, only better! It is ideal for medium to larger parts. Comes with peel software.

Technical Specifications
  • Part size range (recommended): 0.3 – 3.0 m (1 – 10 ft)
  • Accuracy: Up to 0.100 mm (0.004 in)
  • Mesh resolution: 0.500 mm (0.020 in)
  • Measurement rate: 550,000 measurements/s
  • Volumetric Accuracy (based on part size): 0.500 mm/m (0.006 in/ft)
  • Scanning aera: 380 x 380 mm (15.0 x 15.0 in)
  • Stand-off distance: 400 mm (15.75 in)
  • Depth of field: 250 mm (10 in)
  • Light source: White light (LED)
  • Texture resolution: 50 to 150 DPI
  • Positioning methods: Geometry and/or targets and/or texture
  • Dimensions: 150 x 171 x 251 mm (5.9 x 6.7 x 9.9 in)
  • Weight: 950 g (2.1 lb)
  • Connection standard: 1 x USB 2.0
  • Output formats: .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr
  • Operation temperature range: 5–40°C (41–104°F)
  • Operating humidity range(non-condensing): 10–90%
  • Certications: EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), IP50, WEEE

Software

Peel 3d software is really what truly sets this solution apart. Capturing good quality data is one thing but being able to process it and properly work with it is a whole other thing. Unleash the power of Creaform's software, a leader in 3d industrial measurement and metrology. These are tools you simply will not find with another affordable solution; start working like a pro today!

What's in the box
  • 1 Peel 2 3D Scanner
  • Power Supply unit
  • USB cable
  • Positioning targets - regular
  • Positioning targets - super adhesive
Highlights

Peel 3D can handle many different surfaces and materials


Metal Casings


Clay Models


Ceramic and Porcelain


Plastics

Field of Applications

May Be Challenged By


Objects that are too small

Works best for objects over 30 cm in size (1 ft)


Highly Intricate Objects

Thin walls and features will be difficult to capture


Hair And Fur

There are ways to get a little but it can be a challenge

.

Shiny Or Reflective Materials

Using a spray like AESUB can help scan these difficult surfaces
