Peel 2-S 3D Scanner

Product SKU: SYS-P3D-PEE2ZS

Available Stock:
Loading...
System Configuration
Pre-Order: This item is available for pre-order. Please contact us for lead times.

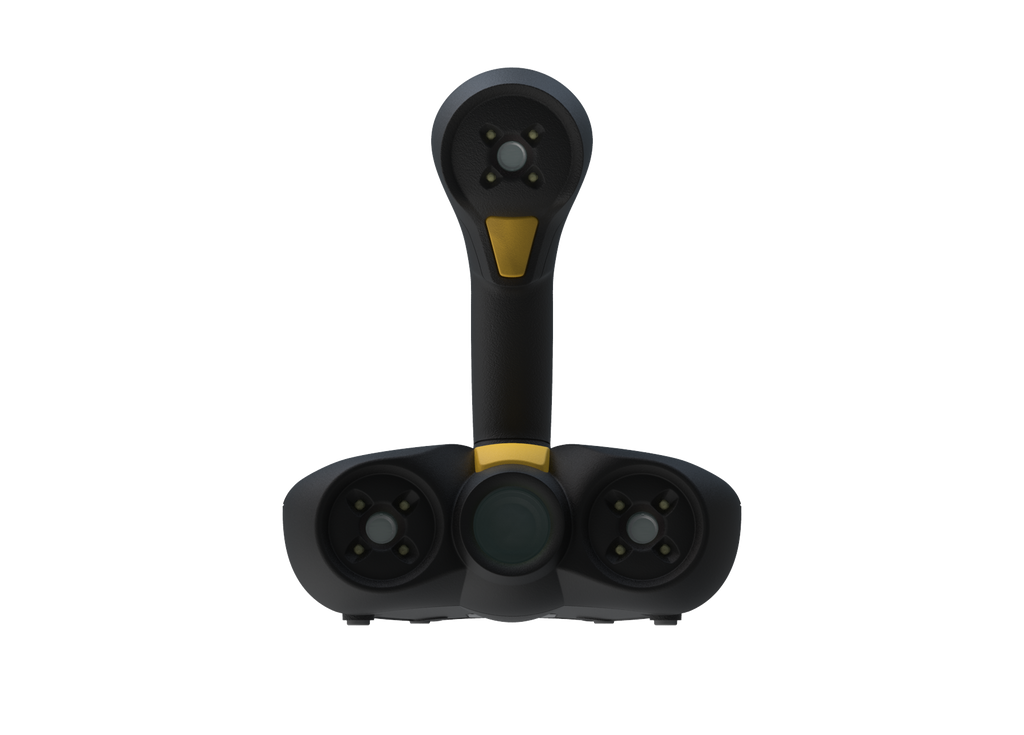

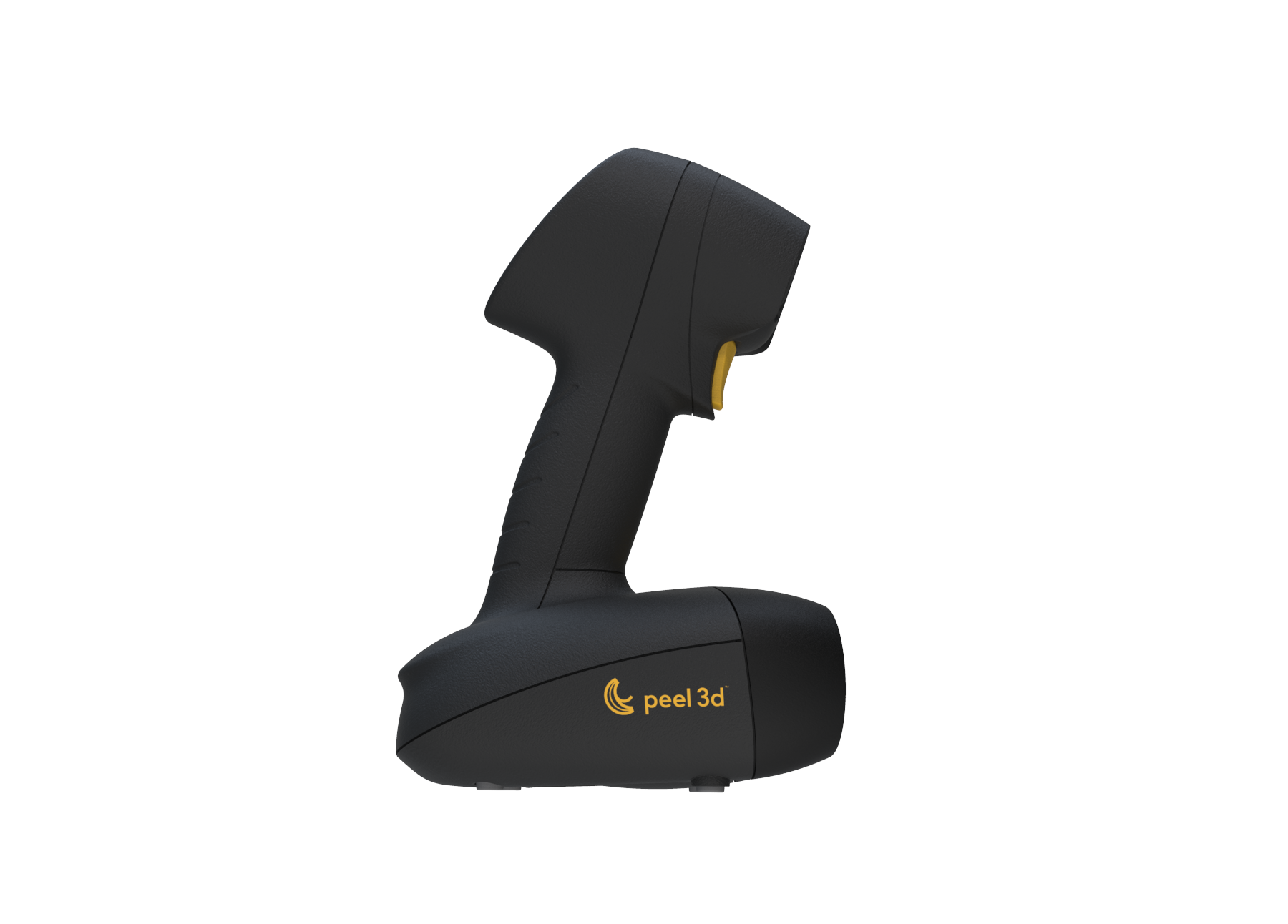

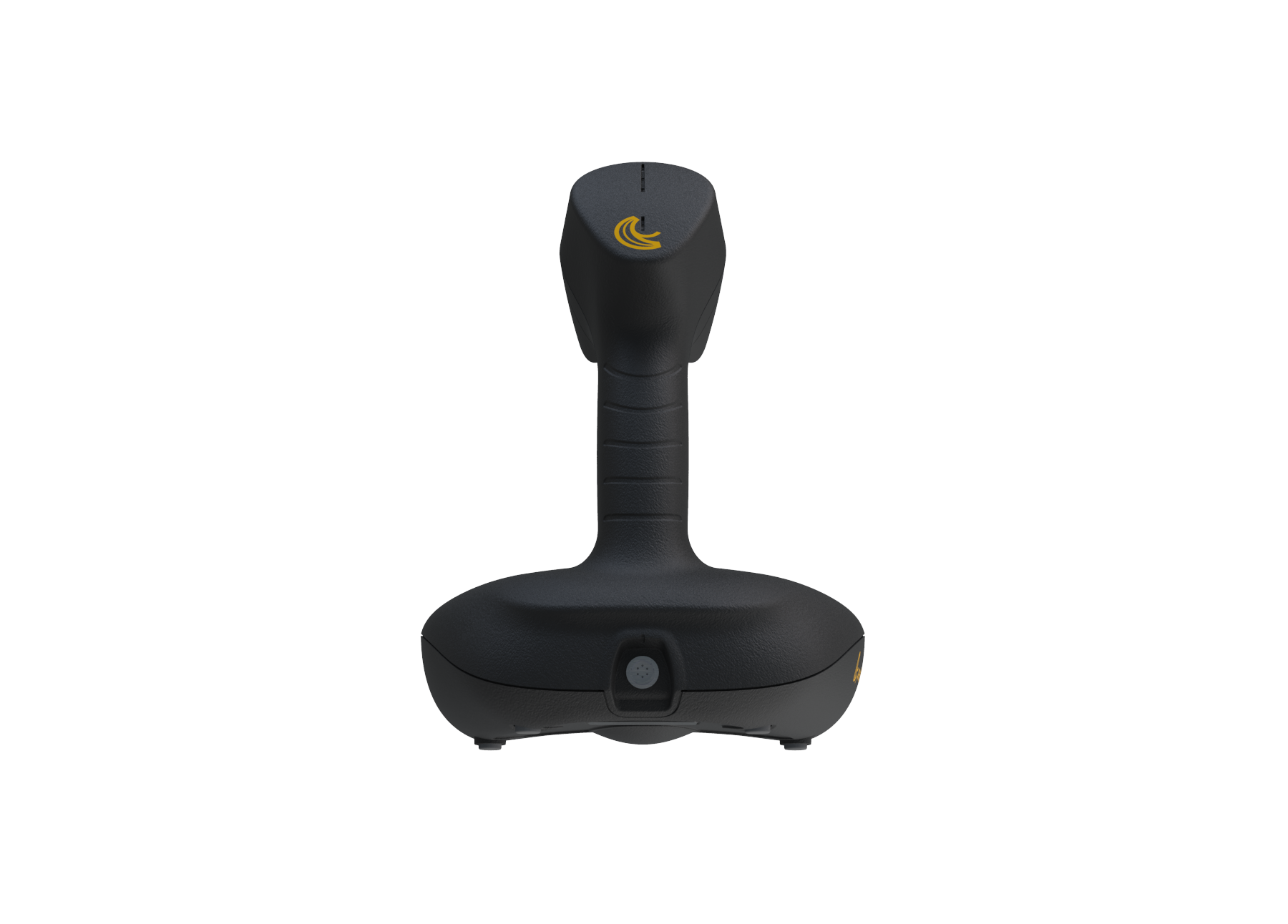

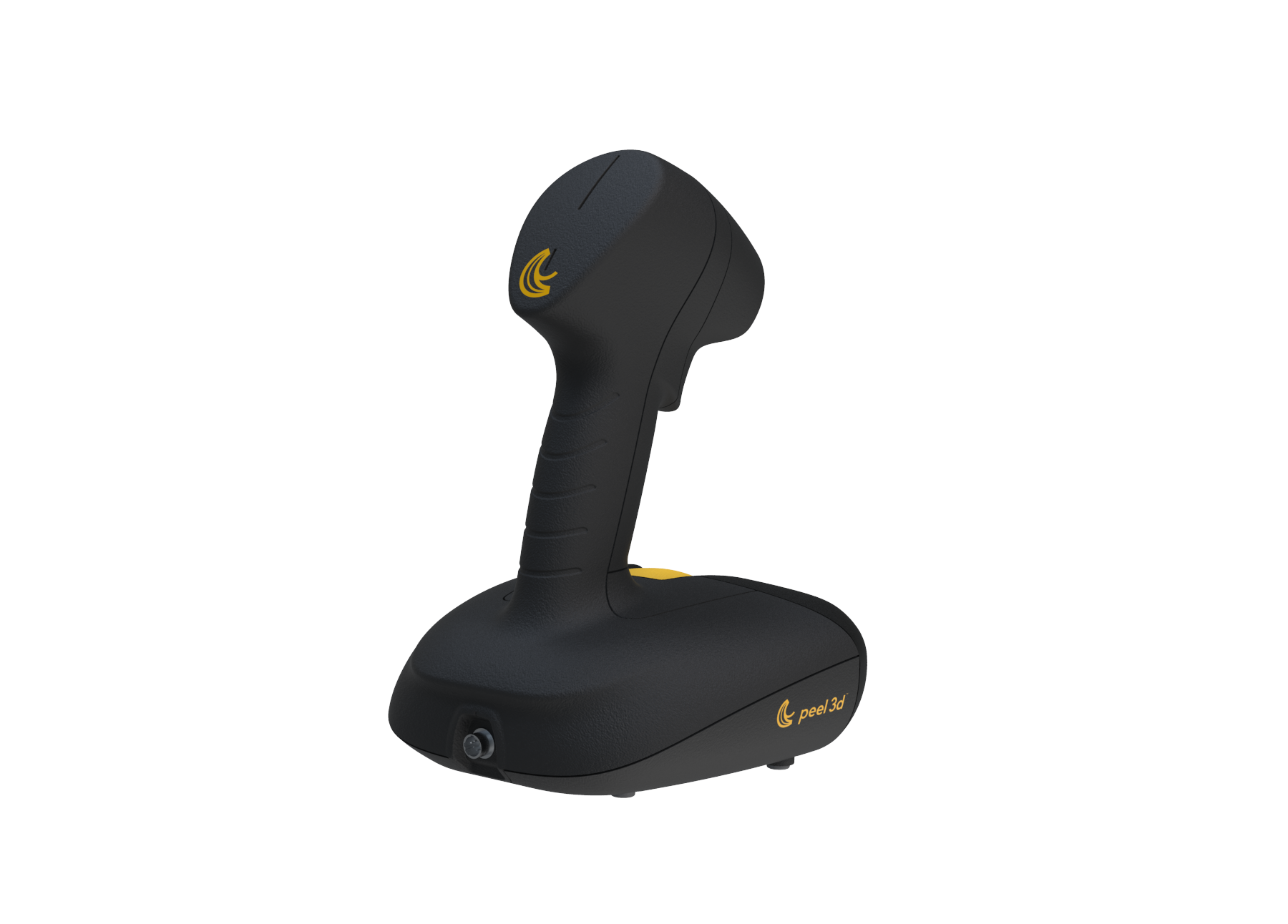

Peel 2-S 3D Scanner

peel 2-S is based on the same proven technology as the peel 2 scanner but has been optimized to scan smaller parts. Its smaller field of view provides it with a whopping resolution of up to 0.1mm! Excellent when used with a simple turntable, it can also be taken to a specific location and capture the finest of details.
Interested in Reverse Engineering for small parts? Have a look at peel 2 CAD-S, the perfect solution to take your scan to your favorite CAD software.

Technical Specifications
  • Part size range (recommended): 0.05 – 0.5 m (2 – 20 in)
  • Accuracy: Up to 0.100 mm (0.004 in)
  • Mesh resolution: 0.100 mm (0.004 in)
  • Measurement rate: 550,000 measurements/s
  • Volumetric Accuracy (based on part size): 0.500 mm/m (0.006 in/ft) *
    peel 2 CAD-S: 0.300 mm/m (0.0036 in/ft)
  • Scanning aera: 143 x 108 mm (5.6 x 4.3 in)
  • Stand-off distance: 380mm (15 in)
  • Depth of field: 100mm (4 in)
  • Light source: White light (LED)
  • Texture resolution: 50 to 150 DPI
  • Positioning methods: Geometry and/or targets and/or texture
  • Dimensions: 154 x 178 x 235 mm (6 x 7 x 9.2 in)
  • Weight: 930 g (2.1 lb)
  • Connection standard: 1 x USB 2.0
  • Output formats: .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr
  • Operation temperature range: 5–40°C (41–104°F)
  • Operating humidity range(non-condensing): 10–90%
  • Certications: EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), IP50, WEEE
Software

peel 3d software is really what truly sets this solution apart. Capturing good quality data is one thing but being able to process it and properly work with it is a whole other thing. Unleash the power of Creaform's software, a leader in 3d industrial measurement and metrology. These are tools you simply will not find with another affordable solution; start working like a pro today!

What's in the box
  • 1 Peel 2S 3D Scanner
  • Power Supply unit
  • USB cable
  • Positioning targets - regular
  • Positioning targets - light adhesive
Highlights

Peel 3D can handle many different surfaces and materials


Metal Casings


Clay Models


Ceramic and Porcelain


Plastics

Field of Applications

May Be Challenged By


Objects that are too large

Larger objects will take longer to scan


Larger flatter Objects

The scanner might need a good amount of targets


Hair And Fur

There are ways to get a little but it can be a challenge

.

Translucent, pitch black, mirrored finishes

Using a spray like AESUB can help scan these difficult surfaces
