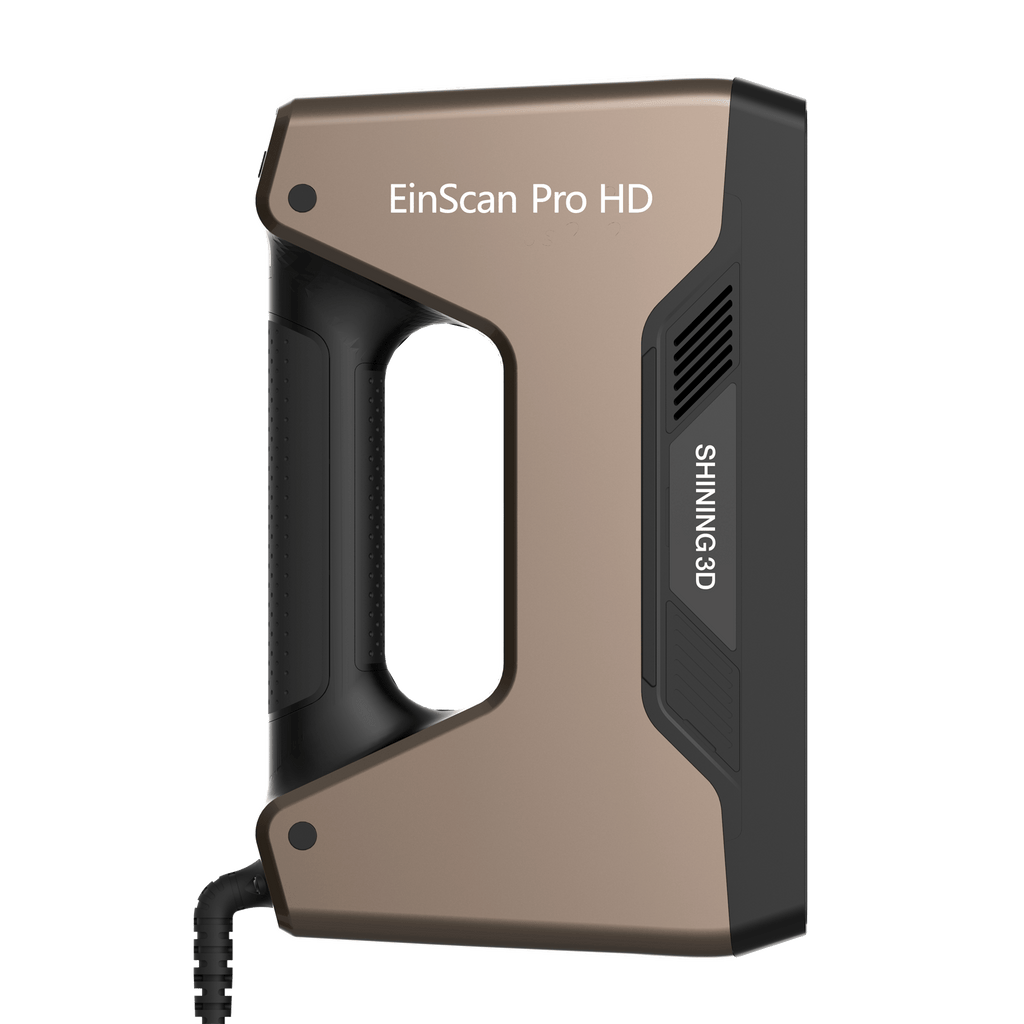

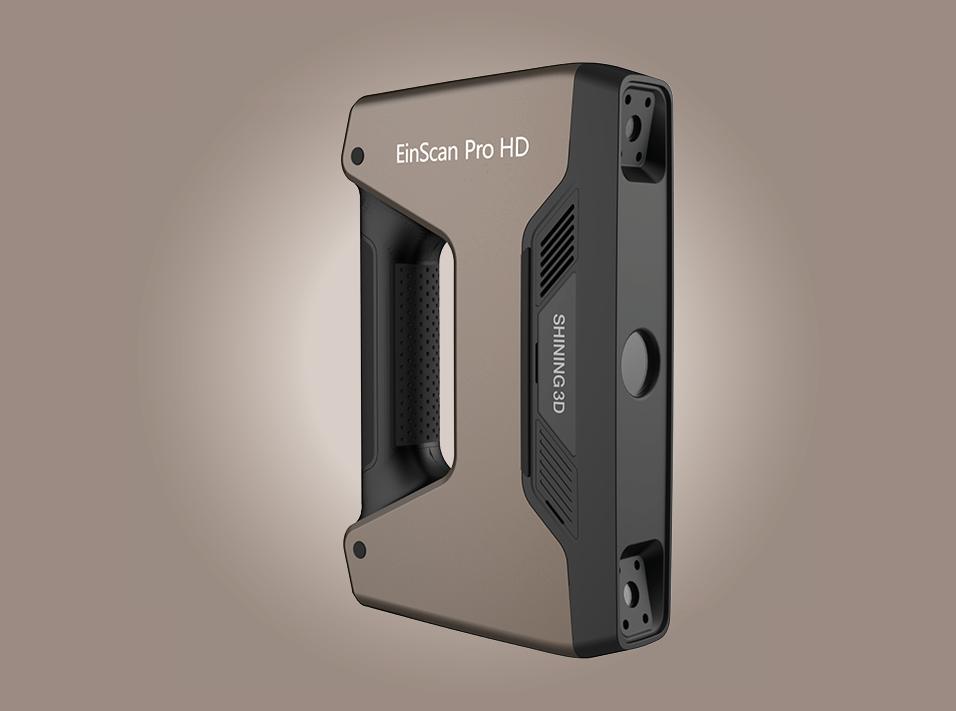

Shining3D - EinScan Pro HD - Multi-functional Hand Held 3D Scanner

Product SKU: 6970163080956

Available Stock:
Loading...
Package
A Truly Portable and Versatile Handheld 3D Scanner for High-Precision Results

Inheriting the multi-functional and modular design of the EinScan Pro series handheld 3D scanner, the EinScan Pro HD delivers unparalleled performance in capturing high resolution and accuracy by handheld scanning. Exceptional versatility and powerful optimizations come together for the ultimate high-efficiency and professional-grade 3D scanning experience. It is a reliable assistant for designers and engineers who care about high-quality 3D modelling.

Technical Specs
Handheld HD Scan Mode:
  • Scan Speed: 10 fps, 3,000,000 points/s
  • Scan Accuracy: Up to 0.045mm
  • Minimum Point Distance: 0.2 mm - 3mm
Handheld Rapid Scan Mode:
  • Scan Speed: 30 fps, 1,500,000 points/s
  • Scan Accuracy: Up to 0.1mm
  • Minimum Point Distance: 0.25 mm - 3mm
Fixed Scan with Industrial Pack:
  • Scan Speed: Single scan < 0.5 s
  • Scan Accuracy: 0.04mm (Single Shot Accuracy)
  • Minimum Point Distance: 0.24 mm
Other Specs:
  • Volumetric Accuracy: 0.3 mm/m (Markers Alignment)
  • Dimensions: 37 x 36.5 x 13.5 cm
  • Weight: 1.13KG
  • Data Transmission: USB 3.0
What's Included
Standard Package Includes:
  • Einscan Pro HD 3D Scanner
  • ExScan Pro (3D Scanning & Data Processing Software)
  • Solid Edge SHINING 3D (3D CAD Design Software)
RED (Reverse Engineering Design) Package Includes:
Scanned Images
Highlights

An Innovative Handheld 3D Scanner

The Einscan Pro HD is fitted with a new more powerful projector, better electronics, and larger scan range which together contribute to its increased speed, and improved precision and scan accuracy. It is the most advanced model from the Einscan Pro family of 3D scanners.

Continuous Tracking while you Scan
  • This continuous track and scan technology translates into an intuitive workflow where you simply need to "paint" over what you intend to scan, and the software will continuously add and refine the data as you pass over the areas.
Completely Plug & Play
  • Once the Einscan software is installed on your system, you're good to go! The Einscan Pro HD is ready for use straight out of the box!




A collection of screens showcasing the einscan software

A scan displayed within the software interface

Accessible High Resolution 3D Modeling

The Pro HD is a straight-forward 3D scanning experience for technical users, making it perfect for adding to your workflow!

Quick Scanning with Rapid Scanning Mode
  • As long as there are enough details on your model, you can scan the object in rapid scan mode without worrying about trackers, preparation or cameras.
Highest Quality Results with HD Scanning Mode
  • For more accurate results in handheld mode, you can additionally place tracking markers (included with the scanner) on your object for higher tracking precision with the same workflow as rapid scan.

A Fast, Accurate, & Reliable digital solution

The Pro HD is capable of delivering accurate data quickly and effectively. This machine is perfect to use for reverse engineering, archiving, or heritage preservation.

Max Accuracy
  • During use, triangulation of the scan target's features is able to be optimized for it to take a high resolution point cloud snapshot within seconds. Each new scan will automatically be aligned to the previous scan until the whole object is fully digitized.
Reverse Engineer with Geomagics
  • Geomagics is the essential bridge between 3D scanning and CAD design. Once you have finished with your 3D scan in the ExScan 3D scanning software, you can import the 3D scan data into Geomagic essentials, allowing you to modify and create solid or complex models in a CAD design environment.



Scanned Triceratops results
Overview
Easy Optimal Scanning

The Einscan Pro HD is fitted with a new more powerful projector, better electronics, and larger scan range which together contribute to its increased speed, and improved precision and scan accuracy. It is the most advanced model from the Einscan Pro family of 3D scanners.


Versatile Scan Modes & Align Modes
Supports Handheld Rapid Scan, Handheld HD Scan, Fixed Scan without Turntable, and Fixed Scan with Turntable modes as well as multiple alignment modes including feature alignment, markers alignment, turntable coded targets alignment, and manual alignment.

Scan Faster than Ever Before
The latest development in data capture hardware and optimized algorithms make the next-generation EinScan Pro series a dramatic breakthrough in scanning speed and processing. Process up to 1,500,000 points per second (30 fps) under Handheld Rapid Scan Mode.


Portable & User-friendly Design
With a lightweight and compact size, you can easily take the EinScan Pro HD anywhere, just like your laptop! Enjoy plug-and-play installation and a limitless scanning experience.


FAQ
How can I scan dark, reflective objects?

The best way to get an accurate scan for an item which is dark and/or reflective is to spray your object with a matte spray like Aesub. This allows the scanner to accurately pick up all the details of your object.

How does this compare to Photogrammetry?

Photogrammetry (while able to produce decent results with just software and any camera available) still has a few flaws. There are many variables which can affect the accuracy of your scan including camera lens distortion, settings, lighting and shadows. With the EinScan Pro 2X 2020, everything is self contained within the unit. It projects it's own light and allows for the use of HDR mode to vastly simplify the setup and repeatability of your scans. To learn more, check out the Einscan Pro 2X 2020 Vs. Photogrammetry blog post!

How does Meshing work?

Once you are happy with the point cloud data, you can delete the points you don't need with an intuitive lasso tool right inside the scan program. You are then able to process the point cloud into a water tight mesh. Everything is automated with custom controls, allowing for the production of usable high resolution meshes with ease and predictability. Speak to our Scanning experts to see if the Pro2X 2020 is the right scanner for you.

Why Choose EinScan

User Friendly and Highly Detailed

Every scan generates a mesh of high-quality 3D data, allowing you to reconstruct the real geometry of any object with fine details. The EinScan Pro HD also utilizes a visible white light when scanning. The scanning process is done without a laser, making the EinScan Pro HD perfectly safe for even children to use!


Easy Operation, Faster Scanning
One-click scanning makes your life easy, with automatic calibration and no rigid set-up required. The EinScan Pro HD is able to process up to 1,500,000 points per second (30 fps) under Handheld Rapid Scan Mode.

Compatible with 3D Printers
The Einscan Pro HD is able to auto mesh 3D data meaning you get water-tight prints every time! You can also seamlessly connect to a variety of 3D printers once you provide API access for your machine.




One Click Upload for Online File Saving and Data Sharing
This machine allows for support of third-party data sharing platforms in order to access the cloud service. This allows the benefit of one-click uploads for online file archiving or data sharing.

The EinScan Pro HD Workflow
