Shining3D - EinScan HX - Hybrid LED and Laser Light 3D Scanner

Product SKU: 6970163080604

$13,599.00

Available Stock:
Loading...

Software Package

Inc. Solid Edge

RED: Solid Edge + Geomagic Essentials

Free Delivery does not apply for this order. Contact Us for Shipping Estimates.

Quantity

A Truly Portable and Versatile Handheld Reverse Engineering Solution

Based on years of 3D measurement experience and market demand, SHINING 3D innovatively integrates blue LED light and blue laser into EinScan HX handheld 3D scanner. The hybrid laser and LED light sources make EinScan HX compatible with a wider range of object sizes, meeting multiple needs of users. High efficiency and reliable result give EinScan HX more application possibilities.

Technical Specs

Rapid Scan Mode:

Scan & Align Speed: 1,200,000 points/s 20FPS
Scan Accuracy: Up to 0.05mm
Volumetric Accuracy: 0.05+0.1mm/m
Minimum Point Distance: 0.25mm - 3mm
Safety: Blue LED Light (Eye Safe)

Laser Scan Mode:

Scan & Align Speed: 480,000 points/s 55FPS
Scan Accuracy: Up to 0.04mm
Volumetric Accuracy: 0.04+0.06mm/m
Minimum Point Distance: 0.05mm-3mm
Safety: Blue Laser Crosses (Class 1 - Eye Safe)

Other Specs:

Dimensions: 108mm x 110mm x 237mm
Weight: 710g
Data Transmission: USB 3.0

What's Included

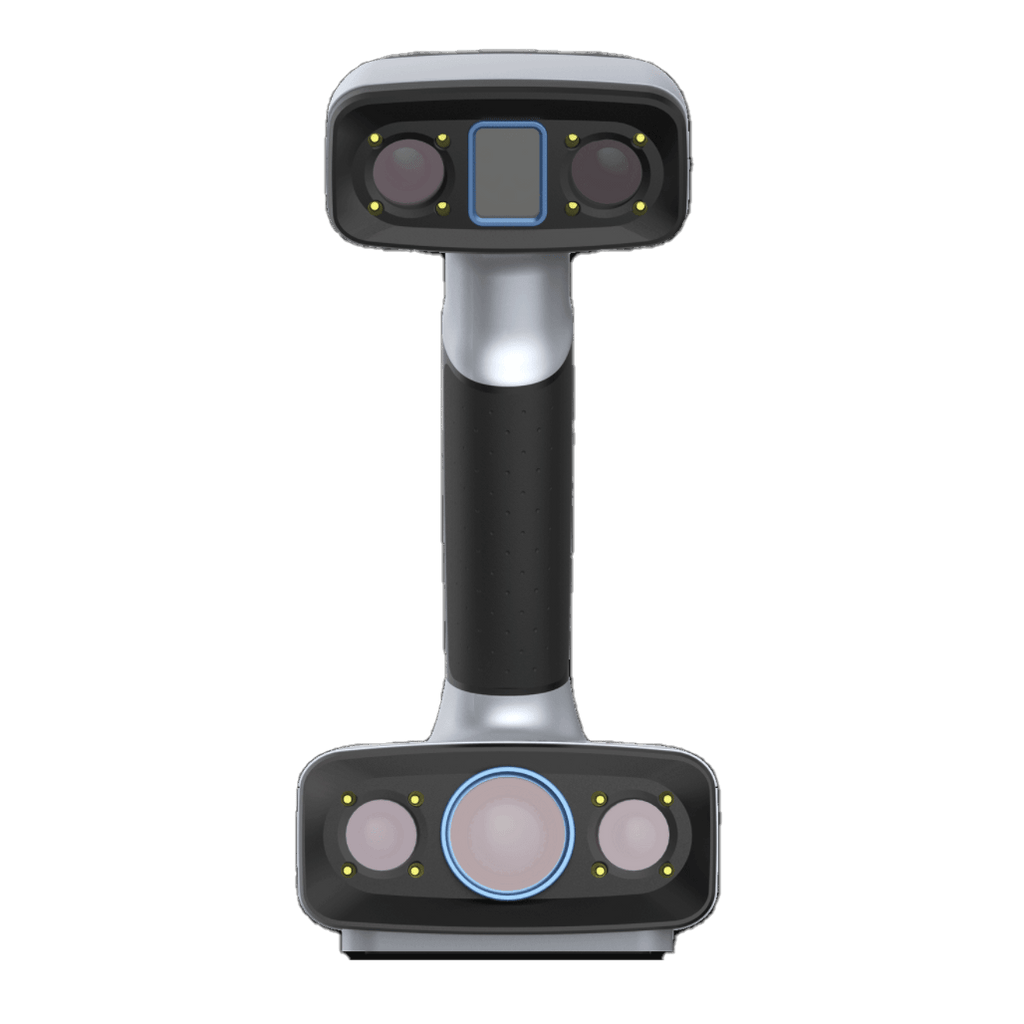

EinScan HX LED & Laser Light 3D Scanner
Markers
Powerful Scanning Software
Calibration Board
Solidedge Shining 3D Edition

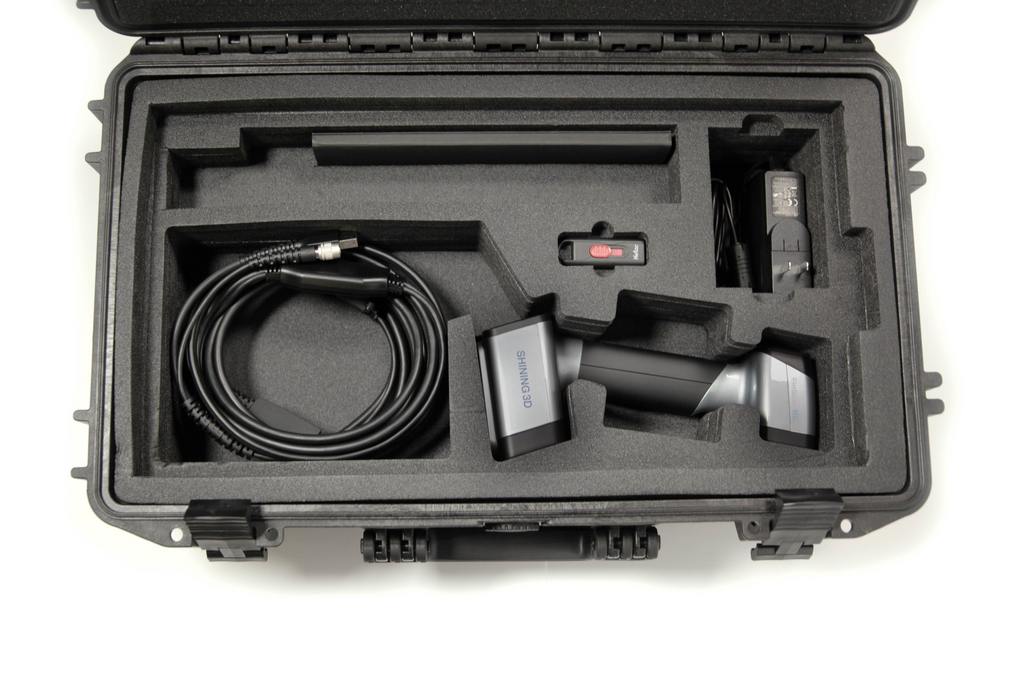

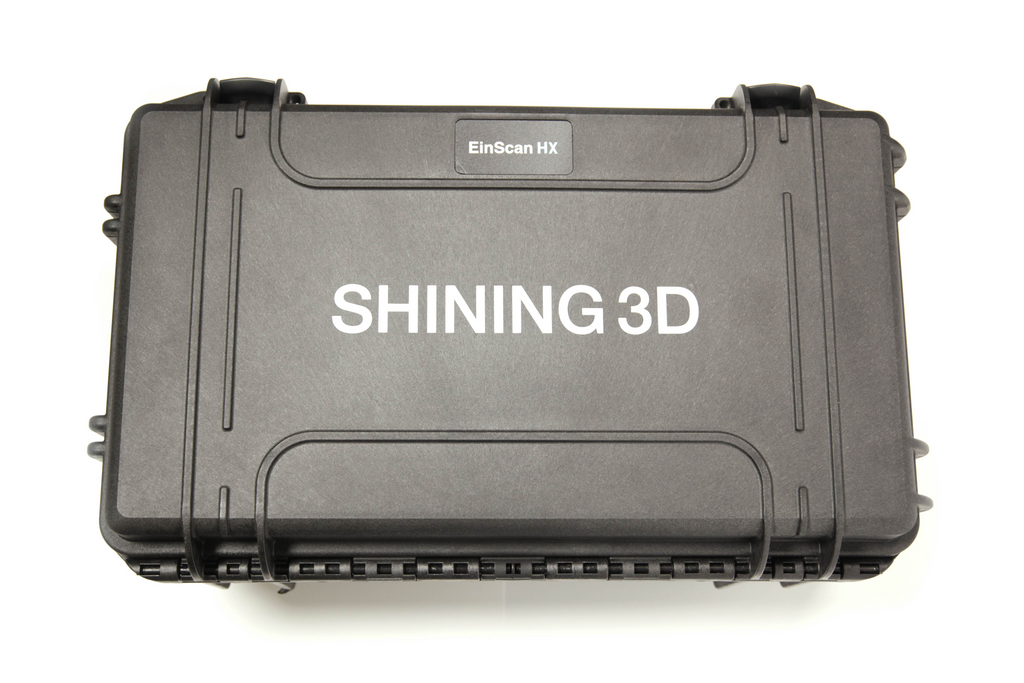

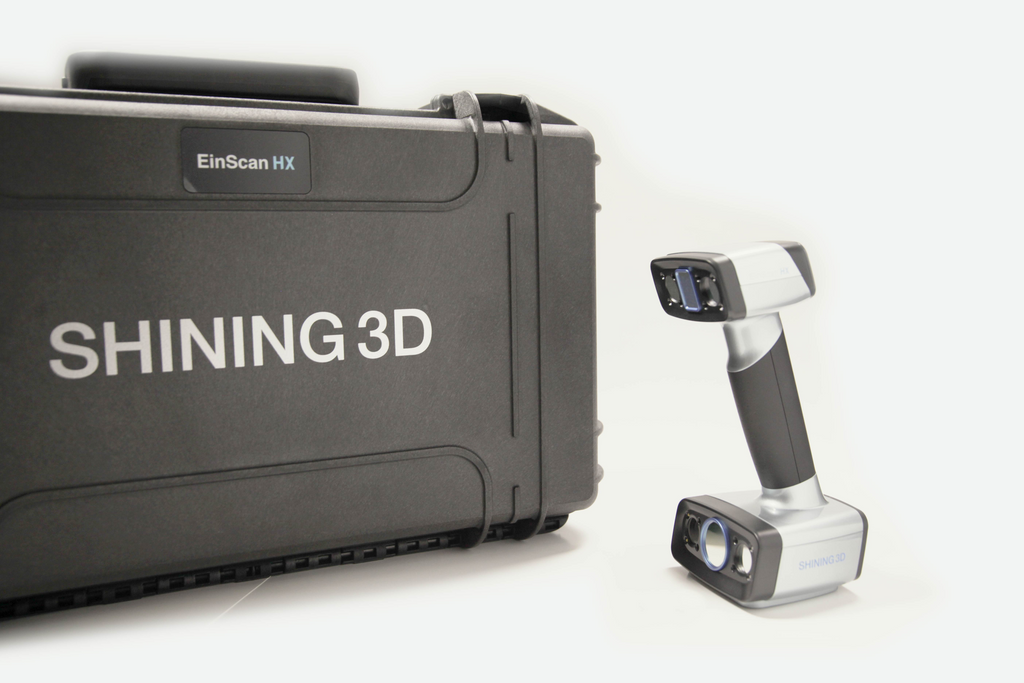

Travel Protective Hard Case
(OPTIONAL) Geomagic Essentials
- For Reverse Engineering
Manufacturer's Warranty

Scanned Images

Reverse Engineering and Manufacturing by SHINING 3D on Sketchfab

Highlights

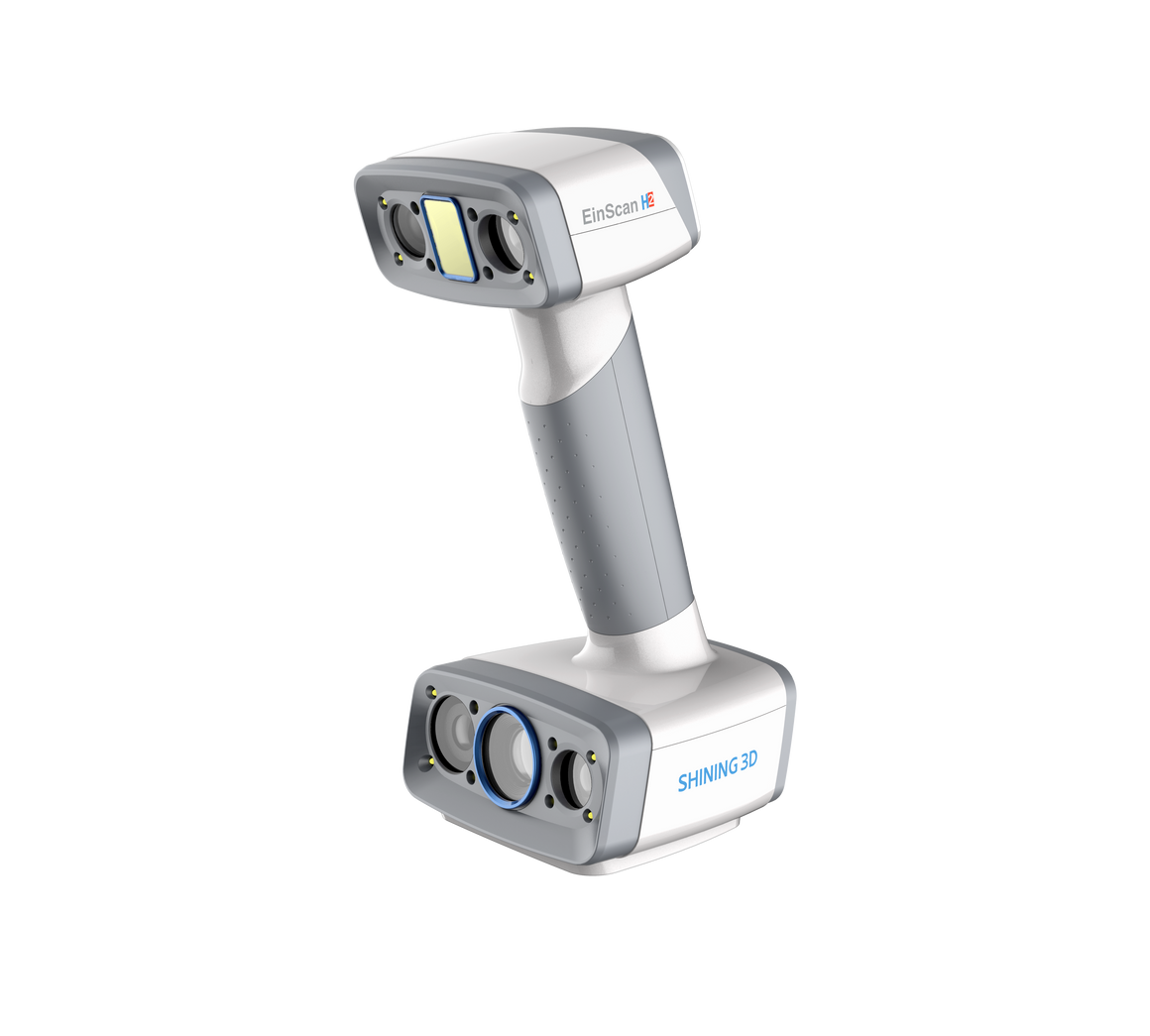

An Innovative Handheld 3D Scanner

The Einscan HX is a multi-functional handheld machine which is able to obtain 3D data quicker and more effectively than previous models. It is able to scan a variety of objects ranging from medium to large sized objects.

Continuous Tracking while you Scan

This continuous track and scan technology translates into an intuitive workflow where you simply need to "paint" over what you intend to scan, and the software will continuously add and refine the data as you pass over the areas.

Completely Plug & Play

Once the Einscan software is installed on your system, you're good to go! The HX is ready for use straight out of the box!

A collection of screens showcasing the einscan software

A scan displayed within the software interface

Accessible High Resolution 3D Modeling

The HX is a straight-forward 3D scanning experience for technical users, making it perfect for adding to your workflow!

Quick Scanning with Rapid Scanning Mode

As long as there are enough details on your model, you can scan the object in rapid scan mode without worrying about trackers, preparation or cameras.

Highest Quality Results with Laser Scanning Mode

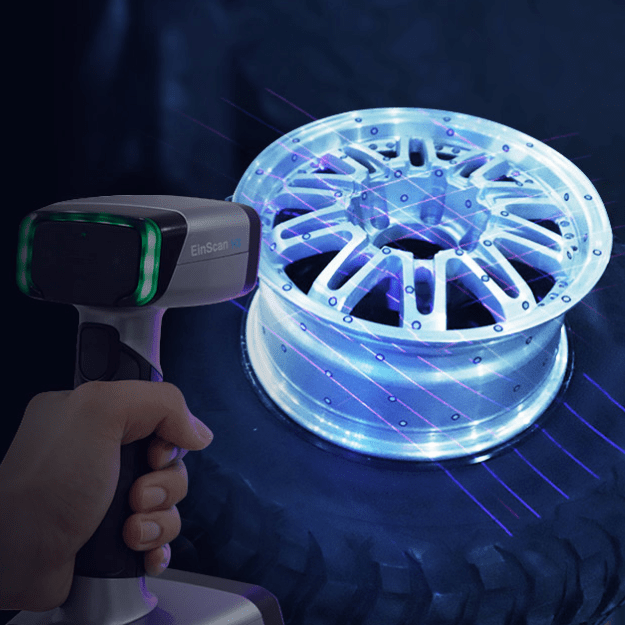

For more accurate results in handheld mode, you can additionally place tracking markers (included with the scanner) on your object for higher tracking precision with the same workflow as Rapid Scan Mode.

A Fast, Accurate, & Reliable digital solution

The HX is capable of delivering accurate data quickly and effectively. This machine is perfect to use for reverse engineering, archiving, or heritage preservation.

Fixed Mode for Max Accuracy

Once the scanner is locked in place, triangulation of the scan target's features is able to be optimized for it to take a high resolution point cloud snapshot within seconds. Each new scan will automatically be aligned to the previous scan until the whole object is fully digitized.

Overview

High Efficiency

Processing speed of the EinScan HX under Rapid Scan Mode is up to 1,200,000 points/s. Multiple blue laser lines are projected when using Laser Scan Mode, which allows for scanning of most objects to be completed in merely minutes. This makes the EinScan HX ideal for use in projects involving reverse engineering, CAD/CAM, and 3D printing etc.

Hybrid Blue Laser & LED Light
Innovatively integrated with dual blue LED light and blue laser technology, the EinScan HX benefits from improved scanning adaptability with less limitations for a wider range of applications. LED light scanning allows for rapid 3D scanning. Laser scanning (which is less sensitive to ambient light), gives better performance when scanning a reflective or dark coloured surface.

Scan Faster than Ever Before
The latest development in data capture hardware and optimized algorithms make the next-generation EinScan HX series a dramatic breakthrough in scanning speed and processing. Process up to 480,000 points per second (55 fps) under Laser Scan Mode.

Portable & User-friendly Design
With a lightweight and compact size, you can easily take the EinScan HX anywhere, just like your laptop! Enjoy plug-and-play installation and a limitless scanning experience.

FAQ

How can I scan dark, reflective objects?

The best way to get an accurate scan for an item which is dark and/or reflective is to spray your object with a matte spray like Aesub. This allows the scanner to accurately pick up all the details of your object.

How does this compare to Photogrammetry?

Photogrammetry (while able to produce decent results with just software and any camera available) still has a few flaws. There are many variables which can affect the accuracy of your scan including camera lens distortion, settings, lighting and shadows. With the EinScan HX, everything is self contained within the unit. It projects it's own light and allows for the use of HDR mode to vastly simplify the setup and repeatability of your scans. To learn more, check out the Einscan Pro 2X 2020 Vs. Photogrammetry blog post!

How does Meshing work?

Once you are happy with the point cloud data, you can delete the points you don't need with an intuitive lasso tool right inside the scan program. You are then able to process the point cloud into a water tight mesh. Everything is automated with custom controls, allowing for the production of usable high resolution meshes with ease and predictability. Speak to our Scanning experts to see if the HX is the right scanner for you.

Useful Links

Why Choose EinScan

User Friendly and Highly Detailed

Every scan generates a mesh of high-quality 3D data, allowing you to reconstruct the real geometry of any object with fine details. The EinScan HX also utilizes a visible white light when scanning.

Easy Operation, Faster Scanning
One-click scanning makes your life easy, with automatic calibration and no rigid set-up required. The EinScan HX is able to process up to 1,200,000 points per second, (20 fps) under Rapid Scan Mode.

Compatible with 3D Printers
The Einscan HX is able to auto mesh 3D data meaning you get water-tight prints every time! You can also seamlessly connect to a variety of 3D printers once you provide API access for your machine.

One Click Upload for Online File Saving and Data Sharing
This machine allows for support of third-party data sharing platforms in order to access the cloud service. This allows the benefit of one-click uploads for online file archiving or data sharing.
