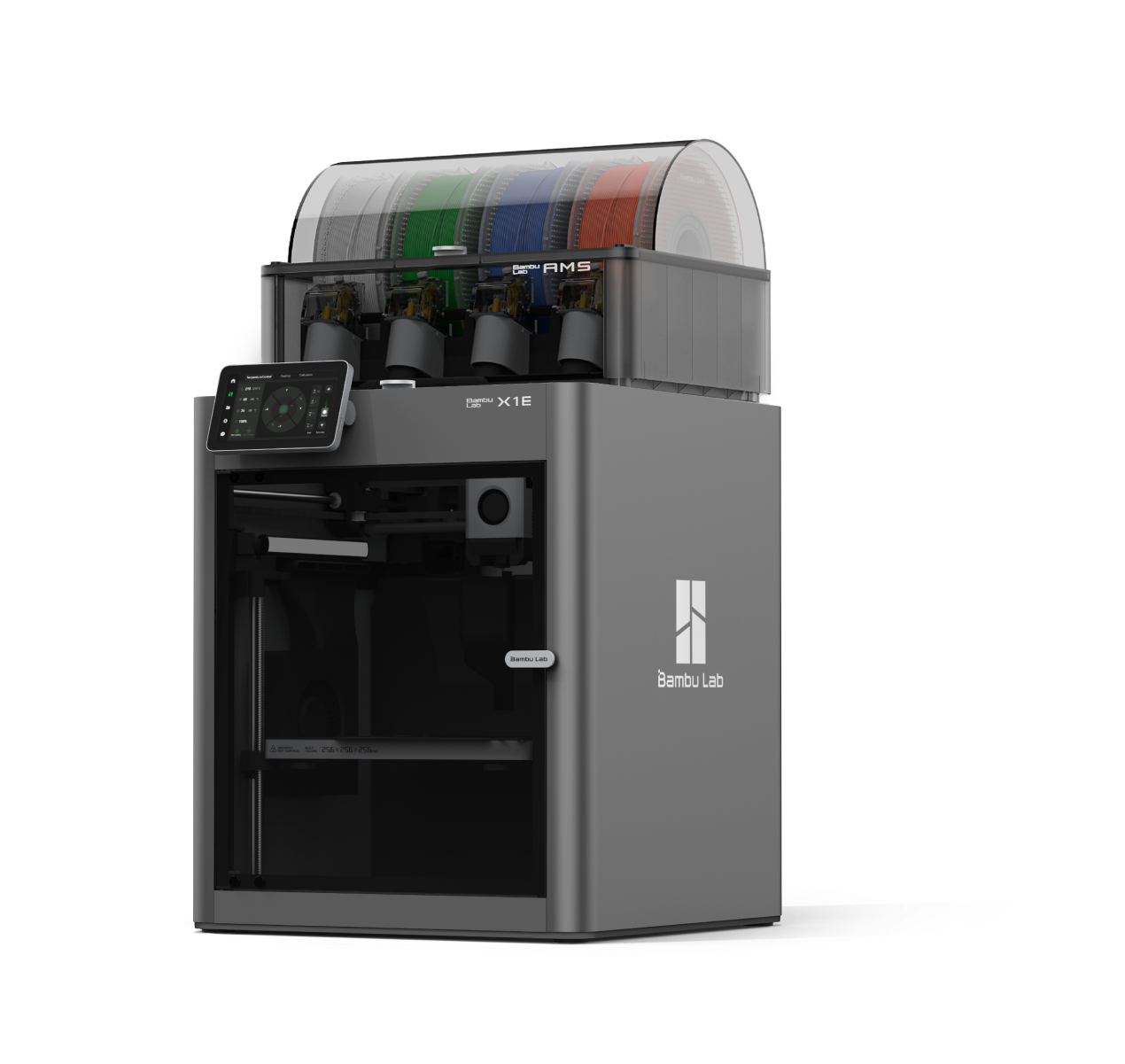

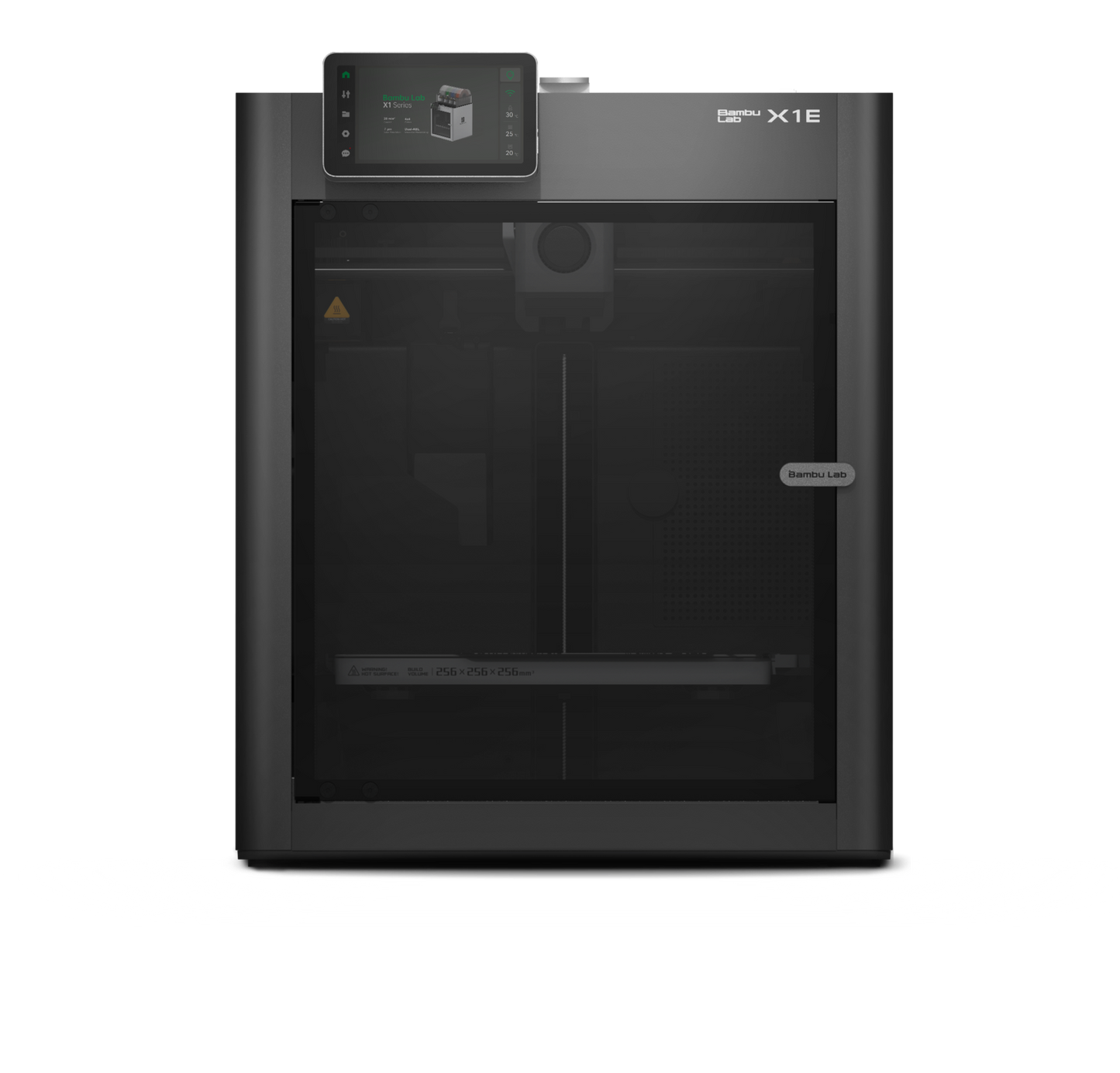

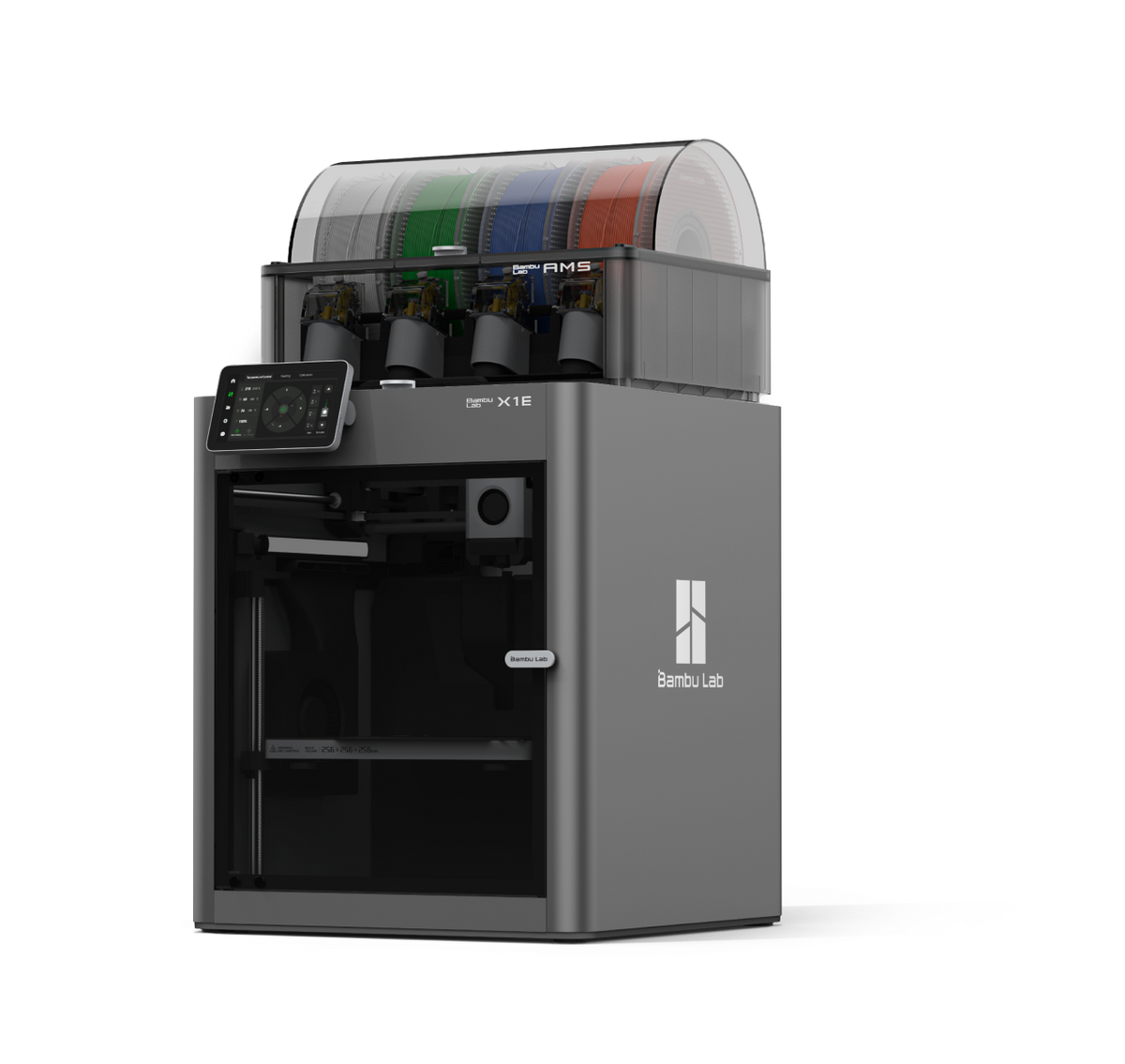

Bambu Lab X1E 3D Printer (w/ESA/ETL Certification)

Product SKU: Bambu-Lab-X1E

Available Stock:
Loading...
This item is available from our sales team, please request a quote. Or contact us
Printer

Restocked!

All Bambu Printers from Shop3D are certified in Canada by Intertek Canada and have a certification label affixed to the back of each unit. This label is accepted by all electrical regulatory authorities in Canada. All printers are new from Manufacturer but maybe opened for inspection by Canadian Electrical Authorities.

Seamless 3D Printing: The X1E Revolution

* The AMS is included in the X1E Price. *

Get ready to experience 3D printing like never before with the X1E. This cutting-edge 3D printer takes connectivity to the next level, offering Ethernet and WPA2-Enterprise Wi-Fi for a secure and seamless experience. Say goodbye to internet hassles as it operates independently in LAN-only mode, and with its powerful air filtration, your creative space will always be fresh.

Enjoy warp-free prints and impressive layer bonding thanks to precise chamber temperature control and a high nozzle temperature. Plus, the CoreXY motion system brings speed and stability to your creations. Embrace the future with AI failure detection and intelligent filament management, making your 3D printing journey efficient and full of possibilities!

Download Technical Data Sheet

Technical Specs

Wifi
  • Frequency Range: 2400 MHz - 2483.5 MHz
  • WPA2-Enterprise: EAP-PEAP, EAP-TLS, TAP-TTLS

Ethernet
  • Socket: RJ45
  • Speed: 100 Mbps / Full Duplex

Supported Filaments
  • Optimal: PLA, PETG, TPU, PVA, BVOH
  • Superior: ABS, ASA, PC, PA, PET, Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA
  • Ideal: PPA-CF/GF, PPS, PPS-CF/GF

Heating
  • Active Chamber Heating: Yes
  • Maximum Chamber Control Temperature: 60℃

Air Purification
  • Pre-filter grade: G3
  • HEPA filter grade: H12
  • Activated Carbon Filter type: Coconut Shell Granulated
  • VOC Filtration: Optimal
  • Particulate Matter Filtration: Yes

Network Control
  • Ethernet: yes
  • Wireless Network: Wi-Fi
  • Network Kill Switch: Wi-Fi & Ethernet
  • Removable Network Module: Yes
  • 802.1X Network Access Control: Yes


Toolhead
  • Hot End: All-Metal
  • Extruder Gears: Hardened Steel
  • Nozzle: Hardened Steel
  • Max Hot End Temperature: 320 ℃
  • Nozzle Diameter (Included): 0.4 mm
  • Nozzle Diameter (Optional): 0.2 mm, 0.6 mm, 0.8 mm
  • Filament Cutter: Yes
  • Filament Diameter: 1.75 mm

Heatbed
  • Build Plate: Flexible Steel Plate
  • Build Plate Surface (Included): Bambu Textured PEI Plate
  • Build Plate Surface (Optional): Bambu High Temperature Plate, Bambu Smooth PEI Plate, Bambu Cool Plate
  • Max Build Plate Temperature: 110℃@220V, 120℃@110V

Speed
  • Max Speed of Toolhead: 500 mm/s
  • Max Acceleration of Toolhead: 20 m/s²
  • Max Hot End Flow: 32 mm³/s @ABS (Model: 150*150mm single wall; Material: Bambu ABS; Temperature: 280℃)

Sensors
  • Bambu Micro Lidar: Yes
  • Chamber Monitoring Camera: 1920*1080 Included
  • Door Sensor: Yes
  • Filament Run Out Sensor: Yes
  • Filament Odometry: Optional with AMS
  • Power Loss Recover: Yes

What's In The Box

Highlights
Enhanced And More Connection Options

Stable Ethernet Connection, WPA2-Enterprise Authentication Wi-Fi Connection

The X1E offers the option to connect to your devices through its newly added Ethernet port, ensuring robust network communication in complex environments. Ethernet connectivity can also be used in crowded wireless signal environments. Additionally, the X1E provides WPA2-Enterprise Wi-Fi Authentication (EAP-PEAP/EAP-TLS/TAP-TTLS) and individual physical kill switches for both Wi-Fi and Ethernet, meeting stringent network security requirements.

Off-Cloud Operation

Fully Functional With LAN Only Mode

The X1E can operate independently without a connection to Bambu Cloud Service, fully functional within your local network. Customers can remotely control the X1E through LAN communication without requiring an Internet connection. For additional customization details, please contact your regional reseller.

Heavy Duty Air Filtration

Effectively Filter Particulates And VOCs Generated by 3D Printing

We combined a G3 pre-filter, an H12 HEPA filter, and a high-quality coconut shell activated carbon filter to provide optimal air filtration. Enhanced filtration can effectively reduce excessive odors and particulates when printing in less ventilated environments.

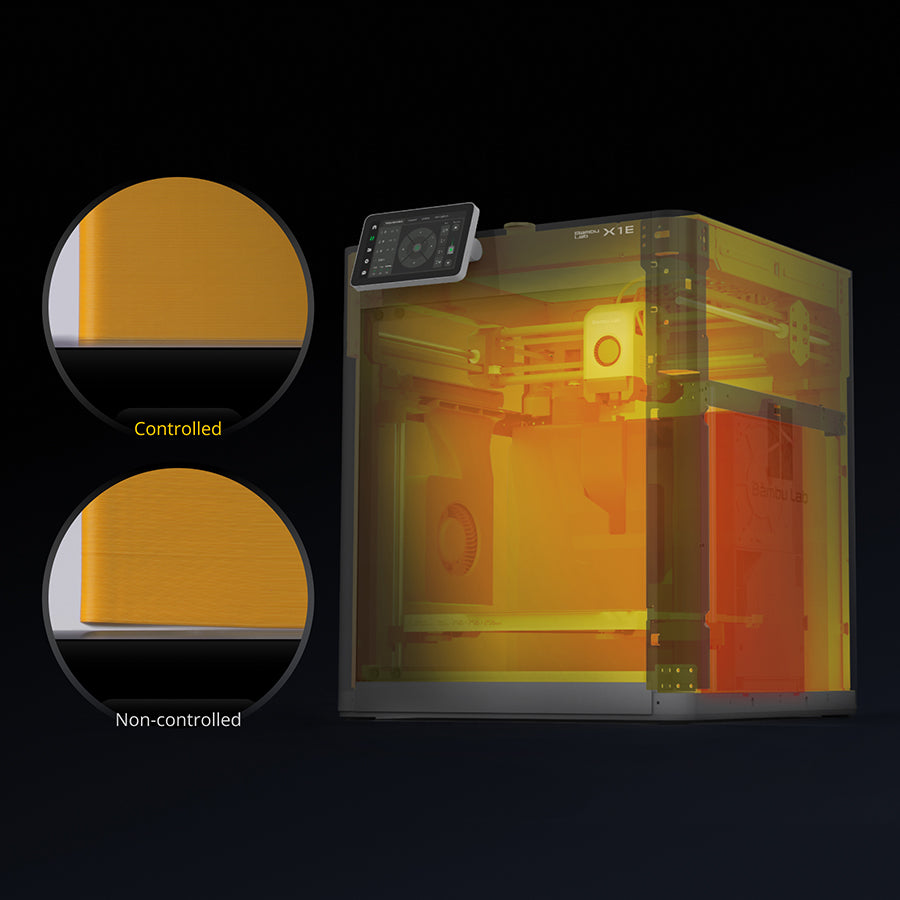

Active Heating And Controlled Chamber Temp

Reduce Warping, Improve Layer Bonding

The X1E can actively heat and regulate the chamber temperature. Accurately controlled chamber temperature (up to 60°C or 140°F) improves print quality, especially for filaments prone to warping such as ABS and PC.

320 °C (608 °F) Nozzle Temp

More Heat For Higher Temperature Materials

Higher nozzle temperature make possible to print higher performance materials such as PPA-CF/GF, PPS and PPS-CF. These new materials have better dimensional stability, heat resistance and mechanical performance.

Robust High Speed CoreXY

Super Fast And Rigid Structure For Continuous High Speed Printing

The superior carbon-fiber rods in the CoreXY motion structure enable the X1E to achieve a toolhead acceleration of 20,000 mm/s² by reducing the weight of moving parts. This faster acceleration allows the X1E to maintain its maximum travel speed of 500 mm/s for longer periods, significantly reducing overall print time.

Vibration And Extrusion Compensation

Stable & Quality Prints Even At Higher Speeds

X1E can actively compensate for XY-axis vibrations and extrusion issues to ensure exceptionally smooth print quality. All measurements are fully automatic, eliminating the need for manual adjustments.

AI Failure Detection

Reduce Filament Wastage And Machine Downtime

The X1E's AI algorithm can detect first-layer imperfections and spaghetti failures with the assistance of Lidar and computer vision. It then automatically pauses the print to prevent catastrophic failures.

Intelligent Filament Management

Supports Auto Filament Reload and Enables Multi-Material Printing with Support Material for Improved Surface Quality

X1E can parallel connect 4 Bambu AMS systems to print with up to 16 spools of filaments, good for printing dedicated support materials for seamless surface and printing multi-color. The AMS system also supports automatic filaments reload, to used up all filament on one spool before switching to the next.

Notes From Our Tech Team
  1. Please do not "hotswap" the hotend on the X1E, power down the printer before disconnecting and reconnecting the wires from the Hotend to the connection board, and the extruder board, failure to follow instructions may damage your board electronics.
  2. During initial unpacking of your X1E please ensure that the anti-vibration block is removed during unboxing. Photo reference below:
