Formlabs Standard Resin Cartridge (1 Litre OEM)

Formlabs Standard Resin Cartridge (1 Litre OEM)

Formlabs Standard Resin Cartridge (1 Litre OEM)

SKU:RS-F2-GPWH-04
Version
$185.00 CAD
Sale
Sold out

Price

$185.00 CAD $214.00

Stock

Request a Quote | Email This Page

V4.1 resin is not compatible with the Form 2 printer. Please contact sales for further details.

Formlabs is updating the formulation of standard resins from V4 to V4.1. The new formulation is similar to the new V5 version from the Form 4, it will be incompatible with V4 and will require a new resin tank. V4 will be gradually phased out.



Clear, Black, Grey and White Standard Resin
3D print strong, precise concept models and prototypes that bring your ideas to life with Formlabs’ library of Standard Resins. With a matte surface finish, opaque appearance, and precise details, prints are ready to use right off the Form 3. Their neutral undertone makes a great base for parts that will eventually be painted or undergo other finishing processes.

What's Included

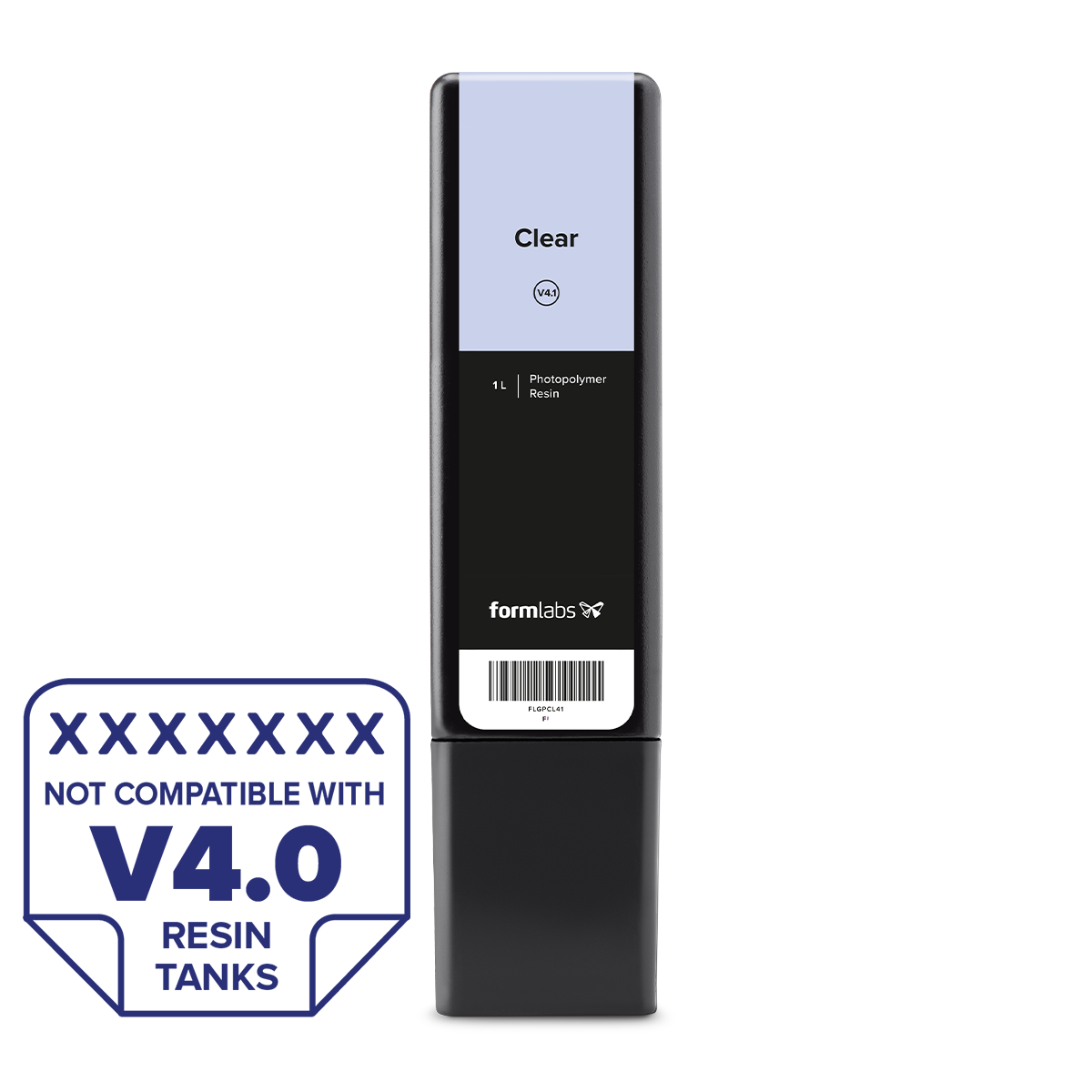

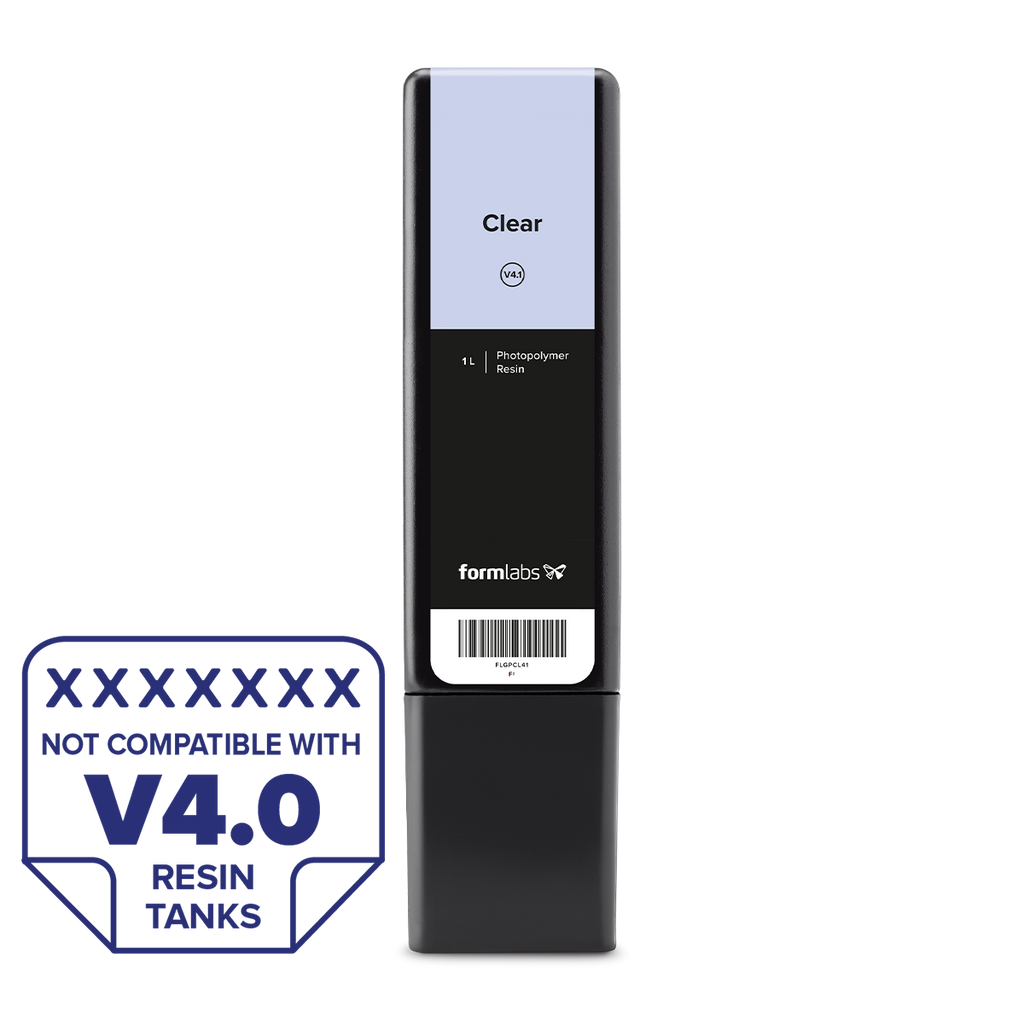

  • Clear Resin V4) polishes to near optical transparency, making it ideal for working with light or showcasing internal features. Supports print resolutions: 100, 50, and 25 microns.
  • White Resin (V4) captures smooth surfaces and details, making it great for presentation-ready pieces or as a base for painted prints. Supports print resolutions: 100 and 50 microns.

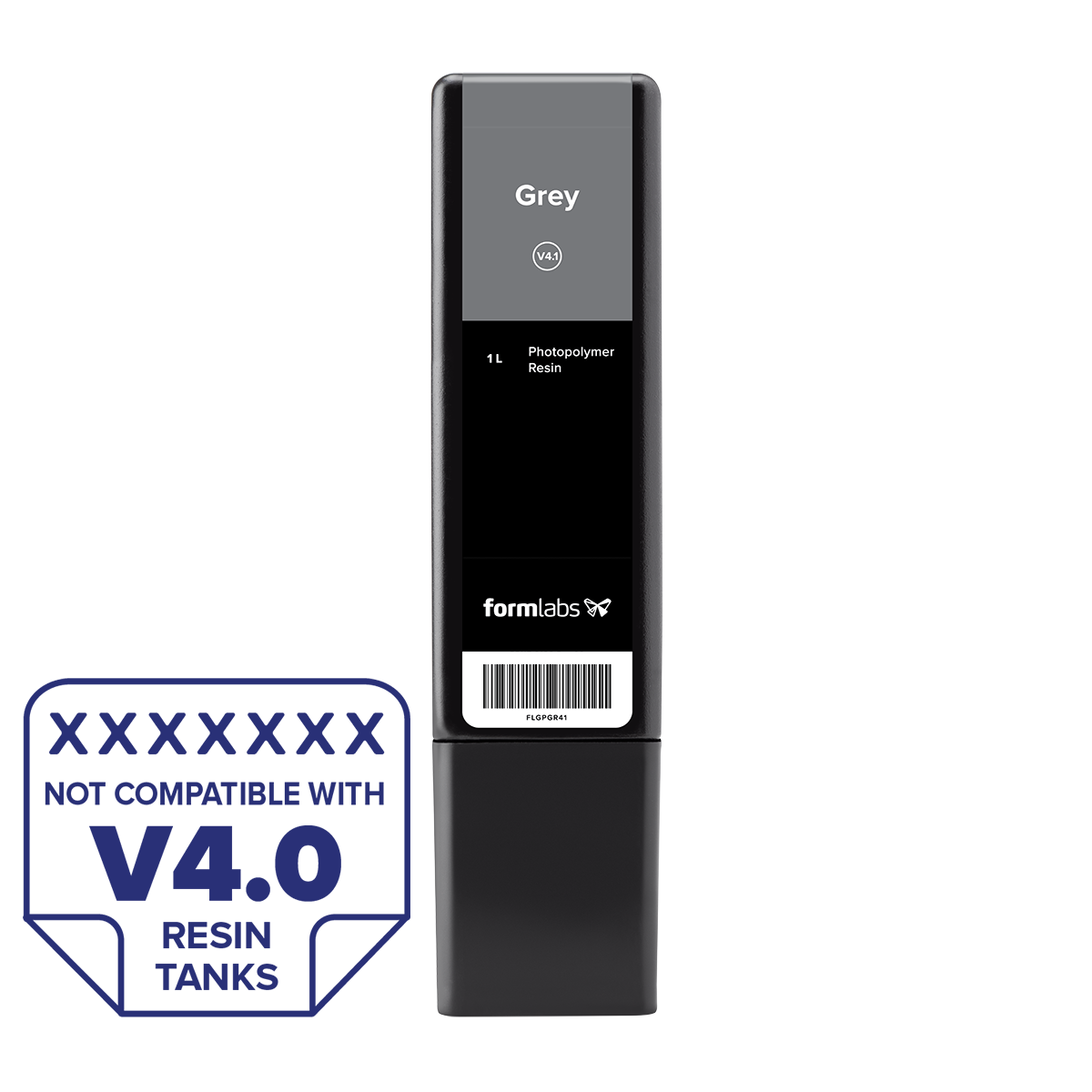

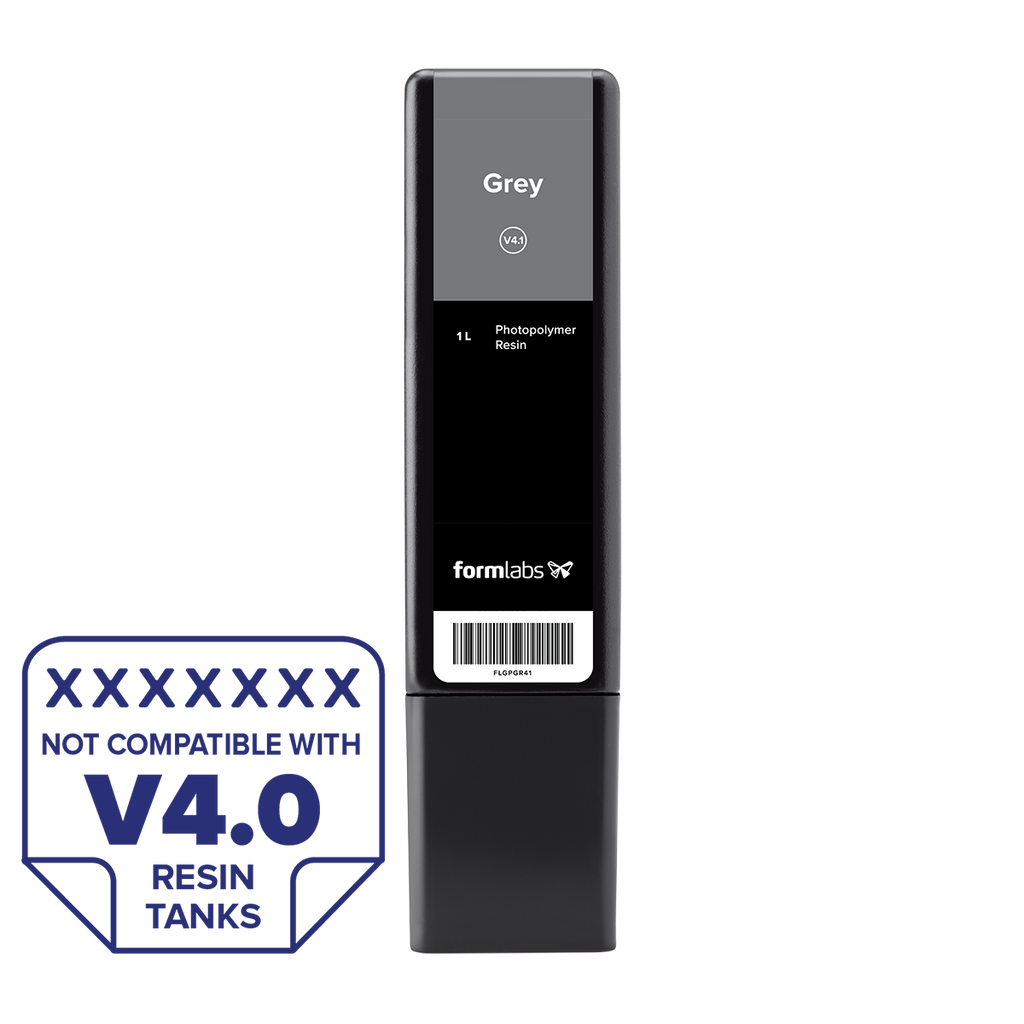

  • Grey Resin (V4) is perfect for general purpose prototyping and design, excellent for capturing small details. Supports print resolutions: 100, 50, and 25 microns.

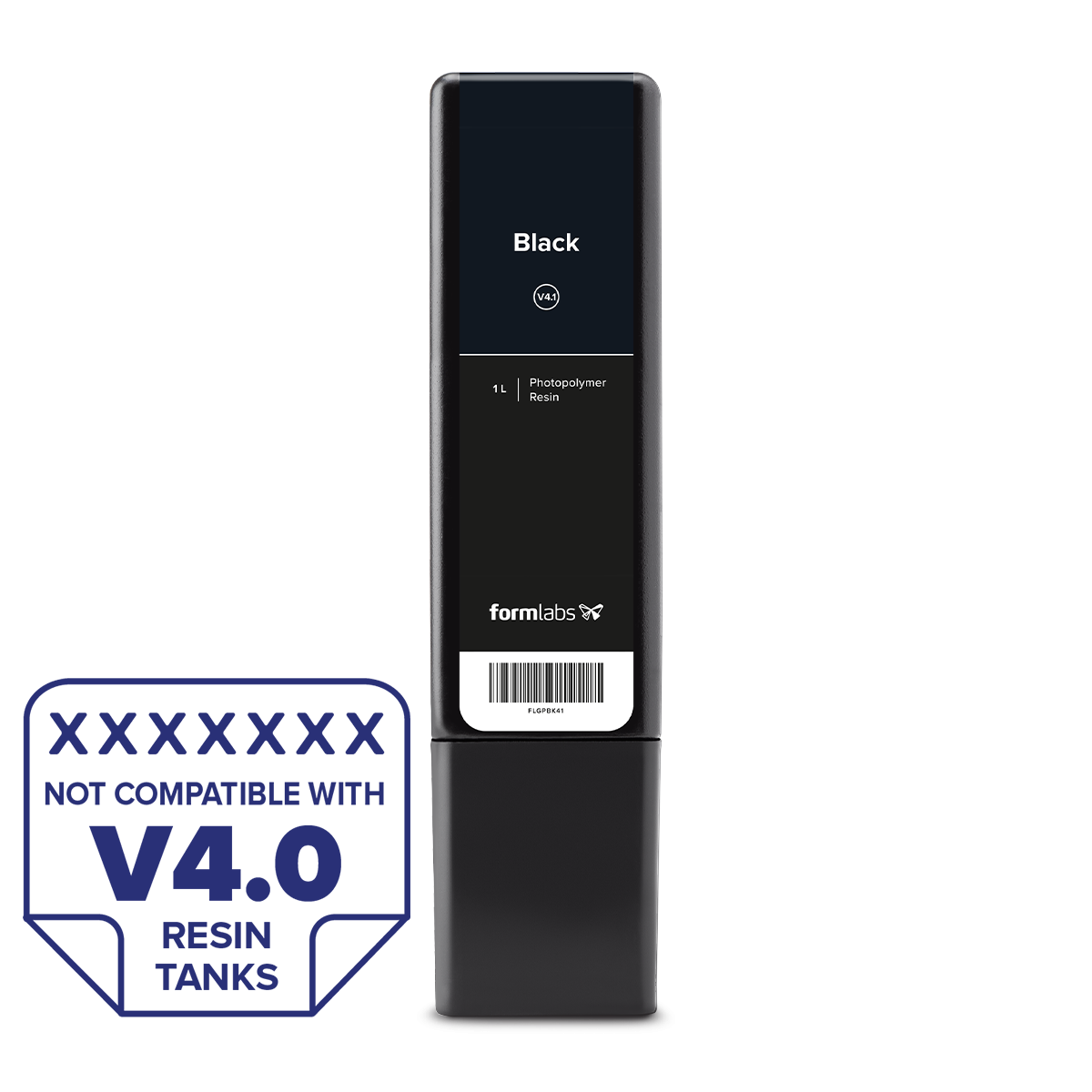

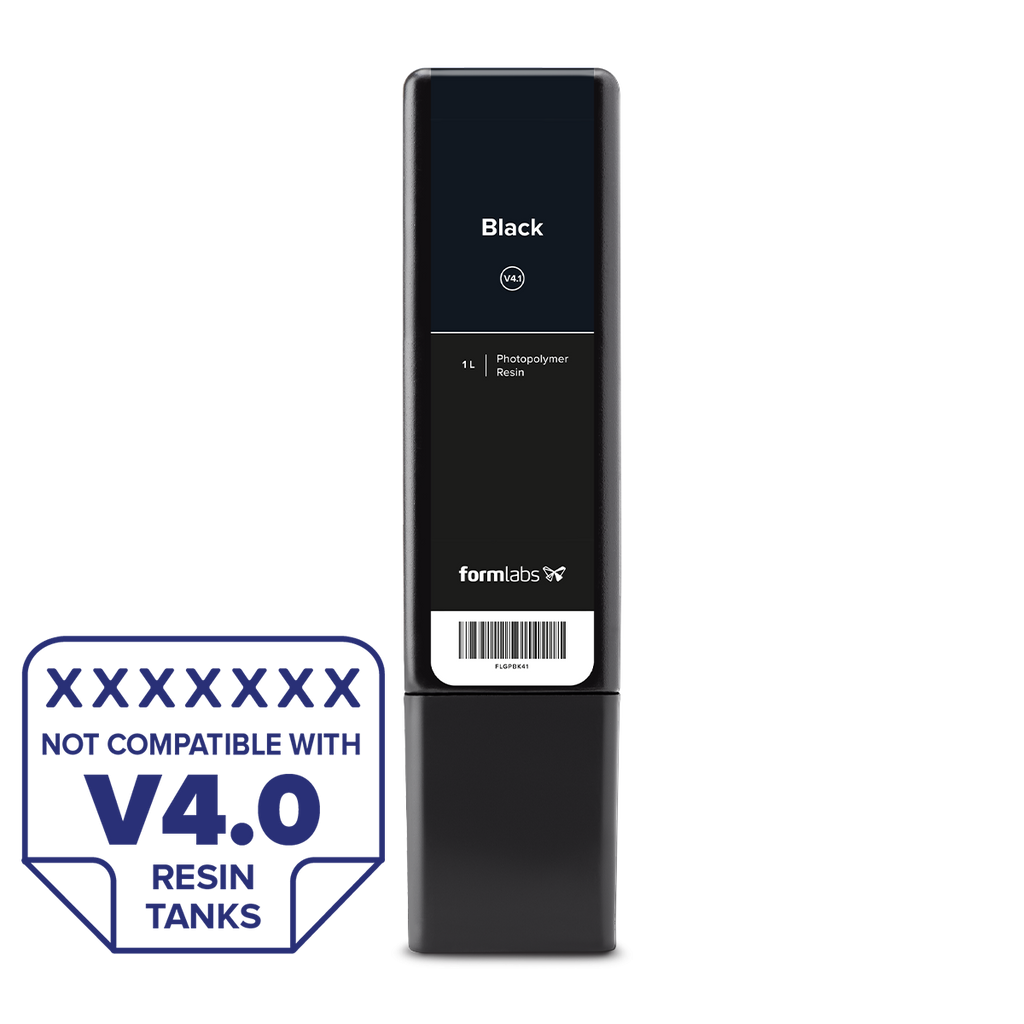

  • Black Resin (V4) is formulated for models with very small features and intricate details.  Supports print resolutions: 100, 50, and 25 microns.
Overview

Outstanding performance. Excellent detail.
Custom-formulated to deliver the highest-quality output,
our standard resins capture astonishing detail without sacrificing strength.




Resin Details

Applications

High-resolution models, rapid prototyping, functional testing, product development

Documentation

General Purpose

Formlabs Material

Part of the Formlabs ecosystem

Technical Specs

Overview
Technology SLA
Material Compatibility
Printer Compatibility
  • Form 3
  • Form 3L
  • Form 3B
  • Form 3BL
Tank Compatibility
  • Form 3 Resin Tank
  • Form 3L Resin Tank
Material Properties
Heat Deflection Temp. @ 0.45 MPa 73 °C
Notched Izod 25 J/m
Flexural Modulus 2.2 GPa
Tensile Modulus 2.8 GPa
Elongation at Break 6%
Ultimate Tensile Strength 65 MPa

Resin Comparison Tool
