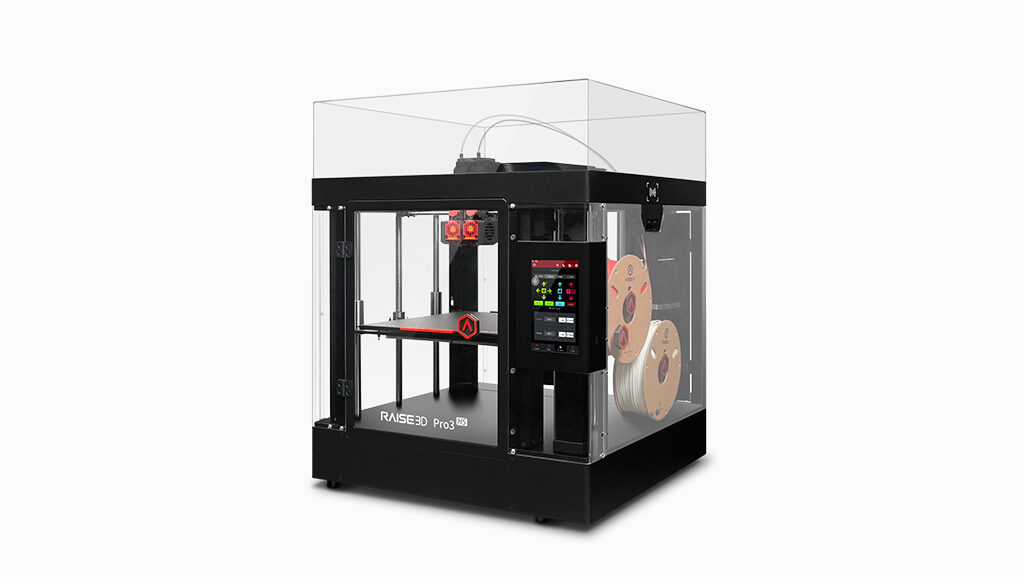

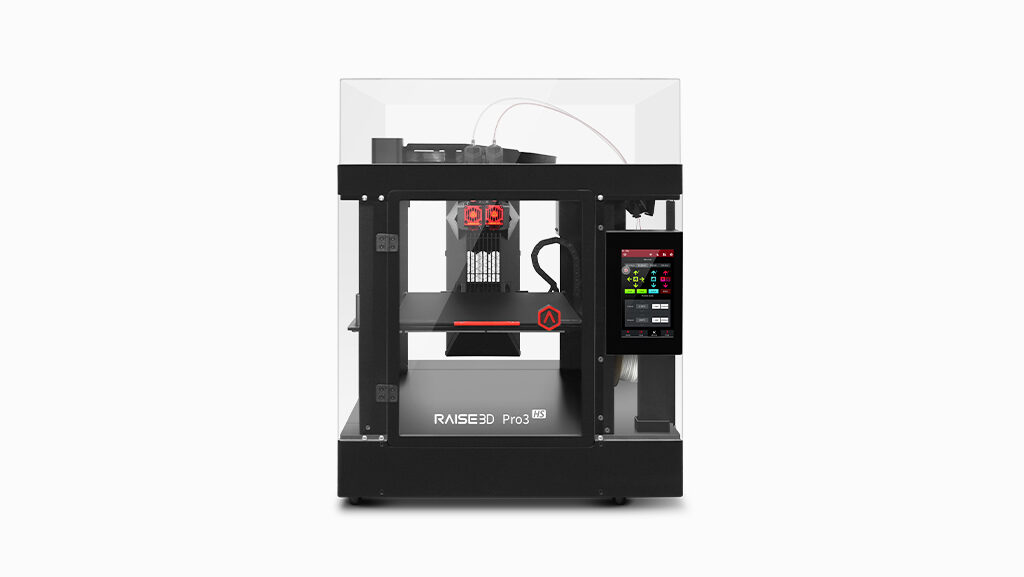

The Raise3D Pro3 HS Series is a powerful professional-grade machine that builds upon the various performance improvements introduced on Raise3D’s flagship Pro3 Series. It improves on printing speed, production efficiency and reliability. With the goal of bestowing general manufacturers and print farmers with the ability to produce small batches efficiently and reliably, whether they’re end-use parts or tooling fixtures.
Technical Specs
Overview
Technology
Fused Deposition Modeling, FFF
Build Volume / Work Area (L× W× H)
300 × 300 × 300 mm (11.8 × 11.8 × 11.8 inch)
Number of Extruders
2
Footprint (L× W× H)
620 × 626 × 760 mm (24.4 × 24.6 × 29.9 inch)
Net Weight
54 kg (119 lbs)
Material Compatibility
Compatible Materials
Hyper Core: PPA CF/ PPA GF/ ABS CF Hyper Speed: PLA/ ABS Industrial: PPA CF/ PPA GF/ PET CF/ PET GF/ PETG ESD/ PET Support/ PPA Support Premium: PLA/ ABS/ ASA/ PETG/ PC/ TPU-95A/ PVA+
Material Diameter / Thickness
1.75 mm
Performance
Layer Thickness
0.05-0.6 mm
Speed & Productivity
Maximum Speed
500 mm/s
Typical Operating Speed
10,000 mm/s²
Maximum Acceleration
10,000 mm/s²
Maximum Throughput / Flow Rate
30 to 35 mm³/s
Features
Maximum Nozzle Temperature
320ºC

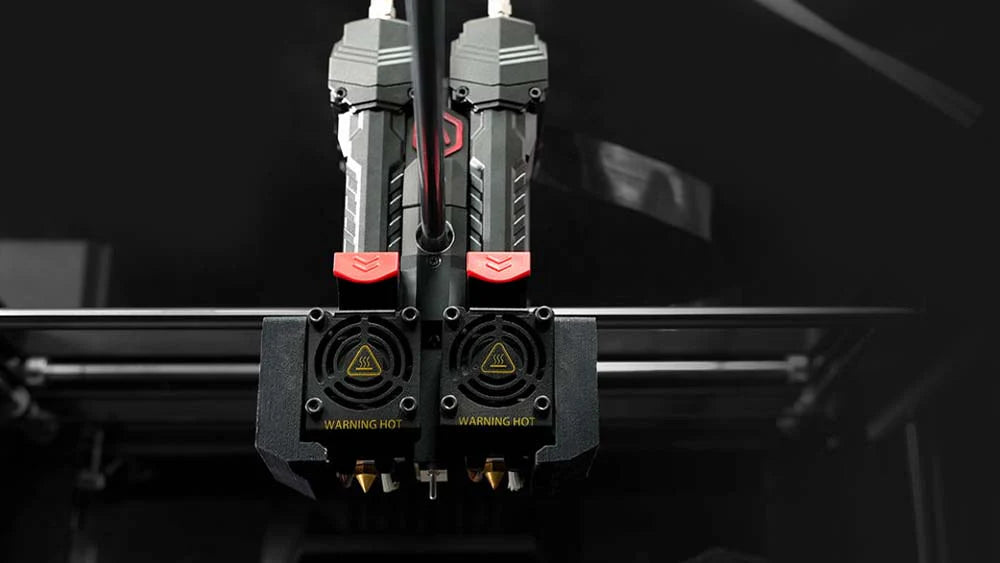

Extruder Type
Direct Drive Extruder
Supported Nozzle Diamete
0.2, 0.4, 0.6, 0.8 and 1.0 mm nozzles
Platform & Motion System
Included Build Plate
Flexible Steel Plate with Buildtak
Build Plate Compatibility
PEI and Smooth Pro 3 Build Plate
Heated Bed
Yes
Maximum Bed Temperature
120ºC
Sensors & Monitoring
Camera
Built-In Live HD Camera
Filament Detection
Supported
Power Loss Recovery
Supported
Software & Workflow
Supported File Types
STL/ OBJ/ 3MF/ OLTP/ STEP/ STP/ IGES/ IGS
Connectivity
Wi-Fi
Yes
Ethernet
Yes
USB
Yes, 2.0
Connectivity
Cloud-based management system: Raisecloud
Remote Monitoring
Remote monitoring in ideaMaker is powered by RaiseCloud, a web-based 3D printing management platform
Power
Input Voltage
100-240 V AC, 50/ 60 Hz 230 V @ 3.3 A
Typical Power Consumption
600 Watt
Maximum Power Consumption
24 V DC, 600 W
Safety and Compliance
ESA Certification
ESA/SGS Certification
Certifications
All Raise3D Printers from Shop3D are certified in Canada by eSafe Ontario or QAI Laboratories and have a certification label affixed to the back of each unit. This label is accepted by all electrical regulatory authorities in Canada.
Air Filtration
Yes, Hepa
Safety Features
STL/ OBJ/ 3MF/ OLTP/ STEP/ STP/ IGES/ IGS
Warranty and Support
Manufacturer Warranty
1-Year Manufacturer Warranty
Shop3D Warranty
1 Year Maunfacturer's Warranty
What's in the Box
Raise3D Pro3+ HS 3D Printer
Extra Bowden Tubes x2
Spool Holders x2
Metal Rods x2
Extra Collets x2
Alu - Buildtak plate (with auto-level pattern on it)
