Shining3D - Aoralscan 3 for Dental Use

Product SKU: Aoralscan3

Available Stock:
Loading...
Just Scan It!

Say hello to SHINING 3D‘s brand new intraoral scanner, Aoralscan 3! Exceptional, smart and elegant, Aoralscan 3 improves the overall clinical experience. It allows users to easily acquire vivid digital impressions in a faster and more accurate way. Moreover, Aoralscan 3 comes with a wide range of different intelligent functions, guaranteeing more comfortable chairside experience and efficient clinic-lab collaboration.

Technical Specs
  • Scan Field (Standard Tip): 16mm x 12mm x 22mm
  • Scan Field (Mini Tip): 12mm x 9mm x 22mm
  • Scan Principle: Non-contact scanner with structured light
  • Dimension (L x W x H): 281mm x 33mm x 46mm
  • Weight: 240 ± 10g (without cables)
  • Output: STL, OBJ, PLY
  • Connector: USB 3.0
  • Power Input: 12V DC/3 A

Recommended PC Configuration:

  • CPU: Intel Core i7-8700 or higher
  • RAM: 16GB or more
  • Hard Disk Drive: 256 GB SSD or above
  • Graphic Card (GPU): NVIDIA ® RTX 2060 6GB DDR3 or higher
  • Operating System: Windows 10 Professional (64-bit) or later versions of Windows operating systems
  • Screen Resolution: 1920×1080, 60 Hz or higher
  • I/O Ports: More than 2 Type-A USB 3.0 (or higher) ports
What's Included
  • Aoralscan 3 Intraoral Scanner
  • Standard Scanning Tip (x4)
  • Mini Scanning Tip (x1)
  • Quick Installation Guide
  • Disinfection Guide
  • Product Certificate
  • Practice Model
  • Calibrator
  • Cradle
  • Dust Cap
  • USB Flash Drive
  • USB Cable
  • USB 3.0 repeater
  • Power Adapter
  • Power Adapter Plug (x5)
Scanned Images
Highlights



User Friendly - Smart & Intuitive

With powerful and intelligent data processing capabilities, Aoralscan 3 is easy to maneuver. Even beginners can get an ideal scan results in minutes. The Aoralscan 3 comes with a new UI with a neater, and more user-friendly interface. It also has AI Scan capabilities which allows for automatic filtering of soft tissue data, resulting in a quicker scan process. Motion Sensing is also enabled to allow for a safe and efficient scan experience.


A Dentist using the Shining3D Software

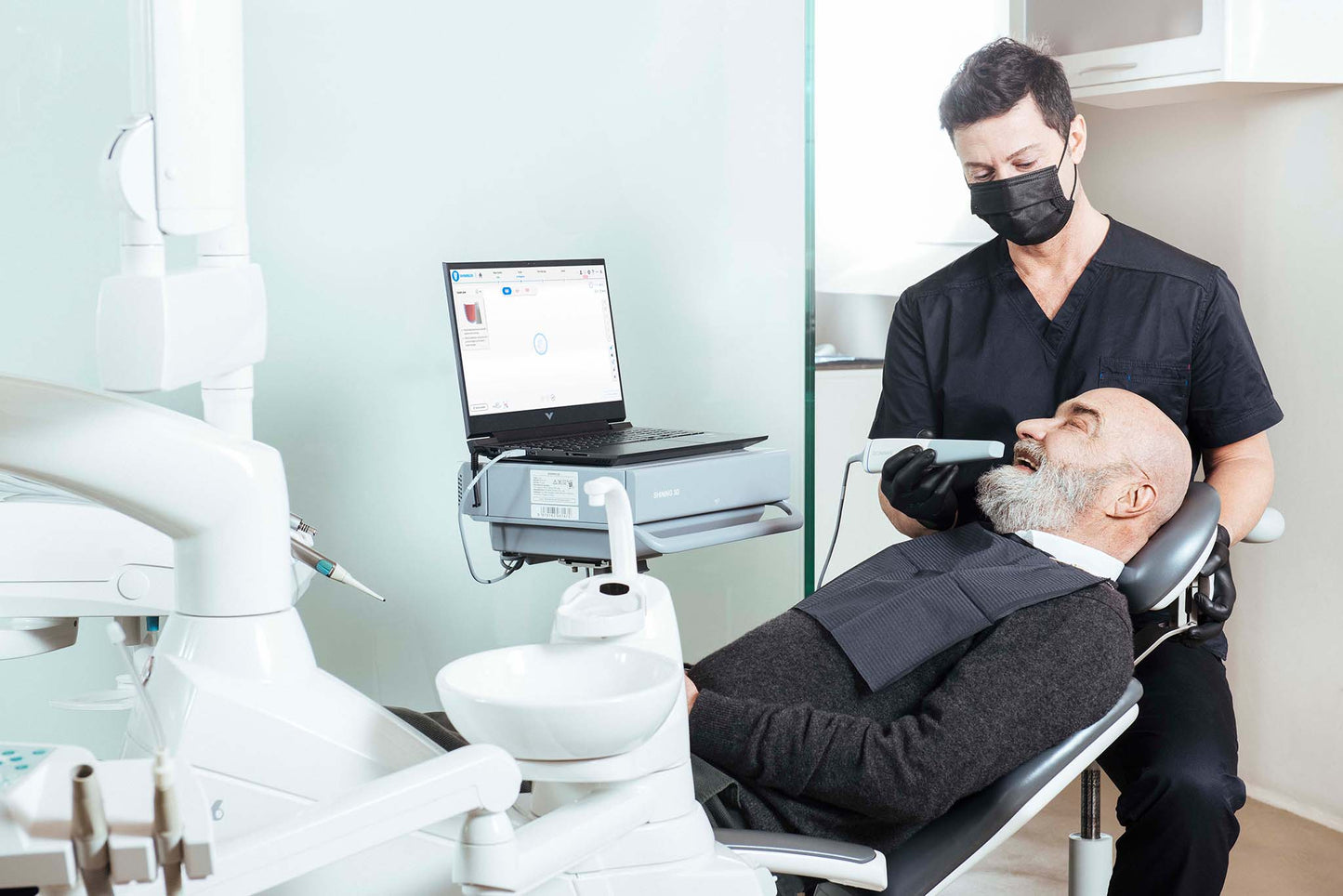

A Dentist scanning a patient's mouth using the Aoralscan 3



Clinical Toolkit Capabilities

The clinical toolkit assists dentists to evaluate and pre-design the scanned data in their own clinic. This helps to facilitates effective communication with dental labs resulting in quality dental work with high efficiency. The toolkit allows for users to perform an undercut check, bite check, margin line auto extraction, tooth marking, coordinate adjustment and ExoCAD exporting capabilities.



Intuitive Dentist-Patient Communication

Aoralscan 3, capable of more than just digital impression acquisition, is integrated with powerful 3D visualization tools to help dentists engage patients with their treatment plan and improve overall satisfaction. The Aoralscan 3 can generate an Oral Health Report, Ortho Simulation or can even perform a Scan-to-print Process to give your clients a better understanding of their oral health!

Dentist explaining results of scan to patient
Overview

Faster Scan

The scan speed is 30% faster than the last generation due to Aoralscan 3’s drastically upgraded scanning technology.

More Accurate Scan

Thanks to optimized algorithms and imaging mechanism, Aoralscan 3 carries out more accurate and precise results by 30%, meeting the clinical needs of different applications.


Longer Scan Tip

Slimmer and 15% longer autoclavable scanner tips offer patients with more comfortable clinical experience.

Greater Scan Depth

Aoralscan 3 is suitable for various clinical scenarios including acquiring scan bodies and periodontal scans.


FAQ
Which scanner is right for me?

Depending on the size of the object being scanned, there may be a better solution for your project within the Shining3D line-up. To figure out which machine is best suited for you, feel free to contact us at sales@shop3d.ca

Is Shining3D a reliable brand?

The Shining3D brand has been around since 2004, and was founded with a focus in R&D and manufacturing. They take pride in offering accessible and efficient high-tech solutions. Their technology has been successfully used in many industries such as automobile manufacturing, aerospace, mold manufacturing, electronics, consumer goods, dental, orthopedic, ancient artifacts, sculpture, architecture, energy, research and education, etc.

Why Choose Aoralscan

One Click Upload for Online File Saving and Data Sharing
Shining3D allows for support of third-party data sharing platforms in order to access the cloud service. This allows the benefit of one-click uploads for online file archiving or data sharing.

Easy Operation, Faster Scanning
One-click scanning makes your life easy, with automatic calibration and no rigid set-up required.

Compatible with 3D Printers
The Aoralscan 3 is able to auto mesh 3D data meaning you get water-tight prints every time! You can also seamlessly connect to a variety of 3D printers once you provide API access for your machine.

User Friendly and Highly Detailed

Every scan generates a mesh of high-quality 3D data, allowing you to reconstruct the real geometry of any object with fine details.

The EinScan Einstar Workflow
