Raise3D E2 IDEX 3D Printer

Product SKU: Raise3D-E2

Available Stock:
Loading...
Backordered: This item is available for backorder. Please contact us for lead times.
Next Batch ETA: Week of August 10th
Important details regarding the E2 IDEX's build volume found below, provided by the manufacturer Raise3D.

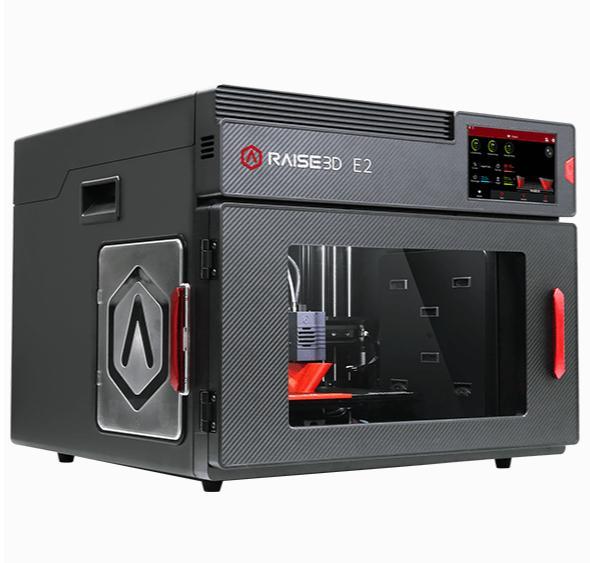

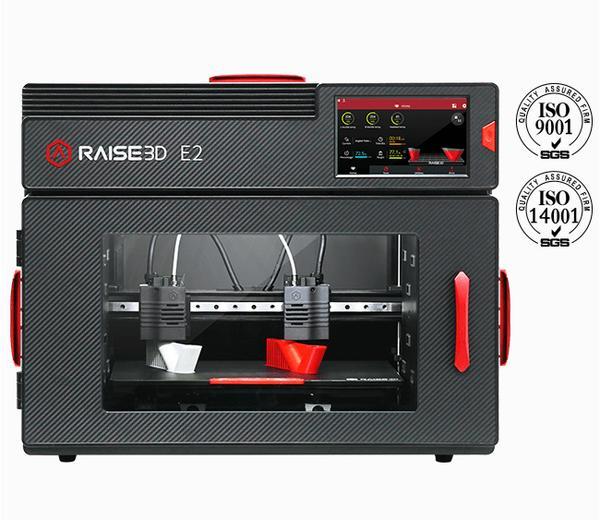

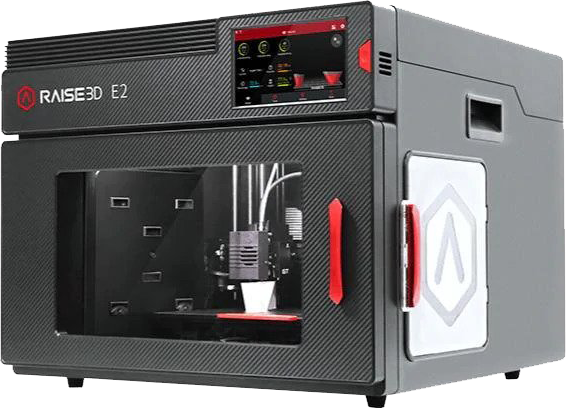

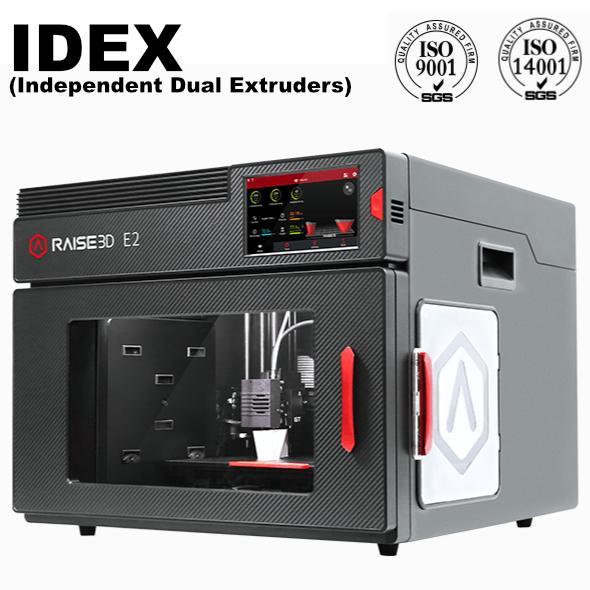

Raise3D E2 IDEX 3D Printer

An easy-to-use, durable desktop 3D printer ready to improve precision standards, scale production, and add a powerful new manufacturing resource.

Technical Specs
  • Print Technology: FFF
  • Build Volume (W×D×H):
    Single Extrusion Print: 13×9.4×9.4 inch / 330×240×240 mm
    Dual Extrusion Print: 11.6×9.4×9.4 in / 295×240×240 mm
  • Machine Size (W×D×H): 23.9×23.5×18.3 inch / 607×596×465 mm
  • Print Head: Independent Direct Drive Dual Extruders
  • Filament Diameter: 1.75mm
  • XY Step Size: 0.78125 micron
  • Z Step Size: 0.078125 micron
  • Print Head Travel Speed: 30 – 150 mm/s
  • Build Plate: Flexible Steel Plate with Buildtak
  • Max Build Plate Temperature: 110 ºC
  • Heated Bed Material: Silicone
  • Build Plate Leveling: Mesh-leveling with Flatness Detection
  • Nozzle Diameter: 0.4 mm (Default), 0.2/ 0.6/ 0.8/ 1.0 mm
  • Max Nozzle Temperature: 300 ºC
  • Connectivity: Wi-Fi, LAN, USB port, Live camera
  • Noise emission (acoustic): <50 dB(A) when building
  • Operating Ambient Temperature: 15-30 ºC, 10-90% RH non-condensing
  • Storage Temperature: -25 to 55℃, 10-90% RH non-condensing
Electrical
  • Power Supply Input: 100-240 V AC, 50/60 Hz 230 V @2 A
  • Power Supply Output: 24 V DC, 350 W
Software
  • Slicing Software: ideaMaker
  • Supported File Types: STL, OBJ, 3MF
  • Supported OS: WINDOWS / macOS / LINUX
  • Machine Code Type: GCODE
  • Printer Controller User Interface: 7 inch
  • Touch Screen Network: Wi-Fi, Ethernet
  • Resume Print after Power Outage: Firmware recording (no need for battery installation)
  • Screen Resolution: 1024*600
  • Motion Controller: ARM Cortex M7.400MHZ
  • FPU Logic Controller: Freescale i.MX6, Quad core 1Ghz ARM processor
  • Memory: 1GB
  • Onboard Flash: 8GB
  • OS: Embedded Linux
  • Ports: USB 2.0*2, Ethernet*1
Certifications
All Raise3D Printers from Shop3D are certified in Canada by eSafe Ontario or QAI Laboratories and have a certification label affixed to the back of each unit. This label is accepted by all electrical regulatory authorities in Canada.
Supported Materials
  • PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill
What's Included
  • Raise3D Printer
  • 2 extra filament guide tubes
  • 2 spool holders
  • 2 extra collets
  • Large cloth gloves
  • Allen Key set
  • Tweezers
  • Leveling feeler gauge
  • 2 x PLA rolls (red/white)
  • Buildplate scraper
  • Hepa Air Filteration
  • Webcam
Highlights
  • Direct Drive IDEX system
  • Massive Build Volume (330mm x 240mm x 240mm | 13in x 9.4in x 9.4in)
  • Down to 0.01 mm Layer Height
  • Built in Camera
  • HEPA Air Filtration
  • Diverse Filament Compatibility (Up to 300℃)
  • 32 Bit Motion Control Board
  • 7-inch Touch Screen
  • Resume Print after Power Loss
  • Filament run-out detection
  • Wireless Compatibility
  • Raise3D Cloud
  • Safety system (pause print when chamber is opened)
Overview

Two Independent Direct Drive Print Heads

3 Different Available Print Modes

Normal Mode - Print with one nozzle for single extrusion jobs or print in two colours or two materials at once by utilizing the independent head system.

Flexible Buildplate for Raise3D E2

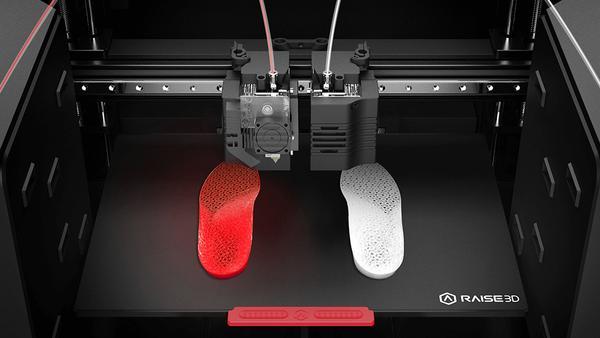

Duplication / Mirror Mode - Print using both print heads at the same time to cut down print production print time by 2. Load in two of the same filament into both print heads to take advantage of this mode. Both print heads will be doing the exact same thing on the left and right side of the bed. It is similar to having two printers in one.

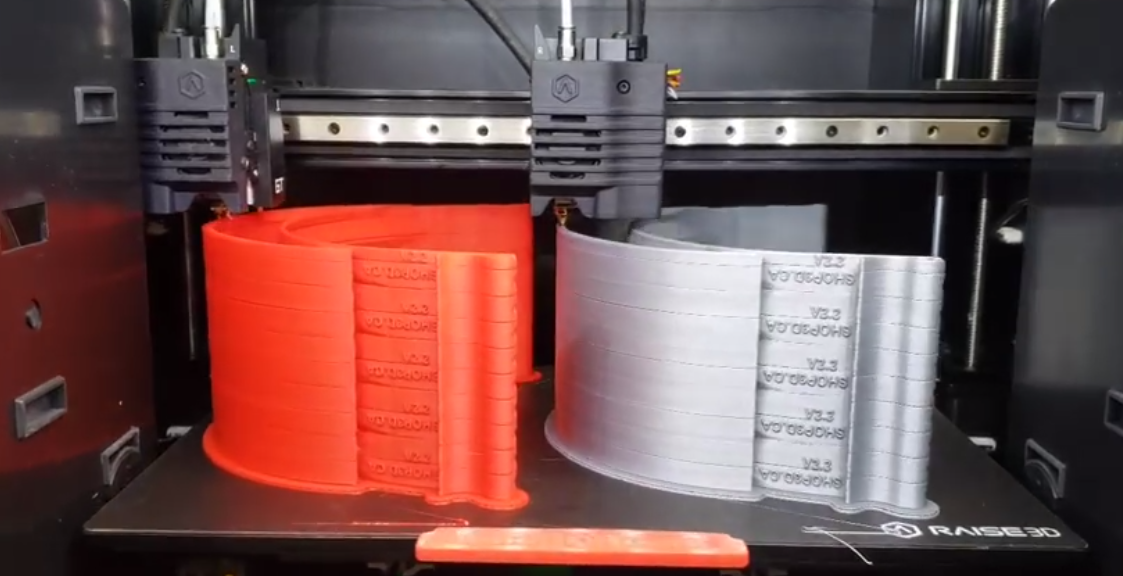

E2 Buildplate Sample

    Big Build Volume

    Single mode: 13×9.4×9.4 inch / 330×240×240 mm
    Dual mode: 11.6×9.4×9.4 in / 295×240×240 mm

    High Resolution

    Unique motion system for superior part quality and resolution

    • Interchangeable nozzles: 0.2 mm nozzle for finer X/Y detail
    • Precise positioning: 0.78125 micron positioning resolution on X/Y axis
    • Unmatched layer resolution: 0.01 mm layer thickness

    Industry First Video-Assisted Offset Calibration System

    Spend less time calibrating and more time printing! The built in camera system analyses the calibration pattern for you to minimize user error and improve dual head print quality.

    Capable of Printing a Variety of Filaments Up to 300℃

    PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill

    Intuitive User Experience

    7-inch Touch Screen

    Visual interface / Rapid reviewing / Visual print progress / Full adjustment control

    Power Loss Recovery
    • Automatically stores task progress prior to power failure.
    • Seamlessly resumes the most recent task after power is restored.
    Important Notice from Raise3D - Build Volume

    The Manufacturer, Raise3D has just informed us that there is an issue with the first delivery of E2 machines causing changes in the E2 build volume.

    The current models in circulation can achieve the following build volumes (all units are in millimetres):

    For single extruder mode: X330*Y224*Z228

    For dual extruder mode: X295*Y224*Z228

    The advertised build volume of this machine is 330 x 240 x 240 in single extrusion mode and 295 x 240 x 240 in dual extrusion mode. As you can see, the Y and Z maximum build dimensions do not match the original numbers.

    The Y axis build volume reduction is due to incorrect camera height that can be adjusted by 3D printing a part to relocate the camera. This will restore the Y build volume to the promised 240mm.

    The Z dimension currently can’t be corrected to the promised 240mm on these first batch units.

    E2 Diagram - Build Volume
