WAZER Desktop - Water Jet Cutter

WAZER Desktop - Water Jet Cutter

WAZER Desktop - Water Jet Cutter

Compact waterjet cutter for precise cutting of metals, plastics, composites, and more.
Configuration
SKU: WZR-101
$14,499.00 CAD
Sale
Sold out

Price

$14,499.00 CAD
Free Delivery does not apply for this order.

Stock

Request a Quote | Email This Page

Product Details

Technical Specs

Overview
Footprint (L× W× H) Waterjet Main Unit Size (Desktop): 34 x 26 x 22 in / 856 x 648 x 551 mm
Waterjet Main Unit Size (Standup): 34 x 26 x 48 in / 856 x 648 x 1220 mm

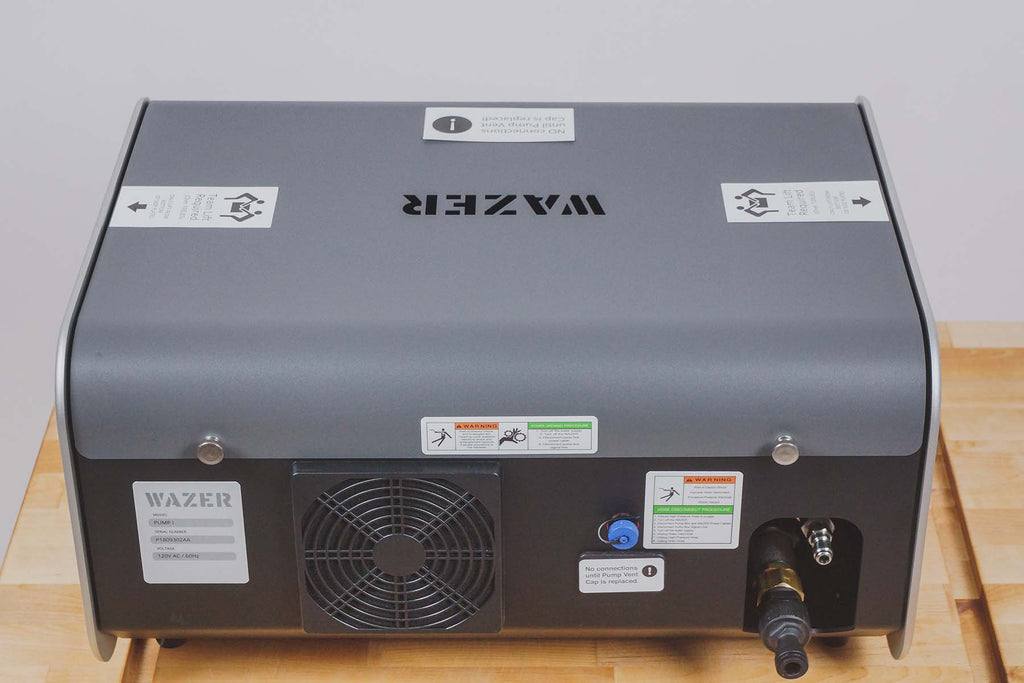

Pump Box Size: 21 x 15 x 10 in / 533 x 379 x 251 mm
Net Weight Waterjet Main Unit Weight (empty tank): 110 lb / 50 kg. Waterjet Main Unit Weight (filled tank): 400 lb / 180 kg. Pump Box Weight: 92 lb / 42 kg
Cutting Area 12 x 18 in / 305 x 460 mm
Platform 13 x 19 in / 330 x 485 mm
Material Compatibility
Compatible Materials Cuts metal, glass, plastic, composites, tile, rubber, foam
Performance
Kerf Width 0.044 in / 1.2 mm
Maximum Cutting Thickness Varies by Material
Cutting Speed Depends on Material and Thickness.
Continuous Cutting Time 60 min (prior to refilling the abrasive hopper)
Speed & Productivity
Maximum Speed Depends on Material and Thickness.
Gantry Max Speed 59 IPM / 1,500 mm/min
Gantry Positional Accuracy 0.003 in / 0.08 mm
High Pressure Water Specs
Orifice Diameter 0.019 in / 0.48 mm
Orifice Material Ruby or Sapphire
Mixing Tube Diameter (internal) 0.045 in - 1.1 mm
Input Water Specs
Water Source Filtered Tap Water
Input Water Filter 300 Mesh
Input Water Pressure Minimum: 35 psi / 2.4 bar
Input Water Flow Rate Minimum: 1GPM / 3.8L/min
Input Water Hardness Maximum TDS: 180 ppm / 180 mg/L
Input Water Temperature Maximum: 130 °F / 54 °C
Water Drainage Specs
Water Drain Distance from Waterjet Maximum: 30ft / 9m
Water Drain Height above Waterjet Maximum: 4ft / 1.2m
Water Drainage Flow Rate Maximum: 1.5 GPM / 5.7L / min
Water Recirculation Not Recommended
Platform & Motion System
Platform 13 x 19 in / 330 x 485 mm
Abrasive Specs
Abrasive Rate 0.33 lb/min / 0.15 kg/min
Abrasive Hopper Capacity 30 lb / 13.5 kg
Abrasive Material 80 Mesh Alluvial Garnet
Software & Workflow
Supported File Types Compatible Input Design File Types: .dxf, .svg. Output Cut File Type: /gcode
Connectivity
Connectivity Offline. No internet required to run the Waterjet. Connectivity to WAZER Waterjet: SD Card
Power
Typical Power Consumption 110V / 60Hz WAZER (North America):
Compatible with all countries whose electrical standard is 110V / 60Hz
Waterjet Main Unit: 100-240 VAC, 50/60Hz, 2A, 200W
Pump Box: 110-120 VAC, 60Hz, 14A, 1,500W
Safety and Compliance
Certifications The WAZER - Water Jet Cutter is cUL Compliant and comes with a cUL marking
Warranty and Support
Manufacturer Warranty 1 year
MISC Specs
Noise Emission 74 +/- 3dB
Noise Pressure Level 87 +/- 3dB
Room Temperature Operating: 32 – 160 °F / 0 – 70 °C
Storage: 32 – 104 °F / 0 – 40 °C

What's in the Box

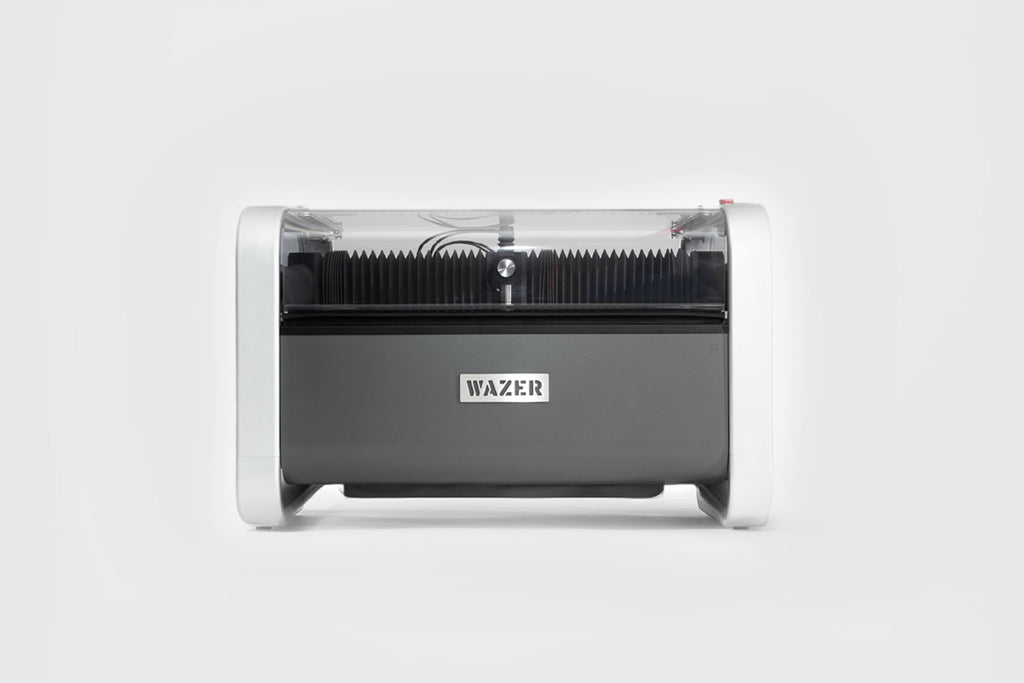

Wazer Desktop

  • WAZER (Main Unit)
  • 1x Cut Bed (Spare)
  • 2x Abrasive Bucket
  • 2x Water Sensors
  • 1x Accessory Kit
  • 1x Setup Kit
  • 1x Plumbing Kit
  • 1x Misc. Spare Parts
  • 1x User Manual
  • Pump Box

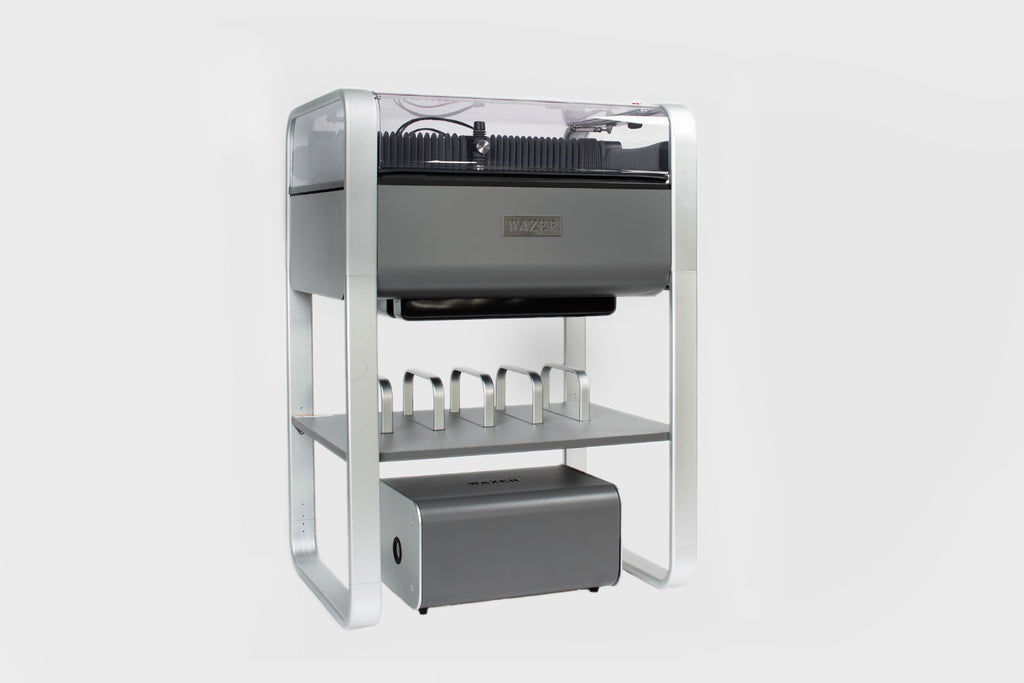

Wazer Standup

  • WAZER (Main Unit)
  • 1x Cut Bed (Spare)
  • 2x Abrasive Bucket
  • 2x Water Sensors
  • 1x Accessory Kit
  • 1x Setup Kit
  • 1x Plumbing Kit
  • 1x Misc. Spare Parts
  • 1x User Manual
  • Pump Box
  • Stand Leg Accessory

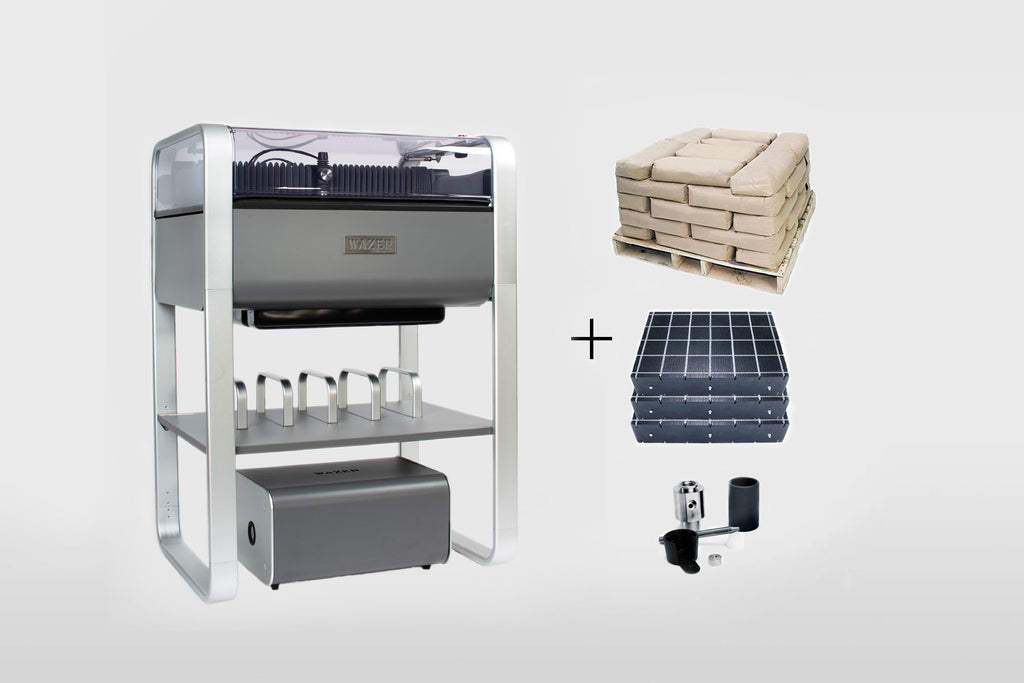

Wazer Starter Bundle

  • WAZER (Main Unit)
  • 1x Cut Bed (Spare)
  • 2x Abrasive Bucket
  • 2x Water Sensors
  • 1x Accessory Kit
  • 1x Setup Kit
  • 1x Plumbing Kit
  • 1x Misc. Spare Parts
  • 1x User Manual
  • Pump Box
  • Stand Leg Accessory
  • 2,000lb Pallet of Gamet
  • WAZER Cut Bed 3-Pack
  • Extra WAZER Nozzle

Product Highlights

Top Features

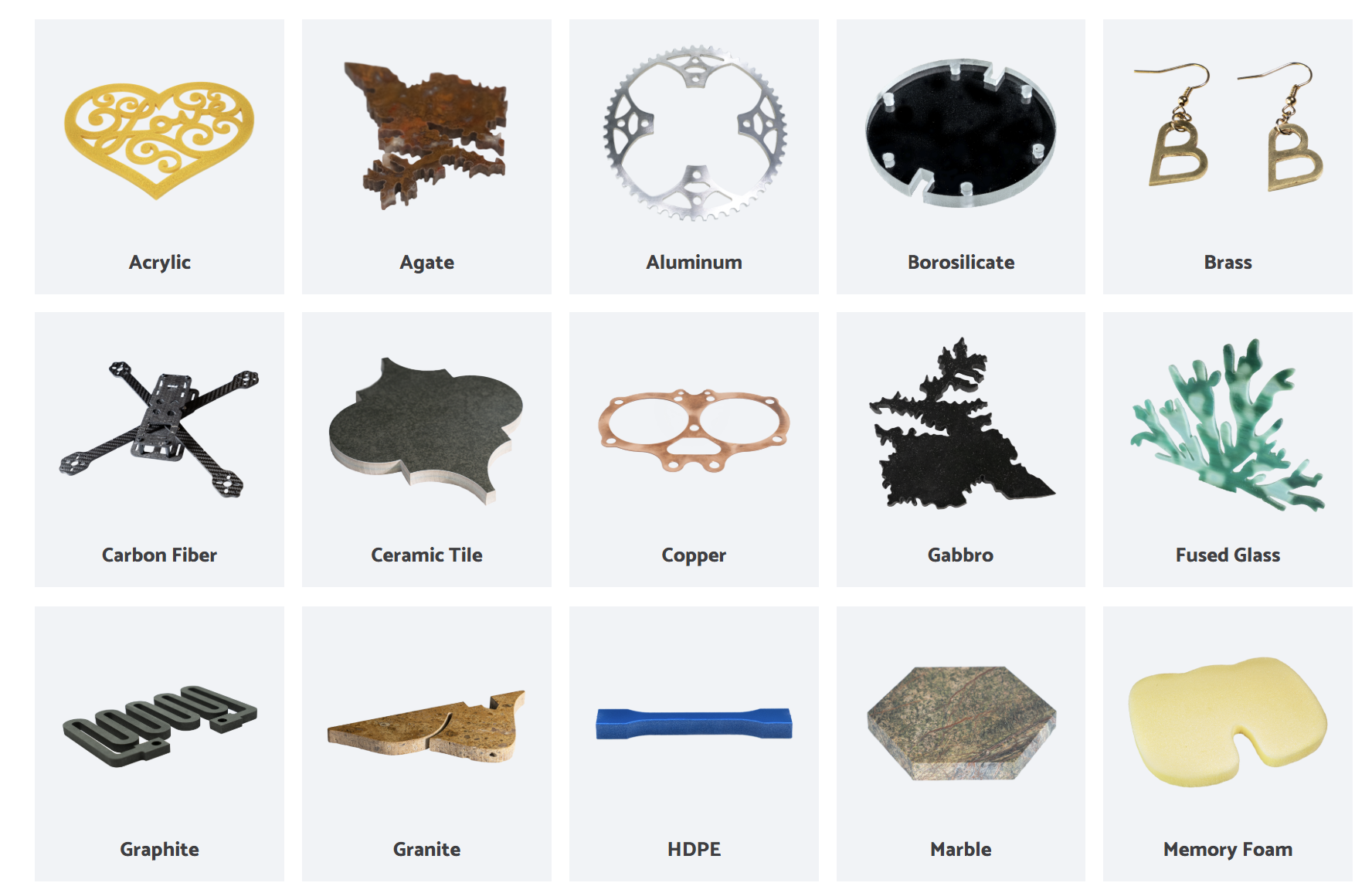

Cut Any Material In Your Own Shop

WAZER waterjets cut virtually any material. WAZER cuts metals, soft materials such as plastics & composites, and also tiles, glass, and stone.

  • Acrylic
  • Agate
  • Aluminum
  • Borosilicate
  • Brass
  • Carbon Fiber
  • Ceramic Tile
  • Copper
  • Gabbro
  • Fused Glass
  • Graphite
  • Granite
  • HDPE
  • Marble
  • Memory Foam
  • Mild Steel
  • Neoprene
  • Polycarbonate
  • Polyethylene
  • Porcelain Tile
  • Silicone
  • Spring Steel
  • Stained Glass
  • Stainless Steel
  • Titanium
  • Tool Steel
  • AND MORE

How WAZER Works

Go from your design to waterjet cutting, fast and easy.

Upload Your Design

Prepare your design for waterjet cutting with our free, web-based software.

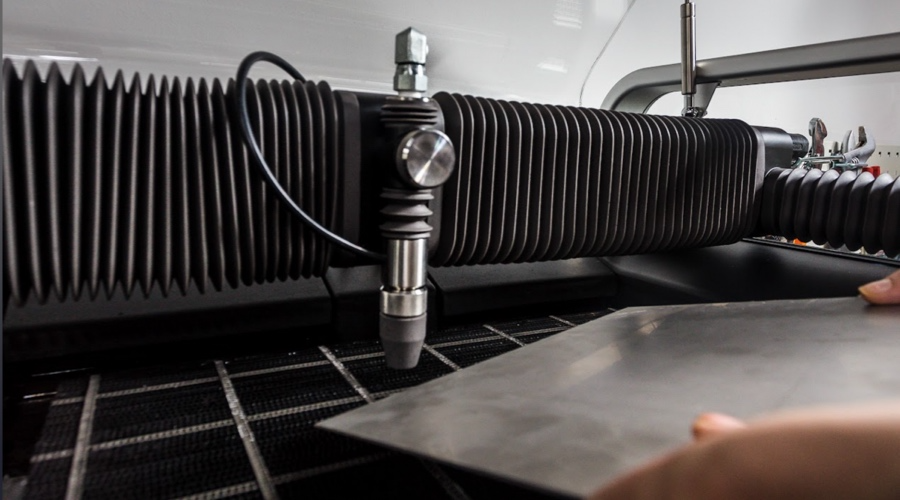

Load Your Material

Load any material that fits inside the water jet machine and fasten it in place.

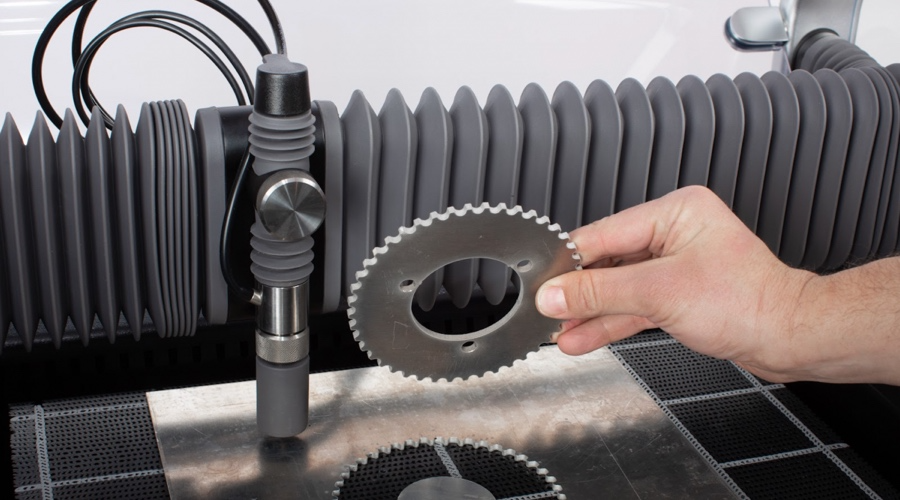

Cut Your Part

Transfer your cut file to WAZER with an SD card, and let the water jet take it from there to create your cut pieces.

The WAZER Water Jet Cutter

Good things come in small packages. The WAZER is a small-footprint, industrial caliber CNC waterjet that can cut almost anything. Easily fits on a desktop.
