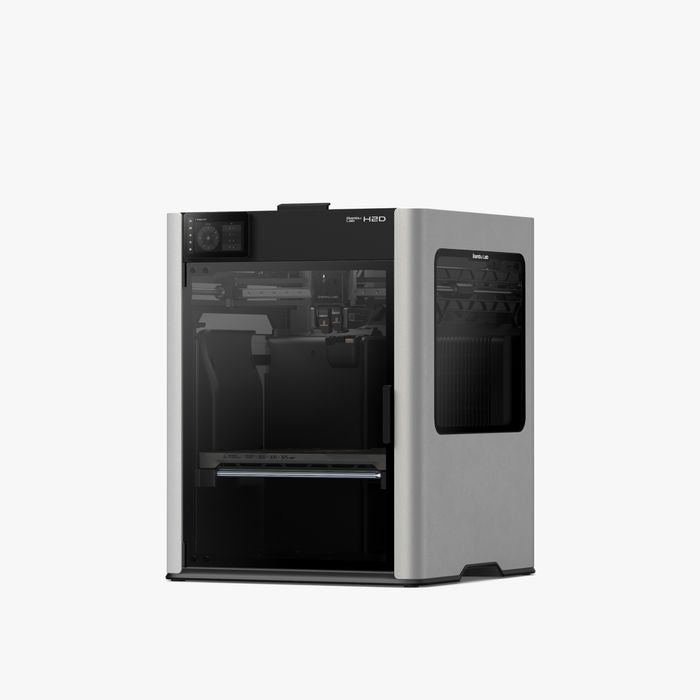

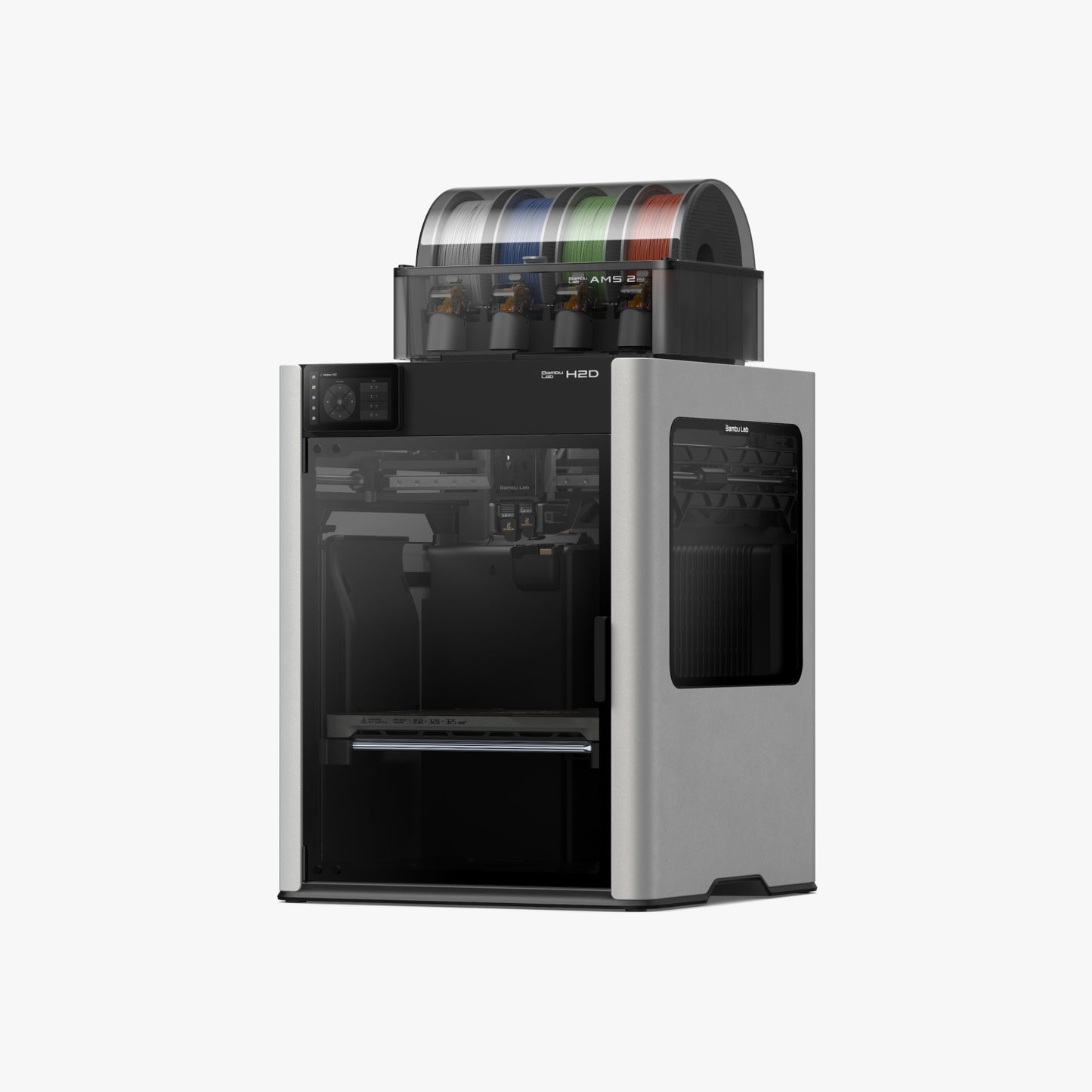

Bambu Lab H2D - Rethink Personal Manufacturing

The newest printer from Bambu Lab. Fill out the form below to receive up to date information and pre-order status




Features
  • Dual-nozzle Multi-material 3D Printing
  • Optional 10W/40W Laser and Cutting Module
  • 350*320*325 mm³ Print Volume
  • 5μm Resolution Optical Motion Calibration
  • Closed-loop Servo Extruder
  • 350°C Nozzle & 65°C Active Chamber Heating

Multi-material Printing

Flexible and rigid, low cost and exotic materials in one print

Combine flexible and rigid materials in a single print to create impressive interlocking structures and innovative designs beyond traditional manufacturing. Pairing high-performance materials with standard ones further reduces costs and boosts material efficiency by using premium materials only where necessary.

Dedicated Support Material

Perfect supports with minimal waste, purging and reloading

Print with support is no longer a headache. With H2D’s dual-nozzle setup, one nozzle can be reserved for dedicated support material, allowing secured print and perfect support interface.

Efficient Multi-color Printing

Fast and efficient multi-color printing

Dual-nozzle printing reduces purge cycles in multi-color prints. H2D's smart algorithms optimize filament use, maximizing dual-nozzle efficiency to save time and materials.

All-in-one Solution For Personal Manufacturing

Laser - 10W and 40W 455nm LAser for engraving adn cutting

Digital Cuting - Precise cutting on variety of materials

Pen Drawing - Drawing and writing

Live Spatial Alignment

What-You-See-Is-What-You-Get

The H2D’s BirdsEye camera, combined with computer vision algorhtims, delivers top-view alignment accuracy up to 0.3mm. This advanced spatial alignment allows users to place the tool path at the right position on the material – truly "what-you-see-is-what-you-get."*

Auto Arrangement

Maximize material efficiency, minimize waste

Leveraging real-time images from the BirdsEye camera, Bambu Suite can automatically arrange your project according to the shape of your material, i.e left over plywood from the previous project. This feature helps you to get the most out of every material.

Don't Worry About Safety - We've Got You Covered

Laser Safety Windows

Operate and monitor laser projects safely without the need for goggles, thanks to our safety windows.

Air Purufuer

An optional air purifier ensures clean air, even during indoor laser operations

Don’t Worry About the Settings – We’ve Got It Covered

Full-auto Calibration

A single tap initiates automated laser focus verification and material measurement, eliminating manual adjustments.

Material CodeSync

The H2D automatically scans the QR code on your material to load the perfect preset.*

Go Big, Go Fast, Go Precise

Our Secret Weapon:Vision Encoder

50µm ultra-fine motion accuracy*

An ultra-accurate vision encoder plate, combined with 5µm resolution optical measurements to track and correct toolhead motion, enables the H2D to achieve consistent and reliable distance-independent 50μm motion accuracy across the entire workspace, one order of magnitude better than its predecessor. (*Vision Encoder sold separately)

King-size Work Zone

Break free from size constraints

With a print volume up to 350mm×320mm×325mm*, creating large-scale projects has never been easier! From laser engraving on sizable objects to printing oversized models, the expanded capacity empowers you to bring even your most ambitious ideas to life.

350°C Hotend & 65°C Chamber Heating

Unleash the full potential of high-performance materials

Equipped with 65°C active chamber heating and a high-temperature hotend reaching up to 350°C, the H2D delivers precise closed-loop temperature control. This advanced system effectively eliminates warping and deformation in high-performance materials, ensuring superior layer bonding and maximizing their full potential.

REAL Hogh-Flow Hotend

Consistently print at 600mm/s with ease

The H2D’s purpose-built high-flow hotend ensures reliable, high-speed printing at 600mm/s. Designed for consistent performance, it eliminates mid-print flow rate restrictions, enabling uninterrupted high-speed printing regardless of the print size or complexity.*

DynaSense Extruder

Intelligent sensing for precise extrusion control

Bambu Lab's proprietary PMSM servo architecture establishes an intelligent extrusion governance system. It executes 20kHz Torque/Resistance and position sampling to dynamically modulate electromagnetic torque vectors. Stabilizing extrusion and detecting filament grinding and clogging.

Nozzle Camera

Monitor extrusion at the nozzle tip

The H2D features an AI-backed nozzle camera with macro lens. This intelligent monitoring system continuously tracks extrusion patterns, immediately detecting material accumulation, filament deviations, and extrusion failures.

Pre-Flight Checklist by AI

Peace of mind, every time you print

Prior to each operational cycle, H2D's vision system initiates a comprehensive pre-flight checklist: Chamber Integrity Scan – Detects debris across the entire print surface. Hardware Configuration Audit – Instantly identifies nozzle dimensions and build plate properties. Digital-Physical Alignment – Automatically verifies consistency between detected hardware specifications and active slicer parameters.

SOTA Filament Monitoring

15 sensors on one filament path

Unlike legacy systems with single filament run-out detectors, the H2D features comprehensive material flow monitoring. Throughout the AMS-to-nozzle path, 15 strategic sensors form an intelligent network, continuously tracking five key parameters: feeding velocity, tension, filament tip location, extruder thermal environment, and dynamic extrusion pressure. This establishes an industry-leading filament behavior control system.

H2D Specs
Item Specification
Printing Technology Fused Deposition Modeling
Build Volume (W*D*H) Single Nozzle Printing: 325*320*325 mm³
Dual Nozzle Printing: 300*320*325 mm³
Total Volume for Two Nozzles: 350*320*325 mm³
Chassis & Shell Aluminum, Steel, Plastic and Glass
Laser Safety Windows Equipped on Laser Edition, normal H2D can upgrade throughLaser Upgrade Kit
Air Assist Pump Equipped on Laser Edition, normal H2D can upgrade throughLaser Upgrade Kit
Physical Dimensions 492*514*626 mm³
Net Weight 31 kg
Hotend All Metal
Extruder Gear Hardened Steel
Nozzle Hardened Steel
Max Nozzle Temp 350 °C
Included Nozzle Diameter 0.4mm
Supported Nozzle Diameter 0.2mm,0.4mm,0.6mm,0.8mm
Filament Diameter 1.75mm
Extruder Motor Bambu Lab High-precision Permanent Magnet Synchronous Motor
FAQ
1.Can H2D be upgraded to H2D Laser Edition?

The H2D laser full combo has a built-in air pump and air pipe on the back of the printer, and is pre-installed with a BirdsEye camera. The front door, left and right side Laser Protective Windows, and top cover are all designed with laser protection. The packaging list includes a laser module, a cutting module, a smoke exhaust pipe and its adapter, as well as an emergency stop button.

We plan to launch a laser upgrade kit for the non-laser version of H2D. The upgrade kit is expected to be released in June and will also provide installation instructional videos to help users complete the upgrade smoothly.

It is important to note that the air pump in the upgrade kit is an external air pump, which has a different installation structure from the built-in air pump in the full set. When using it, it can only be installed externally and connected to the machine through an air tube.


2.Are the left and right hotends exactly the same?

Yes, the left and right hotends have identical structures and materials, and can be used interchangeably.


3.What is the maximum number of AMS 2 Pro and AMS HT units that the H2D supports? How many colors can it print at most?

The H2D supports a maximum of 4 AMS 2 Pro and 8 AMS HT connected simultaneously, a total of 12 units with 24 slots.
Because H2D is a dual-hotend printer, and in the most extreme scenario, all AMS can be connected to one hotend while the other hotend uses an external spool holder, it can support up to 25 colors.


4.Is H2D compatible with first generation AMS?

The first-generation AMS has been confirmed to have full plug-and-play compatibility and can be used with the H2D for multi-color printing, but it does not support the AMS drying function.
Due to the fundamental differences in the feeding mechanism and buffering structure, the H2D does not support the AMS lite.


5.AMS 2 Pro is directly connected to the printer through the 6-pin ports, so what are the two 4-pin ports on the back of the printer used for?

The two 4-pin ports on the back are reserved for future expansion accessories. For example, to upgrade a non-laser version of the printer to a laser version, one of these ports can be used to connect an external air pump.


6.Can I use the A1 series Hotend on the H2D? Conversely, can H2D hotends be used on A1 series printers?

Although the hotend of the H2D series is similar to the A1 hotend in structure , it is not exactly the same.
The H2D hotends are specifically designed for the H2D printer, offering optimized compatibility. For example, they support a larger maximum volumetric flow rate, lower clogging risk, more precise nozzle offset calibration between the left and right hotends, and automatic hotend type recognition via the live camera. Therefore, to ensure optimal print quality, it is strongly recommended not to use A1 hotends on the H2D printer.
Therefore , to ensure you get the best print quality, we strongly recommend that you do not use the A1 hotend for H2D printers.
Purchasing additional H2D hotends for use on A1 printers is feasible. However, you will also need to use the H2D hotend silicone sock.


7.What are the differences between the 10W and 40W laser modules? How should I choose?

Both the 10W and 40W laser modules are blue light lasers that support processing a variety of materials, including wood, rubber, metal sheets, leather, dark acrylic, and stone. However, due to differences in power and size, there are the following distinctions:
1.Maximum cutting thickness(For Basswood Plywood):
10W laser module: 5mm;
40W laser module: 15mm;
2.Maximum engraving speed(For Basswood Plywood):
10W laser module: 400mm/s ;
40W laser module: 1000mm/s ;
3.Processable Area:
10W laser module: Maximum processing area X310mm * Y270mm, maximum processing height 280mm;
40W laser module: Maximum processing area X310mm * Y250mm, maximum processing height 265mm;


8.Is a USB included as standard? What functions are affected without a USB?

The package does not include a standard USB flash drive. You can still initiate printing normally without a USB, as the printer has built-in storage space to run print files.
However, without a USB inserted, the following functions will be affected:
1. The recording and time-lapse photography functions can't be turned on;
2. Printing cannot be initiated through the LAN;
3. Print files cannot be sent to the machine for storage through the studio;
4. Log files cannot be exported;
USB requirements: USB2.0 protocol or above (actual minimum write speed needs to be greater than 10M/s), supported file formats are FAT32 and exFAT. And the printer only supports mounting one USB, and cannot connect multiple USB via a USB hub.


9.Why can’t I freely select hotend for printing with the printer’s built-in files?

The hotend to be used for printing has already been determined when the model file is sliced. As for the built-in models, the right hotend has been selected during the slicing process, so it is impossible to change the hotend used for printing on the printer screen.
When you slice the file in Bambu Studio and send the print task , you can freely choose to use the left hotend or the right hotend. For some filaments, such as TPU and PPS/PPA-CF, it is recommended to use specific hotends for printing.
For more details on H2D filament printing, please check the Wiki


10. Will the smoke and dust generated by laser operations affect my printer's precision and lifespan?

H2D is equipped with an efficient exhaust system that effectively removes smoke and dust generated by laser operations, significantly reducing contamination. During R&D, we conducted rigorous testing to ensure that with regular machine cleaning, the impact of smoke and dust on performance and precision is negligible. For detailed cleaning instructions, please refer to: Wiki


11. How can I improve the success rate and quality of TPU printing?

Due to the flexible nature of TPU filaments, there are some operational issues that can arise during feeding and printing. To facilitate TPU printing, we have created a dedicated Wiki guide. Simply follow the instructions in the Wiki to successfully print with TPU filaments: Wiki


12. Are there any special safety precautions I need to take when using the laser function?

Because laser processing involves using high-energy lasers on potentially flammable materials, we strongly advise users not to leave the machine unattended during laser operations. Please maintain constant vigilance over the machine's operational status and ensure that there are no flammable or explosive materials in the machine's surroundings. For more information please refer to: Wiki
For more information about H2D, refer to the official Wiki
