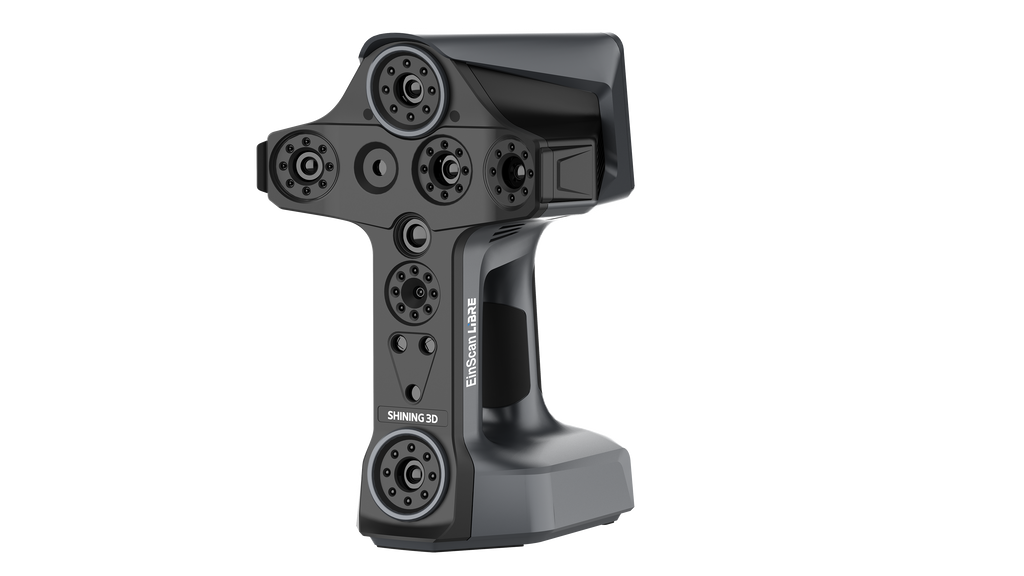

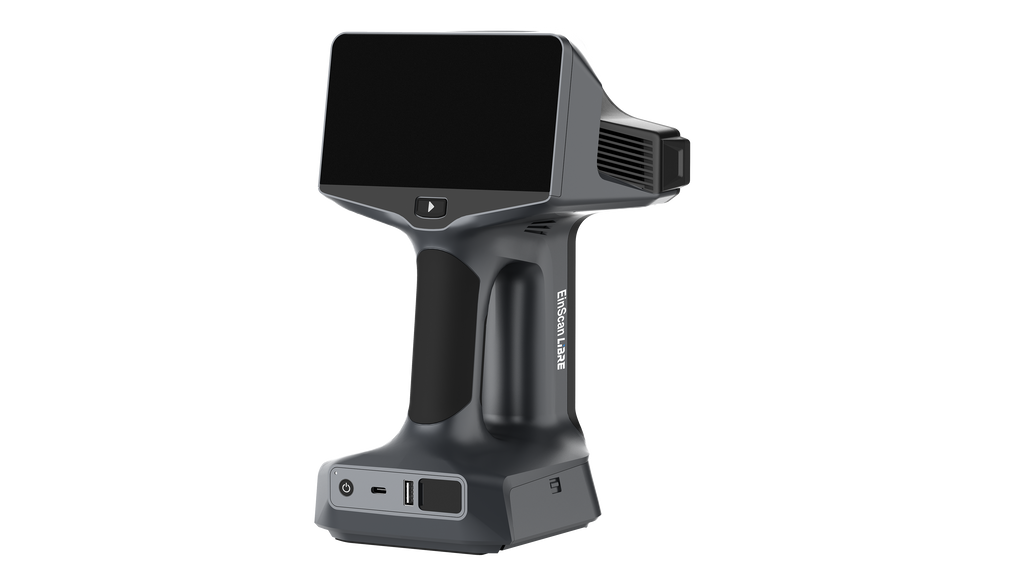

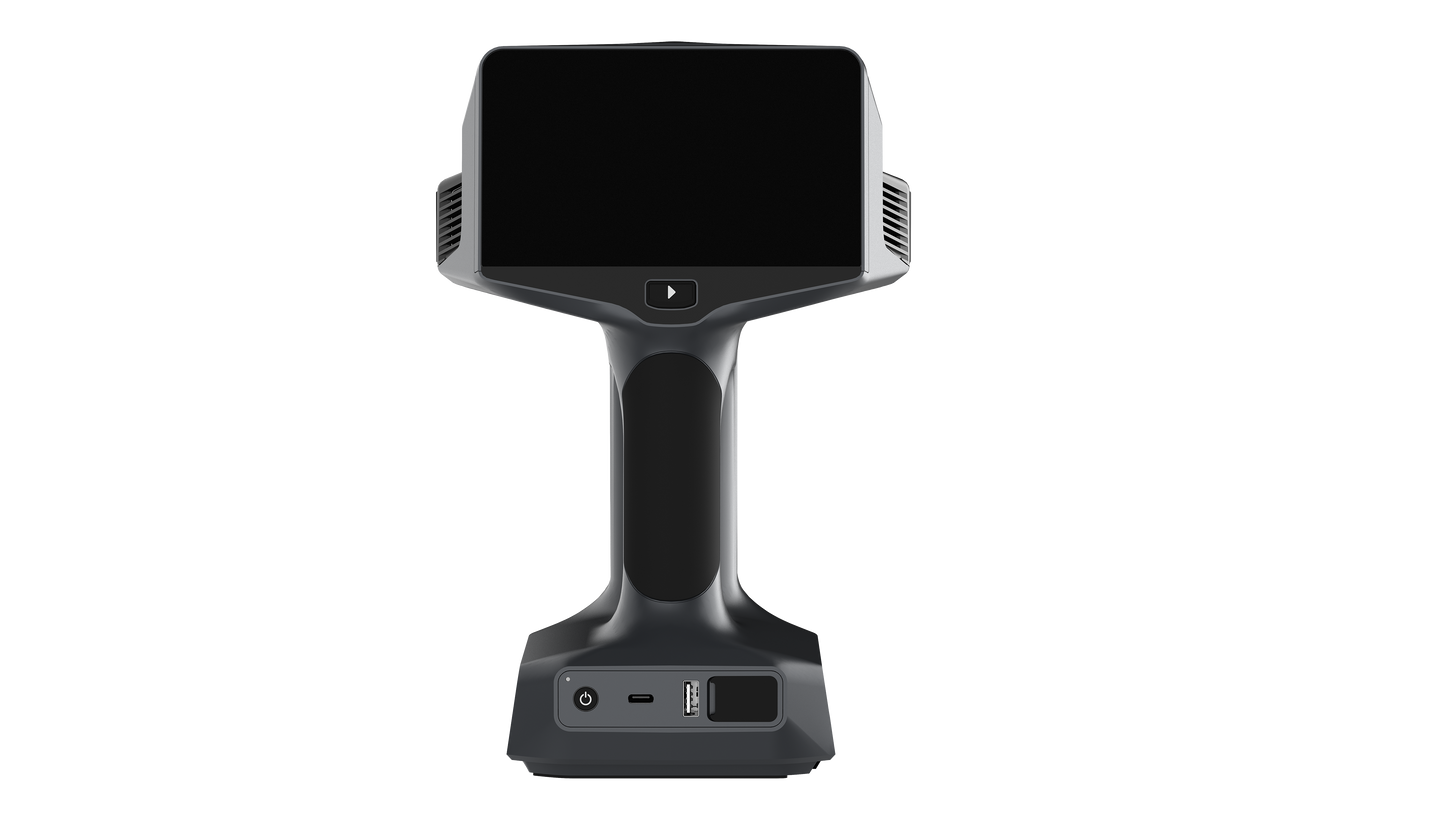

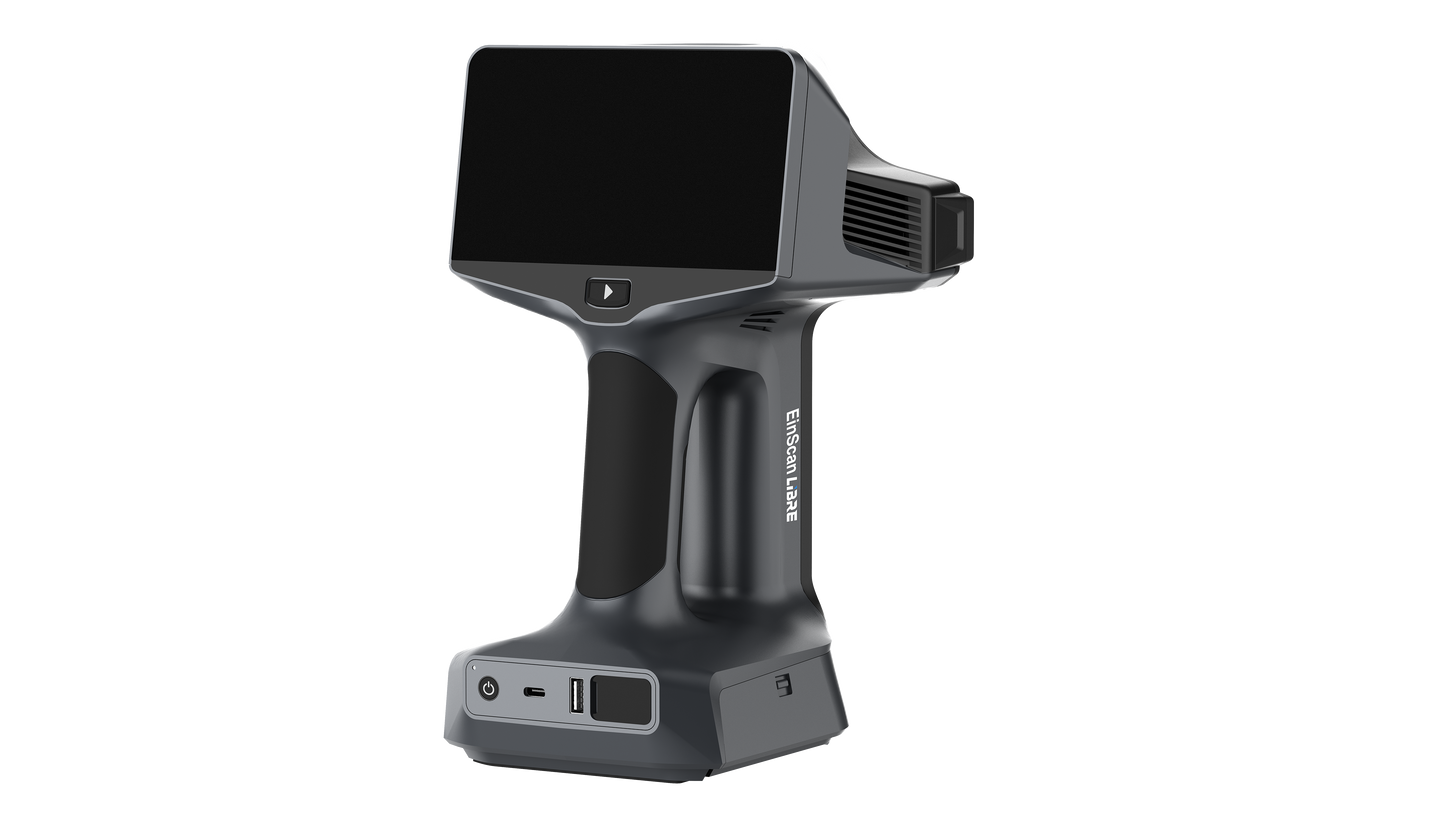

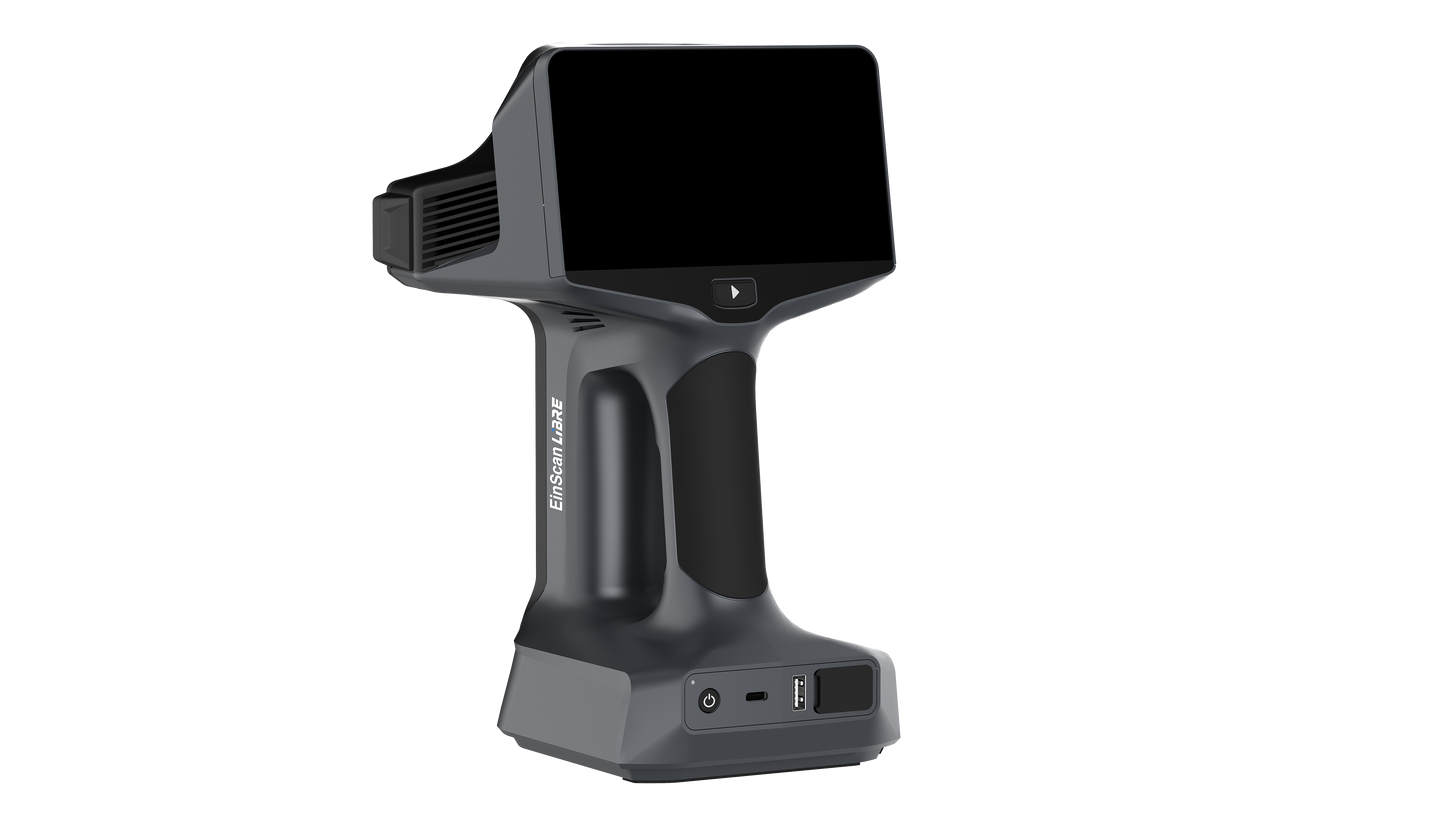

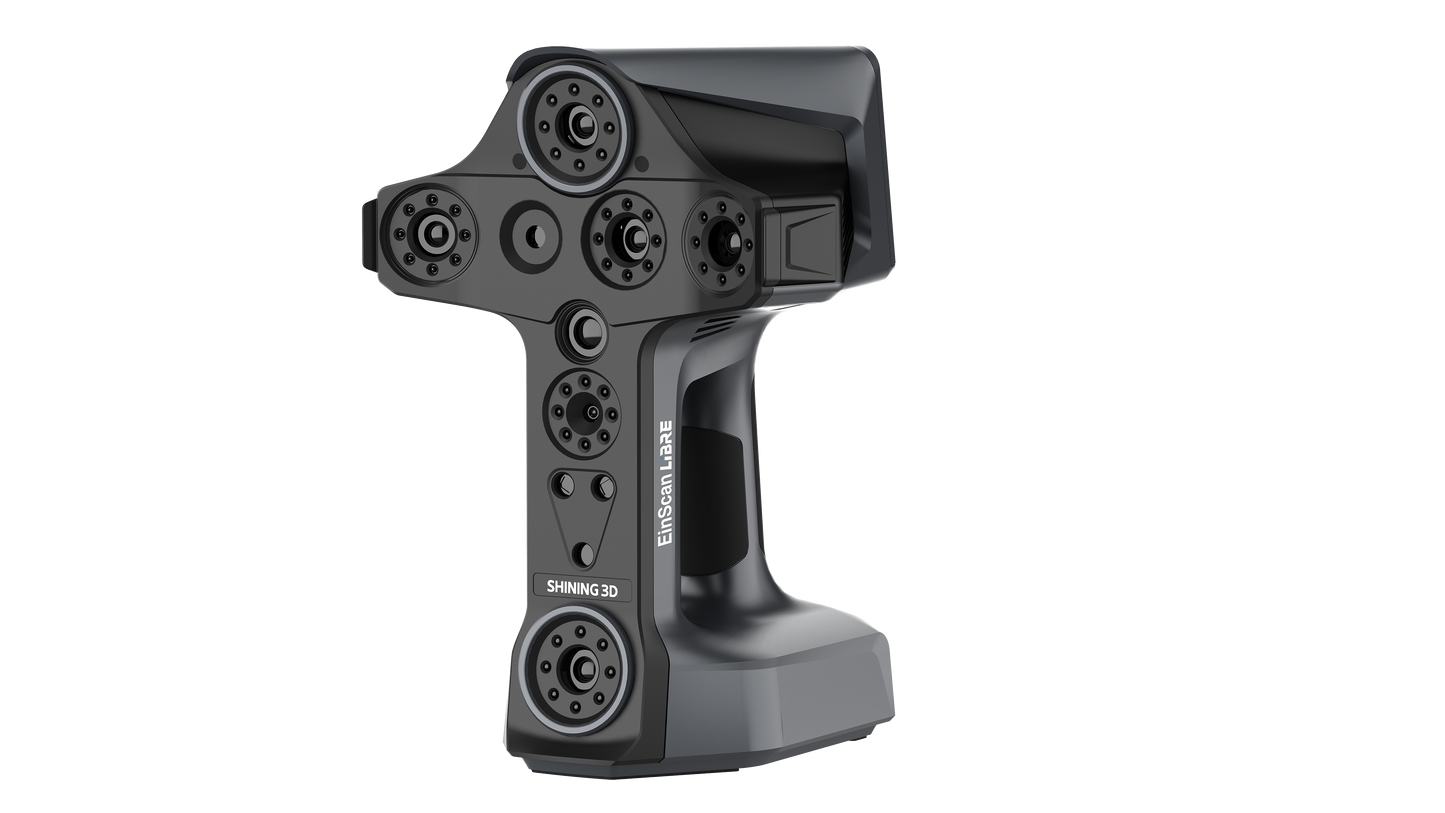

EinScan Libre - Fully Wireless Large Object Laser Wireless Scanner

EinScan Libre - Fully Wireless Large Object Laser Wireless Scanner

EinScan Libre - Fully Wireless Large Object Laser Wireless Scanner

SKU: EinscanLibre
$35,999.00 CAD
Sale
Sold out

Price

$35,999.00 CAD $36,149.00

Stock

Request a Quote | Email This Page
Alert: Due to the cost of this item, it is not available for purchase by Credit Card.

Product Details

Technical Specs

Overview
Technology Wireless and standalone
Function 3D Scanner
Footprint (L× W× H) 162 × 182 × 266 mm
Net Weight 1.8kg including battery
Performance
Accuracy Up to 0.04 + 0.06 mm/m
Volumetric Accuracy Up to 0.04 + 0.06 mm/m
Scan Resolution IR Rapid & IR Adaptive: 0.5 ~ 10 mm; Laser HD: 0.05 ~ 3.0 mm
Speed & Productivity
Scanning Speed Up to 4,500,000 points/s (Laser HD)
Working Area & Optics
Field of View Up to 983 x 979 mm (IR Rapid)
Working Field Distance 200mm to 1500mm depending on mode
Alignment Method Feature / Texture / Hybrid / Markers / Global markers
Mode / Laser Type 101 blue laser lines
Sensors & Monitoring
Camera 48MP Texture Camera
Power Loss Recovery n/a
Auto Calibration Calibration board via wizard.
Software & Workflow
Included Software

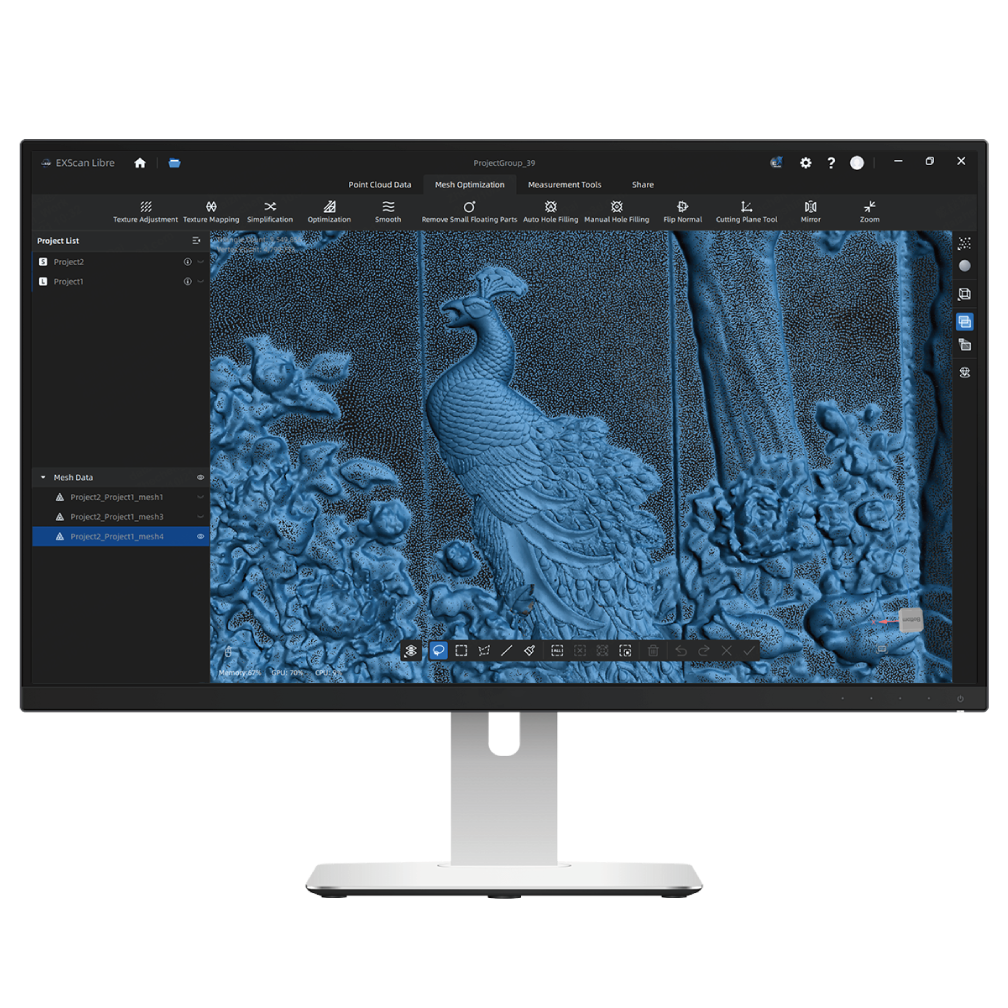

PC software EXScan Libre
Additional Software

exModel for reverse engineering (optional)
Supported File Types STL; OBJ; PLY; 3MF; ASC; LAS
Connectivity
Wi-Fi WiFi 6
Ethernet Gigabit (interface)
USB USB 3.0
Safety and Compliance
ESA Certification Not required for low voltage
Safety Features

Laser Class: Class II (eye safe)
Warranty and Support
Manufacturer Warranty 1 Year Manfuacturers
Shop3D Warranty 1 year Manufacturer's warranty
Shop3D Training

n/a provided by manufacture (option)

Documentation

3D Scanner
