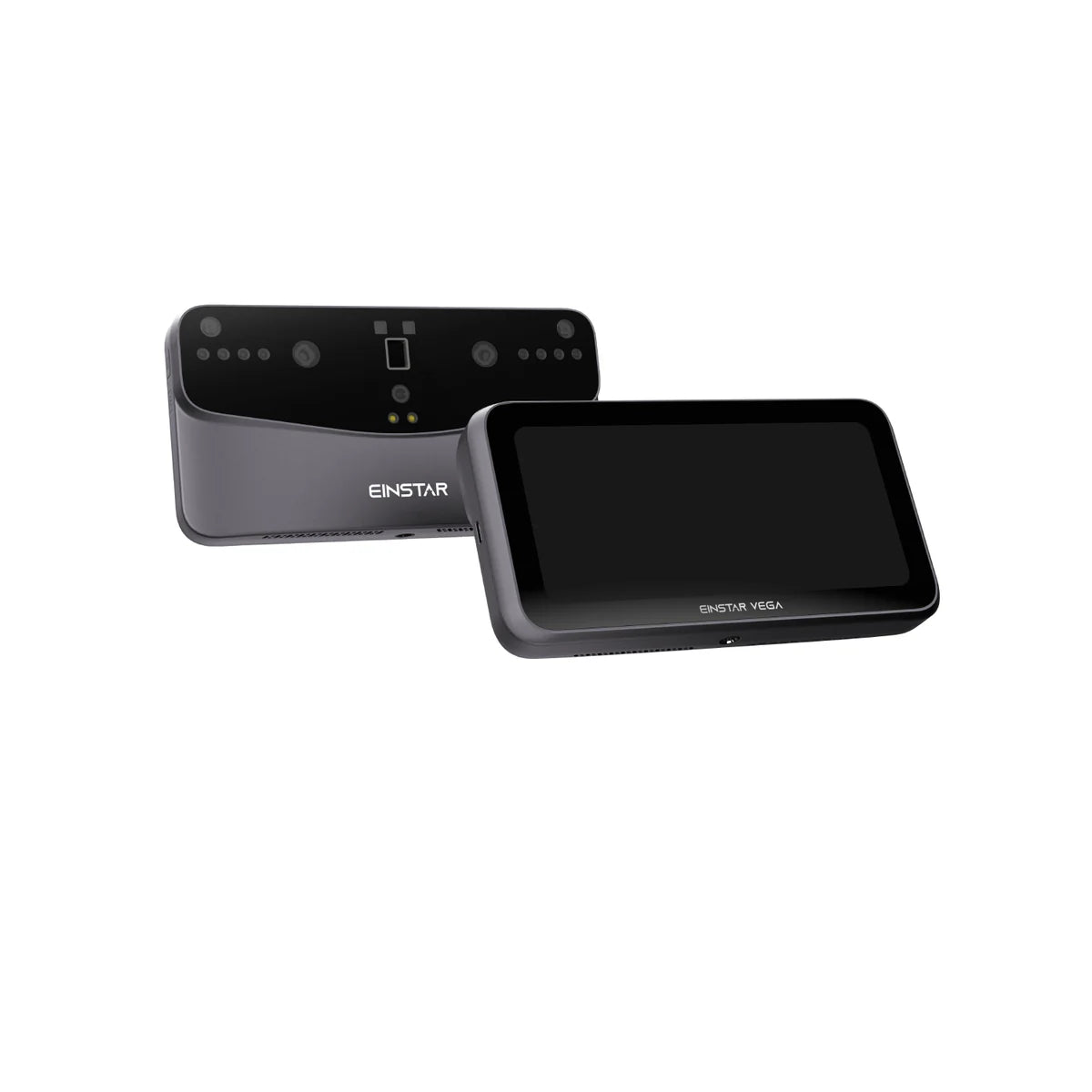

Einstar Vega from Shining3D

Product SKU: Einstar-Vega-SilverBlue

$2,699.00 $2,799.00

Available Stock:
Loading...

Color options

Quantity

Now in stock! First availability in Canada. Limited run of Silver Blue Version availalbe. After that only available in Titanium Grey.

First 50 preorders will include a free tripod accessory (with Silver Blue)

Einstar Vega - All-In-One 3D Scanner

Experience the ultimate in 3D scanning technology with the VEGA All-In-One 3D Scanner. Designed for versatility and precision, the VEGA combines two scanning technologies with built-in computing and wireless solutions, making it the perfect tool for professionals on the go.

Features

Intelligent Software

The Einstar Vega features Multi-OS compatibility with Mac OS and Windows

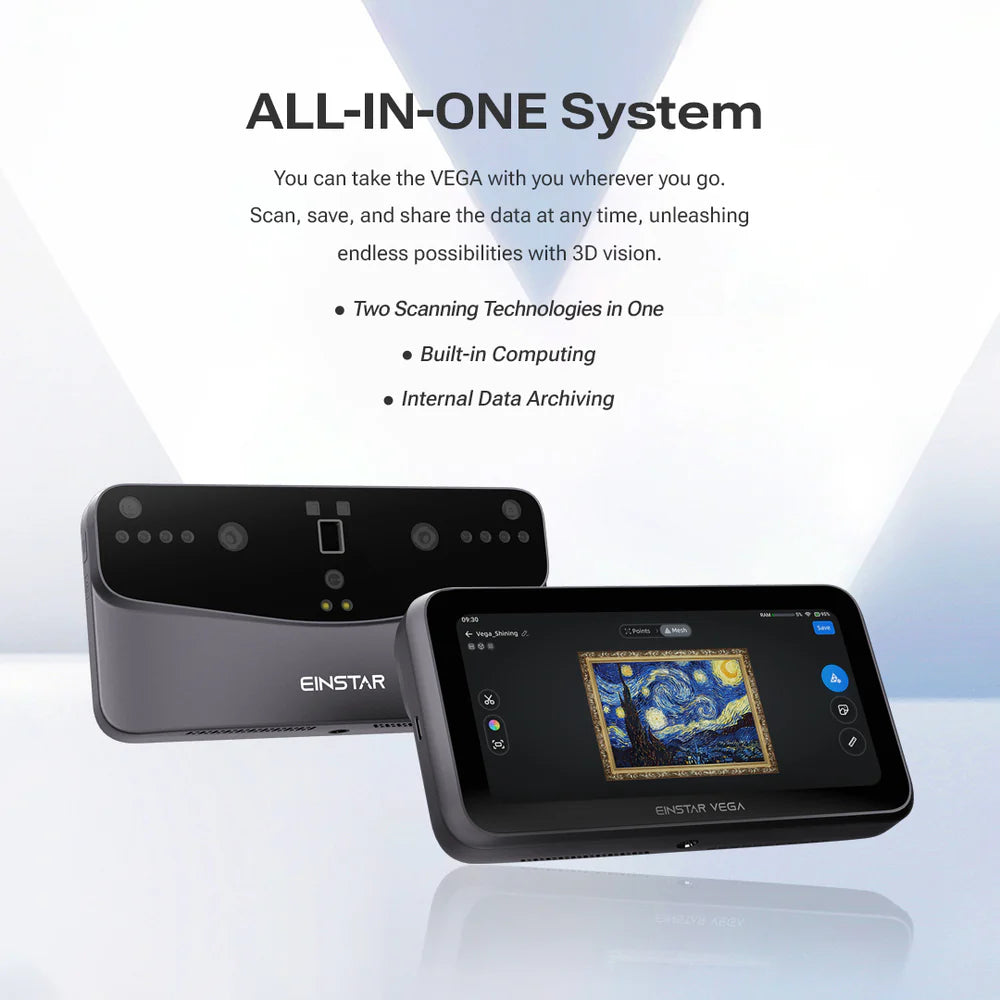

All-In-One Design

Two scanning technologies and built-in computing while being completely wireless.

Two 3D Scanners In one

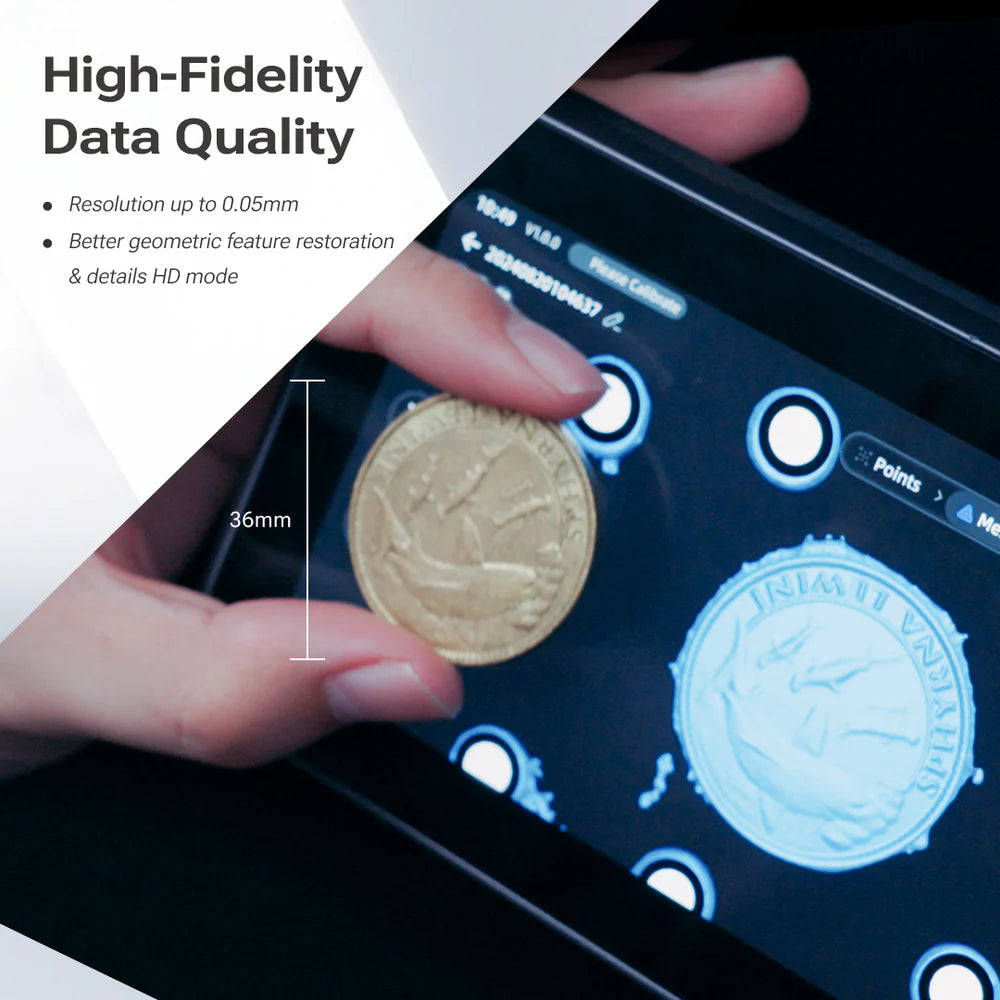

MEMS projection for highly detailed close up scanning, with a working distance of 120~250mm. Or utilize VCSEL Projection for long range scanning or outdoor 3D scanning, with a working distance of 350 ~ 1500mm

High Quality Imaging

The Einstar Vega features image capture with lifelike color, allowing for a highly color accurate 3D model.

Powerful Hardware

The Einstar Vega has powerful internals to allow for a smooth experience and features extensive storage built-in.

6.4" 2K AMOLED Screen
8-Core 2.4GHz Processor
32GB of RAM
512GB ROM SSD

Tech Specs

Scan Mode: HD Mode / Fast Mode
Point Distance: HD Mode: 0.05mm～3mm / Fast Mode: 0.5mm~10mm
Working Distance: HD Mode: 100-250mm / Fast Mode: 350-1500mm
Align Mode: Feature; Texture; Markers; Hybrid
Output Formats: ply; stl; obj; asc
Scanner Body: Weight Limited edition : 643g; / Regular edition : 535g
CPU: 8-core CPU, 2.4GHz
Internal Hard Drive: 32GB eMMC + 512GB SSD
Interface: Wi-Fi 6, USB Type C
Supplemental Light: 10
Operating Temperature Range: -10~40C
Packing Size: 380*305*155mm
Protection Grade: IP50
Supported OS: No computer required for 3d scanning operation;
StarVision（Data processing program on PC）：Windows10/11(64-bit); macOS
Recommended PC configuration: Intel i7, 32 GB RAM; macOS 11.0 ( on Apple chip )

Light Source: HD Mode: Infrared MEMS / Fast Mode: Infrared VCSEL
Capture Frame: HD Mode: up to 15 fps / Fast Mode: up to 20fps
IR Camera Resolution: HD Mode: 2MP / Fast Mode: 1.3MP
Color Camera Resolution: 48 MP
Outdoor Scan: Yes
Scanner Size 180mm*95mm*26.5mm
RAM 32 GB LPDDR4 Memory
Power Charger: 65W fast charging, supports PD/PPS protocols
Touchscreen: 6.4'' 2K OLED
IMU: 6 DoF
Operating Humidity Range: 0 to 90% RH (non-condensing
Packing Weight: 3200g
Battery: Built-in 5000mAh； / External power bank charging supported
