Hybrid Light Source and Multifunctional Handheld 3D Scanner
SKU: FreeScanCombo
Size
$17,050.00 CAD
Sale
Sold out

Price

$17,050.00 CAD $20,500.00
Free Delivery does not apply for this order.

Stock

Request a Quote | Email This Page

The FreeScan Combo+ is an improvement over the FreeScan Combo. The cross laser projector has been updated from 26 laser lines to 50 laser lines and the scan speed has improved from 1860000 points/s to 3600000 points/s.

Product Details

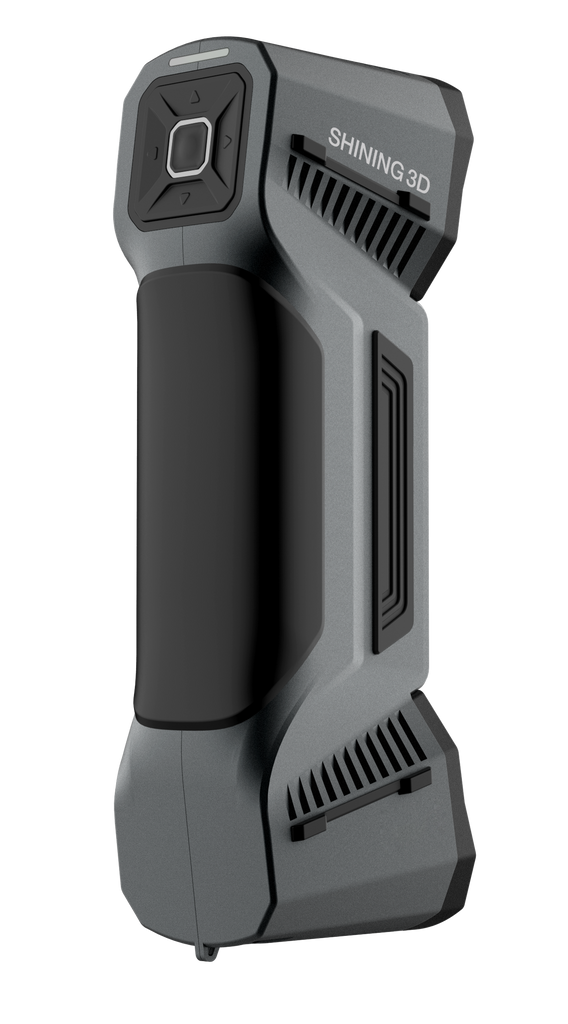

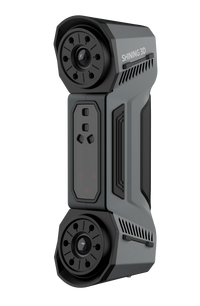

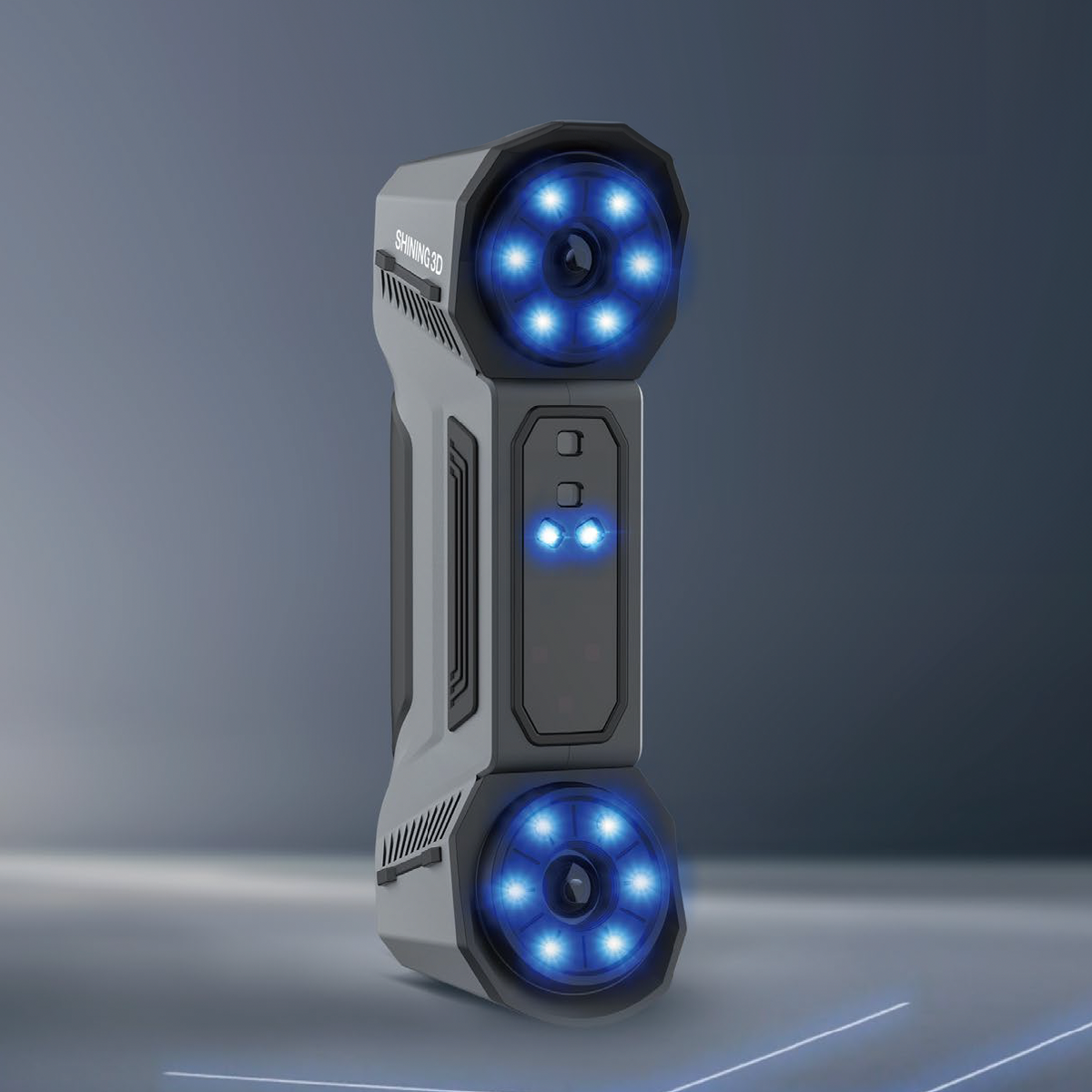

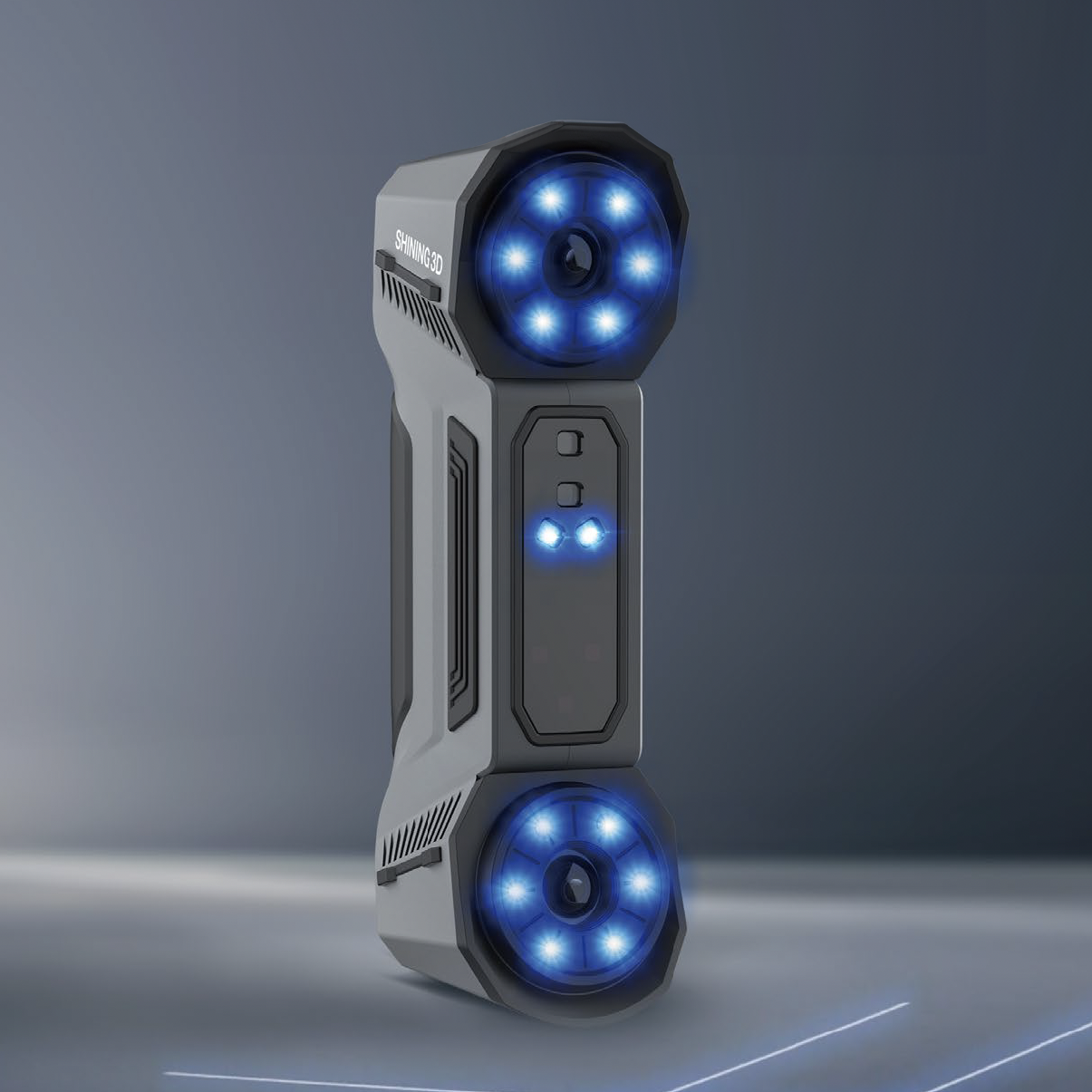

The FreeScan Combo, with a small size of 193x63x53mm and weighed only 620g, has dual light sources: blue laser and infrared VCSEL. Being a lightweight and portable metrology scanner, it is equipped with four working modes: multiple lines scanning, single line scanning, fine scanning, infrared scanning. It can be used to achieve metrology-grade precision inspection, reverse design, additive manufacturing, and other applications in many manufacturing sectors, including the automotive industries, aerospace, rail transportation, heavy industries, mold manufacturing, casting and foundry and medical industries.

3D Scanner

Technical Specs

Overview
Technology Hybrid Laser and IR Scanning
Function 3D Scanner
Footprint (L× W× H) 193 mm x 63 mm x 53 mm
Net Weight 620 g
Platform Handheld
Light Source 26 Laser Lines
Single Laser Line
7 Parallel Laser Lines
VCSEL Light Source
Laser Class Class II (eye safe)
Scan Mode Infrared Scan

Laser Scan:
Multiple Lines Scan
Single Line Scan
Fine Scan
Performance
Accuracy 0.02 mm (VDI/VDE 2634 & ISO 10360)
Volumetric Accuracy 0.02 + 0.033 mm/m
Scan Resolution 0.05mm-3mm
Speed & Productivity
Scanning Speed 1,860,000 points/s
Working Area & Optics
Field of View Max 520 mm x 510 mm Lasser, Max 430mm x 430mm IR
Working Field Distance 200mm to 300mm (Fine vs. Multiple)
Alignment Method Markers or Features
Mode / Laser Type 50 (Combo+) or 26 (Combo) laser lines
Operation Conditions Operating Temperature Range -20~40°C
Operating Humidity Range 10~90°C
Platform & Motion System
Platform Handheld
Sensors & Monitoring
Power Loss Recovery n/a
Auto Calibration Guided on setup
Software & Workflow
Included Software

FreeScan Software

Step-by-Step Guidance

The FreeScan software will guide you through the 3D scanning process, from calibration to 3D scanning and data editing.

Multiple Scan Modes

With FreeScan software, the Combo supports four kinds of scanning modes, providing users with the flexibility to choose according to their needs.

AI Data Cleanup

FreeScan software is equipped with intelligent algorithms that can process and optimize scanning data more efficiently, delivering more ideal results.

Adjustable Resolution

FreeScan software can select corresponding solutions based on different scanned samples, making it more flexible in meeting various scanning requirements.
Additional Software

exModel for Reverse Engineering Optional
Connectivity
USB USB 3.0
Power
Input Voltage 12V，5.0A
Typical Power Consumption Input: 12V, 5.0A
Safety and Compliance
ESA Certification Not required, low voltage.
Certifications CE，FCC，ROHS，WEEE，KC，FDA，UKCA，IP50
Safety Features

0.05mm-3mm
Warranty and Support
Manufacturer Warranty 1 Year Manufacturers
Shop3D Warranty 1 Year Manufacturer's Warranty
Shop3D Training

Shop3D or Manufacturer Training Sessions Optional

Documentation

Product Highlights

Top Features

Design

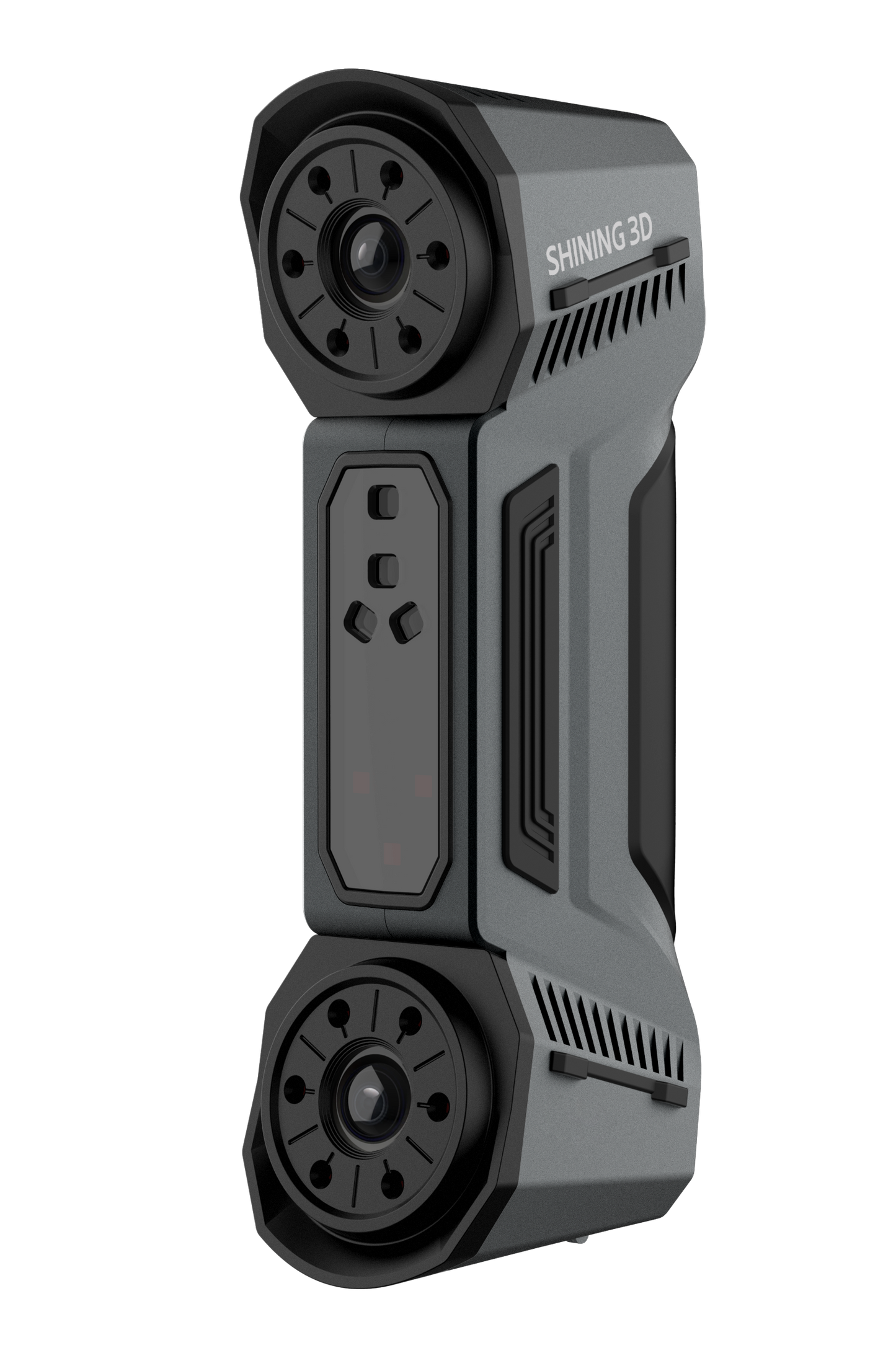

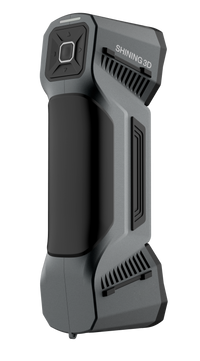

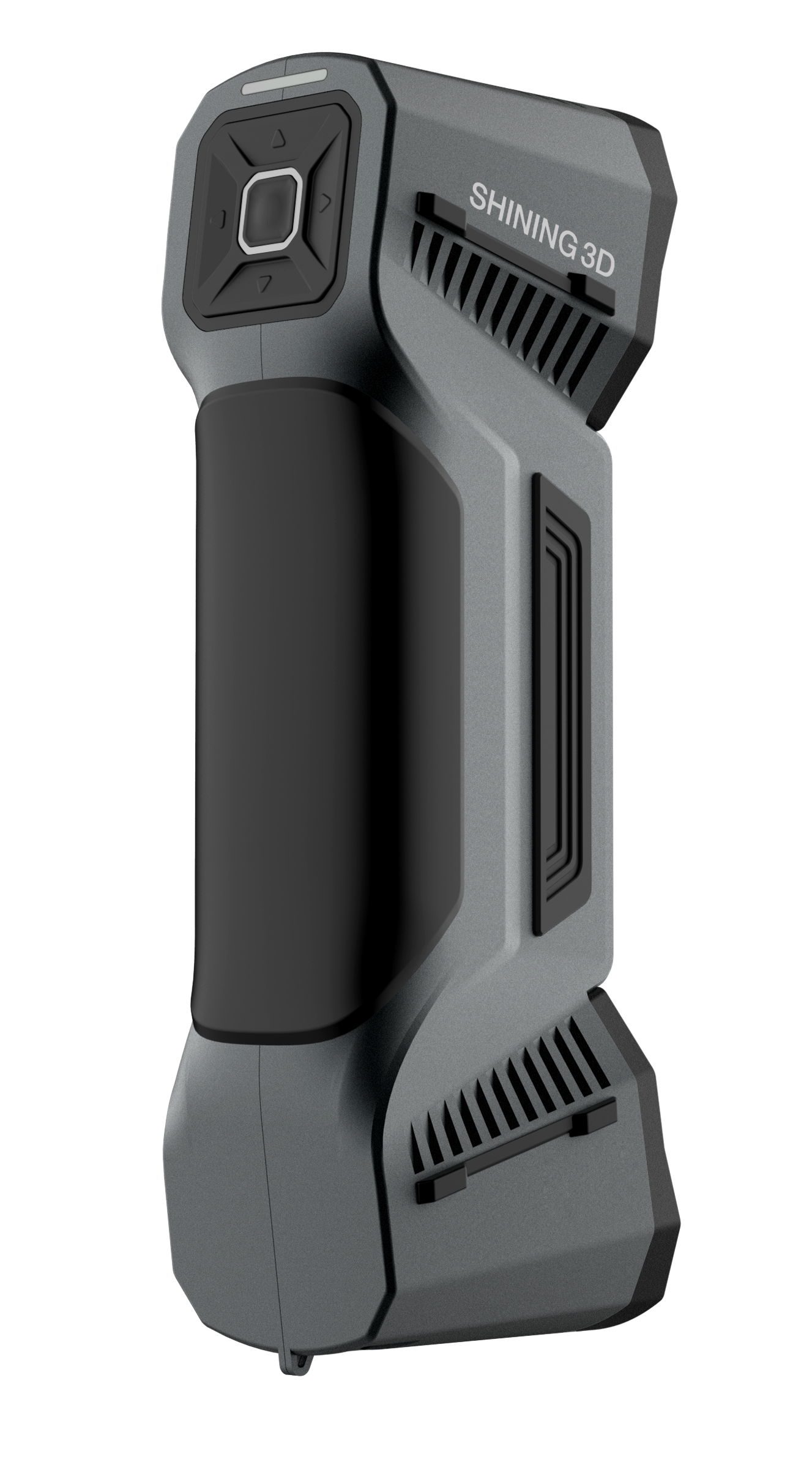

The FreeScan Combo, with a small size of 193mm x 63mm x 53mm and weighed only 620g, has dual light sources: blue laser and infrared VCSEL.

Scanning Modes

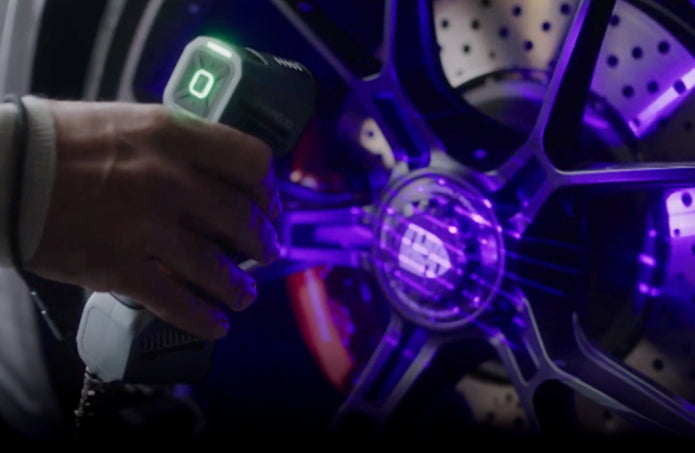

4 scanning modes, multiple scan choices

  • 13 cross blue laser lines for global smooth scanning;
  • 7 parallel blue laser lines for fine scanning details;
  • 1 single blue laser line to obtain deep hole data;
  • Infrared light source and large FOV for more applications.

Accuracy

Metrology-grade accuracy*, the accuracy under the multiple lines scanning mode can achieve up to 0.02mm.

Applications

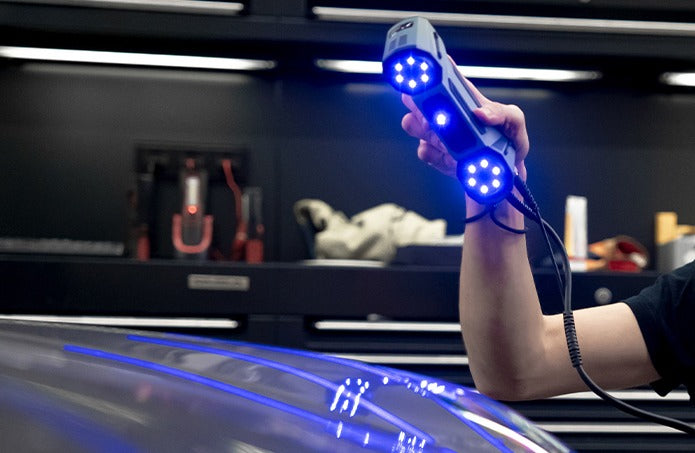

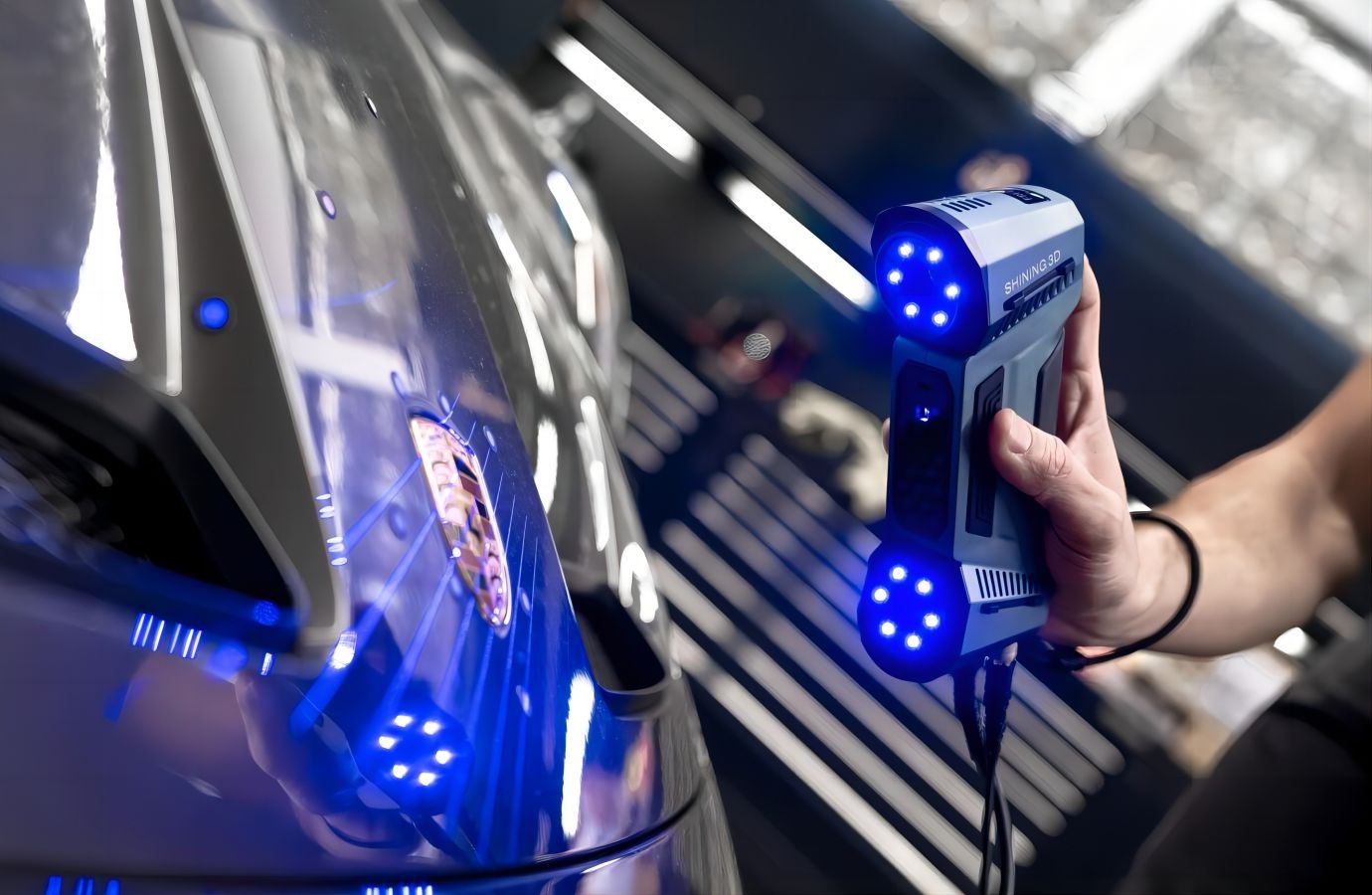

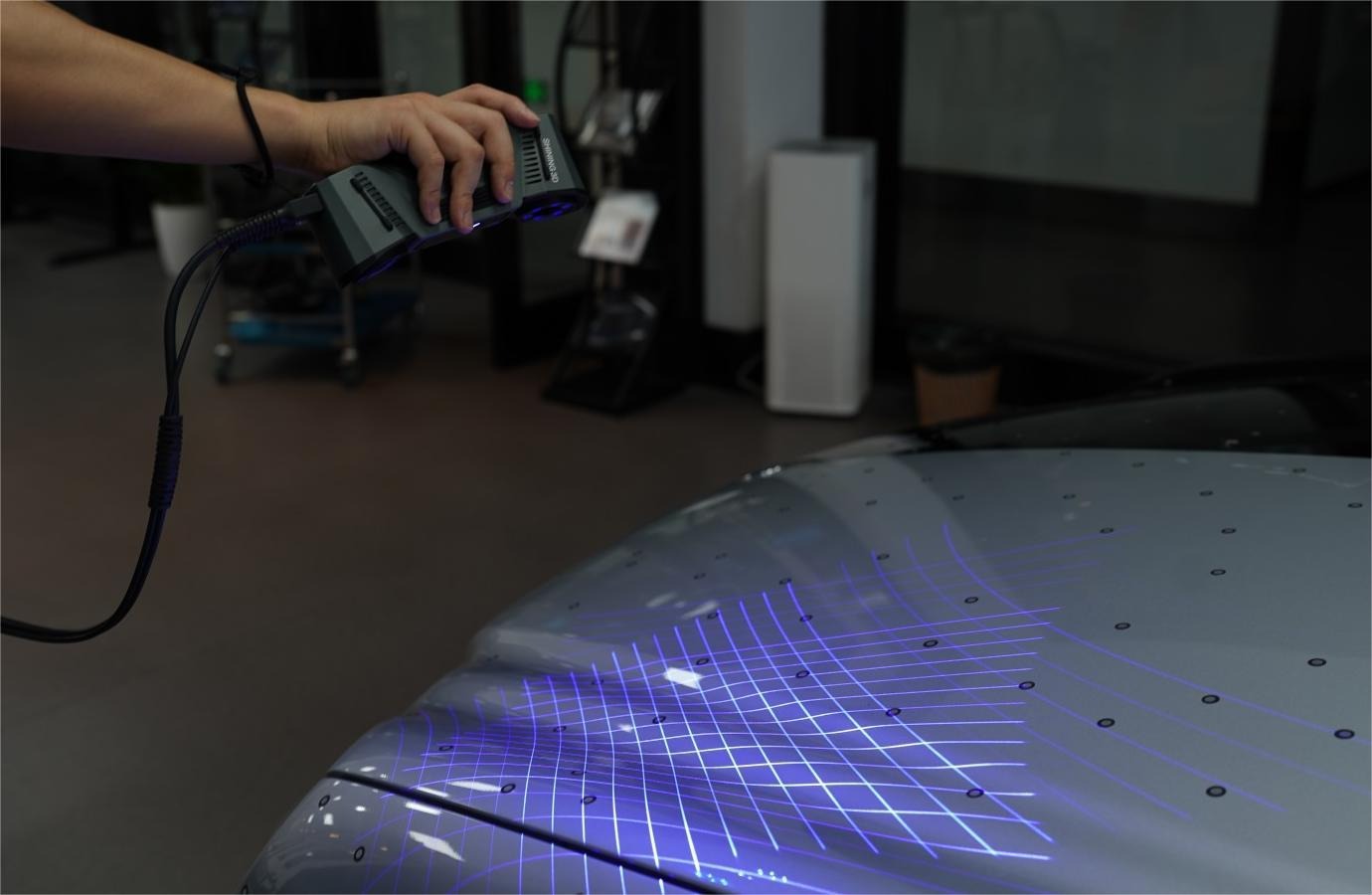

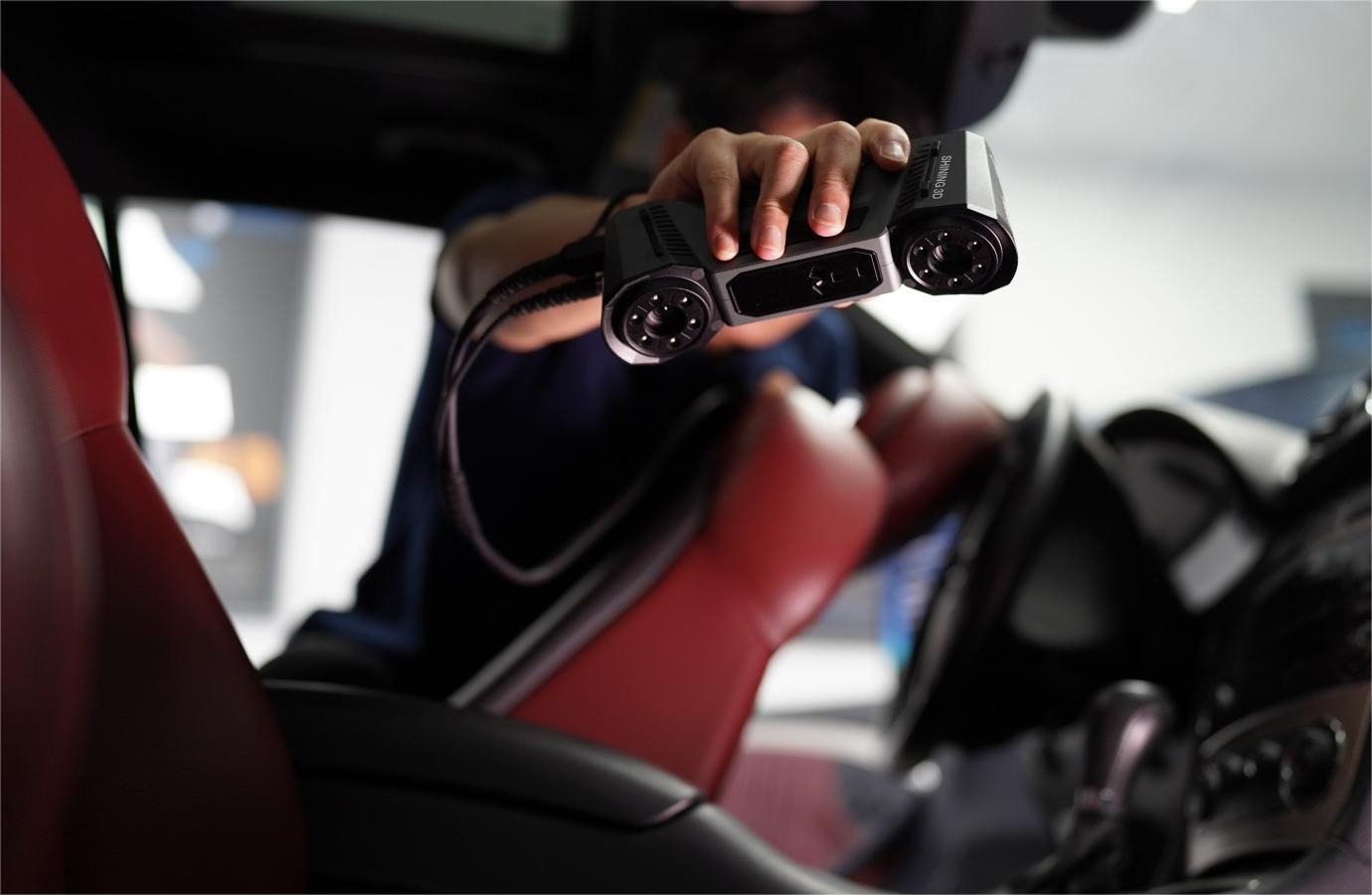

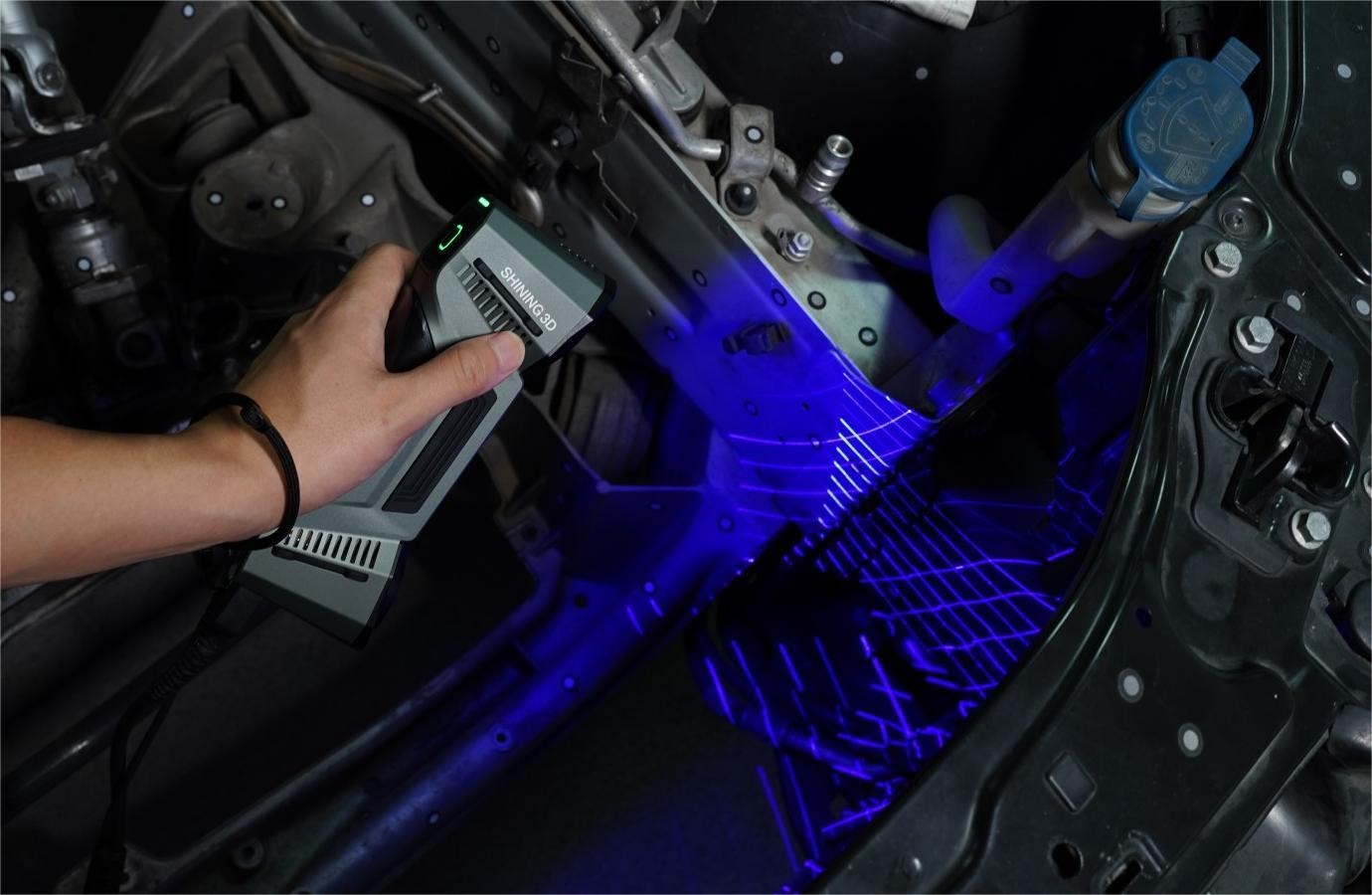

FreeScan Combo can be used to achieve metrology-level precision inspection, reverse design, additive manufacturing, and other applications in many manufacturing sectors, including the automotive industries, aerospace, rail transportation, heavy industries, mold manufacturing, casting and foundry and medical industries.

How does the Metrology scanner differ from what we carry currently?
  • Higher accuracy than highest model of the Einscan Series
  • Industrial/professional applications
  • Dongle instead of online activation
How does this fill in the gaps in scanning capabilities when compared to the HX
  • Higher Data capture rate
  • Class 2 Laser vs Class 1 laser on the HX (higher laser power = better scanning of difficult materials)
  • Wider FOV for faster scanning
  • Smaller physical size than HX
  • Infrared + Blue laser
Other notable points about the FreeScan Combo
  • No texture mode (compared to HX/einscan series) Primarily for high accuracy data collection
  • Single Laser line for deep hole scanning
  • 7 parallel line mode for high detail
