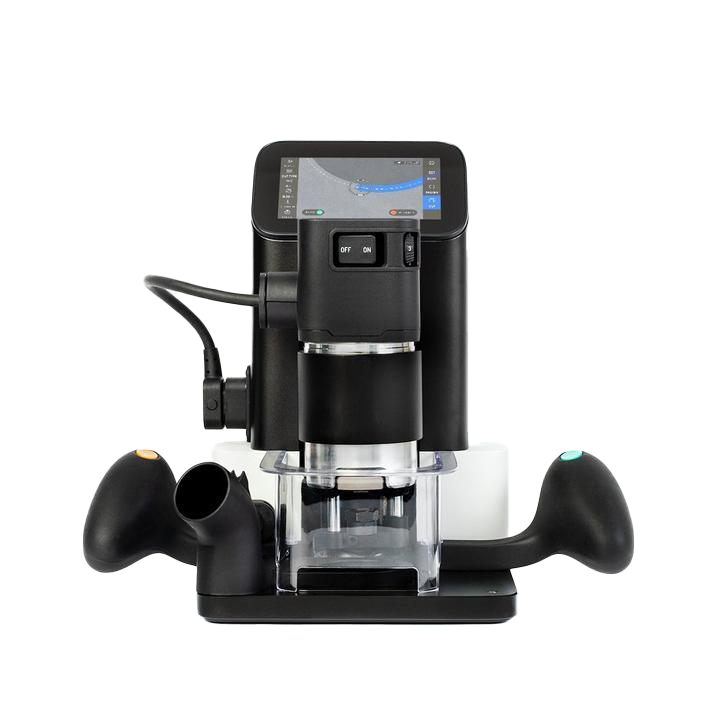

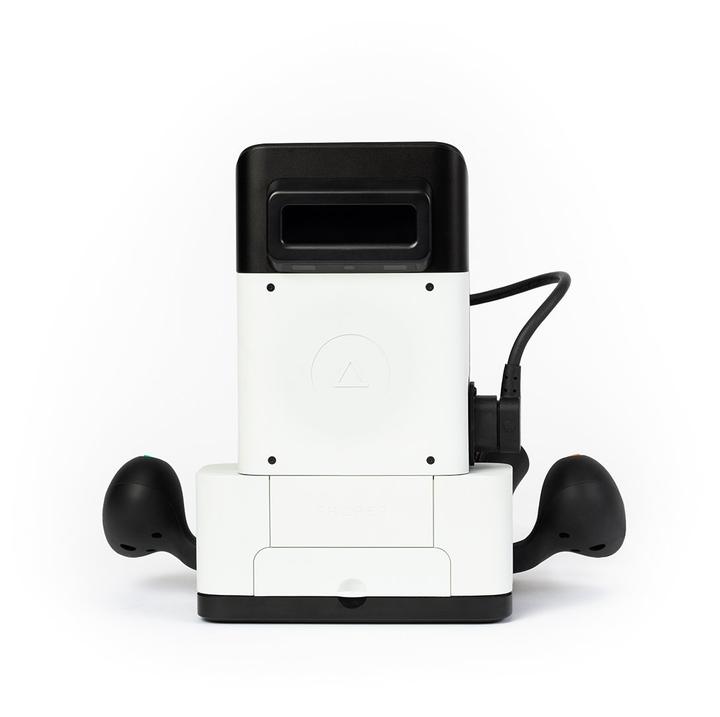

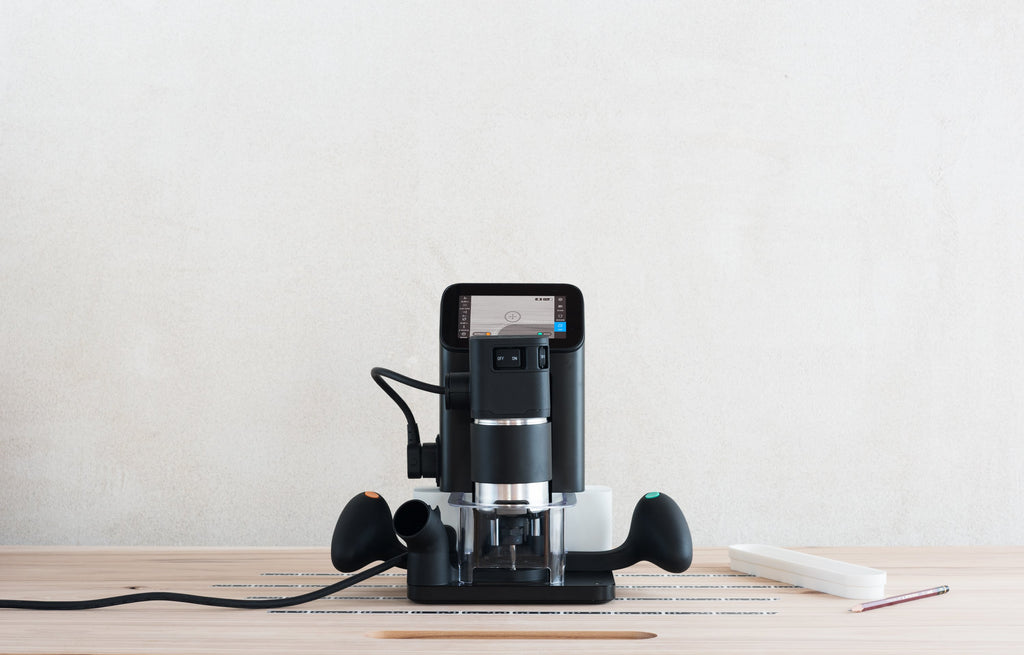

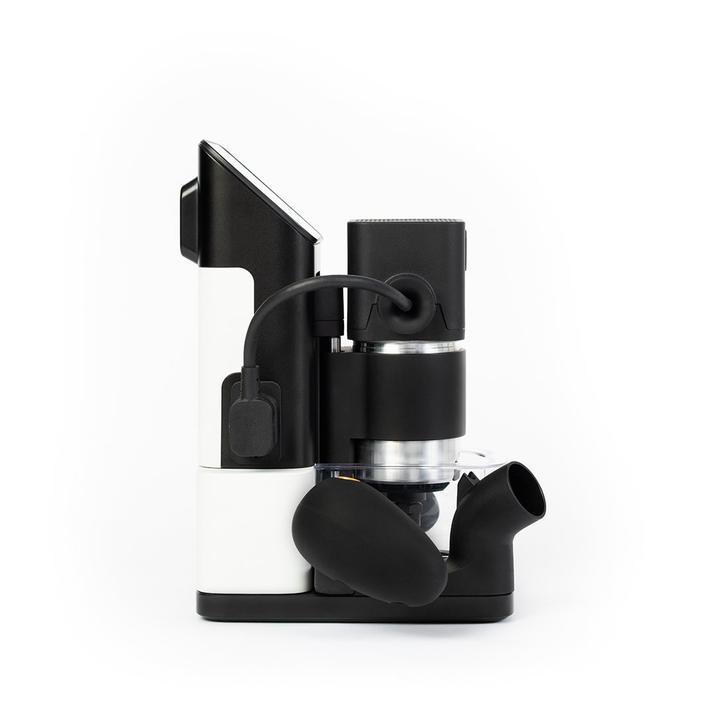

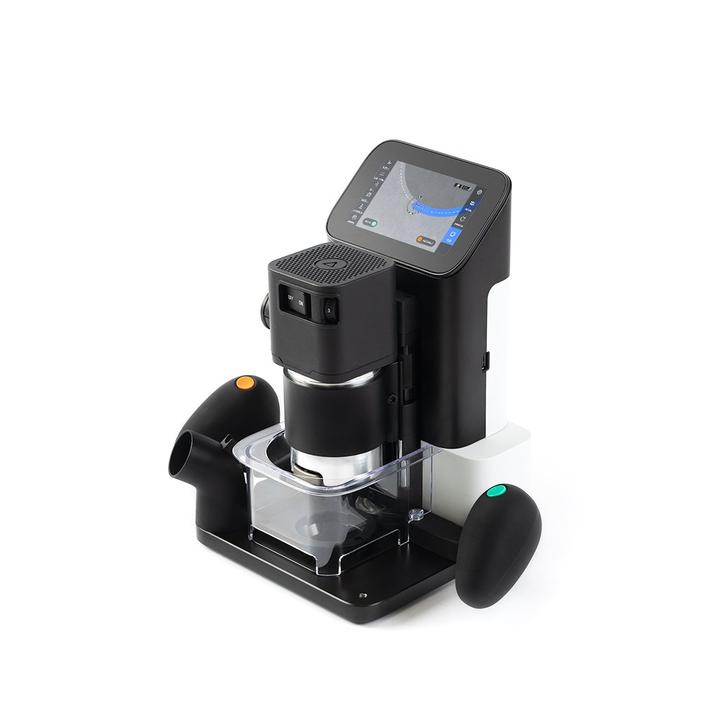

Shaper Tools - The Shaper Origin - Handheld CNC Router

Product SKU: SO2-NN

$3,999.00 $4,649.00

Available Stock:
Loading...

Configuration

Shaper Origin

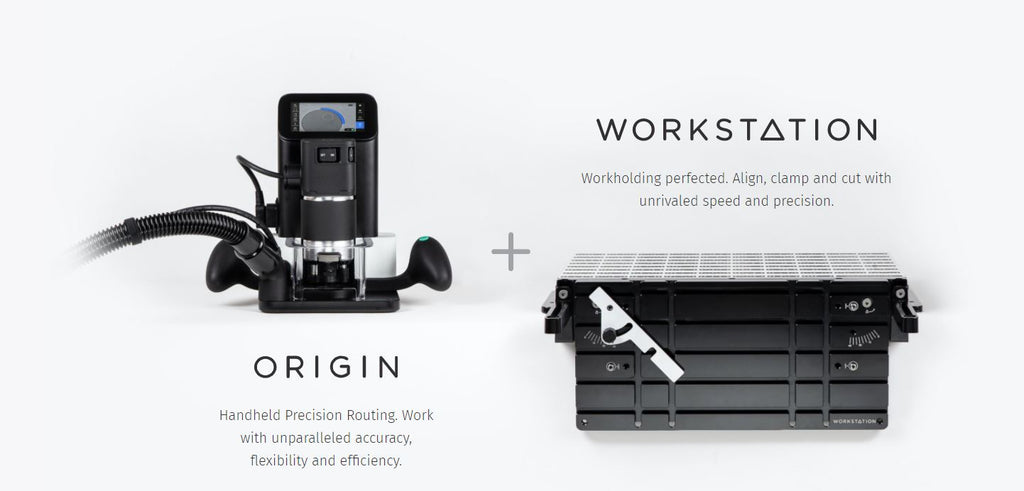

Shaper Origin + Workstation

Shaper Origin + Shaper Pro (Extended Warranty)

Quantity

Shaper Tools - Shaper Origin - Handheld CNC Router and Cutting Solution

Shaper Origin combines computer-guided accuracy with hand-held familiarity. Cut with unparalleled precision, flexibility and efficiency. Shaper Origin uses computer vision to understand its location relative to a work-piece and precision motors to continuously fine-tune the spindle's position along your intended cutting path. We think of it as auto-correct for your hands.

Technical Specs

Input Power: 120VAC, 60Hz. 7A
720W brushed AC motor
10,000 - 26,000 RPM with load-compensating speed control
Wi-Fi enabled for transfer of design files via ShaperHub, and for receiving software updates
Works with .SVG files
43mm (1.7”) of total Z-axis travel
Designed with the SM-1 spindle to provide optimal debris extraction
Capacitive multi-touch full-color LCD

What's Included

Shaper Origin with Shaper SM-1 Spindle
Tanos Systainer
Two rolls of ShaperTape (45.7m each)
Tool change accessories
USB flash drive
¼-inch (6.35mm) upcut spiral cutter
⅛-inch (3.175mm) upcut spiral cutter
60° engraving cutter
Universal dust collection adapter
One-year warranty

Origin Specs

Input Power

120VAC, 60Hz. 7A

Spindle Motor

720W brushed AC motor
10,000 - 26,000 RPM with load-compensating speed control
Soft-start, over-temperature and over-load safety cut-offs
Produced by Festool to Shaper specifications

Collet

Includes a ¼” (6.35mm) collet that accepts any commonly available ¼” (6.35mm) shank router bits
⅛” (3.175mm) collet sold separately, available from Shaper

Dust Extraction Port

Designed with the SM-1 spindle to provide optimal debris extraction
34mm inner diameter by 39mm outer diameter port dimensions
Fits most standard 27mm (35mm OD) and 36mm suction hoses (e.g. Festool, Fein)
Includes a 6.5’ (2m) adaptor hose with a 2 ¼” (5.7cm) OD nozzle

Depth Control

43mm (1.7”) of total Z-axis travel
Digitally adjustable depth-of-cut
Automated touch-off sensor

Connectivity

Wi-Fi enabled for transfer of design files via ShaperHub, and for receiving software updates
USB port allows easy offline transfer of design files

Digital Cut Files

Works with standard vector files (.SVG)
Includes on-tool design capabilities

Touch Screen

Capacitive multi-touch full-color LCD

Dimensions

Origin: 35cm (handle-to-handle) x 19.7cm x 29.9cm
Systainer: 39.6cm x 29.6cm x 42cm (SYS 5 T-LOC Systainer)

Weight

Origin: 6.6kg
Packaged (with accessories) in Systainer: 10.7kg
