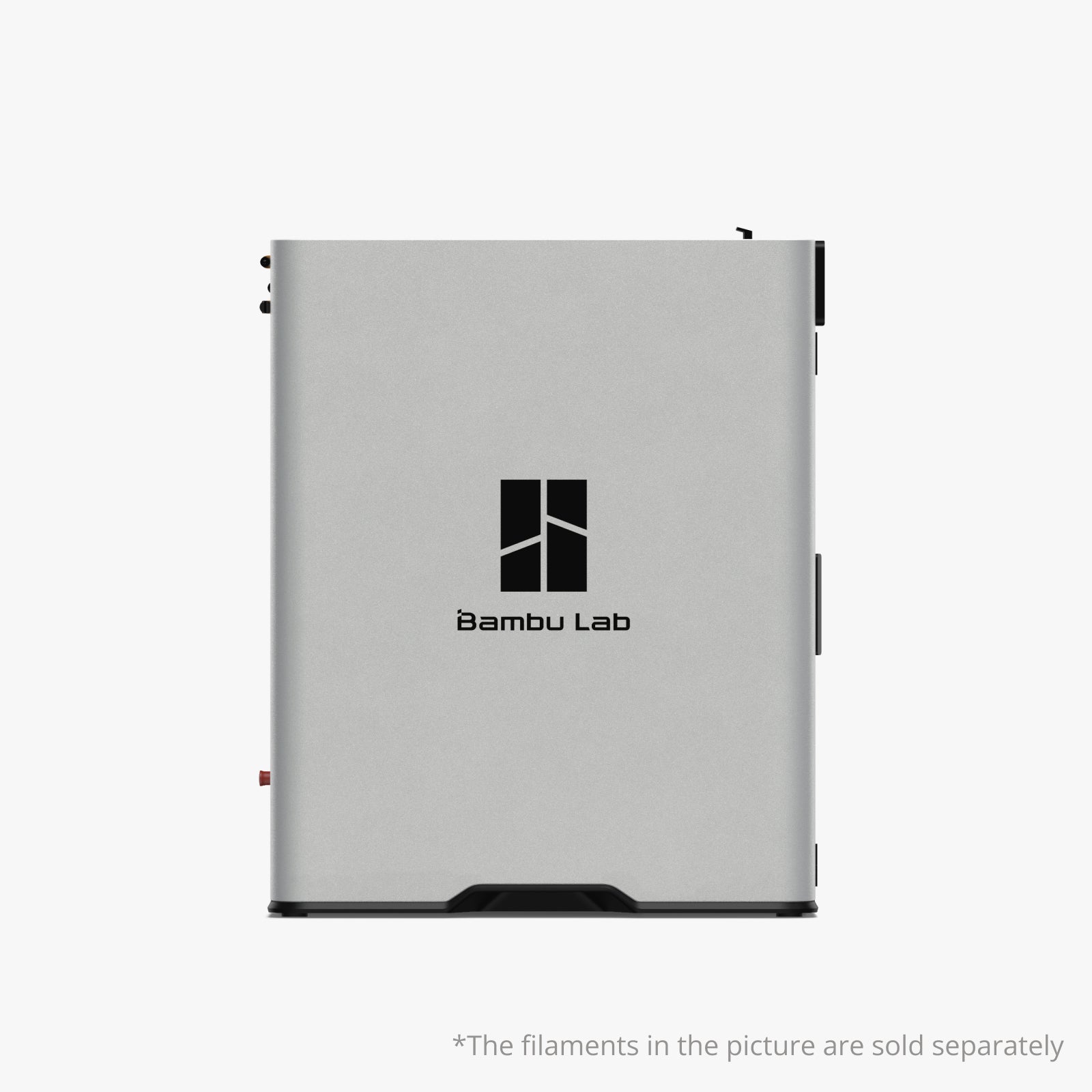

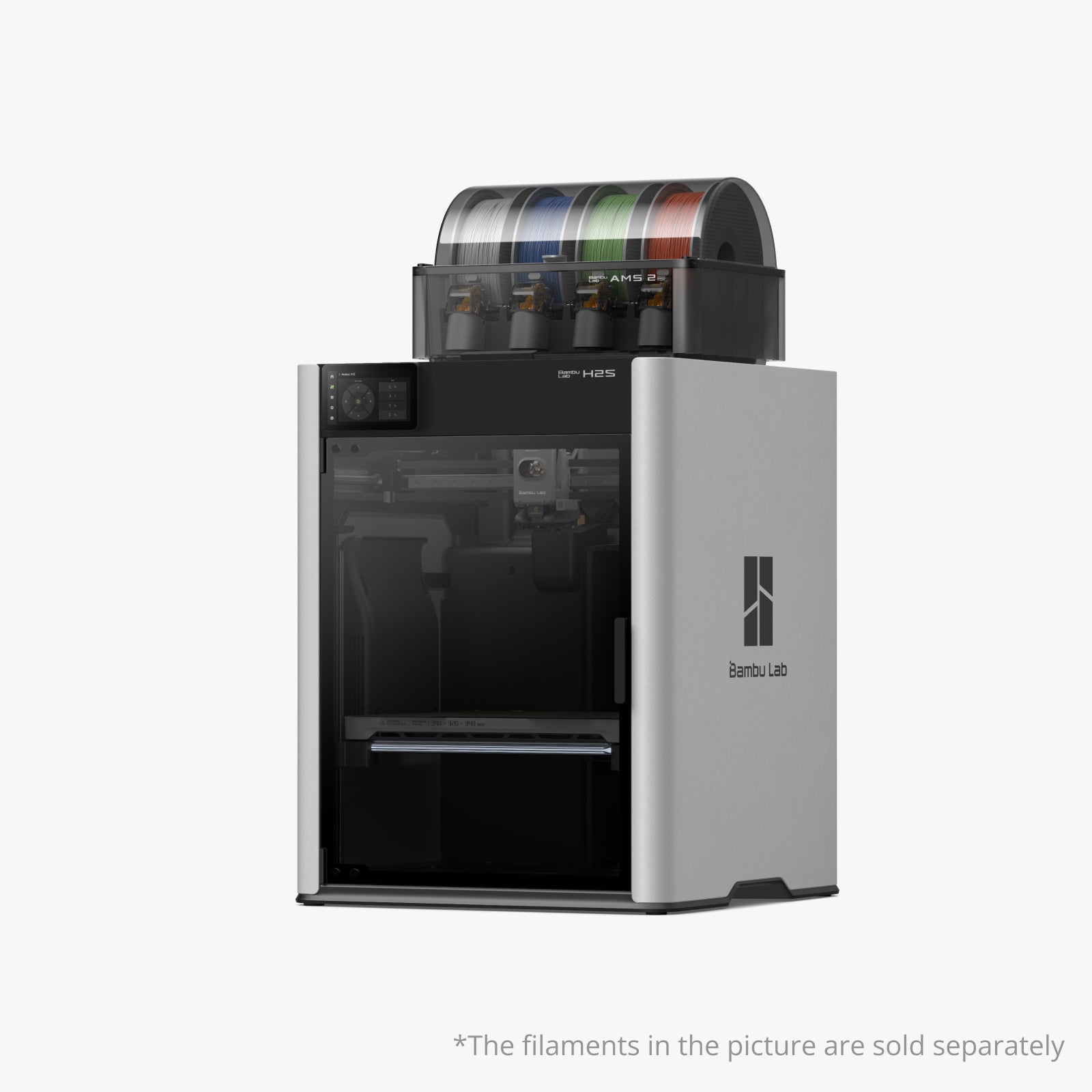

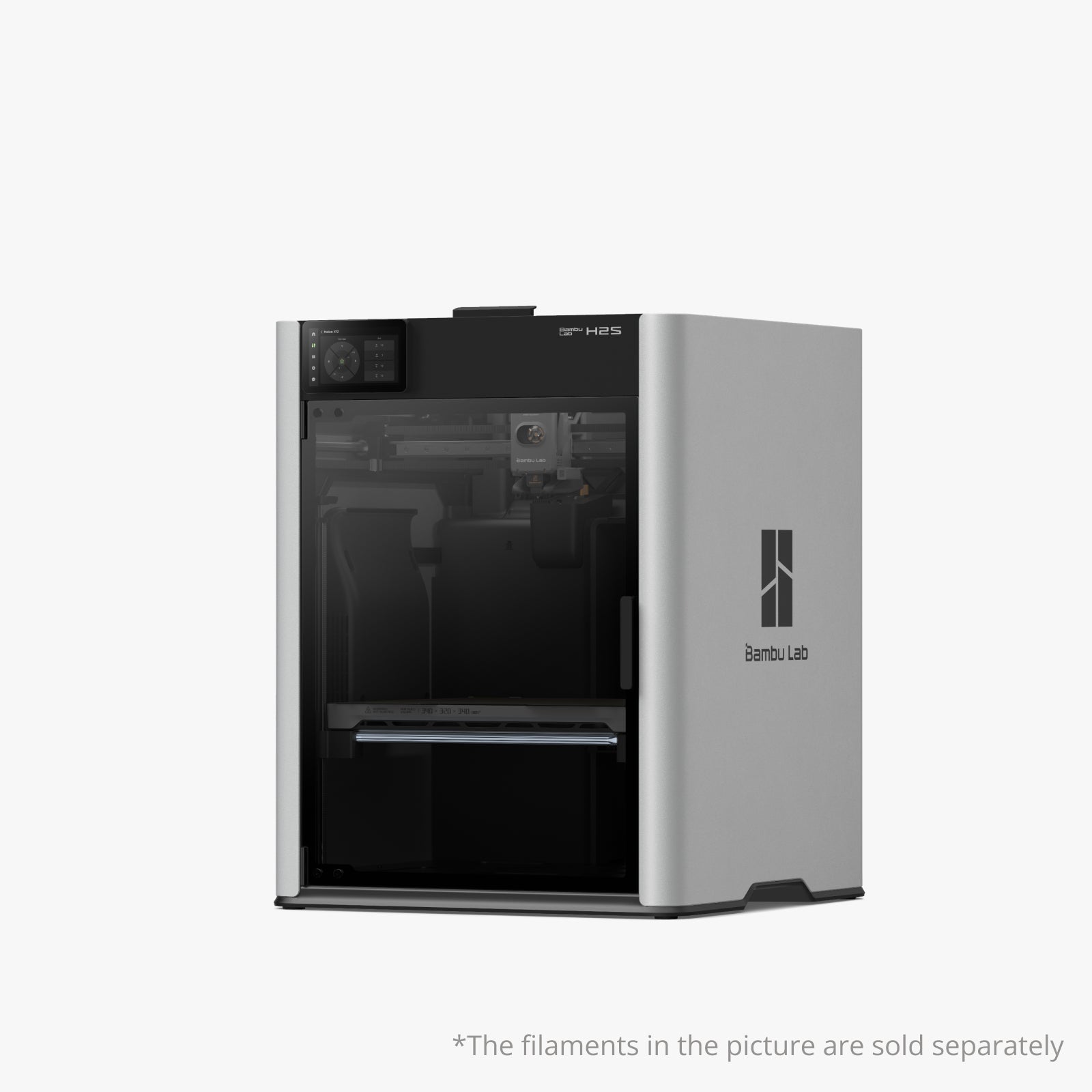

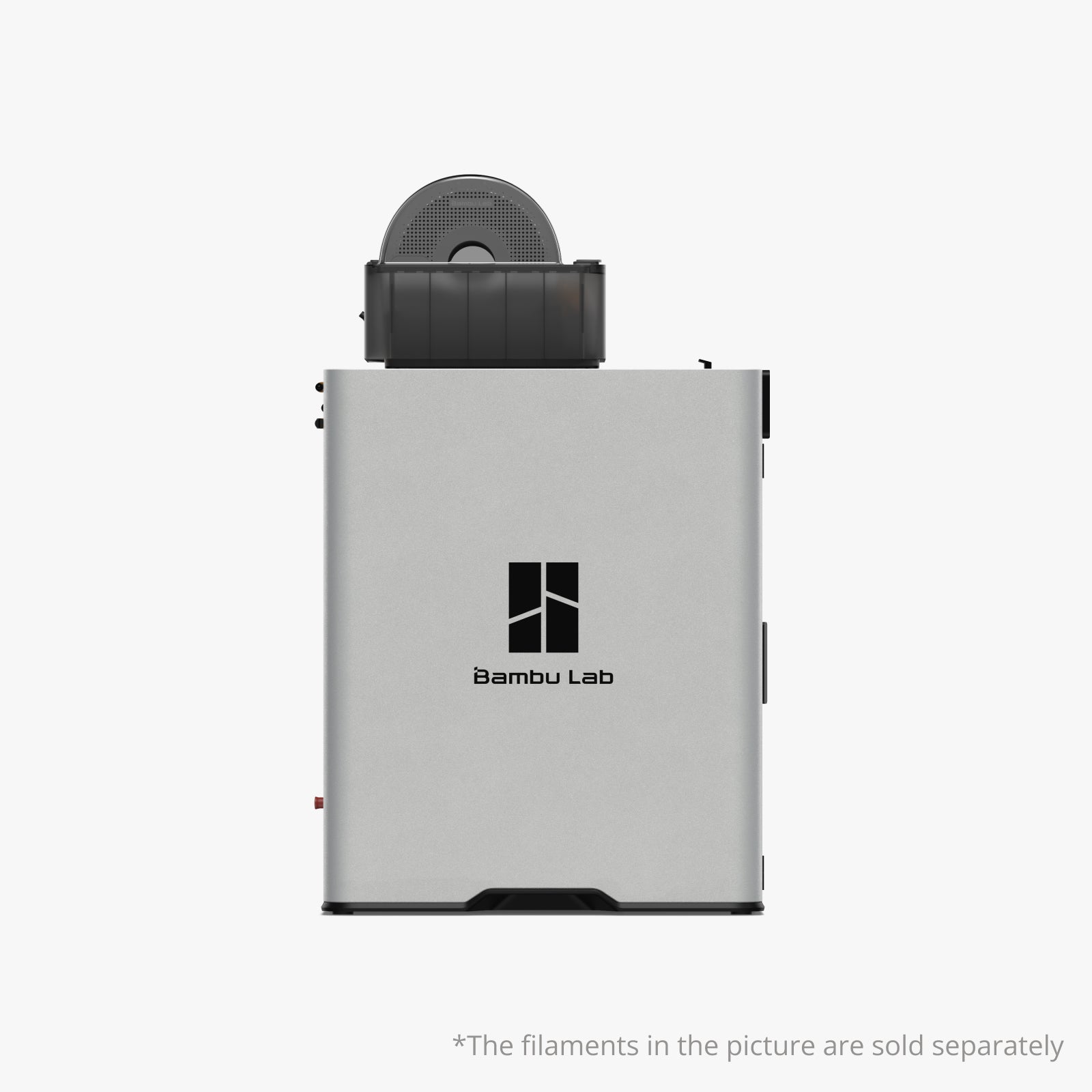

Bambu Lab H2S Combo (w/ESA/SGS Certification)

Bambu Lab H2S Combo (w/ESA/SGS Certification)

Bambu Lab H2S Combo (w/ESA/SGS Certification)

Your Go-To Personal Manufacturing Hub.
SKU: PF003-S+SA007-US
$1,799.00 CAD
Sale
Sold out

Price

$1,799.00 CAD $2,129.00

Stock

Request a Quote | Email This Page | Add to Wishlist

Product Details

The Bambu Lab H2S is a large-format, high-performance 3D printer designed as a personal manufacturing hub. With a massive build volume, advanced AI monitoring, high-speed servo extrusion, and support for engineering materials, it delivers industrial-level precision and reliability in a desktop format. Optional laser engraving and cutting modules expand its capabilities beyond 3D printing.

Technical Specs

Overview
Technology FFF
Build Volume / Work Area (L× W× H) 340*320*340 mm³ Print Volume
Number of Extruders Single Extruder (1)
Box Size 24.5 x 24.5 x 30 (inches) | 622.3*622.3*762mm
Net Weight 30 kg
Material Compatibility
Compatible Materials PLA, PETG, ABS, ASA, TPU, Nylon, PC, PA-CF, and PLA-CF.
Material Diameter / Thickness 1.75mm
Maximum Speed 1000 mm/s
Typical Operating Speed 20,000 mm/s²
Maximum Acceleration 20,000 mm/s²
Maximum Throughput / Flow Rate 40 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature)
Features
Maximum Nozzle Temperature 350 °C
Filament Cutter Built-in, Supported
Extruder Type Closed-loop Servo Motor Extruder
Extruder Motor Bambu Lab High-precision Permanent Magnet Synchronous Motor.
Supported Nozzle Diamete 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm
Platform & Motion System
Included Build Plate Textured PEI Build Plate
Heated Bed Supported
Maximum Bed Temperature 120 ℃
Chamber Heating 350°C Nozzle & 65°C Active Chamber Heating
Chamber Cooling Air Assist - Air Assist keeps your lines crisp by blowing away smoke and char while cooling the surface—preventing soot buildup and beam distortion for sharp, clean results.

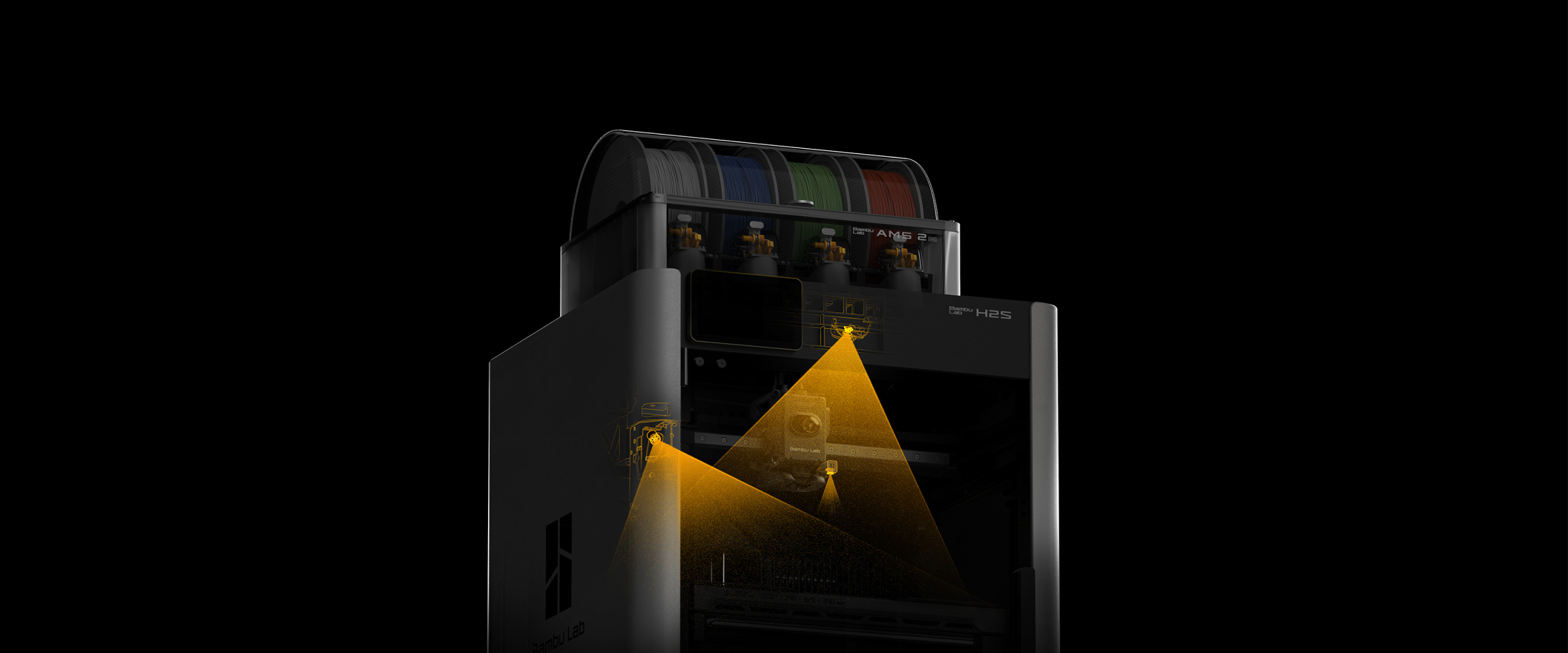

Camera 23 Sensors + 3 Cameras. With AI-driven real-time monitoring, the vision system detects clumping, spaghetti and filling chute as they happen, helping prevent failed prints before they start. This same vision system powers advanced features like Live Spatial Alignment, allowing precise laser and cutting calibration, and Vision Encoder technology, which enhances positional accuracy.
Filament Detection Supported
Door Sensor Supported
Power Loss Recovery Supported
Auto Calibration 5μm Resolution Optical Motion Calibration
Number of Sensors

23 Sensors & 2 Cameras.

  • Live View Camera: Built-in; 1920*1080
  • Toolhead Camera: Built-in; 1600*1200
  • Filament Run Out Sensor: Supported
  • Filament Tangle Sensor: Supported
  • Filament Odometry: Supported with AMS
  • Power Loss Recovery: Supported
Software & Workflow
Supported File Types .3MF / .STL / .STEP / .STP / .OBJ / .SVG / .AMF
Connectivity
Wi-Fi Operating Frequency: 2412-2472 MHz (CE/FCC), 2400-2483.5 MHz (SRRC), 5150-5850 MHz Wi-Fi Transmitter Power (EIRP): 2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC); 5 GHz Bands: various limits Wi-Fi Protocol: IEEE 802.11 a/b/g/n
USB Built-in 8 GB EMMC and USB Port
Cloud Connectivity The H2S offers seamless cloud connectivity for convenient remote control from any device. For security-sensitive applications, it also delivers complete offline functionality, ensuring physically isolated operation. Users can control the printer, send files, and upgrade firmware—no internet required. Additionally, Developer Mode unlocks MQTT port access, empowering developers and integrators to connect third-party components and custom software with ease.
Remote Monitoring The H2S offers convenient cloud connectivity for remote control from any device.
Input Voltage 100-120 VAC / 200-240 VAC, 50/60 Hz
Typical Power Consumption 200 W@220 V / 200 W@110 V (Single Nozzle Printing PLA)
Maximum Power Consumption 1800 W@220 V / 1250 W@110 V
Safety and Compliance
ESA Certification ESA/SGS Certification
Certifications ESA/SGS Certification
Air Filtration Pre-filter Grade: G3
HEPA Filter Grade: H12
Activated Carbon Filter Type: Granulated Coconut Shell
VOC Filtration: Superior
Particulate Matter Filtration: Supported
Warranty and Support
Manufacturer Warranty 1-Year Manufacturer Warranty
Shop3D Training

Included at an additional cost.

What's in the Box

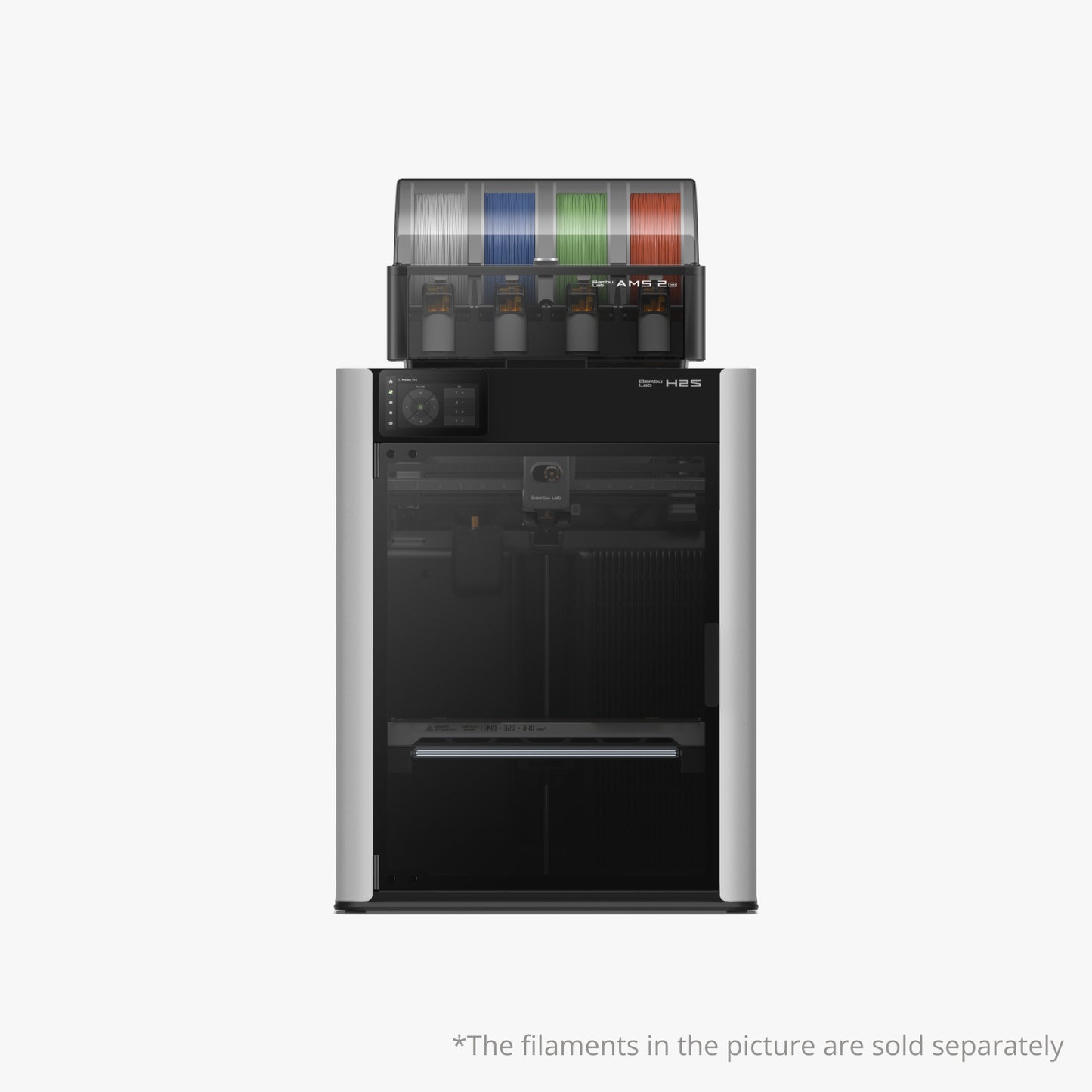

  • Bambu Lab H2S 3D Printer
  • Bambu Lab AMS 2 Pro
  • Textured PEI Build Plate
  • Spool Holder
  • Accessory Box
  • Safety Key

Links

3D Printer

Product Highlights

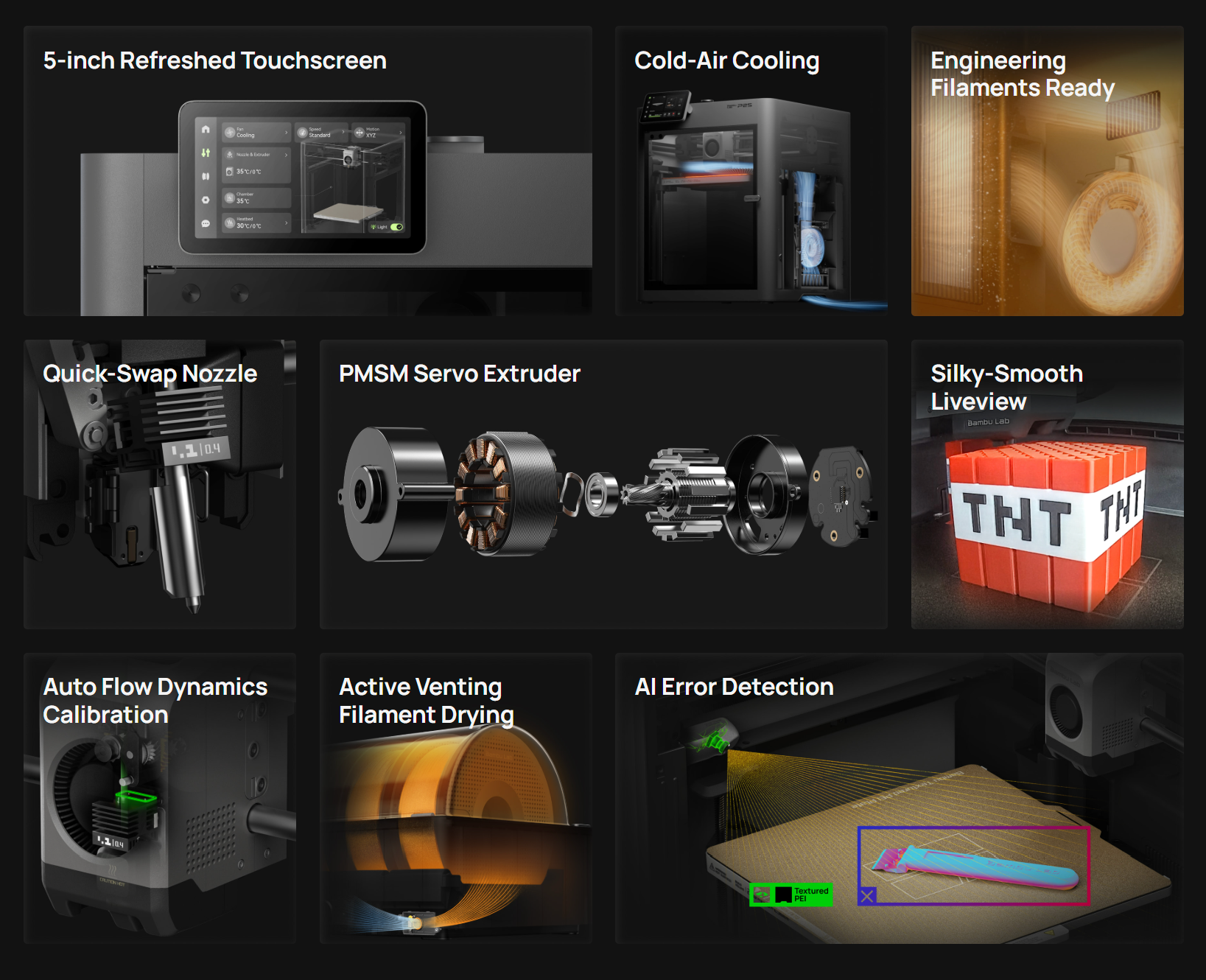

Top Features

  • Large 340 × 320 × 340 mm build volume for bigger parts and fewer print setups.
  • High-speed CoreXY architecture with up to 1000 mm/s toolhead speed.
  • PMSM servo extruder with 10 kg extrusion force and real-time clog/grinding detection.
  • 50 μm motion accuracy with Vision Encoder calibration technology.
  • 350°C hotend + 65°C active heated chamber for advanced engineering materials.
  • 23 sensors and 3 cameras with AI-powered print monitoring and failure detection.
  • Multi-color printing support through AMS compatibility.
  • Optional 10W laser and cutting modules for engraving, cutting, and expanded workflows.
  • Auto hole/contour compensation for improved dimensional accuracy and better-fitting parts.

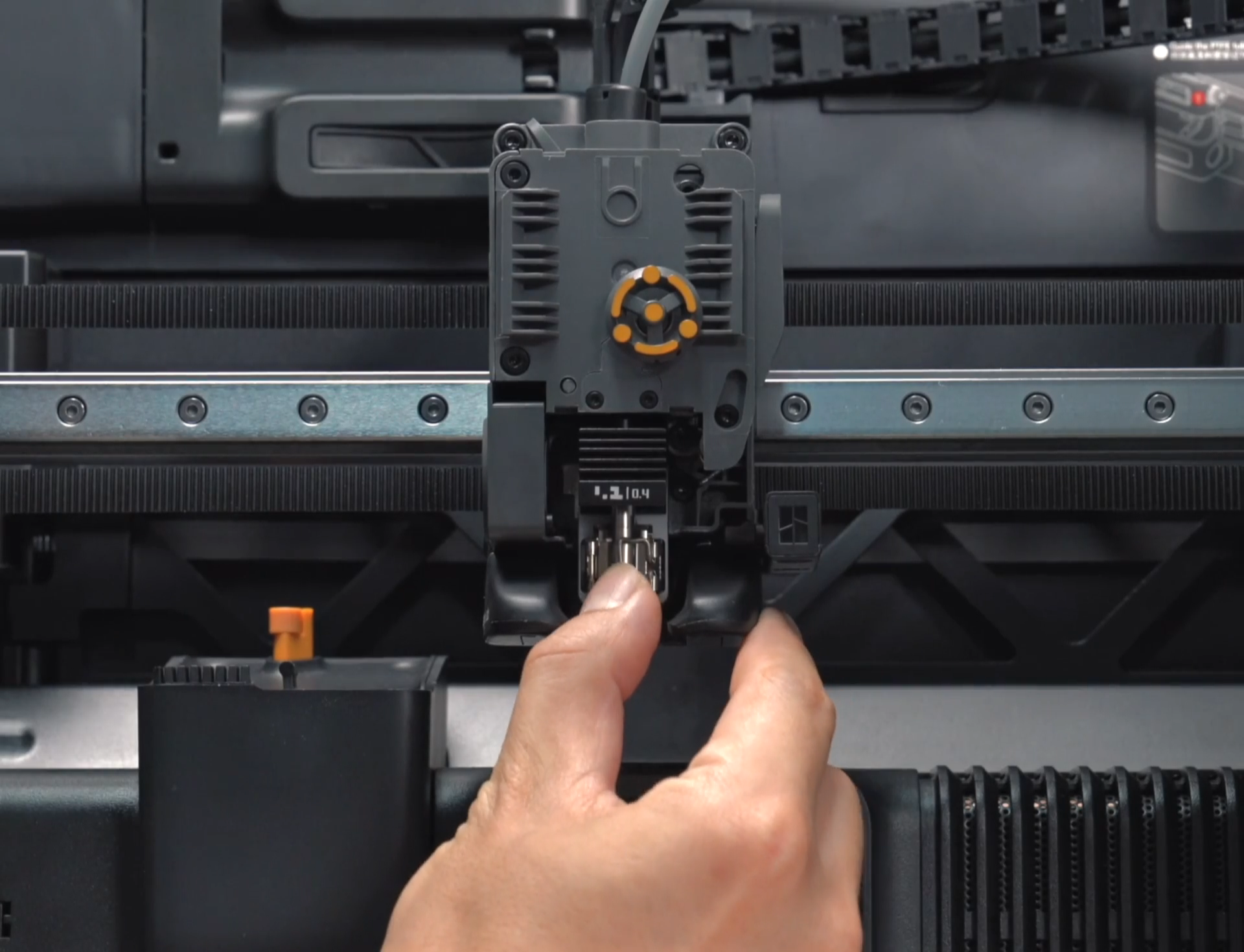

  • Quick-swap nozzle system for fast material and nozzle changes.
  • Adaptive airflow and filtration system for stable temperature control.
  • Quiet operation with active motor noise reduction.
  • Cloud or offline operation for flexible connectivity and privacy.

Your Go-To Personal Manufacturing Hub

Bigger Prints. Bigger Possibilities.

The H2S delivers Bambu Lab’s largest print volume, giving creators the freedom to produce larger prototypes, functional parts, and complex designs in fewer pieces. Its spacious build area makes full-scale projects possible without constant reassembly or splitting models.

Precision Meets High-Performance Materials

Built for demanding applications, the H2S combines a 350°C hotend, 65°C heated chamber, and advanced extrusion control to handle everything from everyday filaments to high-performance engineering materials. Vision Encoder calibration and automatic compensation help maintain consistent accuracy across every print.

Your All-in-One Manufacturing Hub

More than a 3D printer, the H2S expands your workflow with optional laser engraving and cutting capabilities. With AI monitoring, automatic calibration, and intelligent safety systems, it simplifies complex manufacturing tasks while delivering reliable results.
