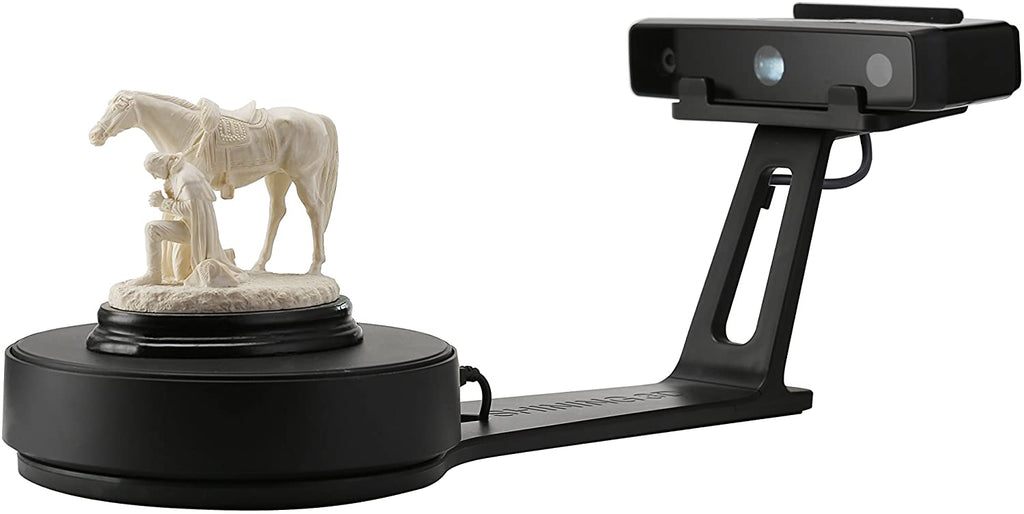

Shining3D - EinScan-SE (Elite) - Desktop 3D Scanner

Product SKU: 6970163081311

Available Stock:
Loading...
A Powerful Companion for Educators and Individuals

Experience the power of 3D scanning right at your fingertips! Using safe, white light scanning, the EinScan SE is easy enough for anyone to use. Just push the start button, and the scan process will turn your object into a 3D model that can then be printed on a 3D printer. The EinScan SE is also compact and lightweight, allowing for easy transportation.

Technical Specs
  • Scan Mode: Fixed Scan, Auto Scan
  • Single Shot Accuracy: ≤0.1 mm
  • Minimum Scan Volume: 30 × 30 × 30 mm
  • Maximum Scan Volume - Fixed Scan: 700×700×700mm
  • Maximum Scan Volume - Auto Scan: 200×200×200mm
  • Range of Single Capture: 200×150 mm
  • Scan Speed - Fixed Scan: <8 s
  • Scan Speed - Auto Scan:  <2 mins
  • Point Distance: 0.17 mm ~ 0.2 mm
  • File Format: OBJ, STL, ASC, PLY
  • Camera Resolution: 1.31 Mega Pixels
  • Computer Requirements: Nvidia series Graphic memory > 1G; 1 ×USB 2.0 or 3.0; Win7, Win8, Win10 (64 bit); Dual-core i5 or higher; > 8 G
  • Power Supply: 40 w
  • Input Voltage: DC:12 v, 3.33 A
  • Load Capacity of Turntable: 5 kg
What's Included
  • Scanner Head
  • Turntable
  • Scanner Stand
  • Scanner Bracket
  • Calibration Board
  • Calibration Board Holder
  • Power Cord
  • Power Adapter
  • USB Cable A
  • USB Cable B
  • Quick Guide
Scanned Images
Highlights

An Innovative Desktop 3D Scanner

The EinScan SE is a multi-functional machine which is able to obtain 3D data quick and effectively. The SE offers the easiest 3D scanning experience for non-technical users.

Dual Scan Modes
  • The EinScan SE's Automatic Scan and Free Scan modes allow you to scan a variety of sizes from small to large in full colour, allowing for easy reconstruction or digitization of real world objects.  This makes it a great tool for educational training in the world of 3D design.
Completely Plug & Play
  • Once you have assembled the machine, and the software is installed on your system, you're good to go! The EinScan SE is ready for use straight out of the box!




A collection of screens showcasing the einscan software

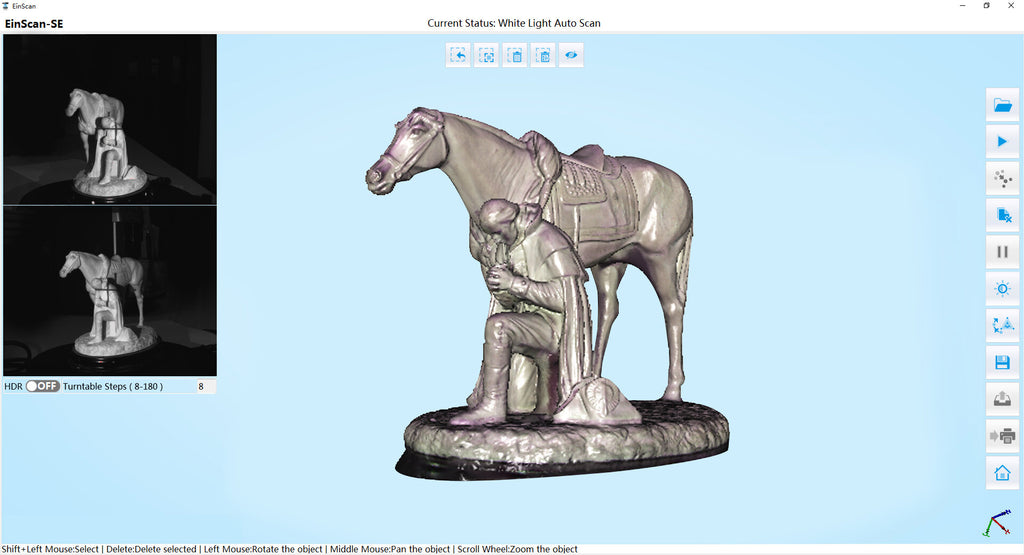

A scan displayed within the software interface

A Powerful Companion for your 3D Printer

The EinScan SE is the easiest 3D scanning experience for non-technical users, making it perfect for education, desktop 3D printing, etc.

Quick and Efficient
  • With this machine, a single scan can be done in as quick as 8 seconds, and a 360-degree scan can be done in just 2 minutes.
A Flexible Machine
  • This 3D scanner pumps out high-quality scans and is great for assisting in 3D design, 3D printing applications, and reverse engineering parts/tools or numerous other objects.

A Fast, Accurate, & Reliable digital solution

The EinScan SE is capable of delivering accurate data quickly and effectively. This machine is perfect to use for reverse engineering, archiving, or heritage preservation.

Ideal for Your Workflow
  • The scans from the EinScan SE output high quality renders in a variety of file formats which are also great for use in Animation, CG, VR & AR etc., making it an ideal choice to add to your workflow!
Scanned Triceratops results
Overview

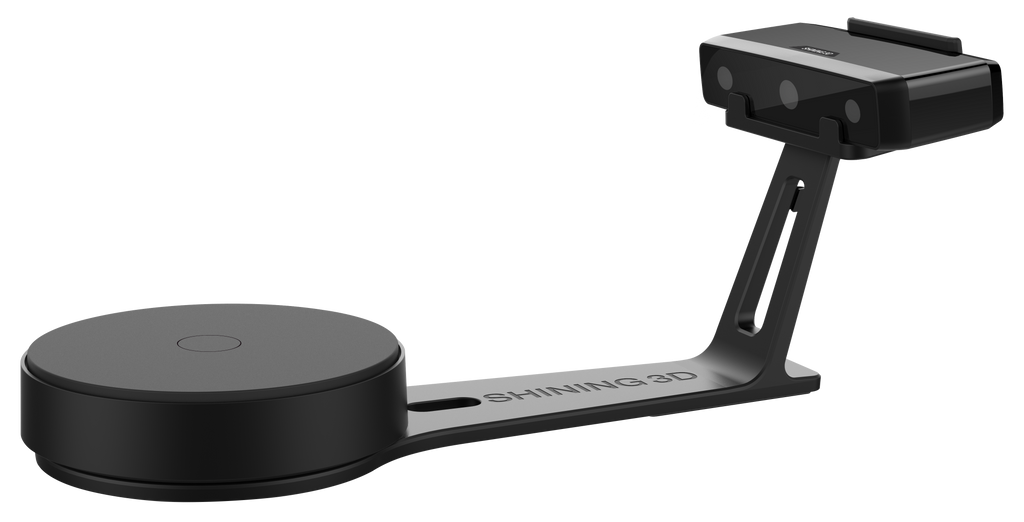

Turntable Base for Optimal Scanning

The EinScan SE comes with an included turn table to ensure your object is scanned from every angle. Once installed on your system, the software will periodically rotate the base and object during scanning to ensure you always get the most accurate and efficient results.

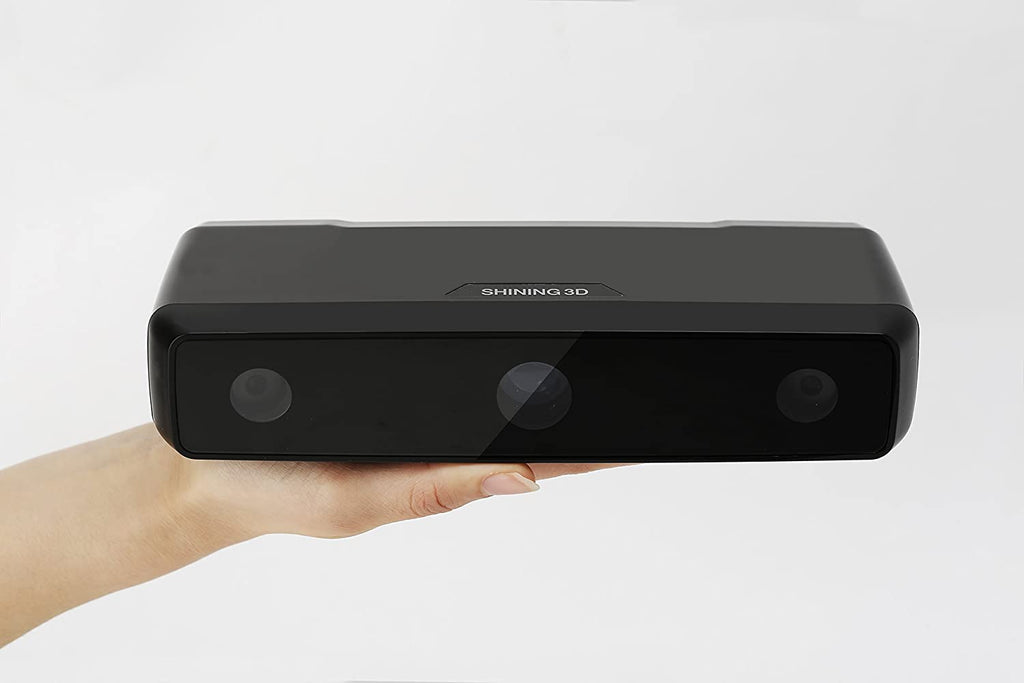

Scanner Head utilizes Safe White Light Source
Normally, lasers and lights from 3D scanners can be very hazardous for your eyes. The EinScan SE alleviates this issue by utilizing white light which is much safer to use.

Calibration Board Included for Easy Set Up
During set up, the software will walk you through the steps of calibrating the machine using the calibration board. This ensures that the lightest and darkest points of your object are picked up by the Scanner. To facilitate this, Aesub Spray can also be used to add visibility to your scanned object.


Quick Guide Included to Address Your Concerns
A quick guide is also included in order to help you troubleshoot any issues you have during the initial set up and operation of the machine.


FAQ
How can I scan dark, reflective objects?

The best way to get an accurate scan for an item which is dark and/or reflective is to spray your object with a matte spray like Aesub. This allows the scanner to accurately pick up all the details of your object.

Which scanner is right for me?

Depending on the size of the object being scanned, there may be a better solution for your project within the Shining3D EinScan line-up. TO figure out which machine is best suited for you, feel free to contact us at sales@shop3d.ca

Is Shining3D a reliable brand?

The Shining3D brand has been around since 2004, and was founded with a focus in R&D and manufacturing. They take pride in offering accessible and efficient high-tech solutions. Their technology has been successfully used in many industries such as automobile manufacturing, aerospace, mold manufacturing, electronics, consumer goods, dental, orthopedic, ancient artifacts, sculpture, architecture, energy, research and education, etc.

Why Choose EinScan

User Friendly and Highly Detailed

Every scan generates a mesh of high-quality 3D data, allowing you to reconstruct the real geometry of any object with fine details. The EinScan SE also utilizes a visible white light when scanning. The scanning process is done without a laser, making the EinScan SE perfectly safe for even children to use!


Easy Operation, Faster Scanning
One-click scanning makes your life easy, with automatic calibration and no rigid set-up required. The EinScan SE is able to complete a single scan in as quick as 8 seconds, and can do a full 360 scan in Auto-Scan mode in only 2 minutes.

Compatible with 3D Printers
The EinScan is able to auto mesh 3D data meaning you get water-tight prints every time! You can also seamlessly connect to a variety of 3D printers once you provide API access for your machine.




One Click Upload for Online File Saving and Data Sharing
The EinScan allows for support of third-party data sharing platforms in order to access the cloud service. This allows the benefit of one-click uploads for online file archiving or data sharing.

The EinScan SE Workflow
