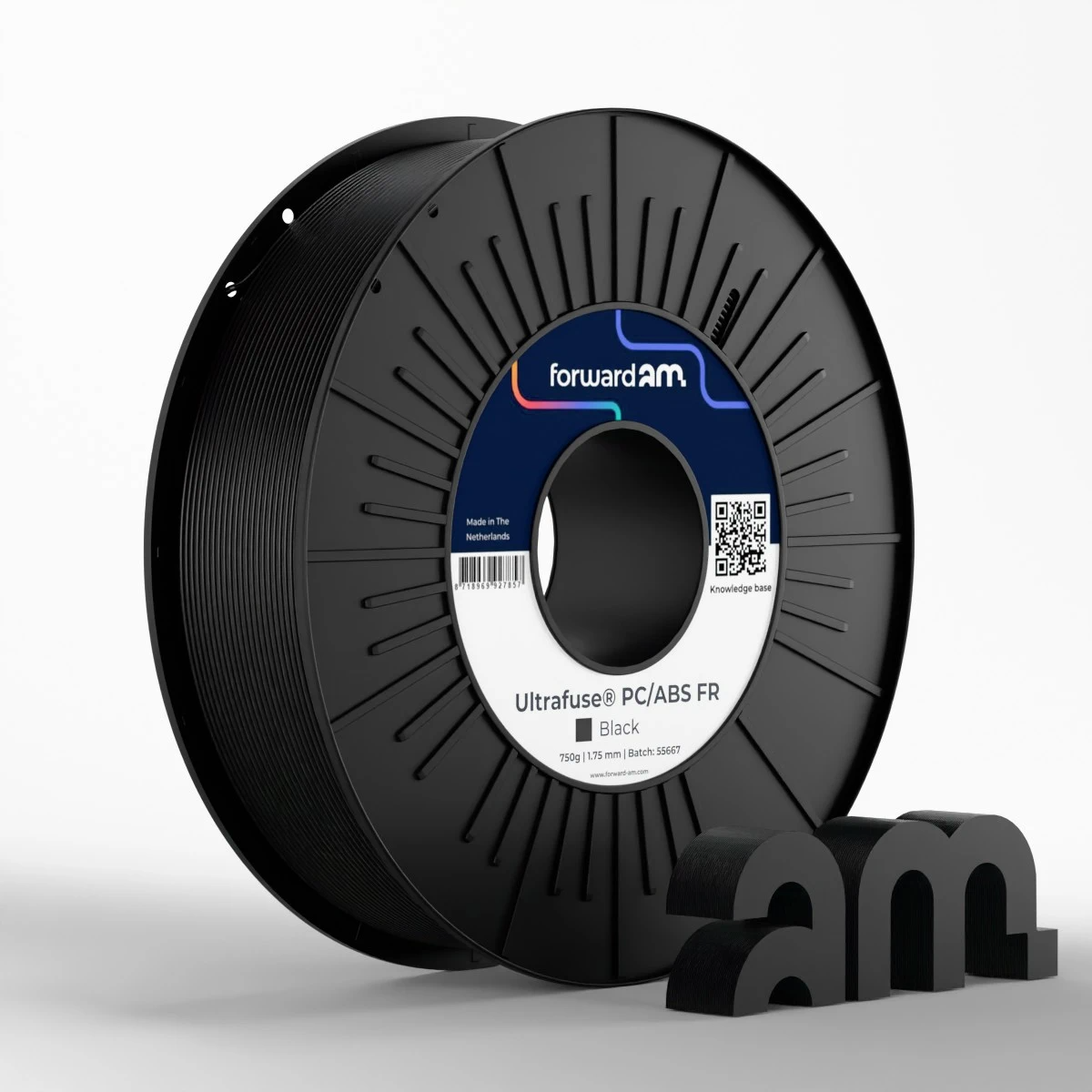

Ultrafuse® PC/ABS FR is a V-0 flame retardant blend of Polycarbonate and Acrylonitrile Butadiene Styrene, two of the most used thermoplastics for engineering & electrical applications.

The combination of these two materials results in a premium material with a mix of the excellent mechanical properties of PC and the comparably low printing temperature of ABS. Combined with a halogen free flame retardant, parts printed with Ultrafuse® PC/ABS FR feature great tensile and impact strength, higher thermal resistance than ABS and can fulfill the requirements of the UL94 V-0 standard.

Benefits at a Glance

• Fulfills flame retardancy according to UL 94 V-0 (@1.5mm & 3.0mm)
• Outstanding aesthetics
• Strong layer adhesion
• High print speeds possible
• Easy to print
• Railway classification according to EN 45545-2

Material Properties

• Tensile Strength (MPa): 17.3 (ZX), 50.1 (XY)
• Flexural Modulus (MPa): 1810 (ZX), 2200 (XZ), 2550 (XY)
• Elongation at Break: 0.8 % (ZX), 10.7 % (XY)
• Impact Strength Izod notched (kJ/m2): 1.8 (ZX), 30.3 (XZ), 16.8 (XY)
• Impact Strength Izod unnotched (kJ/m2): 3.0 (ZX), 87.9 (XZ), 57.0 (XY)
• HDT @ 0.45 MPa: 86 oC

Printing Guidelines*

• Nozzle Temperature: 260-280 °C
• Build Chamber Temperature: Closed chamber, passively heated
• Bed Temperature: 90 - 110 °C
• Bed Material: Glass
• Nozzle Diameter: ≥ 0.4 mm
• Print Speed: 30 -350** mm / s

* The product data is provided in good faith and represents typical properties based on our current knowledge and experience; these data are not to be construed as specification limits or mini- mum values. Product properties may be changed without notice. This document does not create any liability, warranty or guarantee of product performance. It is the buyer’s responsibility to determine the suitability of Ultrafuse® products for the intended application.

** To achieve faster printing speeds, it may be necessary to raise the nozzle temperature. The highest speed mentioned has been determined through our latest tests, ensuring optimal surface quality with a 0.4mm nozzle and 0.2mm layer height. Please note that as printing technology and equipment evolve, we anticipate the possibility of achieving even faster speeds in the future.

Safety and Storage

Drying recommendations to ensure printability: 60 °C in a hot air dryer or vacuum oven for 4 to 16 hours. Please note: To ensure constant material properties the material should always be kept dry. Recommended: Process materials in a well ventilated room, or use professional extraction systems.
