BCN3D Omega i60 (220V)

Product SKU: 20501

$29,999.00

The next step in 3D printing starts here, with the BCN3D I60.

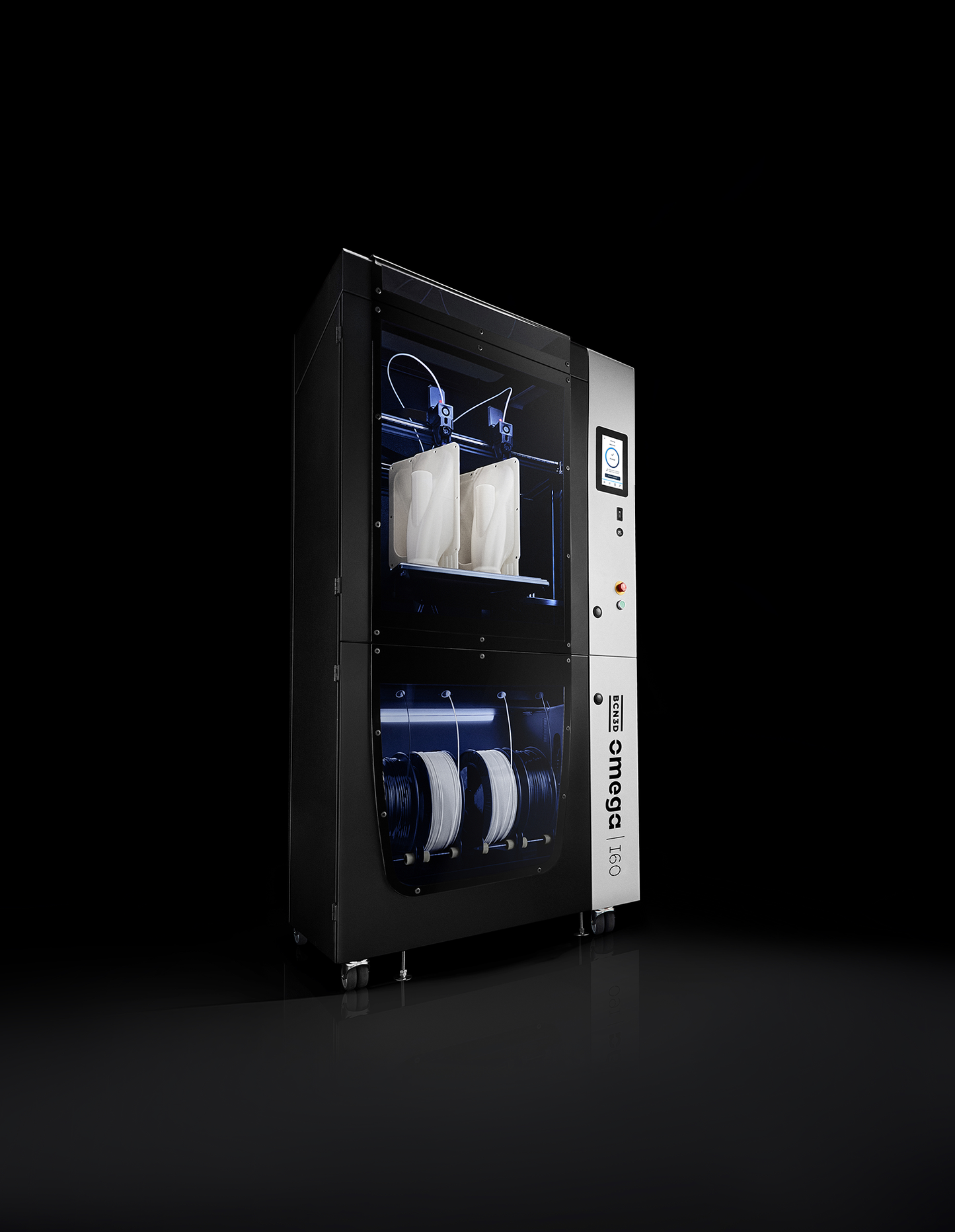

BCN3D Omega I60 is a high-speed, all-in-one industrial 3D printer designed for the factory floor, featuring IDEX system, an actively heated chamber and a massive print volume

The BCN3D Omega I60 features a modernized version of BCN3D’s signature IDEX technology, which doubles productivity by using both toolheads simultaneously. It boasts a massive print volume of 60L and a heated chamber that can reach temperatures up to 70ºC, allowing for the production of large-scale, robust pieces in engineering-grade materials. The printer is equipped with a temperature and humidity-controlled material operations system that prepares filaments for printing. Additionally, it utilizes a 1.75mm direct-drive high-speed extruder capable of speeds up to 300 mm/s, enabling faster production of parts than ever before.

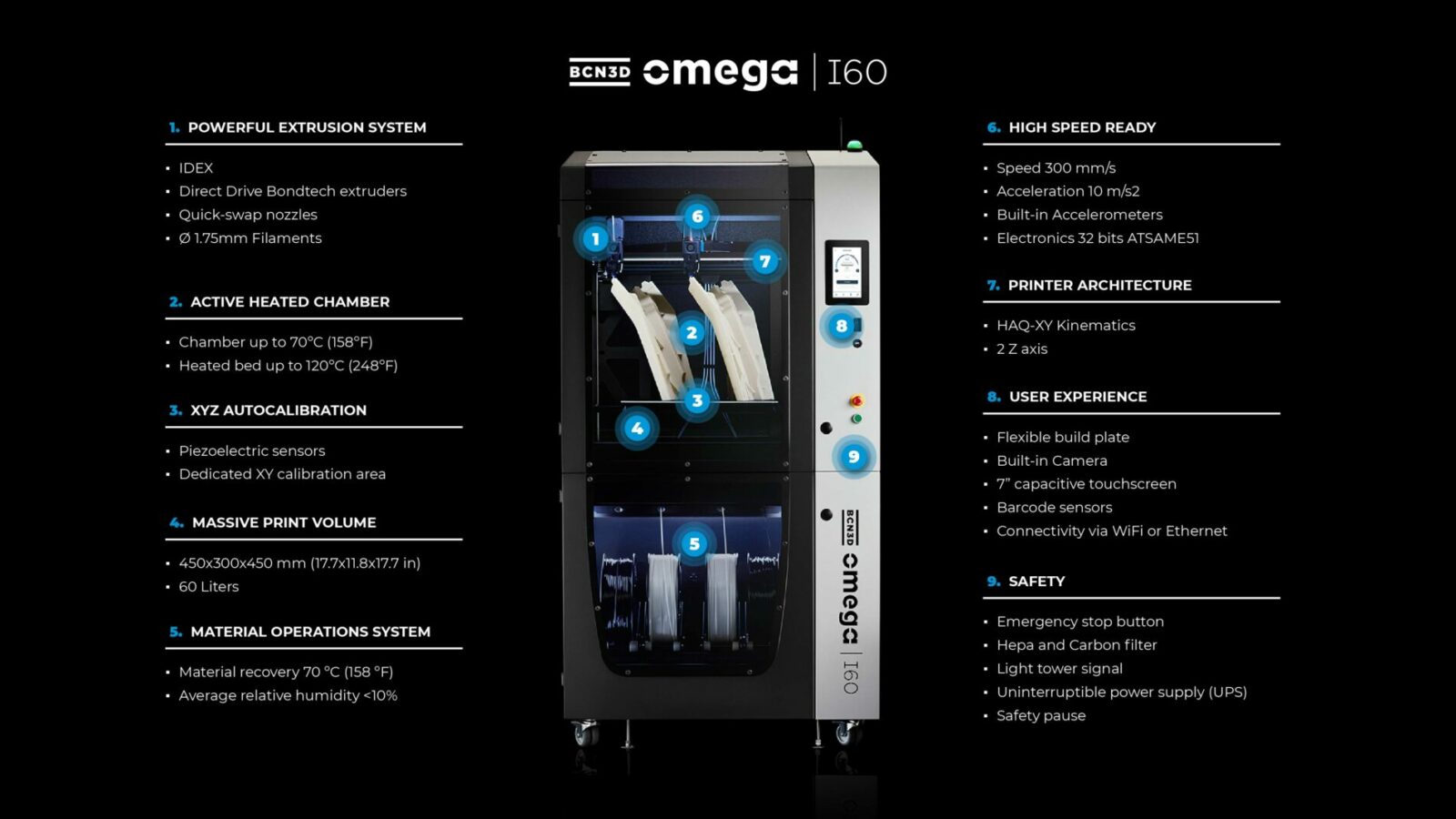

Main Features

IDEX Technology:
Double your productivity by using both toolheads simultaneously.

Active Heated Chamber up to 70ºC:
Control chamber temperature for part uniformity, dimensional accuracy, and mechanical properties

Material Operations System:
Integrated temperature and humidity-controlled system that prepares filaments for printing.

Powerful Extrusion System:
1.75mm direct-drive Bondtech extruder and custom E3D Revo Hotends with easy-swap nozzle change.

High Speed Ready:
Print parts at 300 mm/s thanks to built-in accelerometers.

Massive Print Volume of 60 Liters:
Create big robust parts with solid mechanical properties

Materials

Omega Proto:

A custom formulation developed for BCN3D Omega I60 and ideal for prototyping, jigs and fixtures, low load bearing alignment guides, and drill guides. It offers a smooth matte black surface finish and isotropic properties, making it suitable for both basic and functional prototyping

Omega Resistant Nylon:

Ideal for the factory floor environment, this material is chemical, wear and solvent resistant. It serves as a drop-in replacement for materials like Acetal commonly found across production lines.

Omega Support:

A breakaway support material that works with all the aforementioned materials. This allows for easy removal of supports without the need for dissolving, enabling the immediate use of printed parts.

Omega Impact ASA:

This material excels in UV resistance, making it ideal for outdoor end-use parts. It is highly durable, making it suitable for tooling subjected to repetitive loading.

Omega Tooling CF:

Specifically formulated for maximum strength, this material is well-suited for producing metal replacement parts, metal forming dies, bend tooling and end-use parts that require exceptional strength.
