Formlabs ESD Resin Cartridge V1.1 (1 Litre OEM) - Form 4

Formlabs ESD Resin Cartridge V1.1 (1 Litre OEM) - Form 4

Formlabs ESD Resin Cartridge V1.1 (1 Litre OEM) - Form 4

A cost-effective solution to create custom ESD-safe production tooling.
SKU:RS-C2-ESDS-01
$329.00 CAD
Sale
Sold out

Price

$329.00 CAD

Stock

Request a Quote | Email This Page

This product is exclusively for use with the Formlabs Form 4

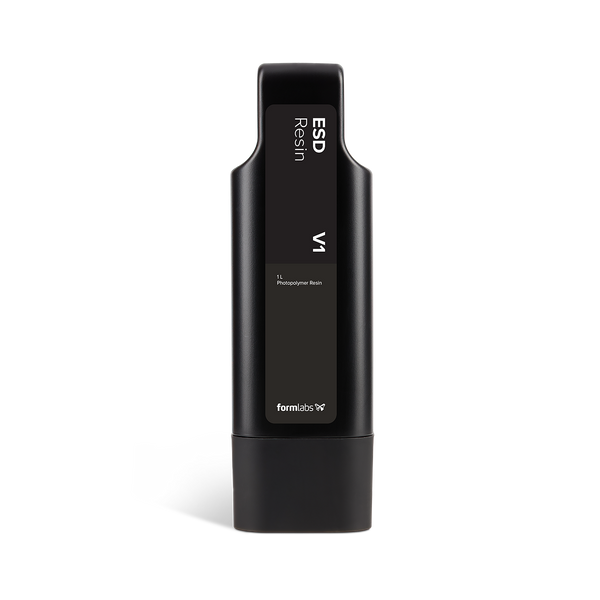

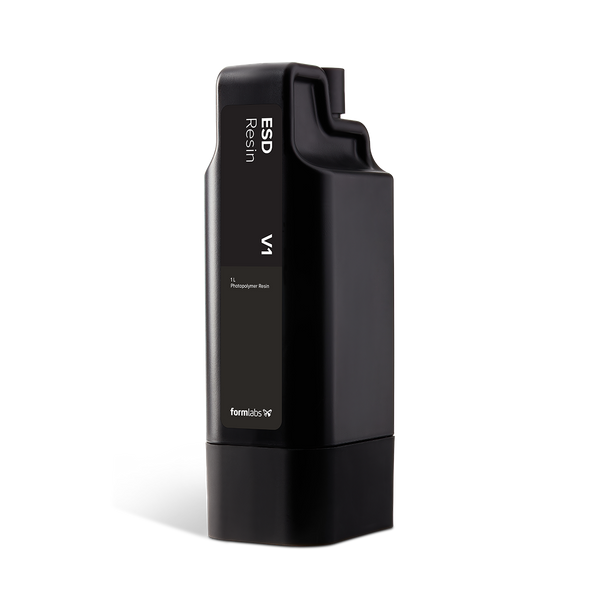

Formlabs ESD Resin 1L
Increase the operational efficiency and improve the yield of your electronics manufacturing lines with ESD Resin, a cost-effective solution to create custom ESD-safe production tooling. Use ESD Resin to prototype and validate electronics production workflows, print static-dissipative parts that repel dust and powder, and create enclosures to protect sensitive electronics from static discharge Support print resolutions: 100 µm and 50µm Post-curing required.

Resin Details

Increase the operational efficiency and improve the yield of your electronics manufacturing lines with ESD Resin, a cost-effective solution to create custom ESD-safe production tooling. Use ESD Resin to prototype and validate electronics production workflows, print static-dissipative parts that repel dust and powder, and create enclosures to protect sensitive electronics from static discharge Support print resolutions: 100 µm and 50µm Post-curing required.
Applications

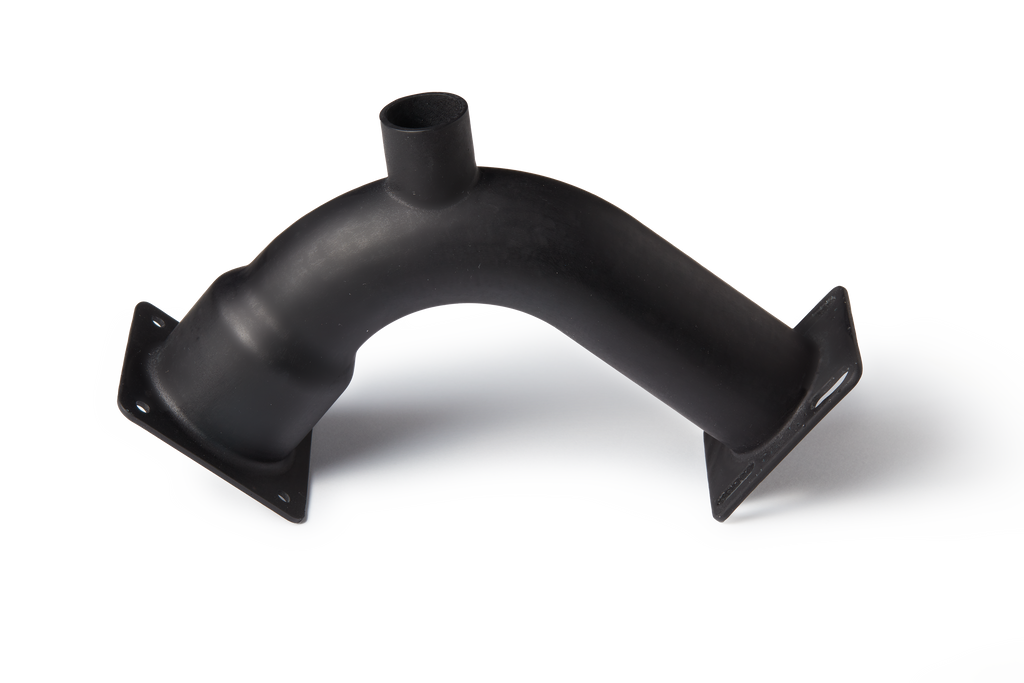

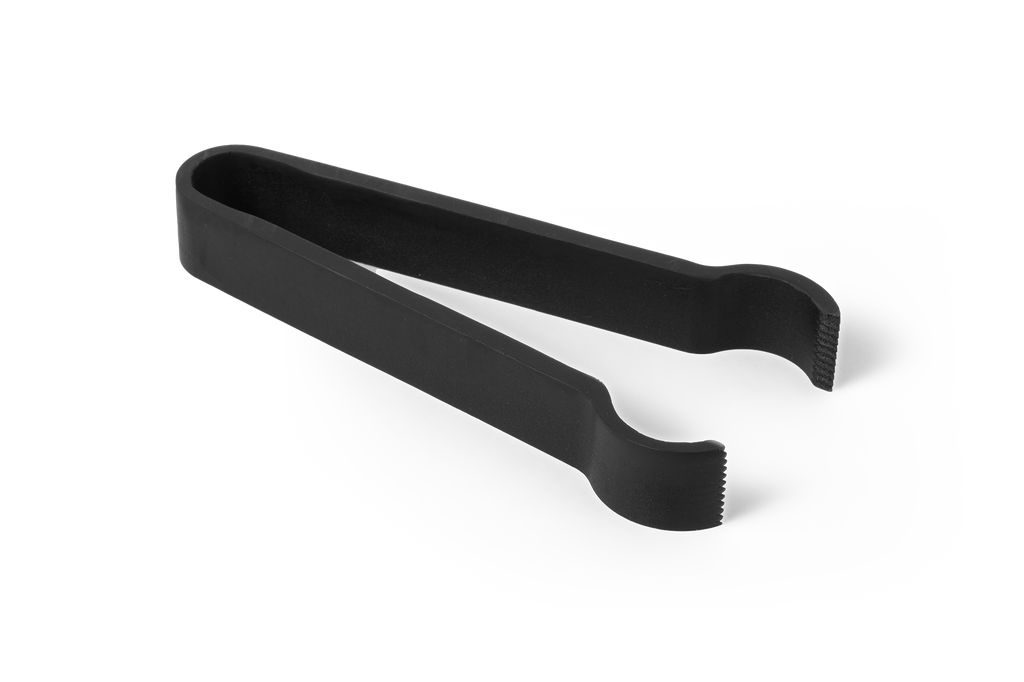

ESD Resin is a cost-effective solution for producing static-dissipative parts designed to endure use on the factory floor.

  • Tooling & fixturing for electronics manufacturing
  • Custom trays for component handling and storage
  • Anti-static prototype and end-use components

Specialty

Formlabs Material

Part of the Formlabs ecosystem

Technical Specs

Overview
Technology SLA
Material Compatibility
Printer Compatibility
  • Form 4
  • Form 4L
  • Form 4B
  • Form 4BL
  • Form 3
  • Form 3L
Build Platform Compatibility Form 4 Build Platform, Form 4 Flex Build Platform, Form 3 Build Platform, Form 3 Build Platform 2, Form 3 Stainless Steel Build Platform, Form 3L Build Platform, Form 3L Build Platform 2L, Form 4L Build Platform, Form 4L Flex Build Platform
Tank Compatibility
  • Form 4 Resin Tank, Form 4L Resin Tank, Form 3 Resin Tank V2.1, Form 3L Resin Tank V3
Material Properties
Unnotched Izod 277.0 J/m
Thermal Expansion 123.7 μm/m/°C
Heat Deflection Temp. @ 0.45 MPa 54.2 °C
Notched Izod 26.0 J/m
Flexural Modulus 1841.0 MPa
Tensile Modulus 1937.0 MPa
Elongation at Break 12.0 %
Ultimate Tensile Strength 44.2 MPa

Resin Cheat Sheet

Product ESD Resin V1
Cure Temperature 70 °C
Cure Time (Form Cure V1)
Cure Time (Form Cure V2) 7 min
Wash Time 20 minutes
Special Notes

Wash

  • Use a separate wash bucket to prevent ESD Resin from transferring to other parts.

Cure

  • For parts printed in an engineering-focused resin (such as those in the Rigid, Tough & Durable, and Flexible & Elastic families), post-curing ensures that the parts reach their optimal mechanical properties and can function as designed. There is only one recommended post-curing time for ESD Resin V1.
Extra Abrasive to Tanks --

Notes


Additional resin compatibility information is available on the Formlabs Support site

Product Highlights

Top Features

Why Choose ESD Resin

  • Use ESD Resin to reduce risk and increase the yield on your manufacturing line by 3D printing custom tools, jigs, and fixtures for automotive, aerospace, electronics manufacturing.
  • Static-Dissipative Protect your critical electronics from unregulated static discharge to prevent component failures.
  • High toughness With its high modulus and impact strength, ESD Resin is made to withstand operation on the production line.
