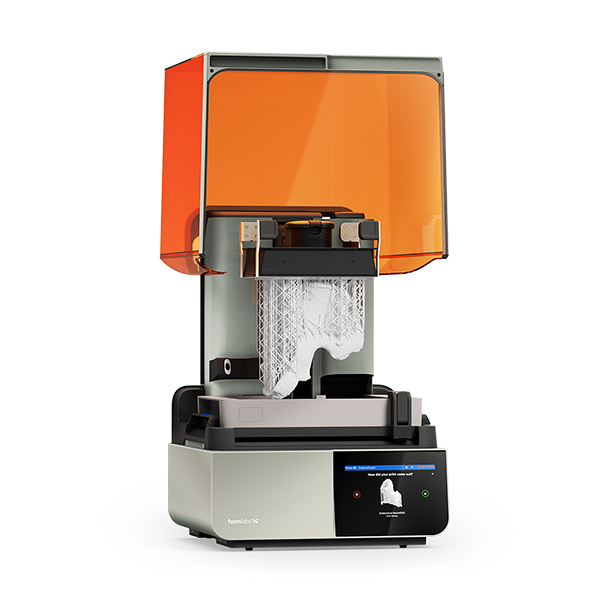

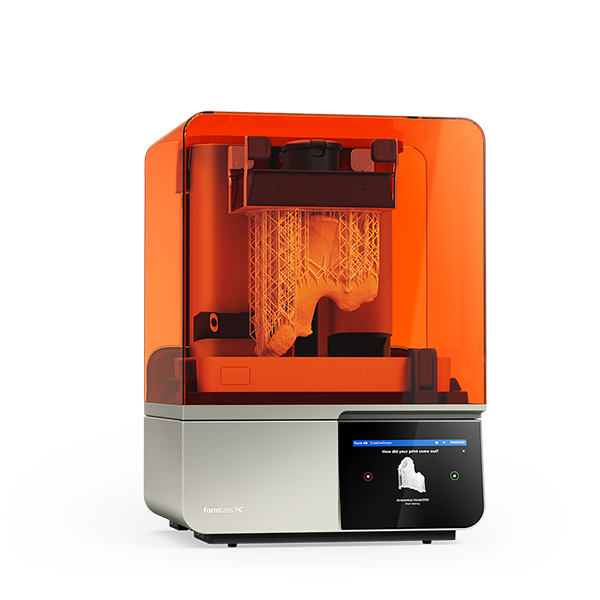

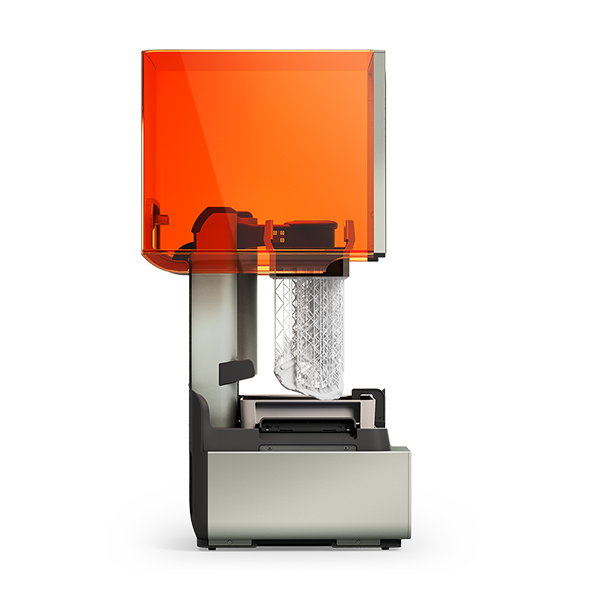

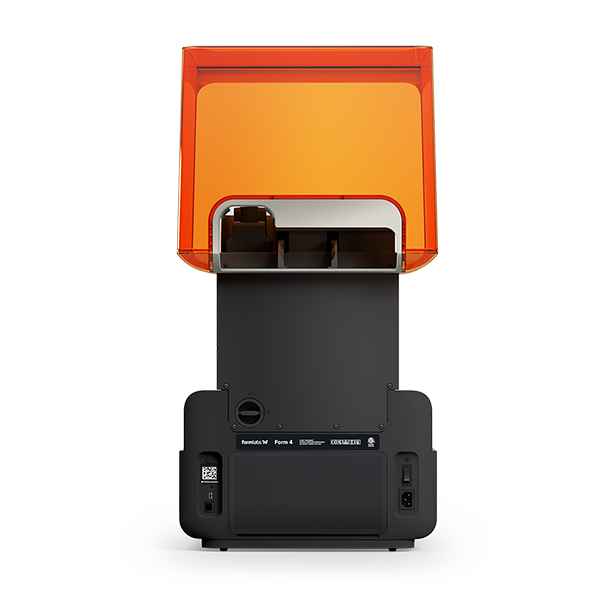

Formlabs Form 4 Starter Bundle

Formlabs Form 4 Starter Bundle

Formlabs Form 4 Starter Bundle

Blazing Speed Meets Industrial Production.
$3,675.00 CAD
Sale
Sold out

Price

$3,675.00 CAD $4,975.00

Stock

Request a Quote | Email This Page | Add to Wishlist

Product Details

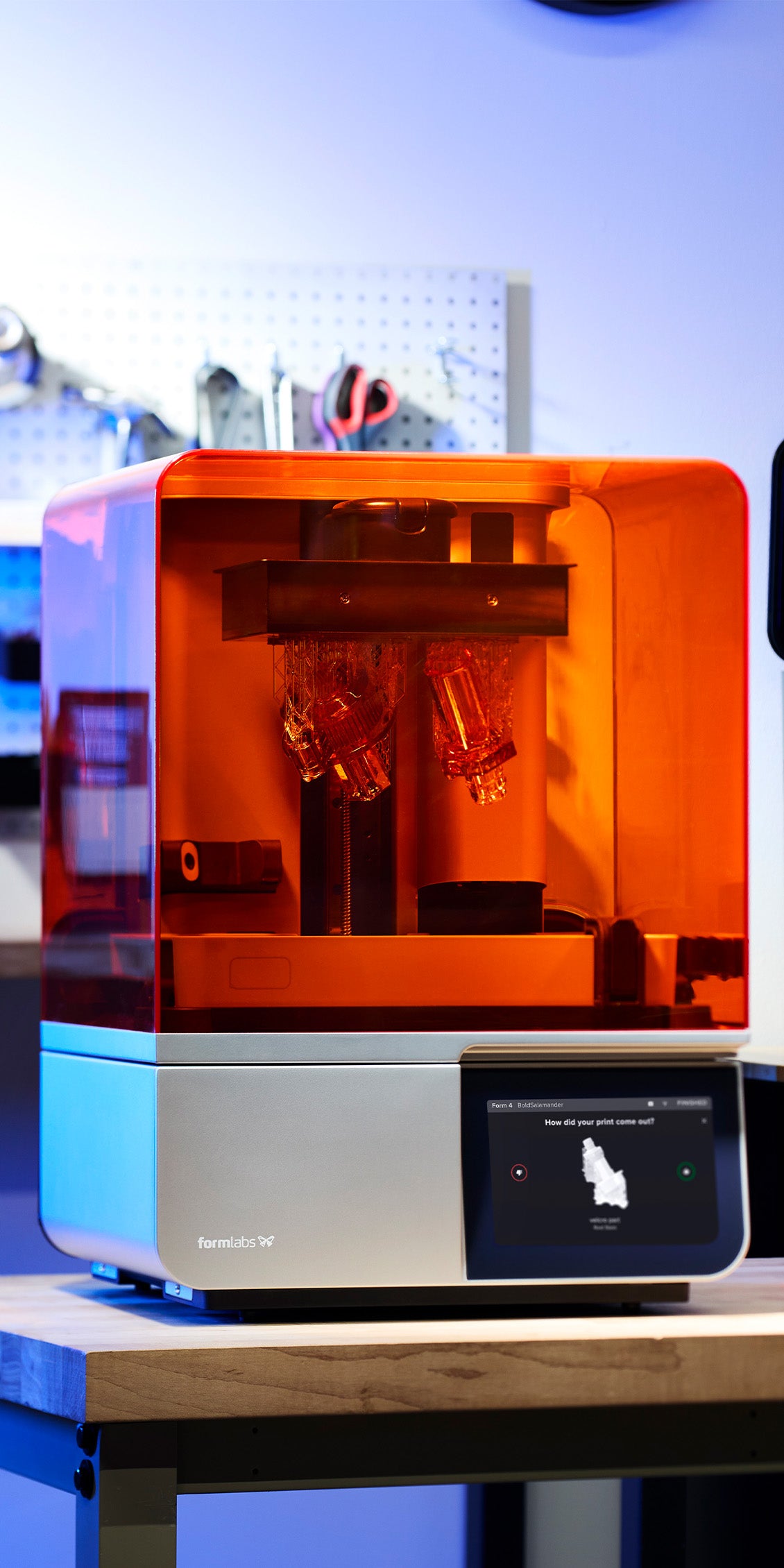

The Formlabs Form 4 is a professional resin 3D printer built for rapid prototyping, production parts, and high-detail applications. Powered by Formlabs’ Low Force Display™ (LFD) print engine, it combines exceptional speed, accuracy, reliability, and a wide range of engineering-grade resins in an easy-to-use desktop workflow.

Technical Specs

Overview
Technology SLA | Low Force Display (LFD)
Build Volume / Work Area (L× W× H) 20.0 x 12.5 x 21.0cm | 7.9 x 4.9 x 8.3 in
Footprint (L× W× H) 39.8 x 36.7 x 55.4cm | 15.7 x 14.5 x 21.9in
Box Size 51 x 53 x 71 mm | 21 x 20 x 28 in
Net Weight 18.3kg | 40.4lb
Material Compatibility
Compatible Materials Form 4 Resins
Performance
Layer Thickness 25–200 microns 0.001–0.008 in
Dimensional Tolerance 1-30 mm features: ±0.15% (lower limit: ±0.02 mm) 31-80 mm features: ±0.3% (lower limit: ±0.06 mm) 81-150 mm features: ±0.3% (lower limit: ±0.15 mm)
Speed & Productivity
Maximum Speed 100 mm/hr
Platform & Motion System
Included Build Plate Formlabs Form 4 Build Platform
Build Plate Compatibility Form 4 Build Platform/ Form 4 Flex Build Platform
Temperature Control
Chamber Heating Resin Heater
Sensors & Monitoring
Camera Yes
Filament Detection Resin Detection: Yes
Door Sensor Yes
Power Loss Recovery No
Number of Sensors

(6)Ultrasonic Resin Level Sensor
Printer Leveling Sensor
Cartridge Load Cell
High-Speed Infrared Temperature Sensor
Z-Axis Force Sensor
Integrated camera

Software & Workflow
Included Software

Yes, PreForm desktop software
Additional Software

Open Material Mode
Supported File Types STL, OBJ, 3MF
Connectivity
Wi-Fi 2.4 GHz and 5 GHz) compatible with IEEE 802.11 b/g/n/ac protocol
Ethernet Ethernet (1000 Mbit)
USB USB C port with a USB C-A cable
Connectivity Formlabs Dashboard
Remote Monitoring Yes
Power
Input Voltage 100-240 VAC at 50/60 Hz
Maximum Power Consumption 480 Watt
Safety and Compliance
ESA Certification CSA C22.2#62368-1:2019 Ed.3+U1
Certifications https://support.formlabs.com/s/article/Certifications-and-standards-hardware?language=en_US
Warranty and Support
Manufacturer Warranty 1 year, 3 years or 5 years

What's in the Box

  • 1 x Formlabs Form 4 3D Printer
  • 1 x Formlabs Form 4 Resin Tank
  • 1 x Formlabs Form 4 Mixer
  • 1 x Formlabs Form 4 Build Platform
  • 1 x Formlabs Form 4 Finish Kit

Documentation

Links

Product Highlights

Top Features

  • Low Force Display™ (LFD) print engine delivers fast, consistent resin printing.
  • Most prints completed in under 2 hours with high-speed layer curing.
  • Professional-grade accuracy with 50 μm XY resolution and tight dimensional tolerances.
  • Build volume of 20 × 12.5 × 21 cm for functional prototypes and production parts.
  • Wide materials library with specialized resins for prototyping, engineering, and manufacturing applications.

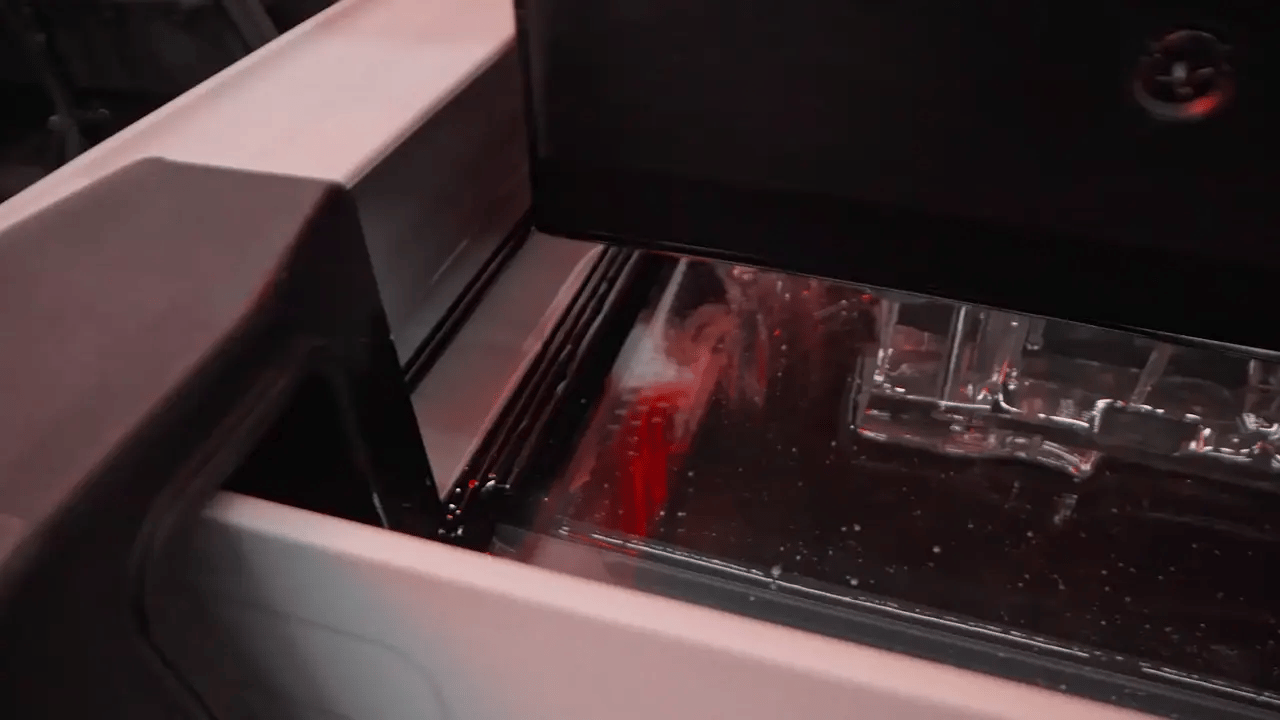

  • Automated resin handling system for a simplified printing workflow.
  • Reliable print success rate designed for professional use.
  • Easy-to-use workflow requiring minimal training and setup.
  • Compatible with the Formlabs ecosystem, including automated washing and curing solutions.

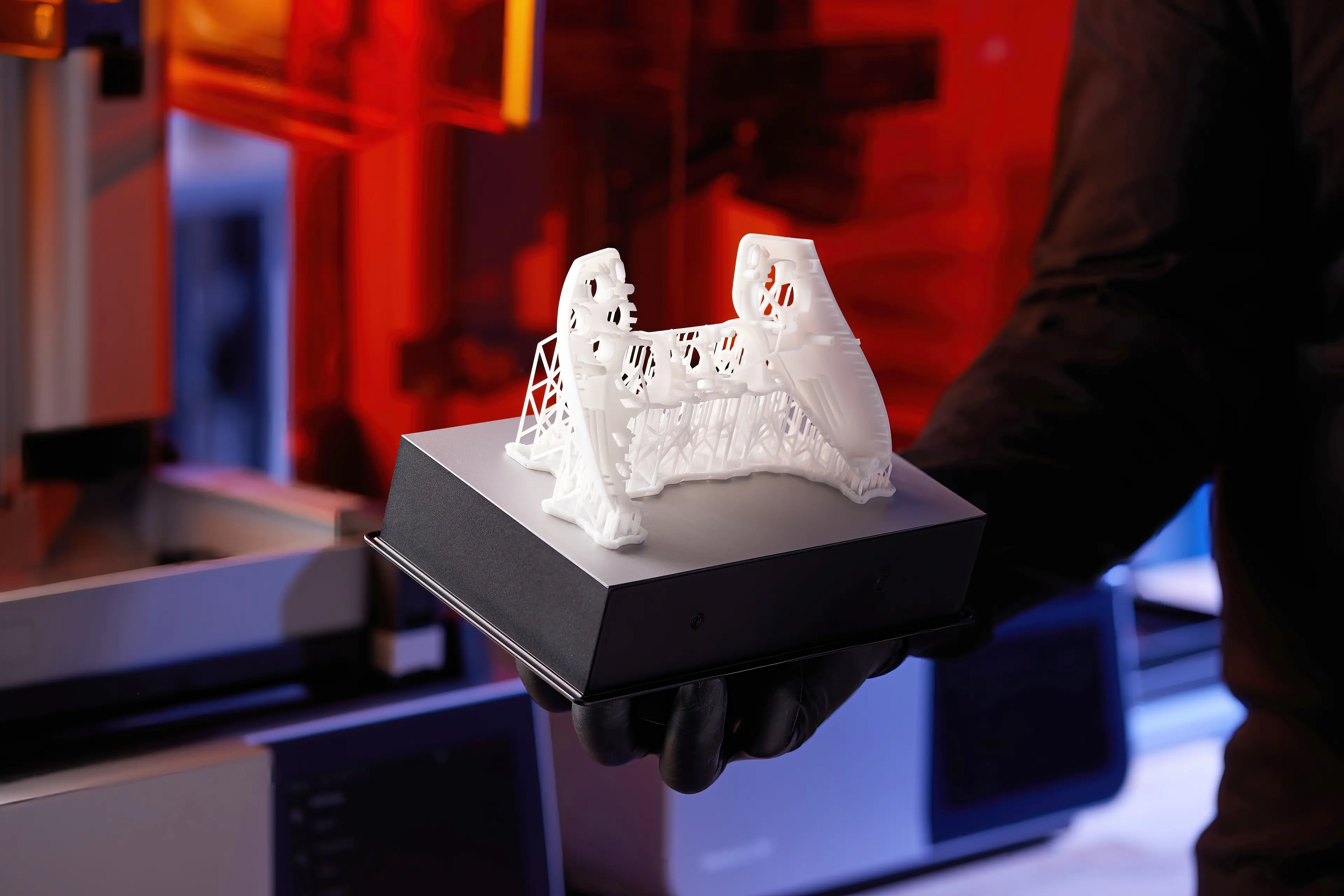

Produce stunning parts that always fit, rivaling injection molded parts.

Professional Speed Without Sacrificing Detail

The Form 4 combines high-speed resin printing with the precision professionals expect. Its LFD print engine rapidly cures each layer while maintaining fine details, smooth surfaces, and accurate dimensions, helping teams move from concept to finished part faster.

A Material Library Built for Real Applications

From prototypes to functional end-use parts, the Form 4 supports a broad range of specialized resins designed for different performance needs. This flexibility allows designers, engineers, and manufacturers to create parts with the right balance of strength, flexibility, heat resistance, or visual quality.

Reliable, Repeatable Production Workflow

Designed for professional environments, the Form 4 focuses on consistency and ease of use. Automated resin handling, intuitive operation, and a complete post-processing ecosystem help streamline the journey from digital model to finished part.
