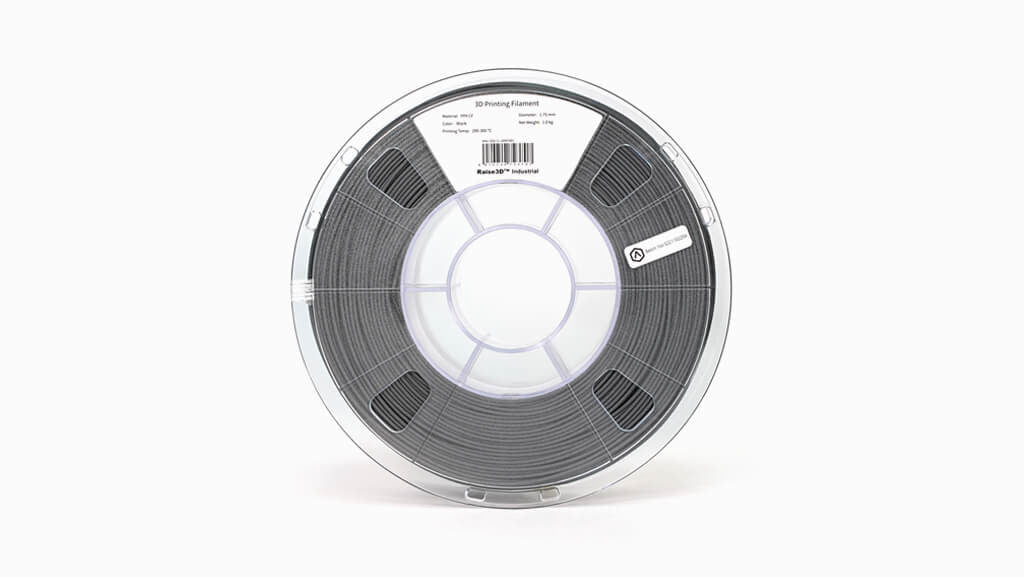

Raise3D Premium PPA CF Filament - 1.75mm (1kg)

Raise3D Premium PPA CF Filament - 1.75mm (1kg)

Raise3D Premium PPA CF Filament - 1.75mm (1kg)

Carbon fiber PPA filament with extreme strength, heat resistance, and industrial performance.
SKU: [S]5.11.19007A01
$299.00 CAD
Sale
Sold out

Price

$299.00 CAD

Stock

Request a Quote | Email This Page

Filament Details

Performance ratings are intended as a general comparison guide. Refer to the Technical Data Sheet (TDS) for detailed specifications and certified values.
Raise3D Industrial PPA CF 1.75mm Filament (1KG) is a high-performance carbon fiber reinforced polyphthalamide (PPA) filament designed for demanding industrial applications. With 15% carbon fiber reinforcement, it delivers exceptional strength, rigidity, dimensional stability, wear resistance, and creep resistance while maintaining lower moisture absorption than traditional nylon materials. Its excellent chemical and heat resistance makes it ideal for producing durable end-use parts in automotive, aerospace, and electrical applications.
Applications
  • Automobile
  • Aerospace
  • Electrical and electronics (E&E) industry
  • Industrial end-use parts

Documentation

Resistant to Temperature Cycling.

See TDS for Details

Advanced Material

See TDS for information

Adhesion Aid Recommended

Explore Options

Enclosed Chamber Recommended

Helps prevent warping and layer separation

Abrasive Material

A hardened nozzle is Required

Technical Specs

Overview
Function Filament
Net Weight 1kg
Material Compatibility
Material Diameter / Thickness 1.75mm

Notes

This filament is compatible with Raise3D Industrial PPA Support Filament.

Product Highlights

Top Features

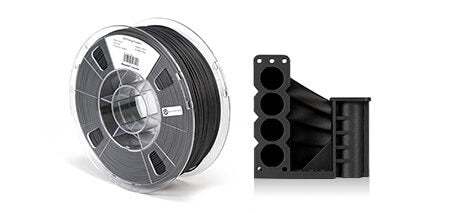

A high-performance composite filament for end-use applications

Raise3D Industrial PPA CF Filament is carbon fiber reinforced composite filament material based on PPA (polyphthalamide or high-performance/high-temperature Nylon). Thanks to its high performance Nylon matrix, this composite filament has superior mechanical and thermal properties than other Nylon filaments. With well controlled dispersion and length-distribution of chopped carbon fibers (15 wt.%), the PPA CF has lower density, lower moisture absorption, high strength and rigidity, high wear and creep resistance, excellent chemical and heat resistance.  It is promising for end-use applications in automotive, aerospace, electrical and electronics (E&E) industry.

  • High rigidity and strength
  • Better thermal performance
  • Lower moisture absorption
  • Dimensional stability
  • Chemical resistance
  • High strength-to-weight ratio

Printing Guide

Recommended Print Settings

  • Nozzle temperature (°C): 290-310℃
  • Bed temperature (°C): 65-80℃
  • Layer height (mm): 0.1-0.25 mm
  • Printing speed (mm/s): 30-120 mm/s
  • Cooling fan: OFF
  • Drying temperature (°C): 80-100°C for 4 to 6 hours

Printing Notifications:

  • Abrasion of the brass nozzle happens frequently when printing PPA CF. Using an abrasion-resistant nozzle, at minimum a Steel nozzle should be used or preferably, a SiC nozzle.
  • After the printing, it is recommended to anneal the model with support material in the oven at 80-100°C for 8 to 12 hours to improve mechanical property and dimensional accuracy.
