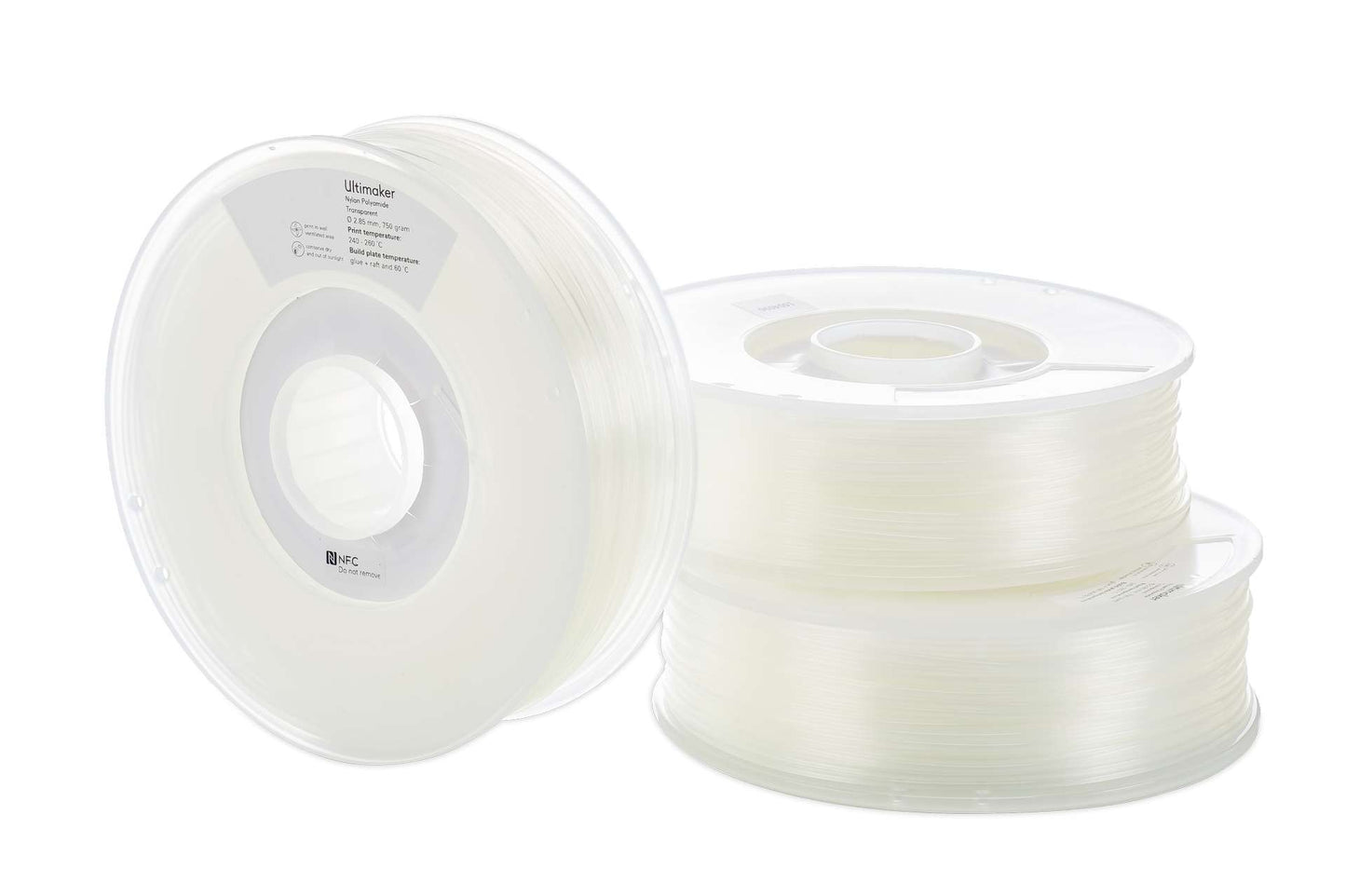

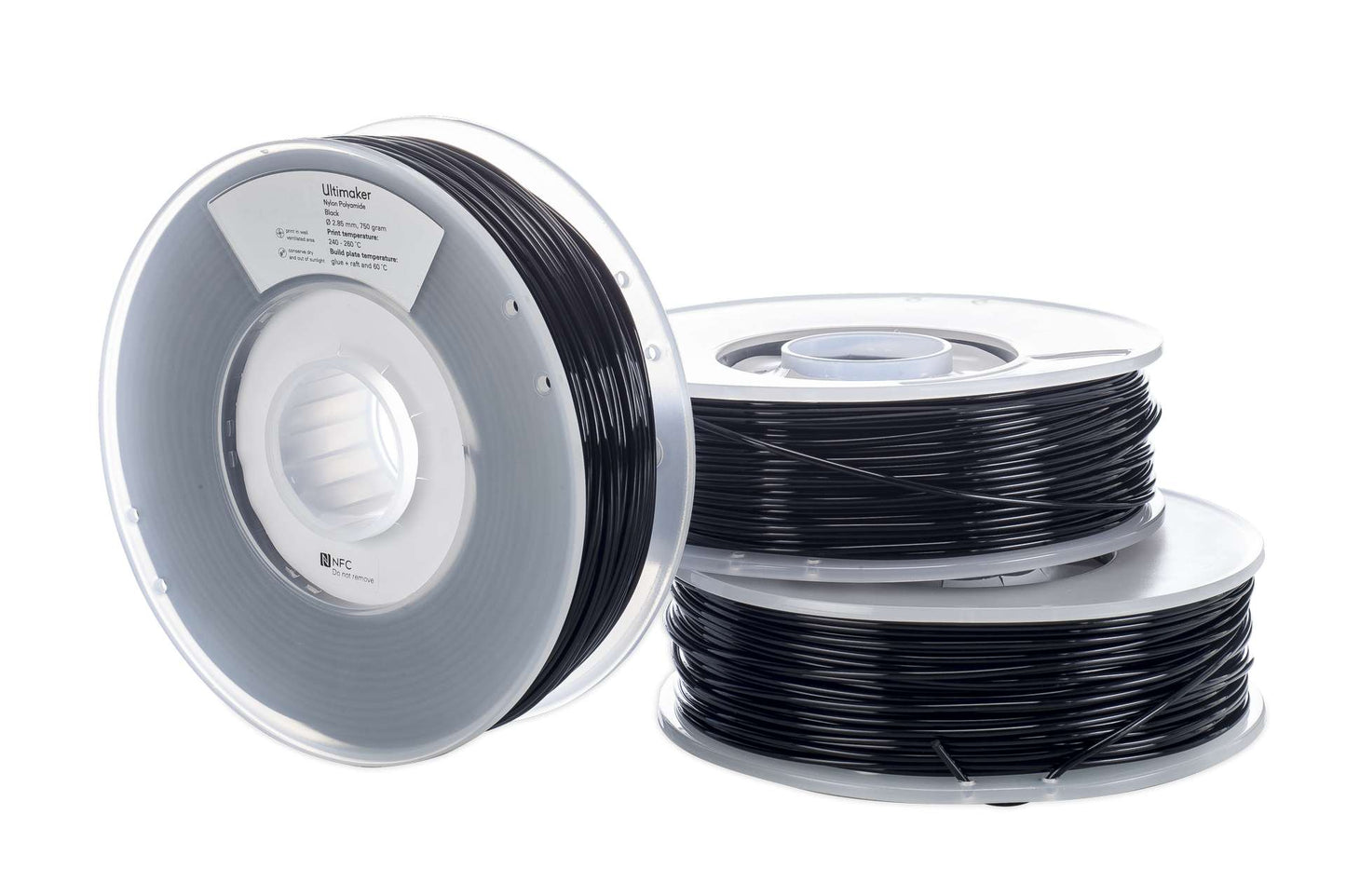

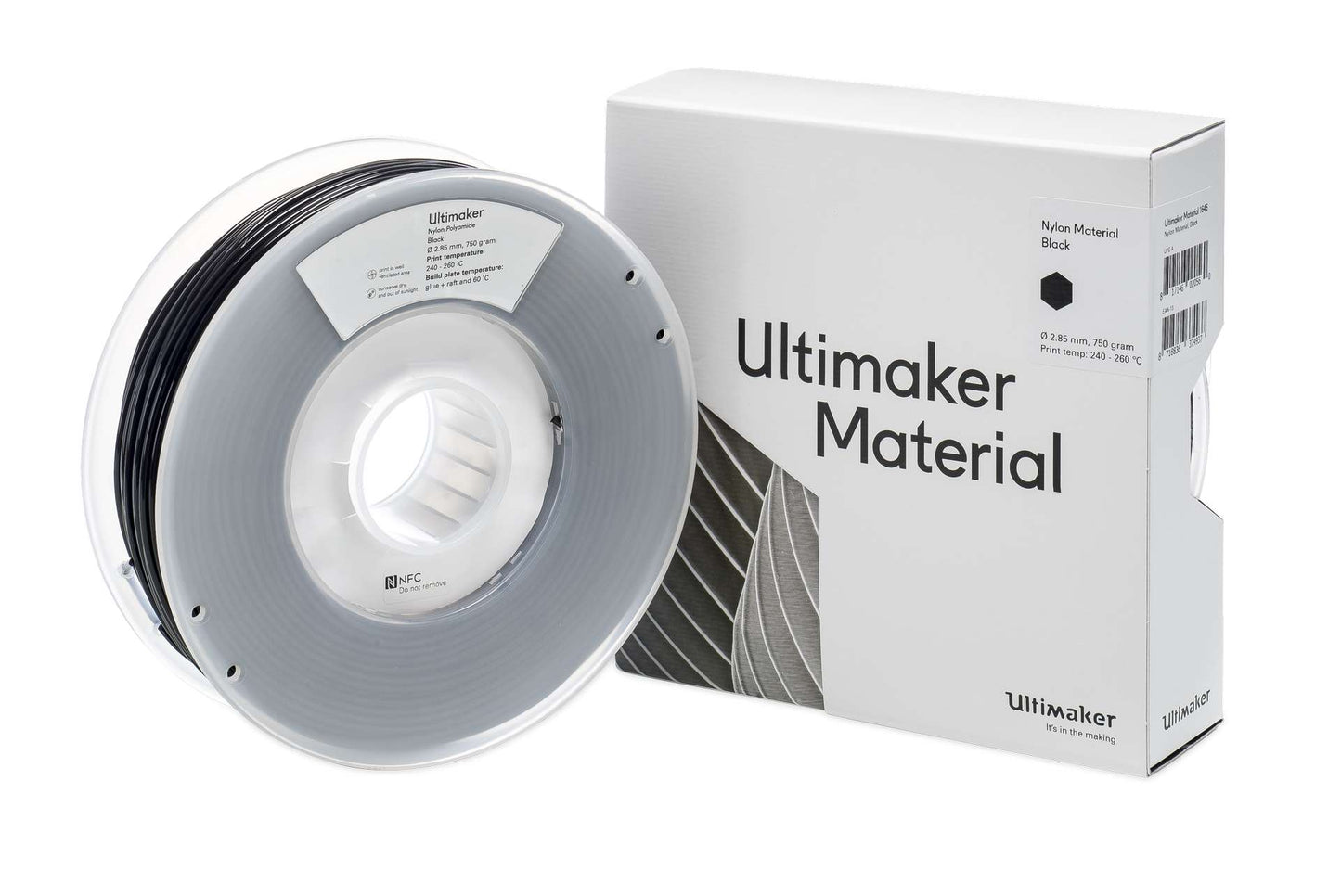

UltiMaker Nylon Filament (Engineering)

UltiMaker Nylon Filament (Engineering)

Engineering-grade nylon filament with high toughness, wear resistance, and durability.
Colour
SKU: 1646
Regular price $117.00 CAD
Sale
Sold out
Sale price

Price

$117.00 CAD Regular price $115.00

Stock

Quantity

Filament Details

Performance ratings are intended as a general comparison guide. Refer to the Technical Data Sheet (TDS) for detailed specifications and certified values.
UltiMaker Nylon 1.75mm Filament (Engineering) is a high-performance nylon filament designed for durable functional parts that require exceptional toughness, wear resistance, and fatigue strength. It offers excellent impact resistance, low friction, and good chemical resistance, making it ideal for moving components and mechanically demanding applications. With strong layer adhesion and reliable mechanical performance, UltiMaker Nylon is well suited for engineering prototypes, industrial tooling, and end-use parts.

Documentation

Prone to Warping.

See TDS for Details

Prone to Shrinking.

See TDS for Details

Advanced Material

See TDS for information

Adhesion Aid Recommended

Explore Options

Heated Chamber Recommended

Needs elevated chamber temperatures

Technical Specs

Overview
Net Weight 750g
Material Compatibility
Material Diameter / Thickness 2.85mm

Notes

Shop3D.ca Notes
Nylon spools come in 0.75kg. 2.85mm diameter and approximately 90m long.
Nylon is extremely strong and wear-resistant. You can immediately tell this is a strong material when trimming off the ends of the filament to insert into the printer. It is perhaps one of the toughest materials available for FDM printing. This is the material to use if you don't want to compromise on strength.
That said, Nylon is perhaps one of the more difficult materials to print. It is known for water absorption and warping. If left out in the open, nylon will slowly absorb atmospheric moisture, when it does this, the moisture will boil in your nozzle when you print causing small puffs of steam to emanate from your nozzle. This won't damage the printer but will affect the print quality a little bit.  To avoid this, seal in a Ziploc with desiccant after printing rather than leaving it on the spool holder.
Warping is also sometimes an issue for Nylon, be prepared for it to shrink and the base to warp a little bit after cooling if you don't enclose your printer. We recommend printing with a heated bed AND blue tape.

Product Highlights

Top Features

UltiMaker Nylon is formulated for an enhanced 3D printing experience, serving numerous applications where durability, impact resistance, flexibility, and strength are required. Coupled with our proven material profiles in Cura, UltiMaker Nylon is one of the most reliable filaments for your manufacturing needs.

Reasons to choose UltiMaker Nylon

  • Industrial-grade impact and abrasion resistance
  • Durable
  • High strength-to-weight ratio
  • Low friction coefficient
  • Good corrosion resistance to alkalis and organic chemicals
  • Reduced humidity absorption when compared to other Nylon filaments
  • Seamless 3D printing experience

Print Settings

  • Print speed: 35-50mm/s
  • Nozzle temp: 250 C
  • Bed Temp: 60 C
  • Fan = 35%
  • Bed material: Clean Glass
  • Bed material on difficult prints: Stick Glue or Adhesion sheet
  • Adhesion Setting: Raft for large parts, Brim for small
