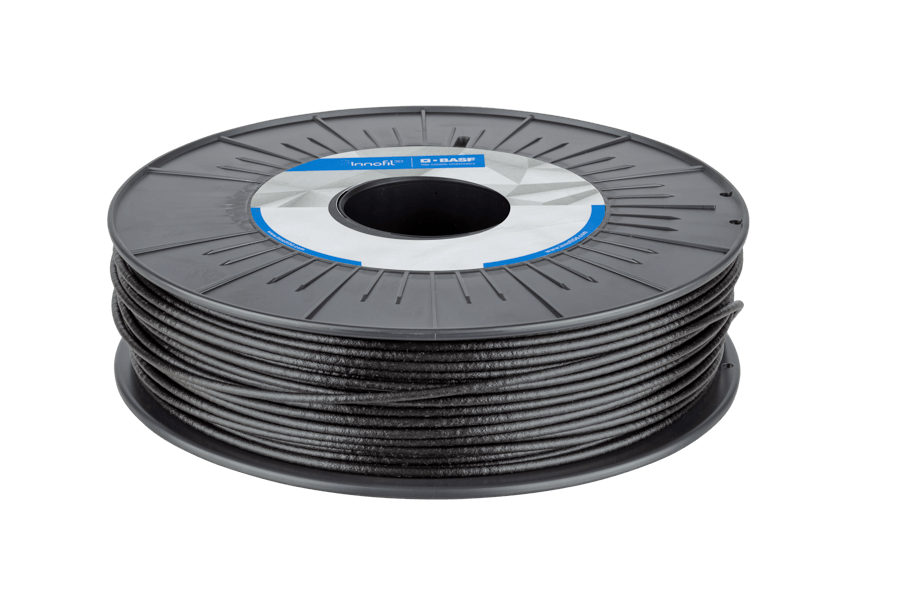

Ultrafuse® PP GF30 (Polypropylene w/ 30% Glass Fibre) - 2.85mm - 700gr - Shop3D.ca

Forward AM Ultrafuse® PP GF30 (Polypropylene w/ 30% Glass Fibre) - 700gr

Forward AM Ultrafuse® PP GF30 (Polypropylene w/ 30% Glass Fibre) - 700gr

Glass fiber reinforced polypropylene with high strength, stiffness, and chemical resistance.
Filament Diameter
SKU: 50677218
$79.00 CAD
Sale
Sold out

Price

$79.00 CAD $102.00

Stock

Request a Quote | Email This Page | Add to Wishlist

Filament Details

Performance ratings are intended as a general comparison guide. Refer to the Technical Data Sheet (TDS) for detailed specifications and certified values.
Ultrafuse PP GF30 is polypropylene, reinforced with 30% glass fiber content. The fibers in this compound are specially designed for 3D-printing filaments and are compatible with a wide range of standard FFF 3D-printers. The extreme stiffness makes this material highly suitable for demanding applications. Other key properties of PP GF30 are high heat resistance and improved UV-resistance. All these excellent properties make this filament highly suitable in an industrial environment.
Applications
  • Automotive / transportation
  • Functional prototyping
  • Jigs and fixtures

Resistant to Temperature Cycling.

See TDS for Details

Advanced Material

See TDS for information

Adhesion aid Required

Explore Options

Enclosed Chamber Recommended

Helps prevent warping and layer separation

Abrasive Material

A hardened nozzle is Required

Technical Specs

Overview
Net Weight 1kg
Surface Finish Smooth / Glossy
Material Compatibility
Material Diameter / Thickness 2.85mm / 1.75mm

Links

Notes

Drying & Storage Recommendations
Ultrafuse PP GF30 filament should be stored at 15 -25°C in its original sealed package in a clean and dry environment. Drying should be done with these parameters: 60 °C in a hot air dryer or vacuum oven for 4 to 16 hours

Product Highlights

Top Features

Ultrafuse® PP GF30 contains 30% glass fibers that are specifically designed for 3D printing filaments making Ultrafuse® PP GF30 compatible with any conventional FFF printer.

PP has a lower moisture uptake than PA which makes Ultrafuse PP GF30 fully printable without need for drying. In combination with its high level of glass fiber reinforcement and its ex- cellent chemical resistance, Ultrafuse® PP GF30 is the preferred filament for exceptional harsh environments. Thanks to its UV resistance it is more suitable than any other PP-based filament for applications directly exposed to sunlight.

Benefits at a Glance

  • Excellent chemical resistance
  • Low density
  • Low moisture uptake
  • High heat resistance
  • Improved UV resistance

Material Properties

  • Tensile Strength (MPa): 41,7 (XY); 15,9 (ZX)
  • Flexural Modulus (MPa): 3507 (XY); 4026 (XZ); 1671 (ZX)
  • Elongation at Break: 4,4 % (XY); 0,8 % (ZX)
  • Impact Strength Charpy unnotched (kJ/m2): 23,1 (XY); 25,8 (XZ); 2,5 (ZX)
  • Impact Strength Izod unnotched (kJ/m2): 20,5 (XY) , 2,4 (XZ); 2,6 (ZX)
  • HDT at 0.45 MPa: 127 oC

Printing Guidelines*

  • Nozzle Temperature: 240-260 °C
  • Build Chamber Temperature: -
  • Bed Temperature: 20 - 40 °C
  • Bed Material: PP strapping tape, PP GF adhesive
  • Nozzle Diameter: ≥ 0.6 mm
  • Print Speed: 30 - 80 mm / s

*The product data is provided in good faith and represents typical properties based on our current knowledge and experience; these data are not to be construed as specification limits or mini- mum values. Product properties may be changed without notice. This document does not create any liability, warranty or guarantee of product performance. It is the buyer’s responsibility to determine the suitability of Ultrafuse® products for the intended application.
