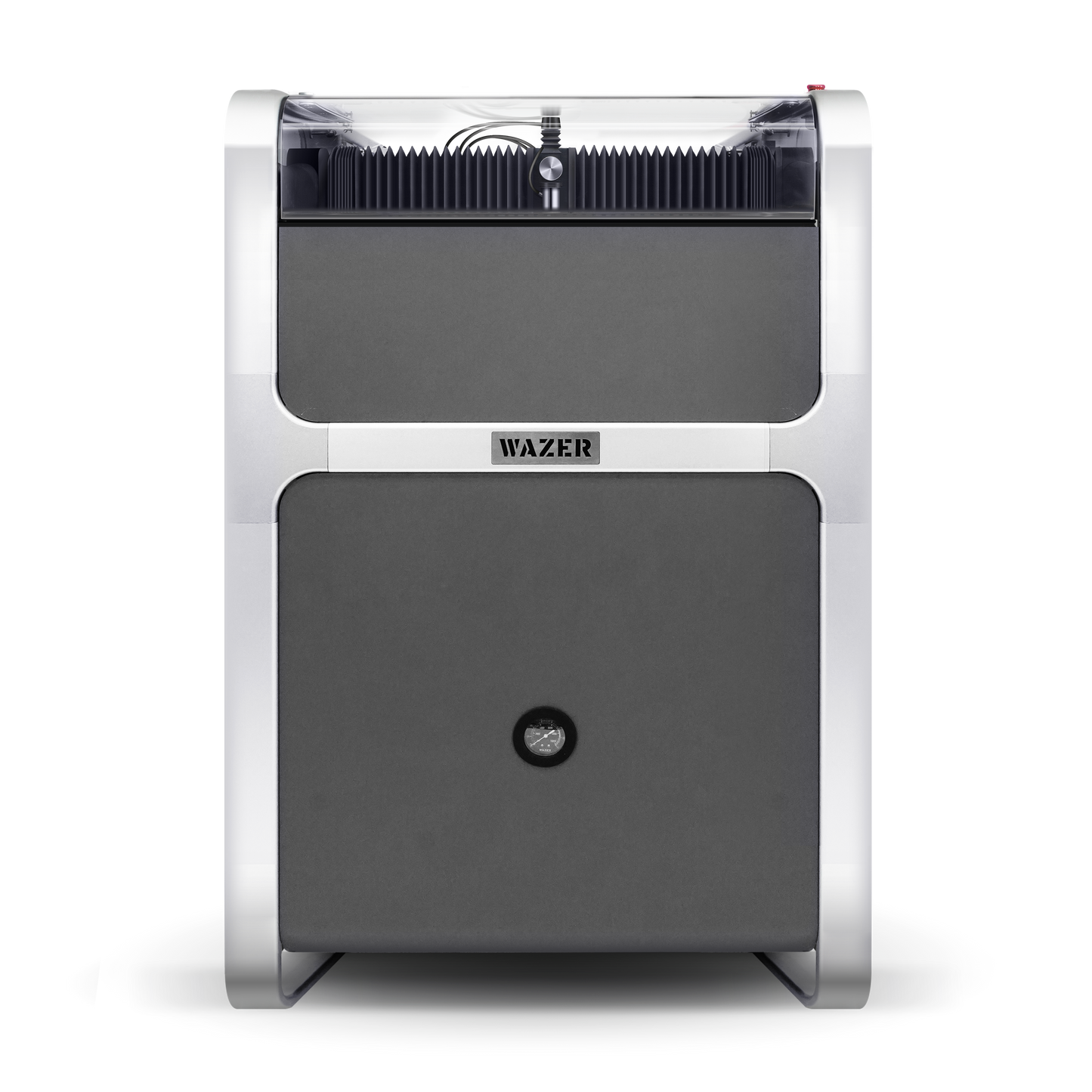

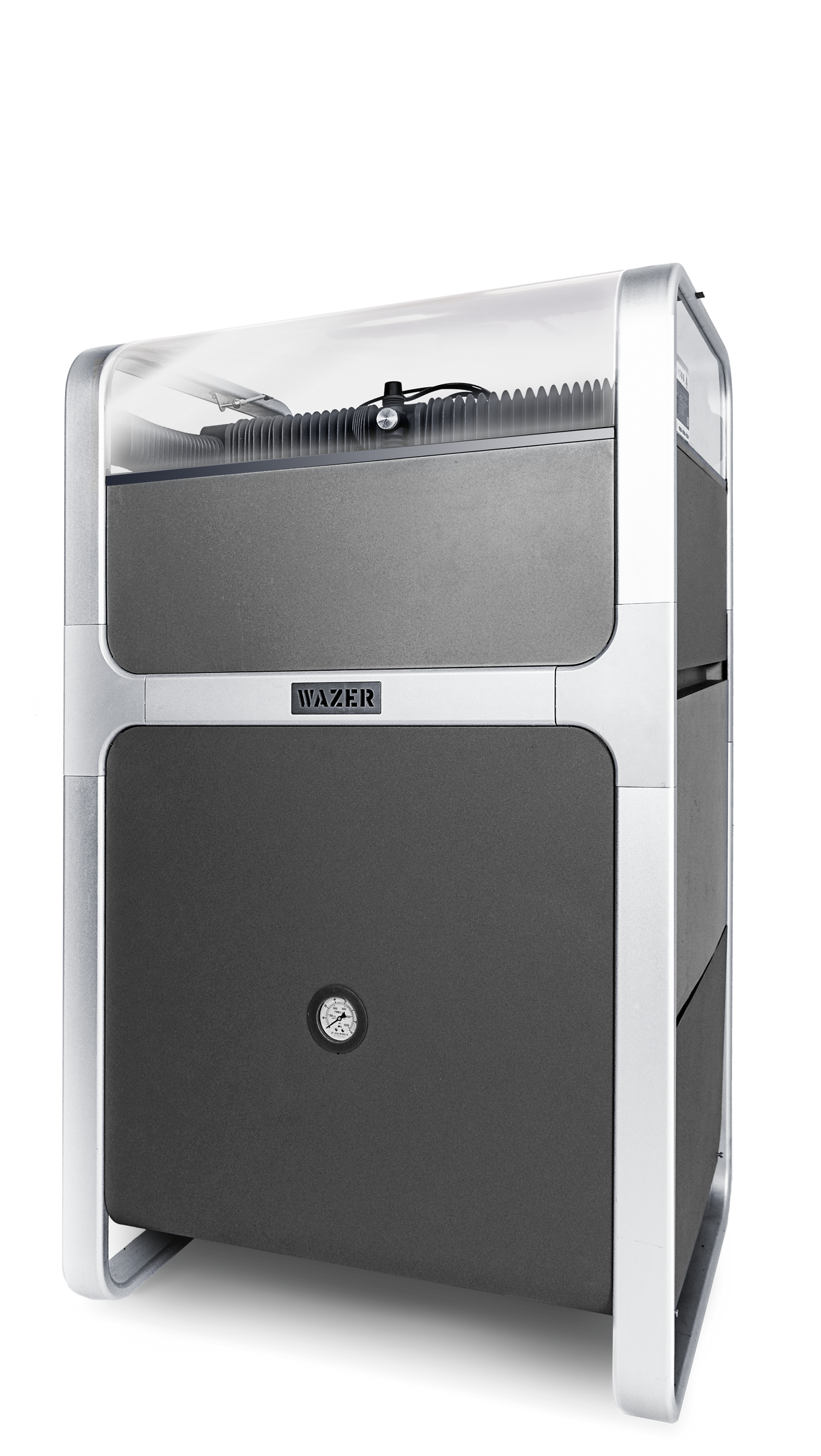

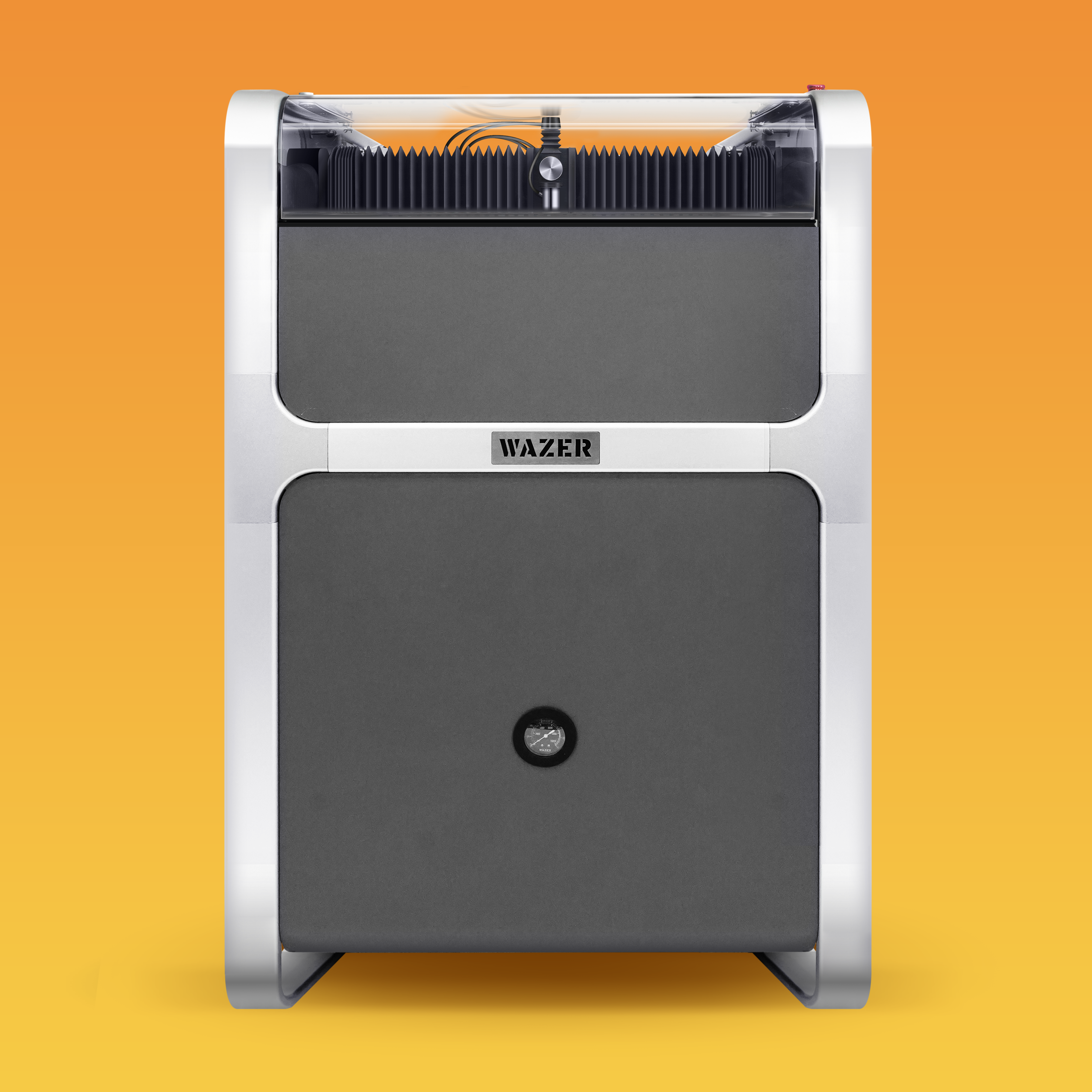

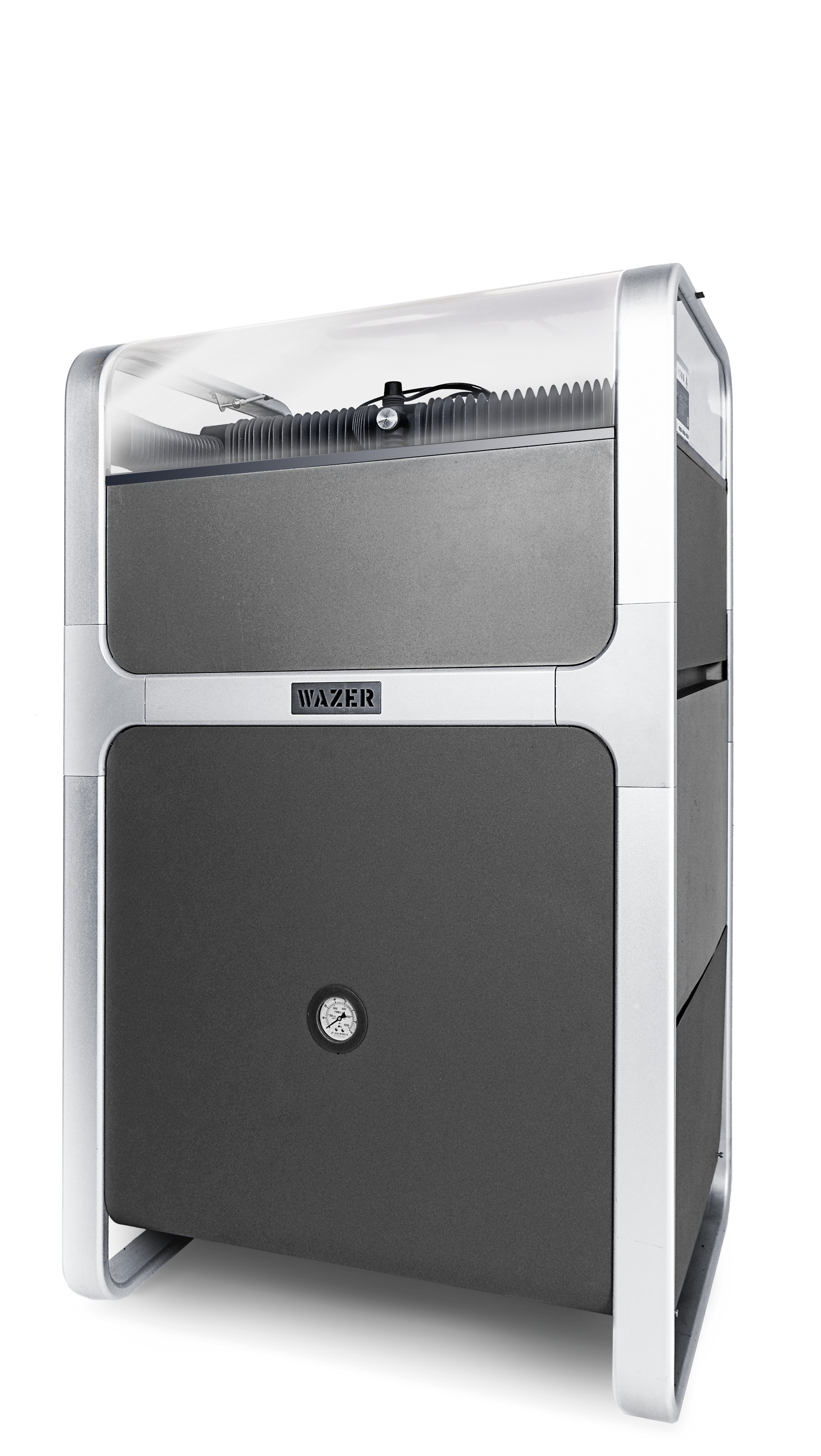

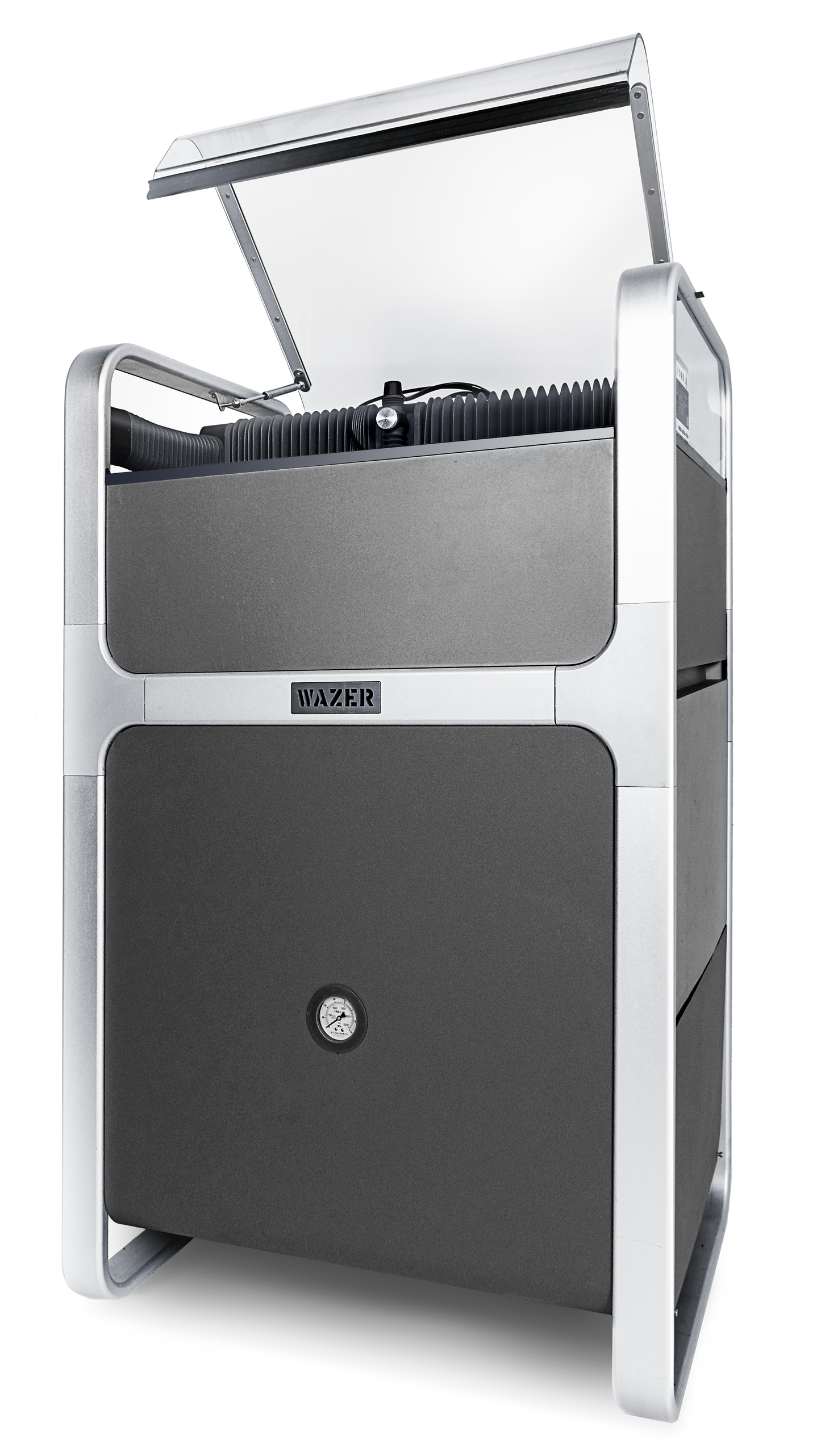

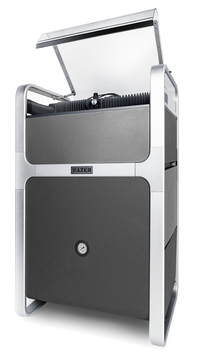

WAZER Pro Waterjet Cutter

WAZER Pro Waterjet Cutter

WAZER Pro Waterjet Cutter

Professional waterjet cutter for precise, versatile cutting of metals and advanced materials.
SKU: WZR-112
Configuration
$27,549.00 CAD
Sale
Sold out

Price

$27,549.00 CAD
Free Delivery does not apply for this order.
Customized Package Please speak to a sales rep for pricing and to order this product.

Stock

Contact a Sales Rep to Purchase
Request a Quote | Email This Page

Pre-order or Quote only, current lead times are 30-45 days. Free shipping does not apply.

Free shipping does not apply, ships LTL on multiple pallets. Shipping will be quoted custom.

Product Details

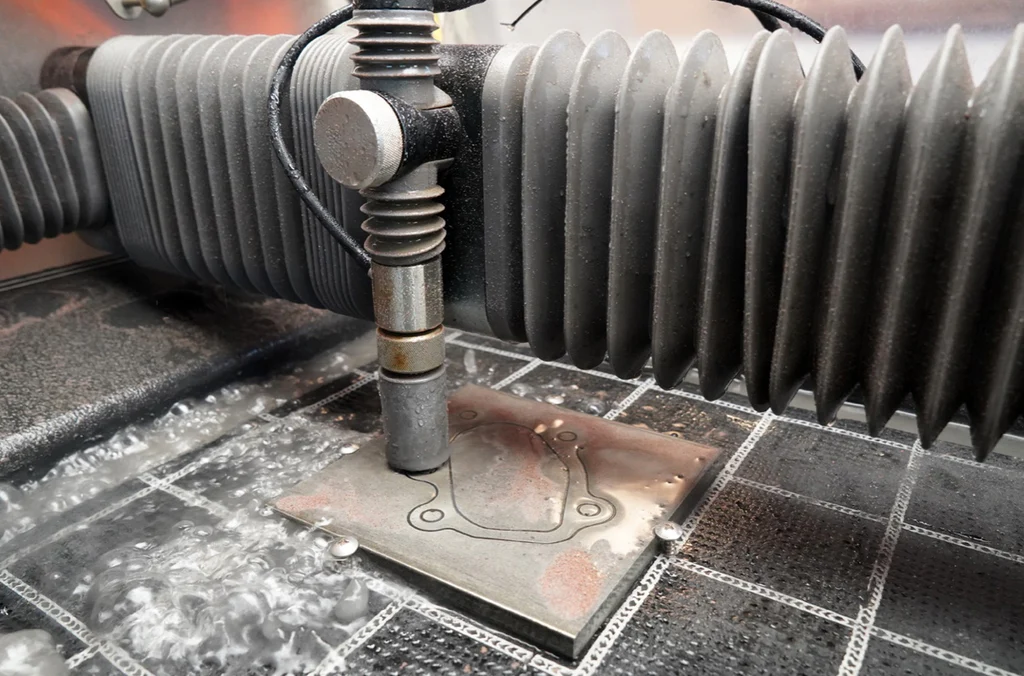

WAZER Pro Water Jet Cutter is a professional desktop waterjet cutting system designed for advanced prototyping, fabrication, and small-batch manufacturing. Using high-pressure abrasive waterjet technology, WAZER Pro delivers precise cold cutting without heat-affected zones, allowing users to cut a wide range of materials including metals, composites, plastics, stone, glass, and ceramics. With a larger cutting capacity, improved workflow, and enhanced performance compared to the original WAZER, it brings industrial-grade capabilities to workshops, labs, and production environments.

Technical Specs

Overview
Footprint (L× W× H) Waterjet Main Unit Size: 34 x 26 x 55 in / 856 x 648 x 1400 mm
Pump Box: N/A (integrated into main unit)
Cutting Area 12 x 18 in / 305 x 460 mm
Platform 13 x 19 in / 330 x 485 mm
Material Compatibility
Compatible Materials Cuts metal, glass, plastic, composites, tile, rubber, foam
Performance
Kerf Width 0.044 in / 1.2 mm
Maximum Cutting Thickness Varies by Material
Cutting Speed Depends on Material and Thickness.
Continuous Cutting Time 90 min (prior to refilling the abrasive hopper)
Speed & Productivity
Maximum Speed Depends on Material and Thickness.
Gantry Max Speed 59 IPM / 1,500 mm/min
Gantry Positional Accuracy 0.003 in / 0.08 mm
High Pressure Water Specs
Orifice Diameter 0.021 in / 0.51 mm
Orifice Material Ruby or Sapphire
Mixing Tube Diameter (internal) 0.045 in - 1.1 mm
Input Water Specs
Water Source Filtered Tap Water
Input Water Filter 300 Mesh
Input Water Pressure Minimum: 35 psi / 2.4 bar
Input Water Flow Rate Minimum: 1.5 GPM / 5.7 L/min
Input Water Hardness Maximum TDS: 180 ppm / 180 mg/L
Input Water Temperature Maximum: 130 °F / 54 °C
Water Drainage Specs
Water Drain Distance from Waterjet Maximum: 30ft / 9m
Water Drain Height above Waterjet Maximum: 4ft / 1.2m
Water Drainage Flow Rate Maximum: 1.5 GPM / 5.7L / min
Water Recirculation Not Recommended
Platform & Motion System
Platform 13 x 19 in / 330 x 485 mm
Abrasive Specs
Abrasive Rate 0.33 lb/min / 0.15 kg/min
Abrasive Hopper Capacity 30 lb / 13.5 kg
Abrasive Material 80 Mesh Alluvial Garnet
Software & Workflow
Supported File Types Compatible Input Design File Types: .dxf, .svg. Output Cut File Type: /gcode
Connectivity
Connectivity Offline. No internet required to run the Waterjet. Connectivity to WAZER Waterjet: SD Card
Power
Typical Power Consumption 110V / 60Hz WAZER (North America):
Compatible with all countries whose electrical standard is 220V / 60Hz
Waterjet Main Unit:
220VAC, 60Hz, 16.1A, 3700W
Pump Box:
N/A (integrated into main unit)
Safety and Compliance
Certifications Split Phase: UL, cUL, FCC
Single Phase: CE
Warranty and Support
Manufacturer Warranty 1 year
MISC Specs
Noise Emission 77.6 +/- 3dB
Noise Pressure Level 85.4 +/- 3dB
Operating / Storage Temperature Operating: 32 – 160 °F / 0 – 70 °C
Storage: 32 – 104 °F / 0 – 40 °C

What's in the Box

Pro Bundle Includes

  • WAZER Pro
  • 55 lb Abrasive Buckets (2x)
  • WAM Software License
  • 2,000 lbs of abrasive garnet
  • Cut Bed 3-Pack
  • Nozzle replacement kit

Product Highlights

Top Features

Powerful

WAZER Pro cuts fast, and it cuts thick material. Cut up to 1″ thick aluminum and 3/8″ steel.

Productive

WAZER Pro keeps cutting with the least maintenance of any waterjet.

Easy to Use

WAZER Pro can be operated by anyone and fits in any shop.

Advantages of the Pro over the Desktop

  • WAZER Pro cuts 2-4x faster than WAZER Desktop, with the same amount of abrasive used
  • WAZER Pro cuts material that’s twice as thick as WAZER Desktop
  • WAZER Pro does 3-6x more continuous cutting compared to WAZER Desktop
  • WAZER Pro collects all the used abrasive while cutting, minimizing downtime

90 minutes of continuous cutting

Cut over 1,000 fused glass circles (15mm diam, 3mm thick) in one 90-minute session

Collects all the used abrasive

Collects all of the used abrasive while cutting, resulting in no buildup of abrasive on the bottom of the tank. Never scoop out the abrasive by hand.

Eliminated all failure-prone components from the high-pressure system.

No scheduled maintenance on the high pressure system for 600 hundred hours of cutting

Magnetic drain filters

Magnetic filters capture ferrous particles when cutting ferrous materials. Extremely easy to clean.

Easy To Use

Can be Operated by Anyone in any Shop.

Absolute-zero locating

Create locating jigs that reference permanent pins on the tank, so when the Cut Bed swells or is replaced, you don’t lose your reference point.

Submerged cutting

WAZER Pro can cut with the nozzle submerged below the water line. This results in very quiet cutting - quieter than WAZER Desktop despite having over twice the cutting power.

Uses regular tap water and single phase electrical power: 220V / 20A

Uses standard electrical infrastructure:
North America: 220V / 60Hz single-phase

WAZER Pro - The Waterjet For Any Shop

Powerful. Cuts Fast. Cuts Thick Material.

WAZER Pro Water Jet Cutter is a professional desktop waterjet cutting system designed for advanced prototyping, fabrication, and small-batch manufacturing. Using high-pressure abrasive waterjet technology, WAZER Pro delivers precise cold cutting without heat-affected zones, allowing users to cut a wide range of materials including metals, composites, plastics, stone, glass, and ceramics. With a larger cutting capacity, improved workflow, and enhanced performance compared to the original WAZER, it brings industrial-grade capabilities to workshops, labs, and production environments.
