Bambu Lab - 4-in-1 PTFE Adapter

Product SKU: FAZ013-N

$6.99

Available Stock:
Loading...

Compatibility

X1 Series / P1 Series / H2 Series / P2S

All Series

Quantity

Benefits of Buying Bambu Lab from Shop3D.ca

Certified & Approved Products

ESA-approved and SGS certified printers for the Canadian market
Approved vendor for government, education, and diversity-certified supplier

Comprehensive Training & Support

Free onboarding training for educational institutions
Account managers providing recommendations and best practices

Warranty & Repair Services

Bambu Lab warranty with local troubleshooting and parts
Local repair facility and warranty facilitation

Convenient & Responsive Local Support

Immediate response via phone or chat
Local pickup available in Vancouver and Mississauga

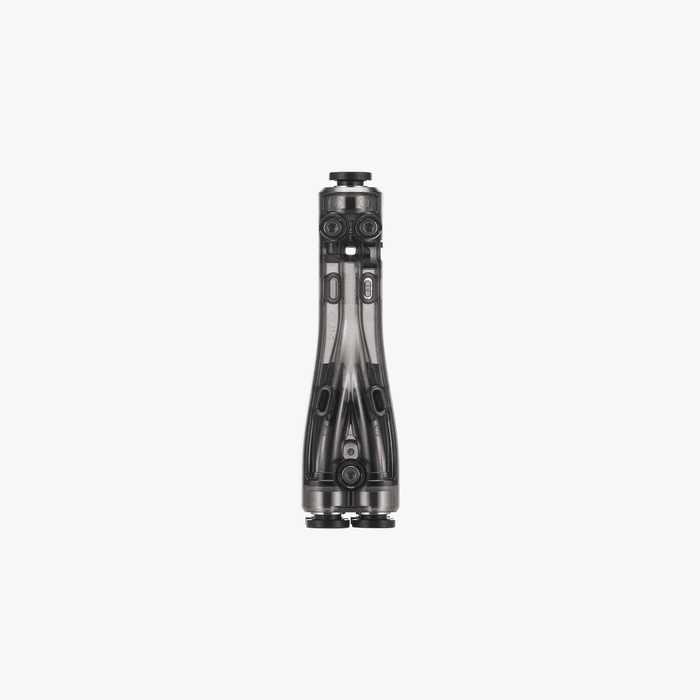

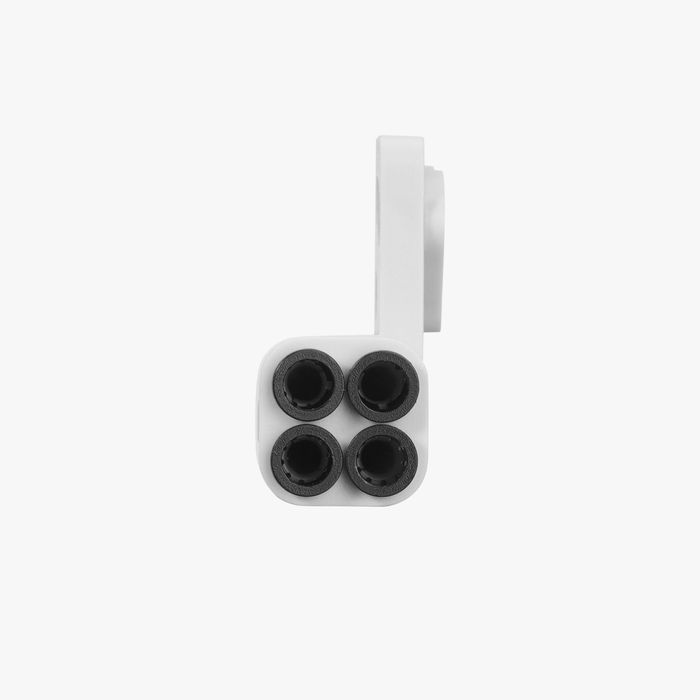

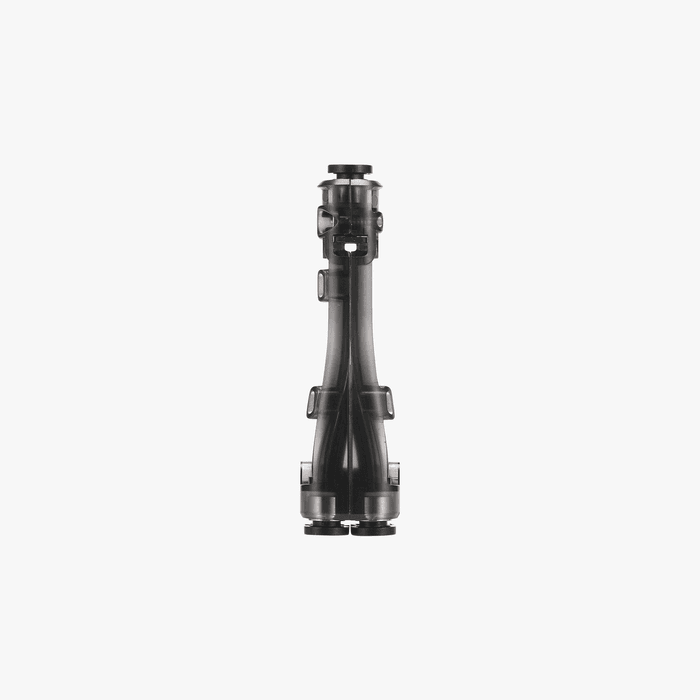

Bambu Lab 4-in-1 PTFE Adapter

The Bambu 4-in-1 PTFE Adapter is an adapter used to connect the PTFE tube. Compared to the original PTFE tube connector, the 4-in-1 adapter can connect 4 feeder modules to the printer at the same time. (up to 7 different filaments: 1 AMS and other 3 filaments) It can help users to connect the printer to AMS along with other filaments which are not compatible with AMS such as TPU 95A, Bambu PET-CF and other brands' carbon-fiber/glass-fiber contained filaments.

Installation

Learn more about the replacement of Bambu 4-in-1 PTFE Adapter on Bambu Lab Wiki.

Instructions for use

The Bambu 4-in-1 PTFE Adapter is designed with a clear direction of use, as shown in the figure below.

1. When using the AMS

Connect the PTFE tube from the tool head to the OUT end of the Bambu 4-in-1 PTFE Adapter.
Connect the PTFE tube from the buffer output to one of its IN ends. - Directly insert a maximum of three filament wires into each hole of the Bambu 4-in-1 PTFE Adapter IN end.

2. When the AMS is not being used:

Connect the PTFE tube from the tool head to the OUT end of the Bambu 4-in-1 PTFE Adapter.
Directly insert a maximum of four filament wires into each hole of the Bambu 4-in-1 PTFE Adapter IN end.

It is important to note that reversing connections may cause filament blockage. Therefore, it is essential to ensure that the installation direction is correct.
