Raise3D: Reliable, Industrial Grade 3D Printer.
SKU: 1.01.064.002A01
$2,799.00 CAD
Sale
Sold out

Price

$2,799.00 CAD

Stock

Request a Quote | Email This Page

Product Details

The Raise3D E3 IDEX printer delivers precise, stable, and fast prints of up to 200 mm/s for composite materials and TPU, perfect for prototyping and end-use part production. Built for diverse manufacturing needs, the E3 features the Flexible Filament Auxiliary Feeder and composite filament print head, suited for printing TPU, composite materials, and parts with specific surface finishes.

3D Printer

Technical Specs

Overview
Function 3D Printing
Build Volume / Work Area (L× W× H) Single Extruder Print: 330 × 240 × 240 mm (13 × 9.4 × 9.4 inch)
Dual Extruder Print: 295 × 240 × 240 mm (11.6 × 9.4 × 9.4 inch)
Number of Extruders 1-2
Material Compatibility
Compatible Materials Hyper Core: PPA CF/ PPA GF/ ABS CF Hyper Speed: PLA/ ABS/ PETG CF/ PET CF/ PLA Pro Industrial: PPA CF/ PPA GF/ PET CF/ PET GF/ PETG ESD/ PET Support/ PPA Support/ PPS CF/ PA12 CF+ Premium: PLA/ ABS/ ASA/ PETG/ PC/ TPU-95A/ PVA+ When equipped with the Flexible Filament Auxiliary Feeder, the E3 is compatible with TPE (TPU, TPE-A, TPE-S, TPE foam filaments, etc.), Shore (A) hardness between 95A and 80A (e.g. TPU-95A, 90A, 80A), as well as all Shore (D) hardness filaments.
Material Diameter / Thickness 1.75mm
Performance
Layer Thickness The E3 is compatible with 0.2, 0.4, 0.6, 0.8 and 1.0 mm nozzles, and the layer height can vary between 0.1-0.5 mm. To achieve stable print results, when using 0.4 mm nozzles, we recommend using a layer height between 0.1-0.3 mm.
Speed & Productivity
Maximum Speed 200 mm/s
Features
Maximum Nozzle Temperature 330ºC
Auto Leveling / Calibration Mesh-leveling with Flatness Detection
Platform & Motion System
Included Build Plate Flexible Double-sided PEI Build Plate
Build Plate Compatibility Flexible Double-sided PEI Build Plate (Default), Flexible Steel Plate with BuildTak (Available)
Maximum Bed Temperature 110ºC
Sensors & Monitoring
Camera Live Camera
Power Loss Recovery Available
Software & Workflow
Included Software

ideaMaker
Additional Software

Embedded Linux

Slicing Software: ideaMaker
Supported File Types STL/ OBJ/ 3MF/ OLTP/ STEP/ STP/ IGES/ IGS
Connectivity
Wi-Fi Yes
Ethernet Yes
USB Yes
Power
Input Voltage 100-240 V AC, 50/ 60 Hz 230 V @ 2 A
Safety and Compliance
Air Filtration HEPA Filter with Activated Charcoal

Documentation

Links

Product Highlights

Top Features

  • Excellent precision and stability

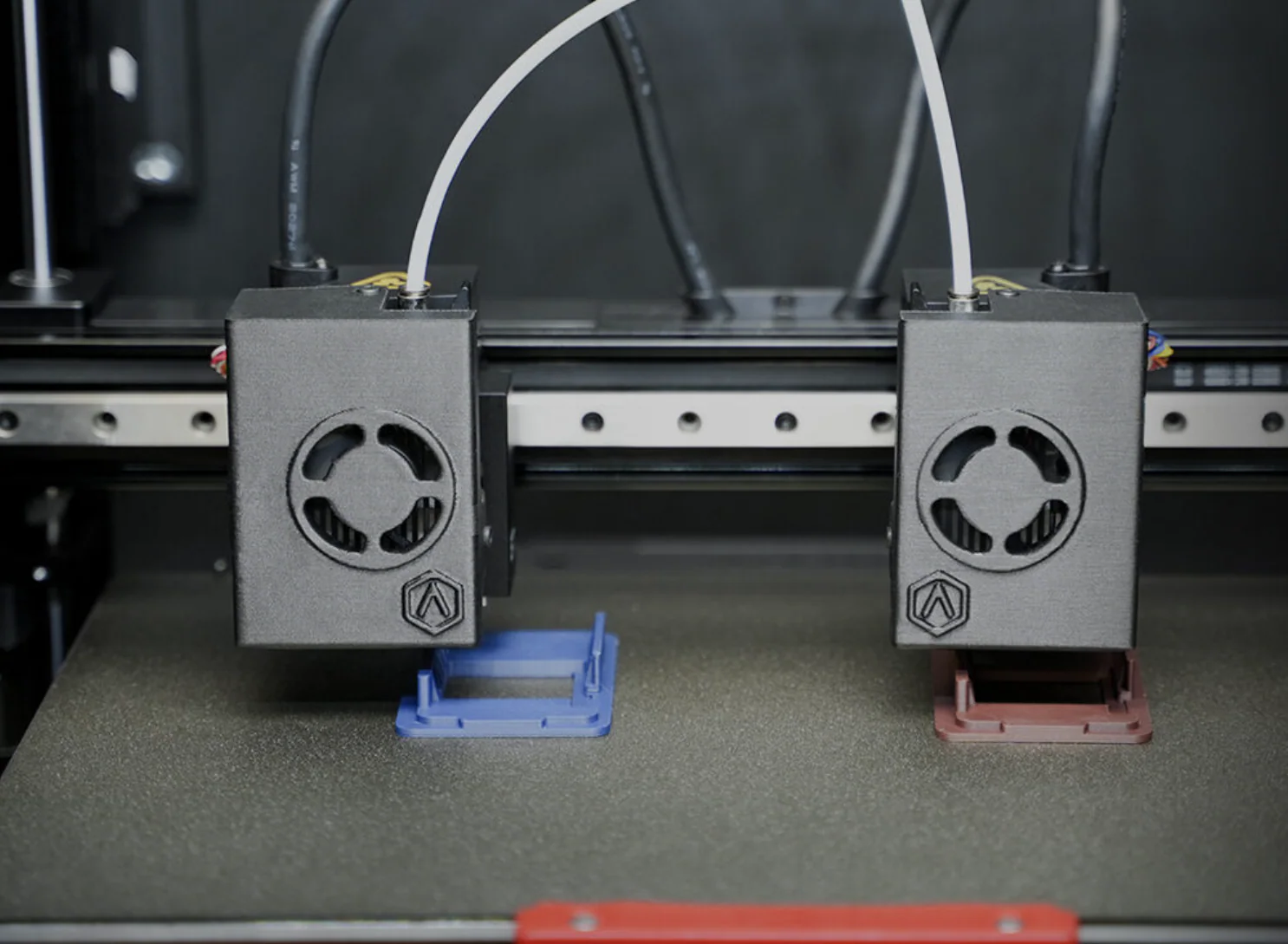

  • 200 mm/s printing speed, with IDEX and multiple printing modes
  • Material storage slots with desiccant
  • Filament run-out sensors and power loss recovery
  • Auto bed leveling
  • Substrate printing

Reshape the boundaries of manufacturing with the E3: Elastic, Engineering-grade, Expandable.

High Speed Printing

When equipped with Raise3D’s Flexible Filament Auxiliary Feeder, the E3 3D printer achieves high-speed printing of flexible filaments at up to 200 mm/s – with greater success rates and extended compatibility across a wider range of hardness levels, including TPU-95A, TPU-90A, TPU-80A, and more.

Composite Filament Support

With the optional composite filament print head, the E3 supports a variety of composite filaments, including PET CF, PET GF, and PPS CF. It reliably handles complex prints with these filaments, ensuring a smooth and consistent printing process

Efficient and Stable Production

Raise3D’s E3 is equipped with dual material storage slots with desiccant, filament run-out sensors, and power loss recovery that provides essential safeguards for uninterrupted, long-duration prints. The exceptional printing precision allows the E3 to meet engineering-grade requirements for both functional prototypes and end-use parts.
