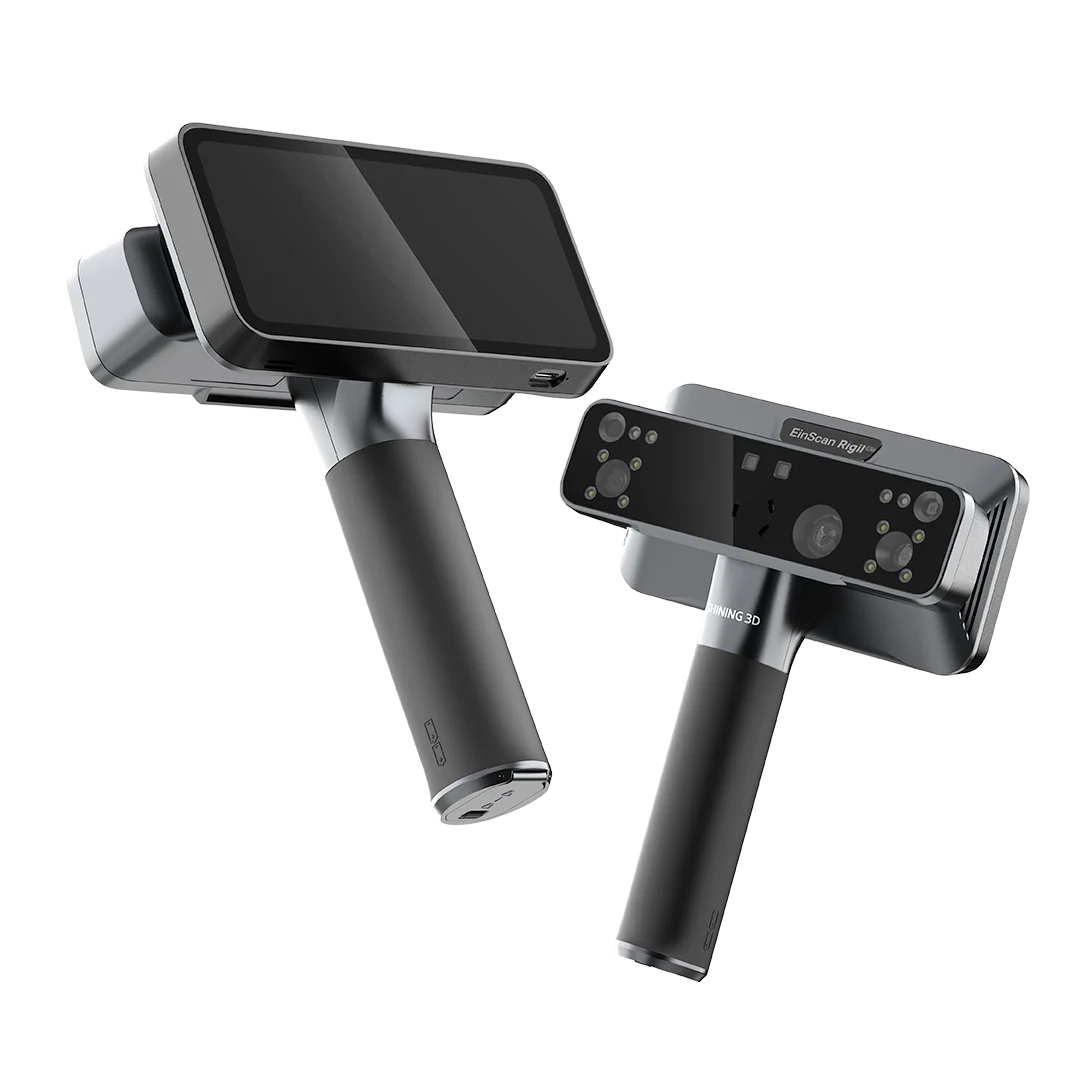

EinScan Rigil Lite 3D Scanner

EinScan Rigil Lite 3D Scanner

EinScan Rigil Lite 3D Scanner

Portable wireless 3D scanner with fast, accurate scanning for professional applications.
SKU:C011773
$4,899.00 CAD
Sale
Sold out

Price

$4,899.00 CAD

Stock

Request a Quote | Email This Page

Until Sept 25th, 2026, when you purchase a Shining3D Scanner along with a ExModel Pro License or subscription, save 20% off the software automatically. Enjoy reverse engineering!

Product Details

EinScan Rigil Lite 3D Scanner is a lightweight, portable 3D scanner designed to deliver fast and accurate digitization of objects for engineering, design, manufacturing, and education. Featuring wireless operation, onboard processing, and an intuitive user interface, it enables efficient scanning without the need for a constant PC connection. Its versatile scanning capabilities capture detailed geometry across a wide range of object sizes, making it ideal for reverse engineering, product development, digital archiving, quality inspection, and 3D printing workflows.

3D Scanner

Technical Specs

Overview
Footprint (L× W× H) (H*D*W) 233 × 180 × 72.8 mm
Net Weight 870 g (batteries included)
Performance
Scan Resolution Laser HD：0.05 ~ 10 mm IR Rapid：0.2 ~ 10 mm
Speed & Productivity
Scanning Speed 17+17 crossed blue laser lines：2,940,000 points/s 7 blue laser parallel lines：1,620,000 points/s IR Rapid：16,000,000 points/s
Working Area & Optics
Working Field Distance Laser HD：170 ~ 550 mm IR Rapid：160 ~ 1500 mm
Alignment Method Laser HD：Global Markers / Markers / Features IR Rapid：Markers / Features / Texture(freely combinable) / Global Marker
Mode / Laser Type Class 2
Sensors & Monitoring
Camera 3D：2.3MP*2 1.3MP*2

Texture：5MP
Software & Workflow
Included Software
EXScan Rigil
Additional Software

EXModel
Supported File Types Output Formats : STL, OBJ, PLY, 3MF, ASC
Minimum System Requirements

OS: Win11 (64-bit);
Processor: 13th Gen Intel®Core™ i7-13700H or above;
Graphics card: NVIDIA GeForce RTX 3060 Laptop GPU or above;
VRAM: 8 GB or above;
RAM: 64 GB or above, DDR5 dual-channel;
Interface: USB 3.0

CPU: M1 Max / M1 Ultra / M2 Max / M2 Ultra / M3 Pro / M3 Max / M3 Ultra / M4 Pro / M4 Max/ M5 and above
Graphics Card: On-chip GPU with unified memory
RAM: 24 GB or above
Operating System: Tahoe 26.2 and above (MacBook Air is not among the recommended models.)
Connectivity
Wi-Fi Yes
USB USB Type C
Connectivity Shining3d Cloud
Power
Input Voltage Battery： 5500mA*2
Support 60W-PD3.0 Charger
Safety and Compliance
Certifications CE, FCC, ROHS, WEEE, FDA, SRRC, IP50
Warranty and Support
Manufacturer Warranty 1 year manufacture's
Shop3D Training

Shop3D or Manufacturer Training Sessions Optional

What's in the Box

  • Einscan Rigil Lite
  • Carrying Case
  • Calibration Board
  • Universal Holder
  • Power Adaptor
  • Type-C Cable for Scanner
  • Battery Compartment & Charging Cable
  • 4x 5000mAh Battery
  • 3mm and 6mm Reflective makers
  • Tempered Glass Screen Protector
  • Marker Removal Tool
  • Cleaning Cloth
  • Packing List

Product Highlights

Top Features

The EinScan Rigil Series represents the complete form of all-in-one 3D scanners, integrating hardware components such as the scanner, display, computing, storage, and power supply into a unified design, with the entire workflow independently accomplished on-device through software.

What's the difference between Rigil and Rigil lite?

Three key differences:

  • Scanning efficiency, Rigil's 25+25 lines is 40% faster than Rigil Lite's 17+17 lines.
  • Accuracy: Rigil has 0.04+0.06mm volumetric accuracy which is confirmed of each device, Rigil Lite accuracy is a bit lower.
  • Process speed: 32GB is 25% faster than 24GB in most of cases, the larger the project, the more pronounced the speed difference. Storage space, Rigil has 1TB ROM, Rigil Lite is 512GB ROM, more space more value.
