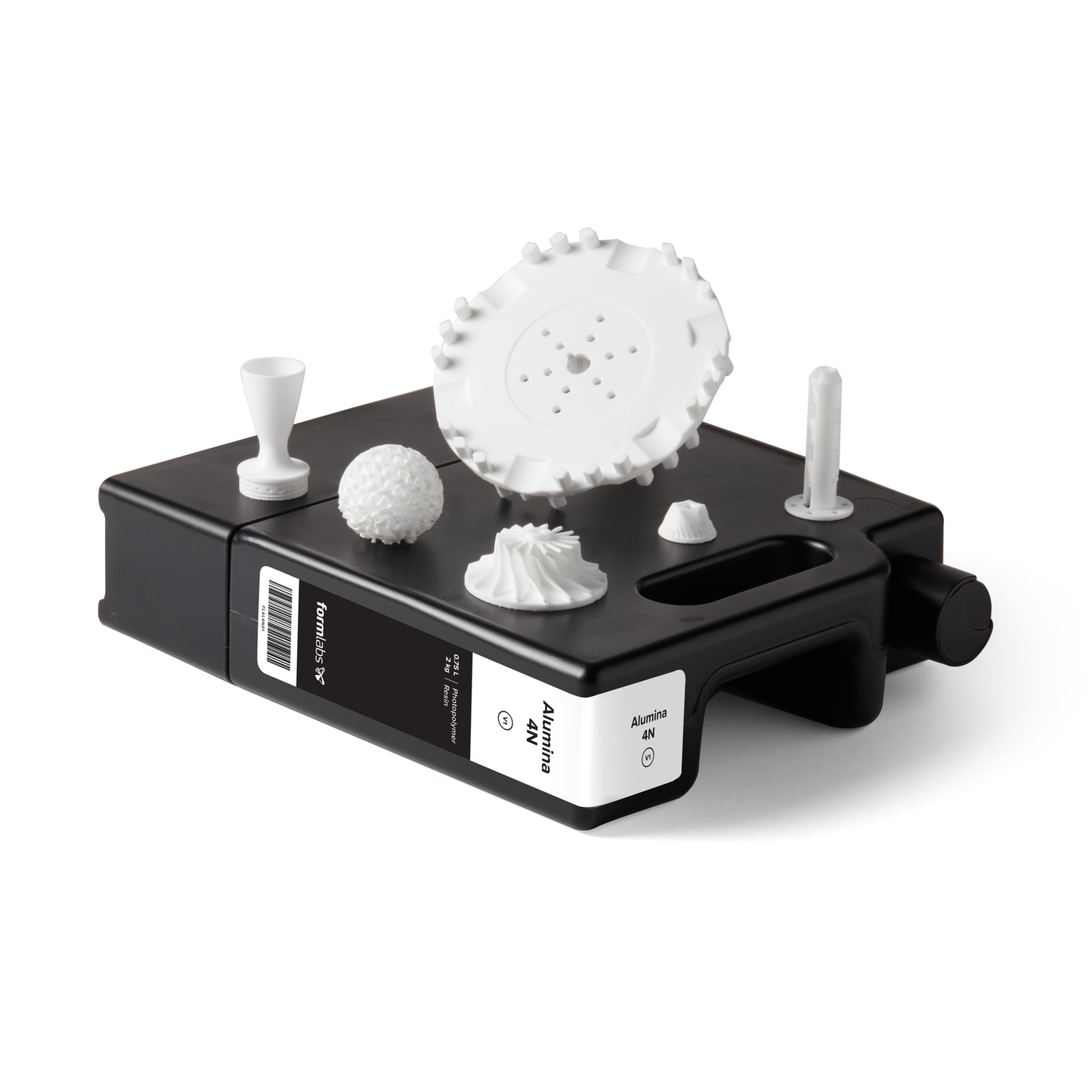

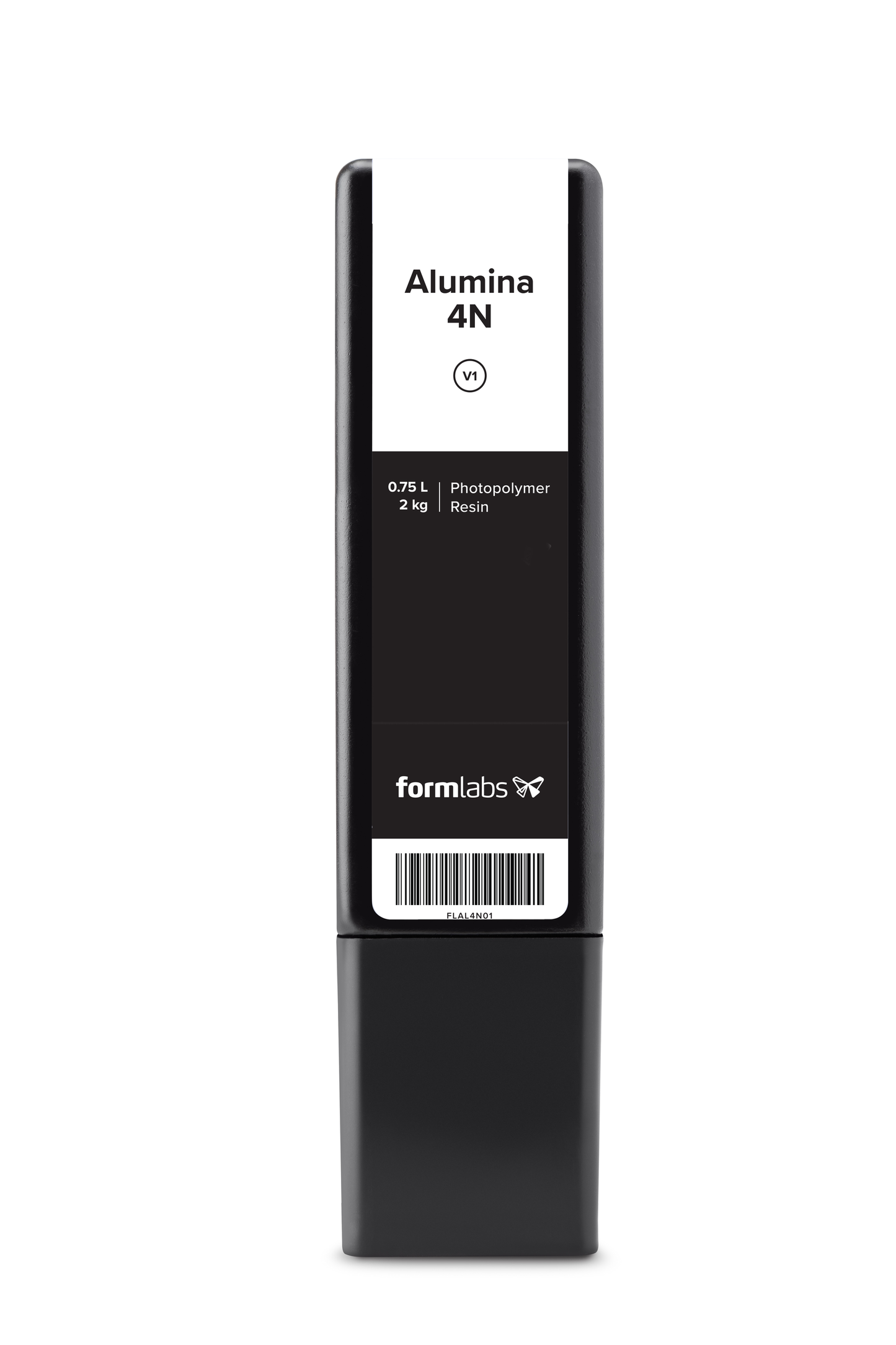

Formlabs Alumina 4N Resin Cartridge 2kg (780ml OEM)

Formlabs Alumina 4N Resin Cartridge 2kg (780ml OEM)

Formlabs Alumina 4N Resin Cartridge 2kg (780ml OEM)

Technical Ceramic 3D Printing With Extreme Performance
SKU:RS-F2-AL4N-01
$1,870.00 CAD
Sale
Sold out

Price

$1,870.00 CAD

Stock

Request a Quote | Email This Page

This product requires a complex, multi-day workflow and extra equipment, including kilns, to achieve a sintered alumina part. If this is your first time using a Formlabs 3D Printer, we strongly recommend using a general purpose resin, such as Clear Resin before printing with Alumina 4N Resin.

A stainless steel build platform is required when printing with Alumina 4N Resin (use either Form 3 Build Platform 2 or Form 3 Stainless Steel Build Platform).

Embrace the future of ceramic engineering with the most affordable ceramic 3D printing ecosystem in the world. Introduce the power of 3D printing to manufacture your advanced ceramic components without expensive tooling, and reduce production costs and lead times while increasing design freedom. Alumina 4N Resin is a high-density and high-purity technical ceramic 3D printing material with exceptional performance in extreme environments: thermally resistant, hard, abrasion resistant, mechanically strong, and chemically inert. A stainless steel build platform is required when printing with Alumina 4N Resin (use either Form 3 Build Platform 2 or Form 3 Stainless Steel Build Platform).

Resin Details

Embrace the future of ceramic engineering with the most affordable ceramic 3D printing ecosystem in the world. Introduce the power of 3D printing to manufacture your advanced ceramic components without expensive tooling, and reduce production costs and lead times while increasing design freedom. Alumina 4N Resin is a high-density and high-purity technical ceramic 3D printing material with exceptional performance in extreme environments: thermally resistant, hard, abrasion resistant, mechanically strong, and chemically inert.
Applications

Alumina 4N Resin is a cost and time-effective solution for fabricating high-performance parts for extreme environments. Parts printed in Alumina 4N Resin serve as good heat and electrical insulators, heavy-duty tools, as well as chemically resistant and wear-resistant components. They are used in industries such as defense, manufacturing, chemicals, and automotive.

High Stiffness

Temperature Resistance

Specialty

Formlabs Material

Part of the Formlabs ecosystem

Technical Specs

Overview
Technology SLA
Material Properties
Tensile Modulus 390000.0 MPa

Links

Introduction to Ceramic Alumina 4N Resins

Ceramic Alumina 4N Quick Start Guide

Recommended Tools and Supplies for Ceramic Alumina 4N Resin

Printing and Firing Ceramic Alumina 4N Resin

Designing Parts for Ceramic Alumina 4N Resin

Troubleshooting Issues With Parts Printed in Ceramic Alumina 4N Resin

Product Highlights

Top Features

Alumina 4N Resin is a 99.99% pure alumina technical ceramic with 98.6% relative density, and exceptional thermal, mechanical, and conductive properties — comparable to traditionally manufactured alumina (Al2O3).

Ceramic 3D Printing Made Accessible

The most affordable and easiest-to-use ceramic 3D printer in the world. Over 10x lower starting price compared to the leading alternatives.

Unprecedented Design Freedom

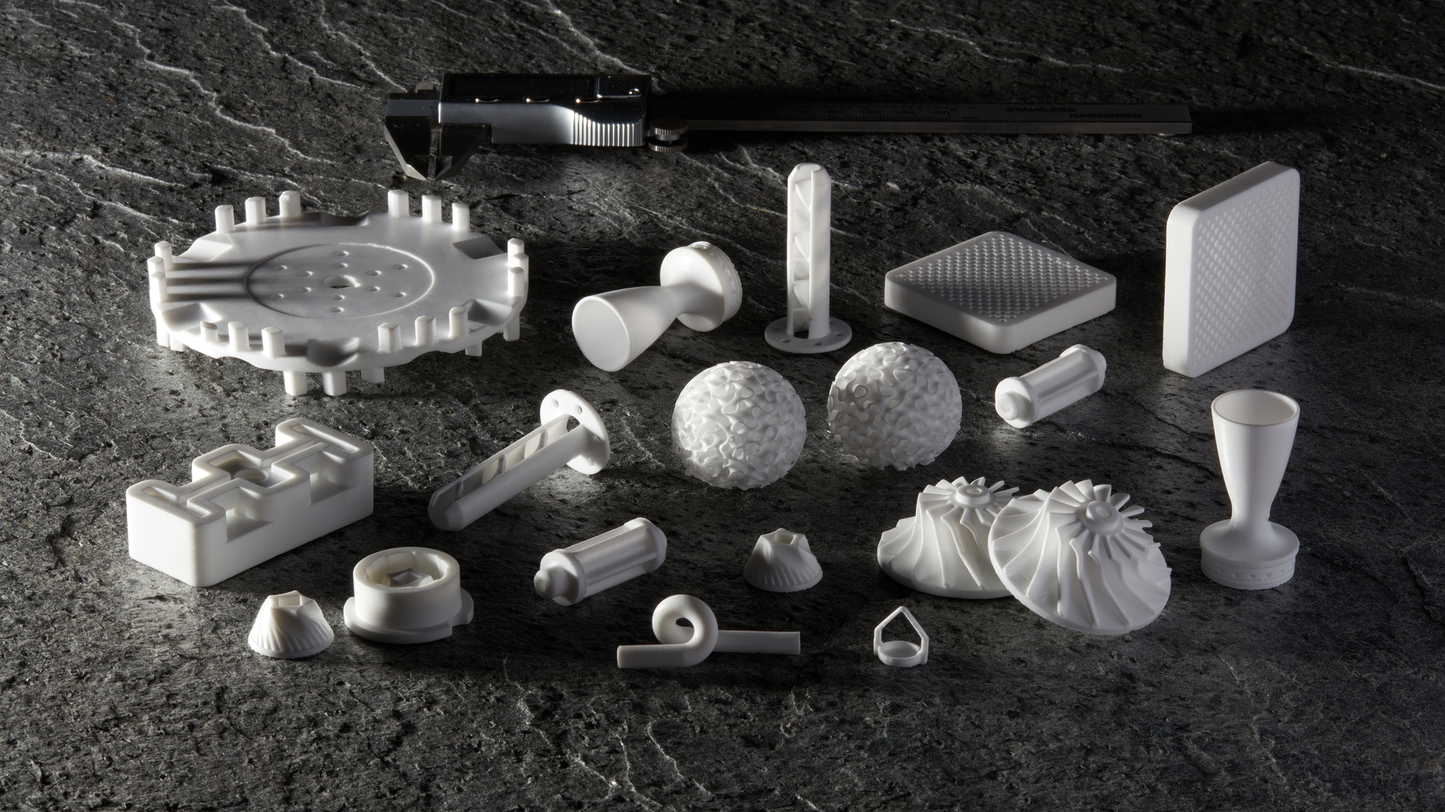

Fabricate ceramic components with intricate internal channels, latticed structures, and complex geometries that are impossible with traditionally manufactured alumina. Optimize parts without sacrificing quality or performance.

Shortened Turnaround Time and Reduced Costs

Ditch expensive tooling and molds for reduced production costs and a quicker end-to-end process for a faster development cycle overall.

Extreme Performance

Reliable in extreme applications with a max working temperature of 1500°C, maintaining an impressive flexural strength of over 400 MPa in addition to resisting compression and deflection with a modulus of 380 GPa.

Resin Comparison Tool
