Formlabs Clear Cast Resin Cartridge (1 Litre OEM) - Form 4

Formlabs Clear Cast Resin Cartridge (1 Litre OEM) - Form 4

Formlabs Clear Cast Resin Cartridge (1 Litre OEM) - Form 4

3D Print Accurate, Low Ash Patterns for Investment Casting Directly in House
SKU:RS-C2-CCCL-01
$214.00 CAD
Sale
Sold out

Price

$214.00 CAD

Stock

Request a Quote | Email This Page

This product is exclusively for use with the Formlabs Form 4

Formlabs Clear Cast Resin Cartridge (1 Litre OEM)

3D Print Accurate, Low Ash Patterns for Investment Casting Directly in House

Clear Cast Resin is a resin designed for investment casting, to directly print patterns that can be invested and cast. It has an extremely low thermal expansion, low ash, and no trace heavy metals. Clear Cast Resin, paired with a latticing software, is recommended for use with larger parts, excelling at producing geometries thicker than 3 mm.

Resin Details

Clear Cast Resin is a resin designed for investment casting, to directly print patterns that can be invested and cast. It has an extremely low thermal expansion, low ash, and no trace heavy metals. Clear Cast Resin, paired with a latticing software, is recommended for use with larger parts, excelling at producing geometries thicker than 3 mm.
Applications

Demanding engineering applications over 3 mm thick

Documentation

Casting

Formlabs Material

Part of the Formlabs ecosystem

Technical Specs

Overview
Technology SLA
Material Compatibility
Printer Compatibility
  • Form 4
  • Form 4B
  • Form 4L
  • Form 4BL
Build Platform Compatibility Form 4 Build Platform, Form 4 Flex Build Platform, Form 4L Build Platform, Form 4L Flex Build Platform
Tank Compatibility
  • F4
  • F4L

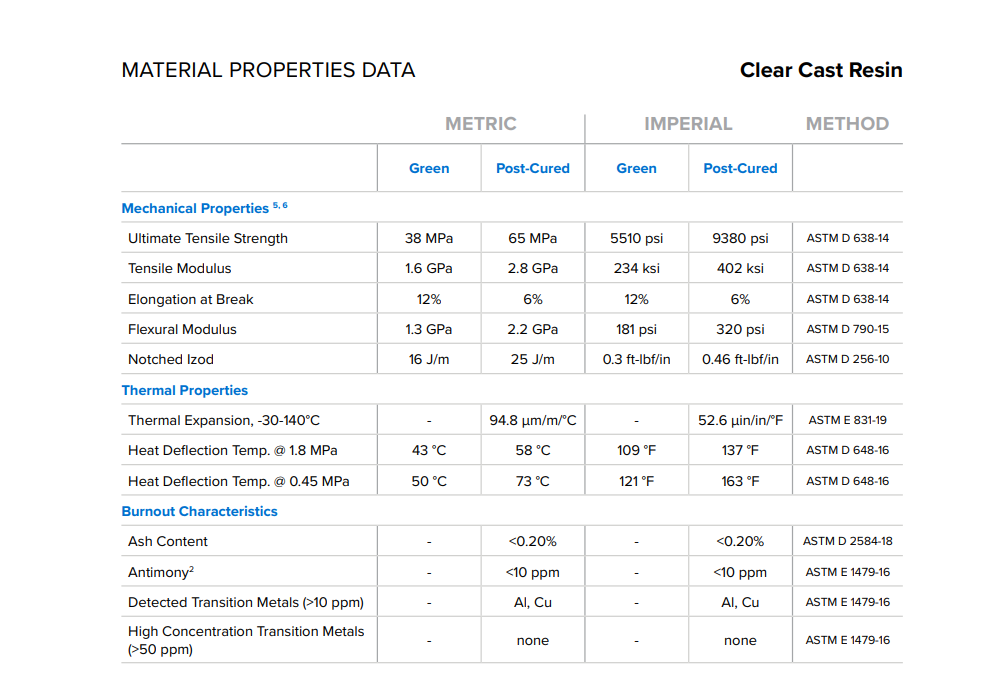

Material Properties
Thermal Expansion 94.8 μm/m/°C
Heat Deflection Temp. @ 0.45 MPa 73.0 °C
Notched Izod 25.0 J/m
Flexural Modulus 2200.0 MPa
Tensile Modulus 2800.0 MPa
Elongation at Break 6.0 %
Ultimate Tensile Strength 65.0 MPa

Resin Cheat Sheet

Product Clear Cast Resin
Cure Temperature 60 °C
Cure Time (Form Cure V1)
Cure Time (Form Cure V2) 5 min
Wash Time 10 minutes
Special Notes

Wash

  • When washed in TPM, standard resins remain waxy when printed with a layer thickness of 50 microns or 100 microns. Post-curing removes waxiness. Without post-curing, waxiness goes away after about a week.

Form Cure V1

  • For parts printed in an engineering-focused resin, post-curing ensures that the parts reach their optimal mechanical properties and can function as designed. While the recommended post-cure time is 15 minutes, post-curing for 30 minutes will result in a small additional gain in tensile modulus.

Form Cure V2

  • For parts printed in an engineering-focused resin, post-curing ensures that the parts reach their optimal mechanical properties and can function as designed.
Extra Abrasive to Tanks --

Links

Read the Investment Casting White Paper

Product Highlights

Top Features

Accessible pattern production in-house

Clear Cast Resin on Formlabs SLA printers enables direct production of casting patterns in-house which reduces costs, decreases turnaround times, and improves flexibility in iterating and production.

Clean Burnout

Clear Cast Resin achieves a clean burnout with low ash and no trace metals, leaving nothing to contaminate the final cast part.

Low Thermal Expansion

Best in class thermal expansion for reliable casting shells with minimal cracking.

Accurate and Versatile

Create accurate patterns within 0.25 mm of the design. Compatible with any metal or shelling system, allowing foundries to cast new designs in record time

Built from Experience

Formlabs has produced industry leading investment casting resins for large, 3rd party SLA printers at its state of the art manufacturing facility in Ohio, and leveraged this experience in developing Clear Cast Resin for its own SLA printers.

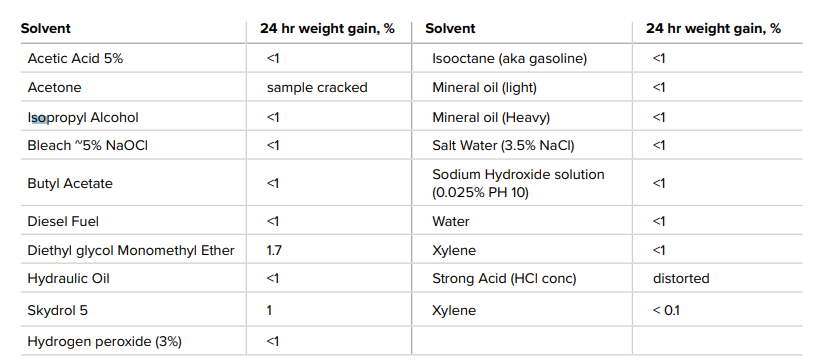

Solvent Compatibility

Percent weight gain over 24 hours for a printed and post-cured 1 x 1 x 1 cm cube immersed in respective solvent:

Resin Comparison Tool
