Formlabs

Formlabs Form 4L Basic Package

Product SKU: PKG-F4L-WSVC-BASIC

$13,699.00

Available Stock:
Loading...

Estimated shipping: 4 weeks after pre-order

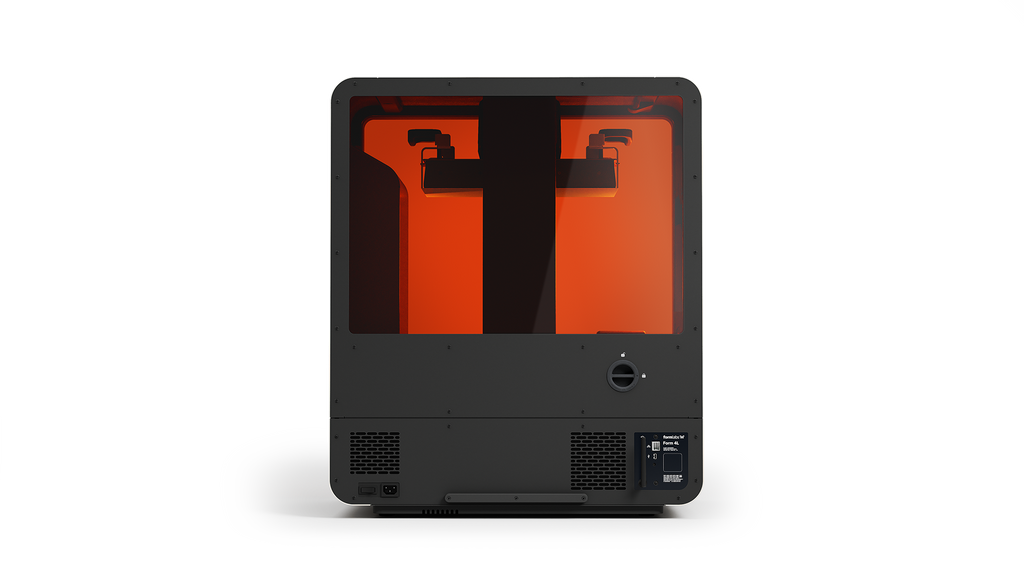

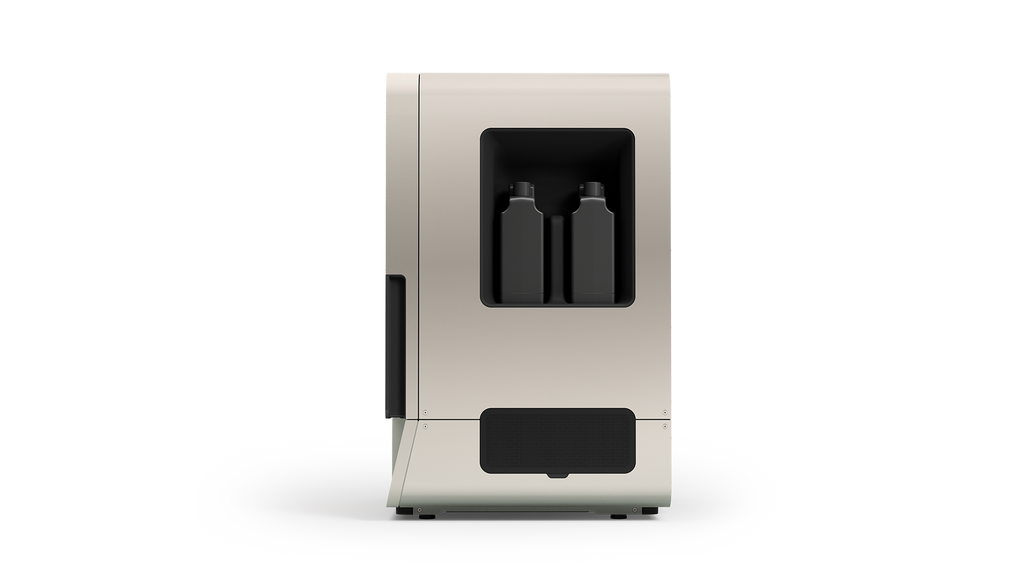

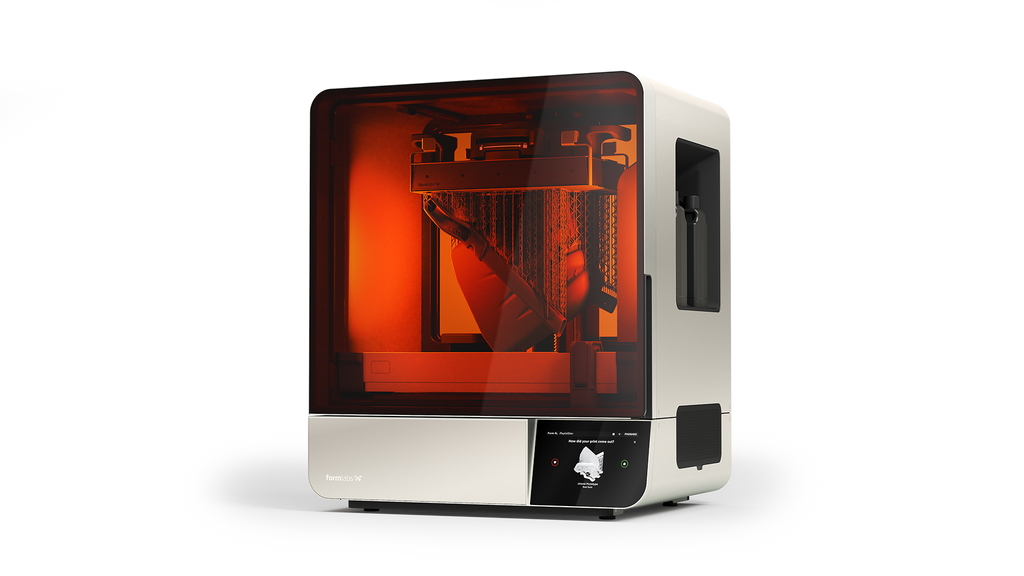

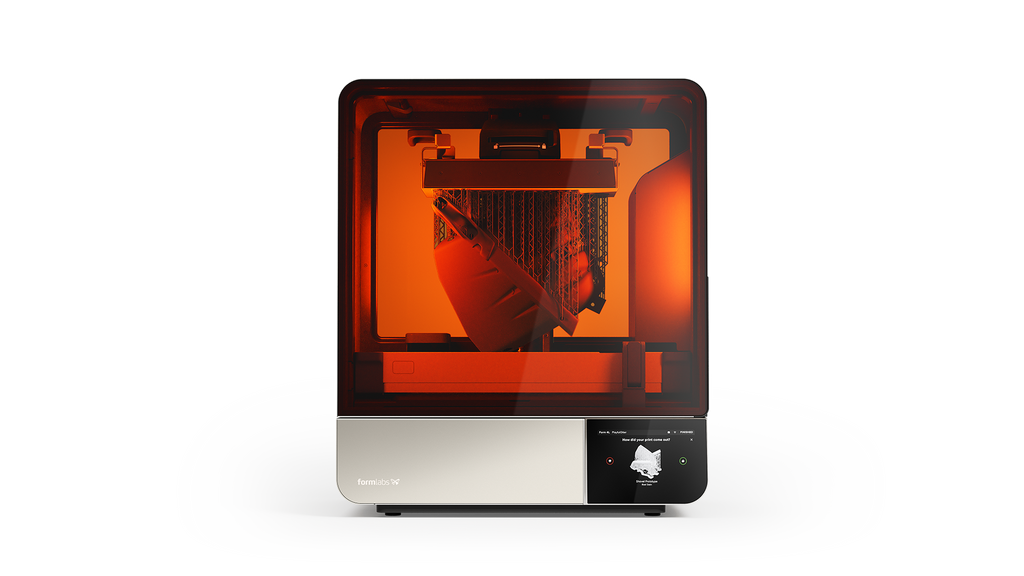

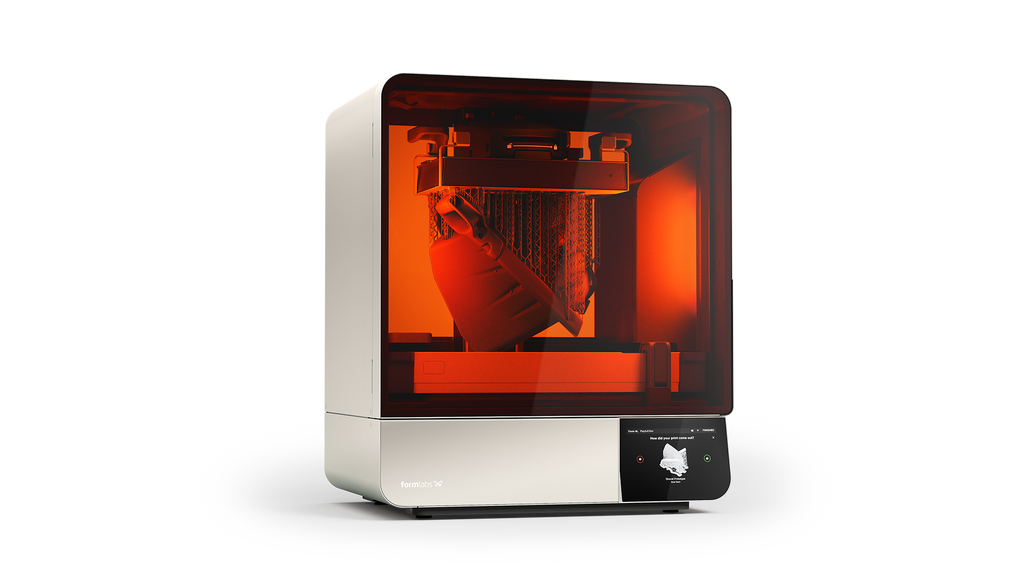

Formlabs Form 4L

Form 4L is a blazing-fast large-format masked SLA 3D printer that combines an industry-leading materials library with a reliable, accurate print engine. Turn your biggest ideas into reality faster than ever with easy workflows, leading reliability, and stunning part quality using the Form 4L ecosystem. Form 4L’s speed is driven by Formlabs’ new Low Force Display™ Print Engine, a powerful combination of ultra-high power LEDs, collimating lenses, optical filters, and a robust liquid crystal display. Together they cure each layer of resin rapidly — regardless of part size or quantity. With tight tolerances, parts printed in every resin on Form 4L will match your design parameters, every time.

Features

Game Controller Print Time:

Form 4: 1h 38m
Benchmark FDM: 3h 37m
Benchmark SLA: 4h 11m
Form 3+: 10h 47m

Electrical Connector Print Time:

Form 4: 1h 28m
Benchmark FDM: 9h 12m
Benchmark SLA: 2h 16m
Form 3+: 9h 43m

Produce stunning parts that always fit, rivalling injection molded parts.

Sharpest Details
Highly collimated light and 50 µm pixel size with pre-tuned anti-aliasing for subpixel resolution
Smoothest Surfaces
Lower peel forces, light touch supports, and 50 µm pixel size with pre-tuned anti-aliasing
Most Accurate Assemblies
±0.15% XY dimensional tolerances so assembles always fit.

Tackle any problem with our industry-leading materials.

Formlabs has a vast library of specific use case resins as well as general purpose resins that still offer enchanced mechanical properties over other resins. Use Formlabs Resin for:

General Purpose
Tough. Impact-resistant, PP-like, ABS-like
Rigid. Ultra stiff, high strength, glass-filled

Flame Retardant. UL 94 V-0 certified, FST rated
Silicone. 100% pure silicone
Elastic. Translucent elastomers. 50A and 80A shore hardness

Biocompatible. Class I and Class II with Form 4B
Polyurethane. Long-term durability, true polyurethane
Ceramic. 99.99% pure alumina technical ceramic

Unmatched reliability. Stop coming back to failed prints.

With new systems in place to ensure you never come back to a failed print

Validated Print Settings: Formlabs optimization engineers put hundreds of printed parts to the test to ensure each material performs to the most reliable standards, right out of the box.
Intelligent Control Systems: Six control systems precisely measure and maintain the temperature, resin level, print forces, and print status inside your printer.
Long-Lasting Consumables: Robust hardware that was engineered for years of use.
Tank rated for >75,000 layers for all materials.
Light Processing Unit rated for >750,000 layers.

Factory Calibration: 60-point calibration and quality control inspection before your printer even leaves the factory.
Remote Monitoring: Monitor your prints and manage your printers from anywhere with an integrated camera, preventative maintenance reminders, and our free Dashboard software.

A system so intuitive that anyone can learn to print in 15 minutes

1. Import your model and prepare your print

Smart auto-orientation
Advanced support generation
Live printability checks

2. Load a material and click print

Validated print settings
No-hassle cartridge and tank
Automatic resin dispensing

3. Remove, wash, cure

Quick release part removal
Automatic part cleaning
precision post-curing for peak material properties

4. Finish your part

Light touch supports for quick, clean support removal
Optional sanding, coating, or painting

Testimonies

"Form 4 is our go-to choice for projects needing tight tolerances and engineering-grade materials. It produces high-performance parts with amazingly fast print times and makes it possible for our model makers to produce multiple iterations in a 24-hour period.

- Mark Honschke, Additive Prototyping Lead -Microsoft

"The dramatic increase in print speed for Form 4 has significantly accelerated our fabrication cycle - to the point where I can iterate through many different designs every day and go from design to usable functional parts within the hour"

-Matt Mullin, Laser Engineer -NASA

"I really appreciate the reliability paired with the speed. it's not one or the other, like many other tools. Now I can commit to internal deadlines and feel confident that I can deliver every time.

Bruno Alves, Development Engineer AM/IM -Ford

Tech Specs

Technology: Low Force Display (LFD)
Build Volume (W x D x H): 35.3 x 19.6 x 35.1 cm | 13.9 x 7.7 x 13.8 inches
Layer Thickness (Z resolution): 25 - 300 microns
XY Resolution: 50 Microns
Average Print Speed (100 µm layer height): 40mm/h
Maximum Print Speed: 100mm/h

Resin Tank Lifetime: 75,000+ layers with any Formlabs material
Printer weight: 18.3 kg | 40.4 lb
Printer dimensions: 39.8 × 36.7 × 55.4 cm | 15.7 × 14.5 × 21.9 in
Warranty and service: One-year warranty included | Paid service and extended warranty options available
Software compatibility: Windows 7 and up | Mac os X 10.12 and up
File Types accepted: STL, OBJ, 3MF

What's Included

1 x Formlabs Form 4L 3D Printer
1 x Formlabs Form 4L Resin Tank
1 x Formlabs Form 4L Mixer
1 x Formlabs Form 4L Build Platform
1 x Formlabs Form 4L Finish Kit
