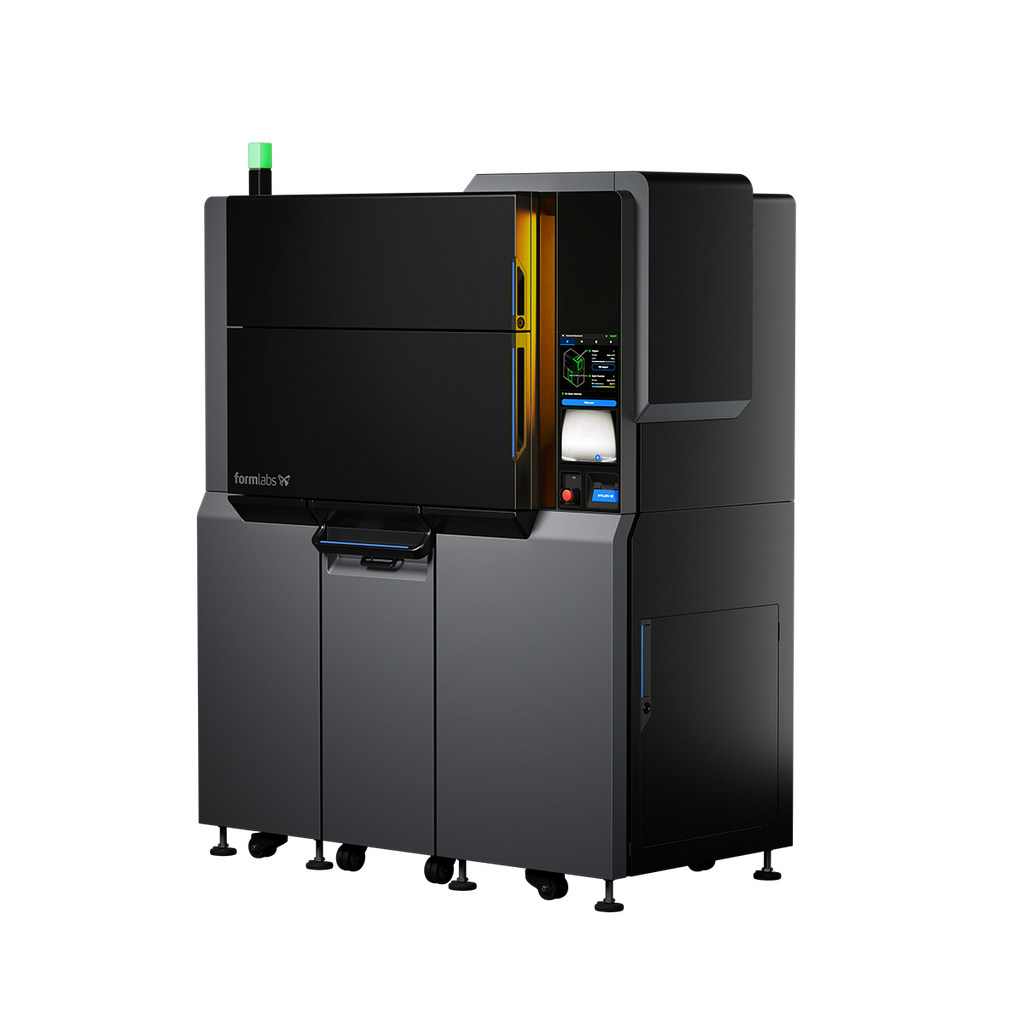

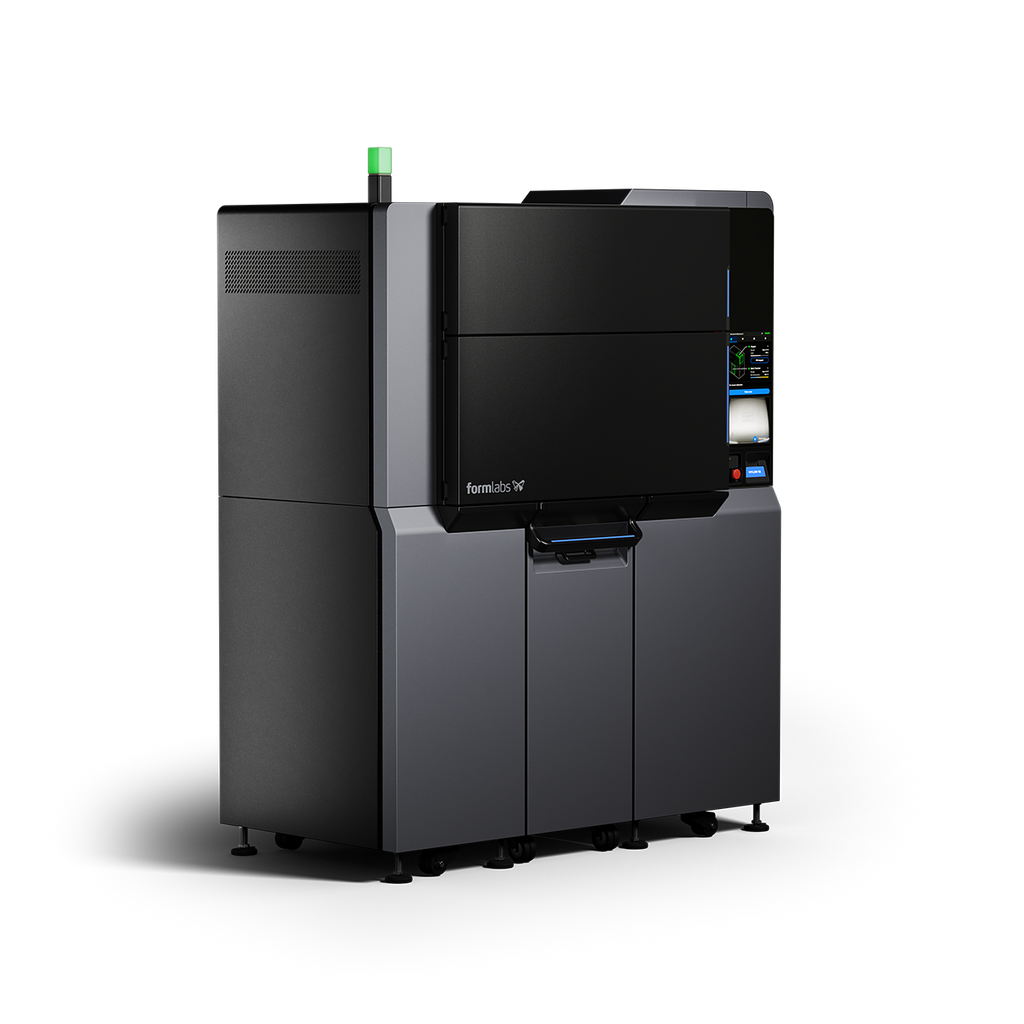

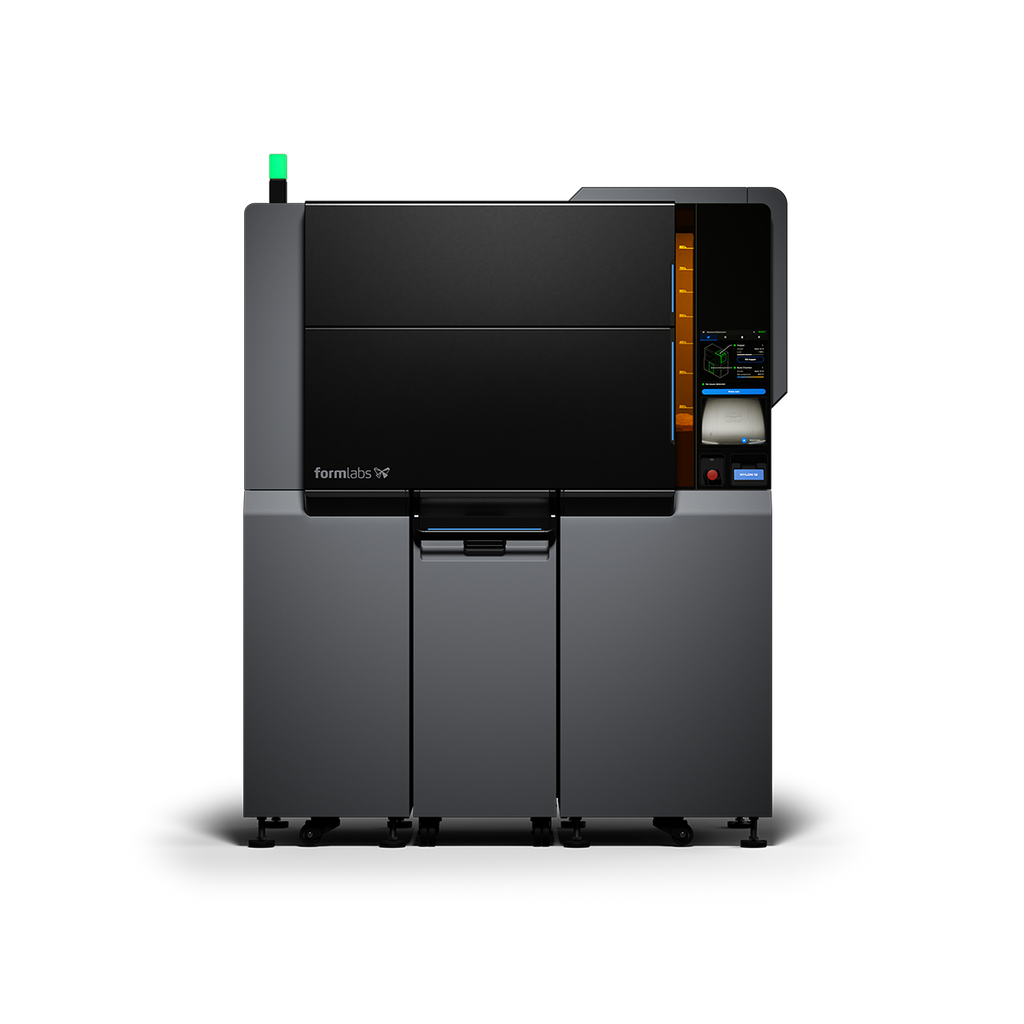

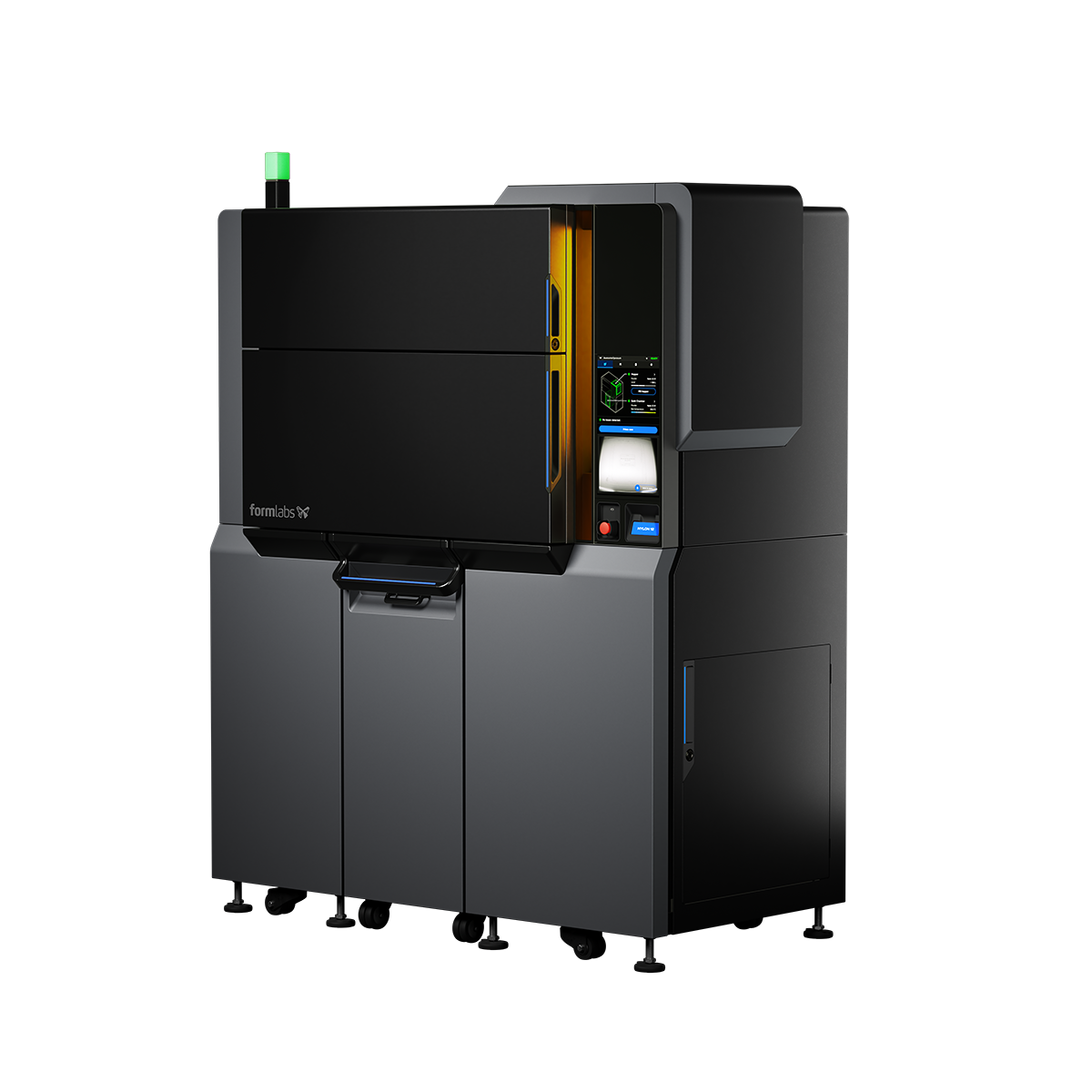

Fuse X1 SLS 3D Printer

Fuse X1 SLS 3D Printer

Fuse X1 SLS 3D Printer

Deliver full-size parts overnight, or production runs of your latest design.
SKU:FSX1-PC-01

Starting At

$84,999.00 CAD
Sale
Sold out

Starting At

$84,999.00 CAD
Free Delivery does not apply for this order.
This item is available for pre-order. Please contact us for lead times.
Customized Package Please speak to a sales rep for pricing and to order this product.
Contact a Sales Rep to Purchase
Request a Quote | Email This Page

The Fuse X1 has a variety of customizable packages. Please contact sales for pricing information

Product Details

Fuse X1 SLS 3D Printer is a high-performance selective laser sintering (SLS) 3D printer engineered for fast, reliable production of functional prototypes and end-use parts. Designed for industrial manufacturing environments, the Fuse X1 delivers high throughput, exceptional dimensional accuracy, and consistent part quality using engineering-grade nylon powders. Its advanced SLS technology eliminates the need for support structures, allowing users to produce complex geometries, interlocking assemblies, and production-ready components with minimal post-processing. Built for production-scale additive manufacturing, the Fuse X1 integrates seamlessly into professional workflows, helping businesses accelerate product development, reduce lead times, and manufacture durable parts on demand.

Technical Specs

Overview
Technology Selective laser sintering (SLS)
Build Volume / Work Area (L× W× H) 330 × 330 × 565 mm | 13.0 × 13.0 × 22.2 in (61.5 L)
Footprint (L× W× H) 1.3 m^2 / 14.1 ft^2
Material Compatibility
Compatible Materials Nylon 12, Nylon 11*, Nylon 12 GF**, TPU**, Open Material Mode (*Available by the end of 2026 **Available by June of 2027)
Performance
Layer Thickness 110 microns | 0.004 in
Speed & Productivity
Maximum Throughput / Flow Rate 0.330 sintered kg/hr
Working Area & Optics
Mode / Laser Type Ytterbium Fiber, 120 W
Laser Spot Size 330 microns | 0.012 in
Power
Input Voltage 200-240VAC single phase, 50/60Hz, 50A rating
Warranty and Support
Manufacturer Warranty Production and Self-Service plans available

Product Information

Max Packing Density : 30%+ (volume), 48%+ (mass)

Material Refresh Rate :As low as 20%

Print Intelligence: AI-powered real-time print failure prevention

Links

  • Fuse X1 at Formlabs.com

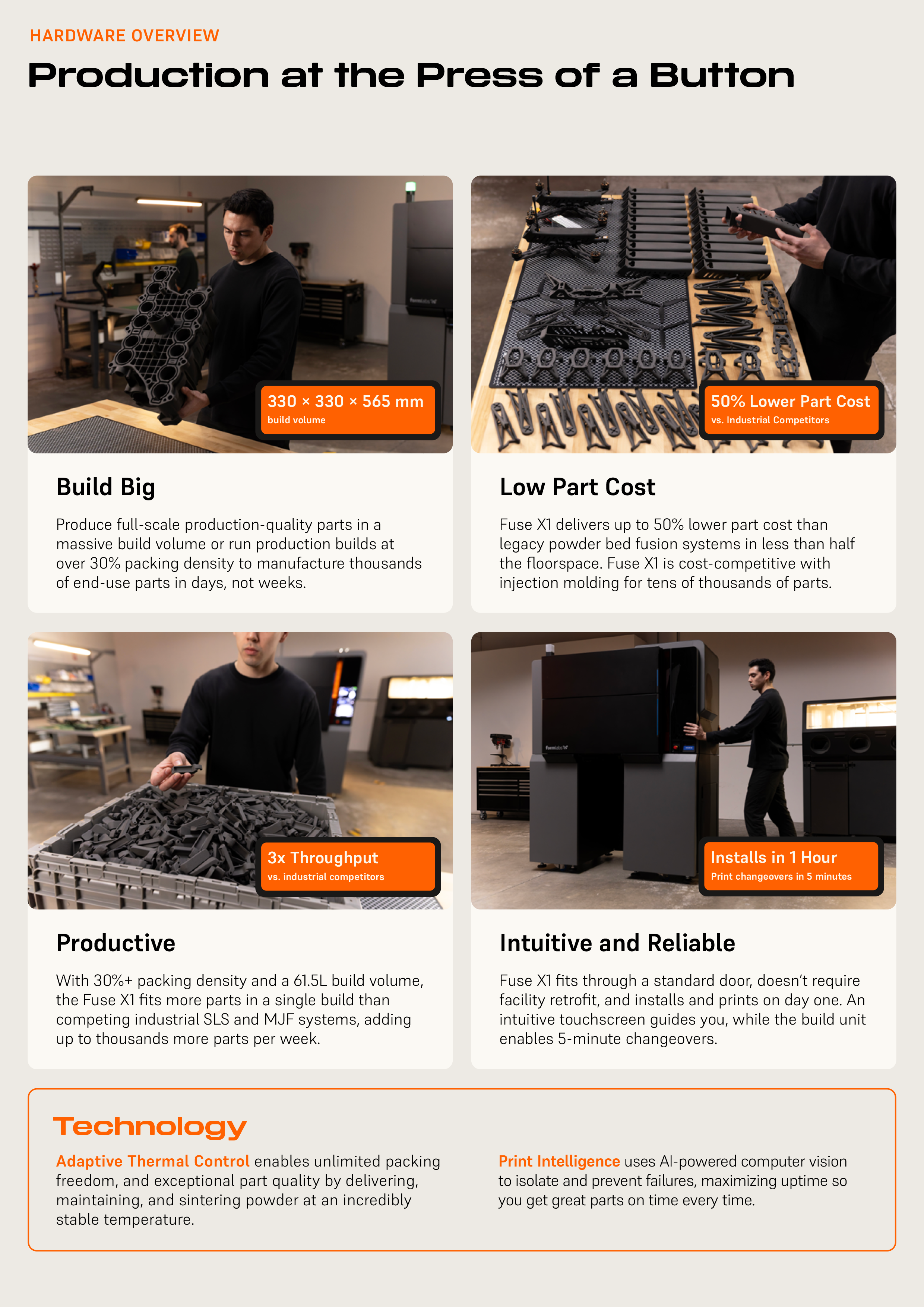

Product Highlights

Top Features

  • Build Big:
    330 × 330 × 565 mm build volume, with 30%+ packing density
  • Low Part Cost:
    Production-quality parts for 50% less, all in ½ the space
  • Productive:
    Same day large parts and 3x the throughput of competitors
  • Reliable:
    AI powered Print Intelligence failure prevention
  • Intuitive:
    Install & operate in one hour, start a print in 5 minutes

Deliver full-size parts overnight, or production runs of your latest design.

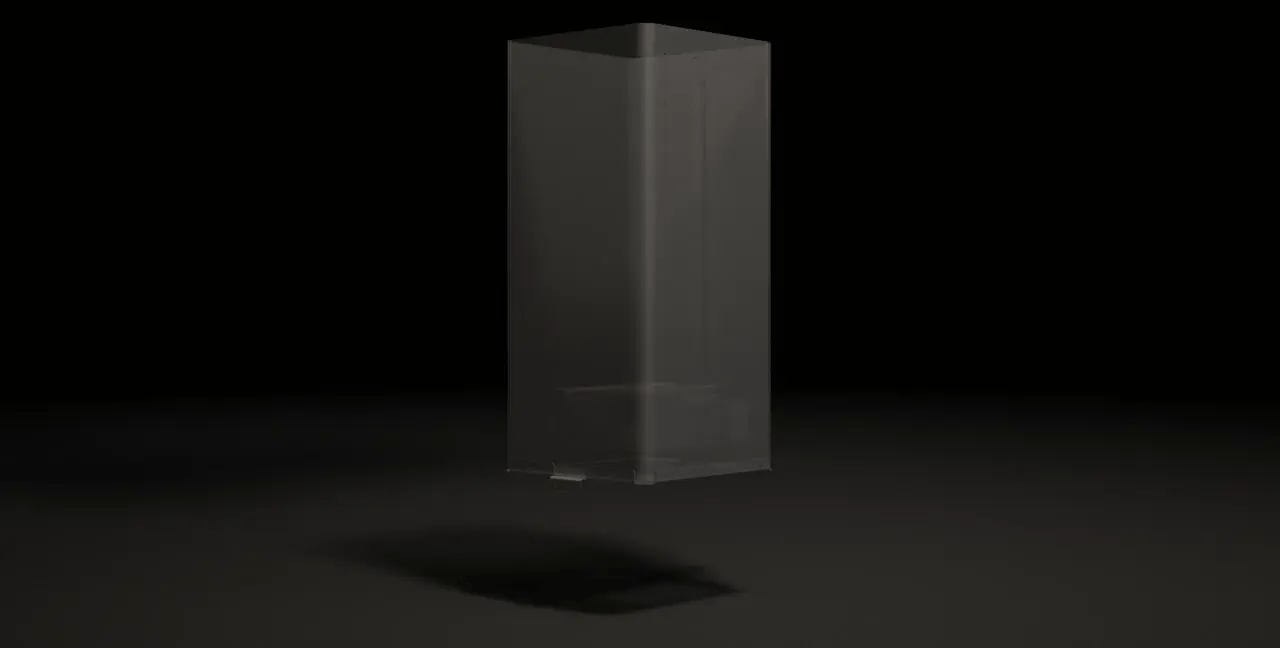

7.5x Larger than Fuse 1+ 30W

Fuse X: 1330 x 330 x 565 mm / 13 x 13 x 22.25 in
Fuse 1+ 30W: 165 x 165 x 300 mm / 6.5 x 6.5 x 11.8 in|

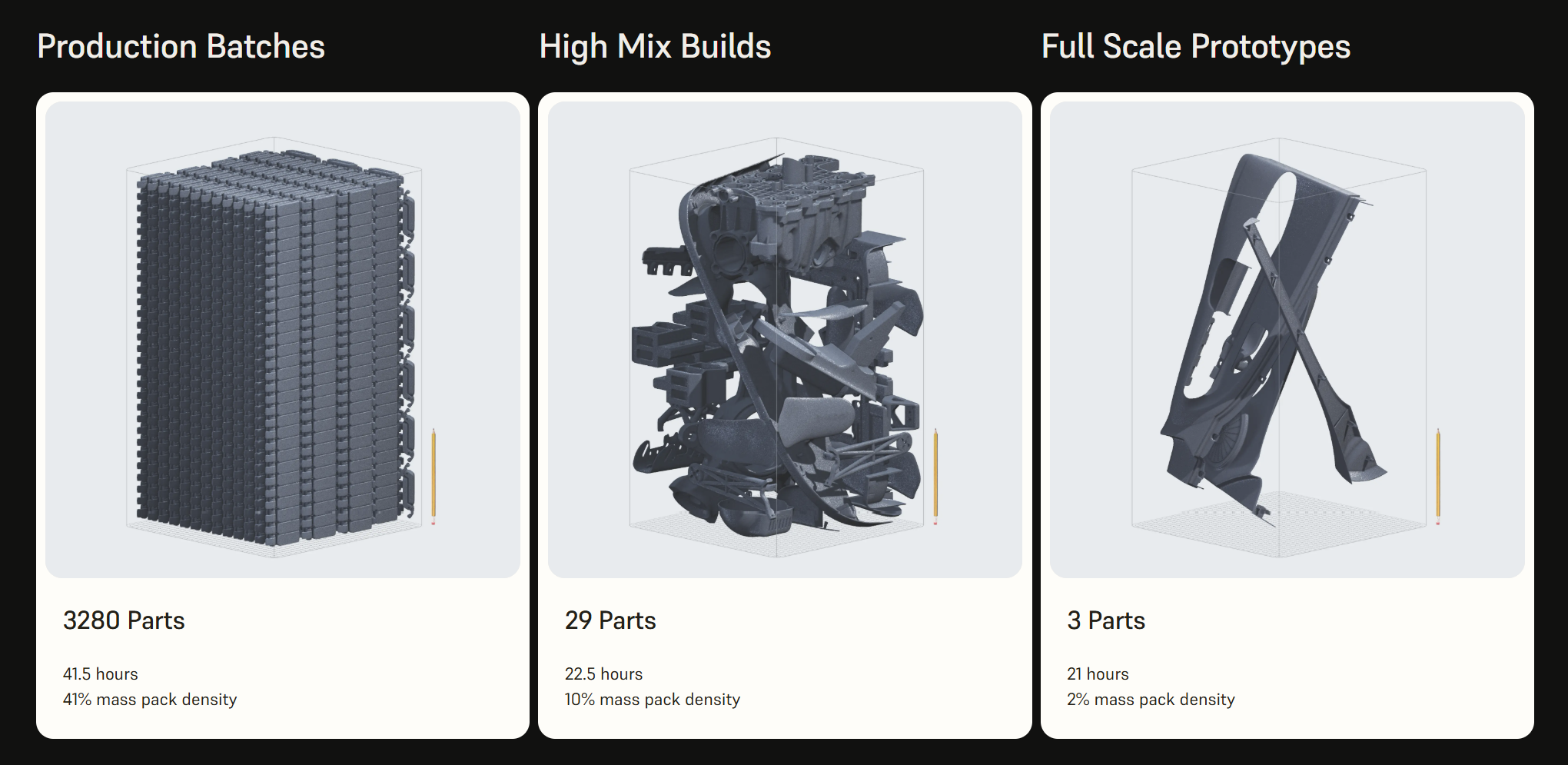

More Parts Per Build

With 30%+ packing density and a 61.5L build volume, the Fuse X1 fits more parts in a single build than competing industrial SLS and MJF systems, adding up to thousands more parts per week.

Fits Where Others Can't

At just 1.3 m², the Fuse X1 takes up less than half the floor space of an HP 5600 (2.80 m²) or EOS P3 Next (2.70 m²). It rolls through a standard doorway, so you can install production-scale SLS without rebuilding your floor plan.



Technology


  • Adaptive Thermal Control enables unlimited packing freedom, and exceptional part quality by delivering, maintaining, and sintering powder at an incredibly stable temperature.

  • Print Intelligence uses AI-powered computer vision to isolate and prevent failures, maximizing uptime so you get great parts on time every time.

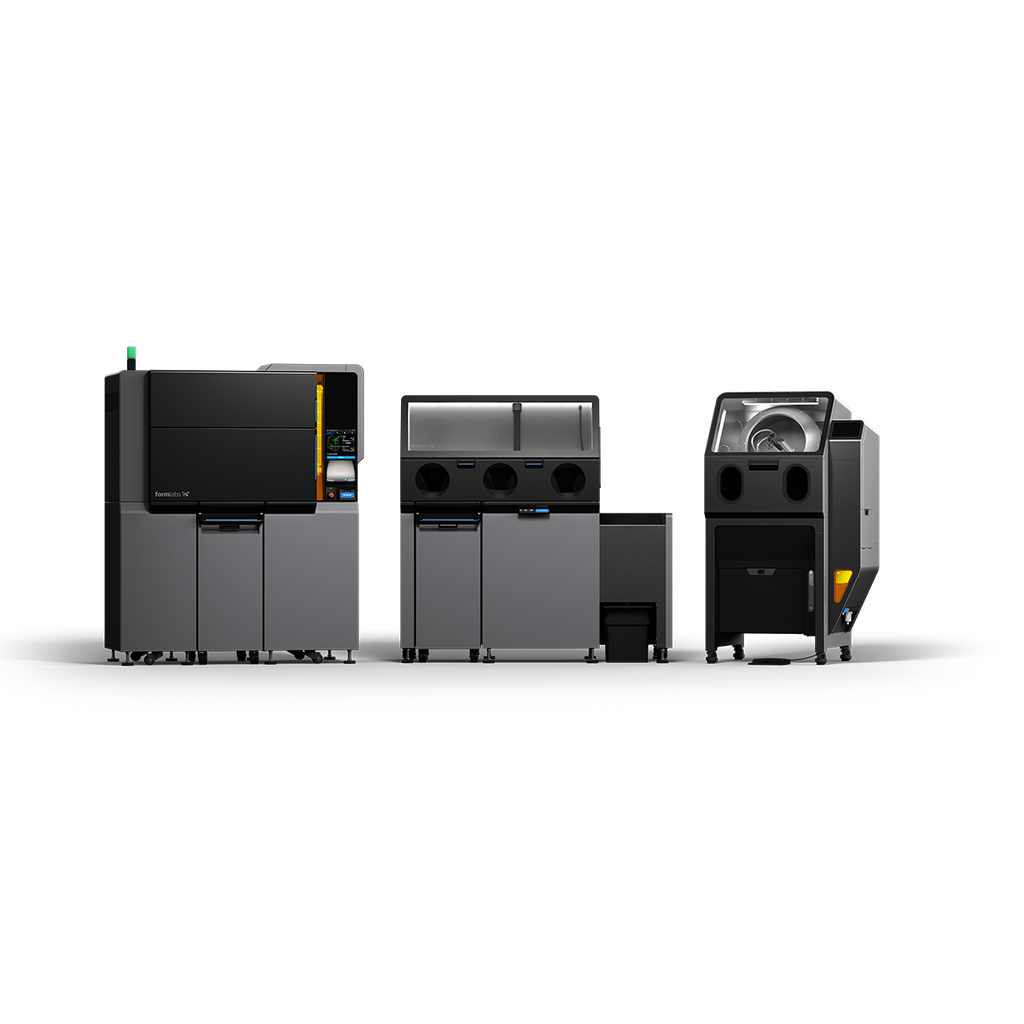

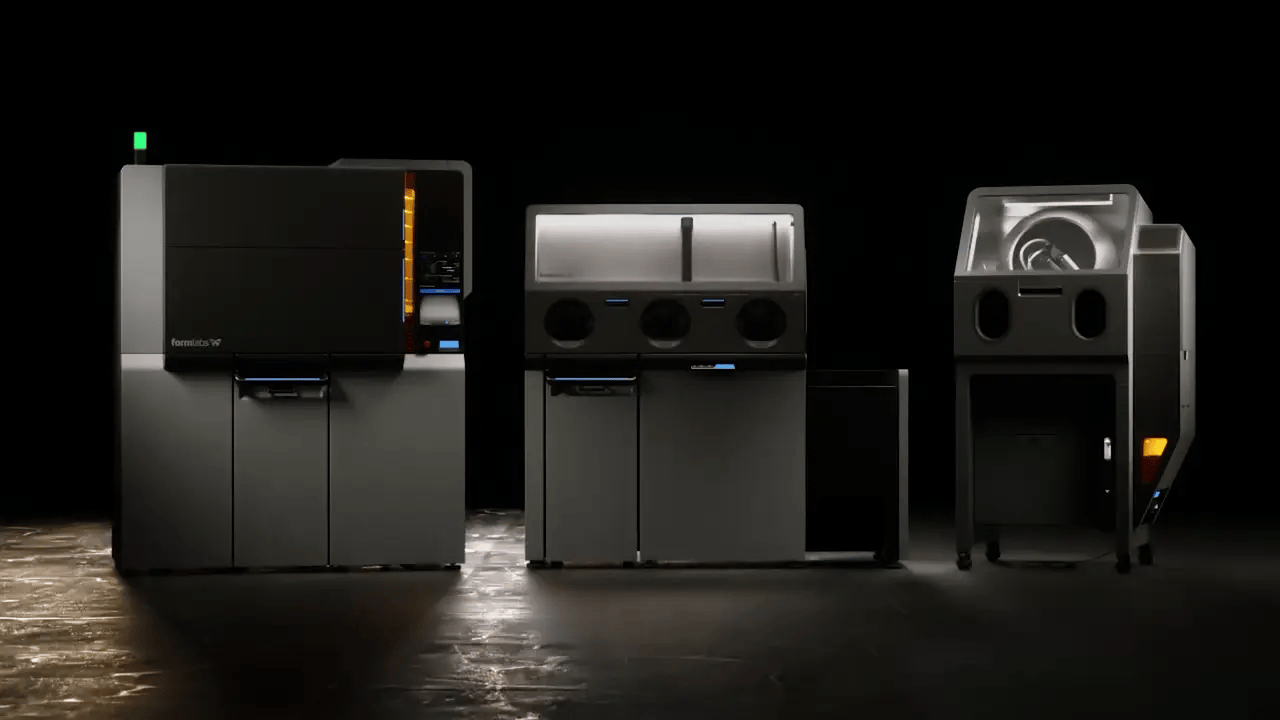

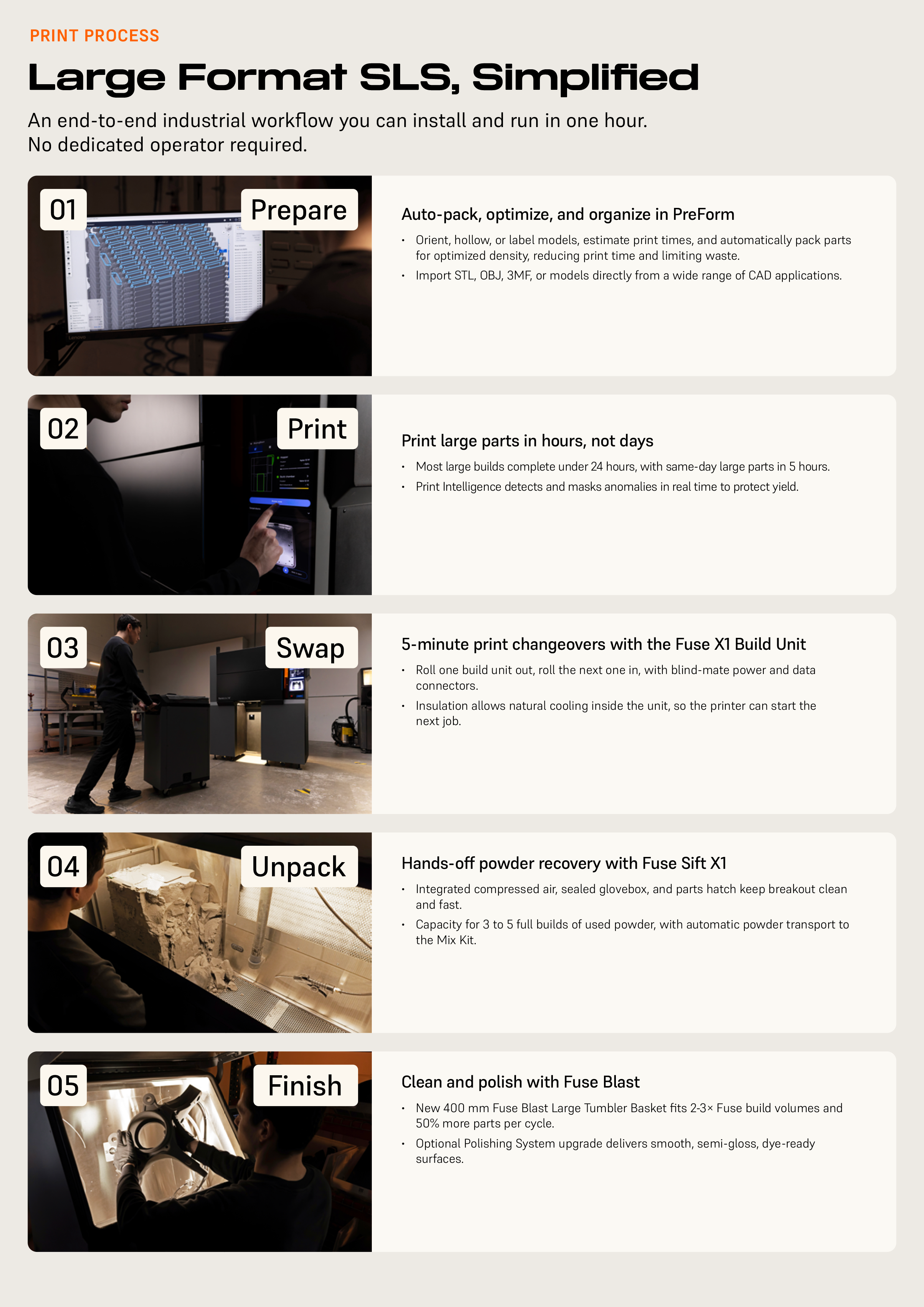

Workflow: Large Format SLS, Simplified

An end-to-end industrial workflow you can install and run in one hour. No dedicated operator required.
