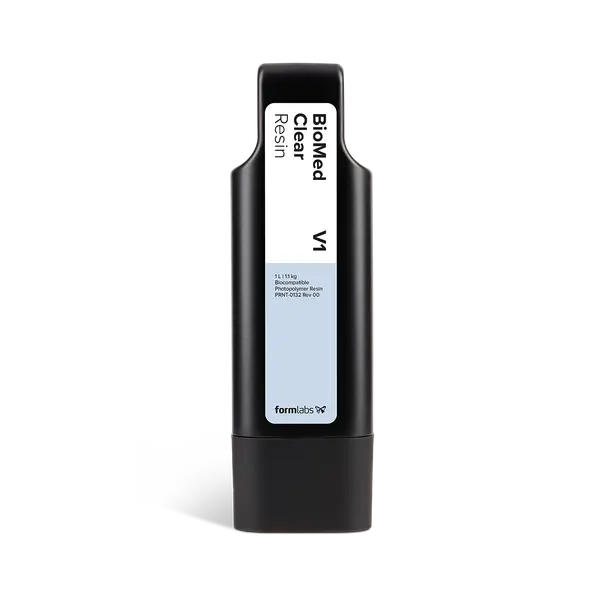

Formlabs BioMed Clear Resin Cartridge V1.1 (1 Litre OEM) - Form 4B

Product SKU: RS-C2-BMCL-01

$478.00 $507.00

Available Stock:
Loading...

This product is exclusively for use with the Formlabs Form 4B

This resin requires post curing

Biocompatible Photopolymer Resin for the Form 4B

BioMed Clear Resin is a rigid material for biocompatible applications requiring long-term skin or mucosal membrane contact. This USP Class VI certified material is suitable for applications that require wear resistance and low water absorption over time.
Parts printed with BioMed Clear Resin are compatible with common sterilization methods. BioMed Clear Resin is manufactured in our ISO 13485 facility and is supported with an FDA Device Master File.

BioMed Resins

Technical Specs

Instructions for Use | Technical Data Sheet

Ultimate Tensile Strength: 73 MPa - 11 ksi
Young’s Modulus: 2.9 GPa - 420 ksi
Elongation: 12.3%
Flexural Strength: 103 MPa - 15 ksi
Flexural Modulus 2.5 GPa - 363 ksi
Hardness Properties: Hardness Shore 67D

What's Included

1 Litre of Formlabs BioMed Clear (OEM)

Post-processing (Wash and Cure Cycles) - Check the instruction PDF above for more information

Wash for 15 minutes in Form Wash
Soak in fresh IPA for 5 minutes
Air dry at room temperature for at least 30 minutes
Inspect part to ensure it is clean and dry with no residual resin, IPA, or particles on the surfaces
Cure for 60 minutes at 60 Celsius

Disinfection Compatibility

Chemical Disinfection - 70% Isopropyl Alcohol for 5 minutes
Steam Sterilization: Autoclave at 134 °C for 20 minutes or Autoclave at 121 °C for 30 minutes

Overview

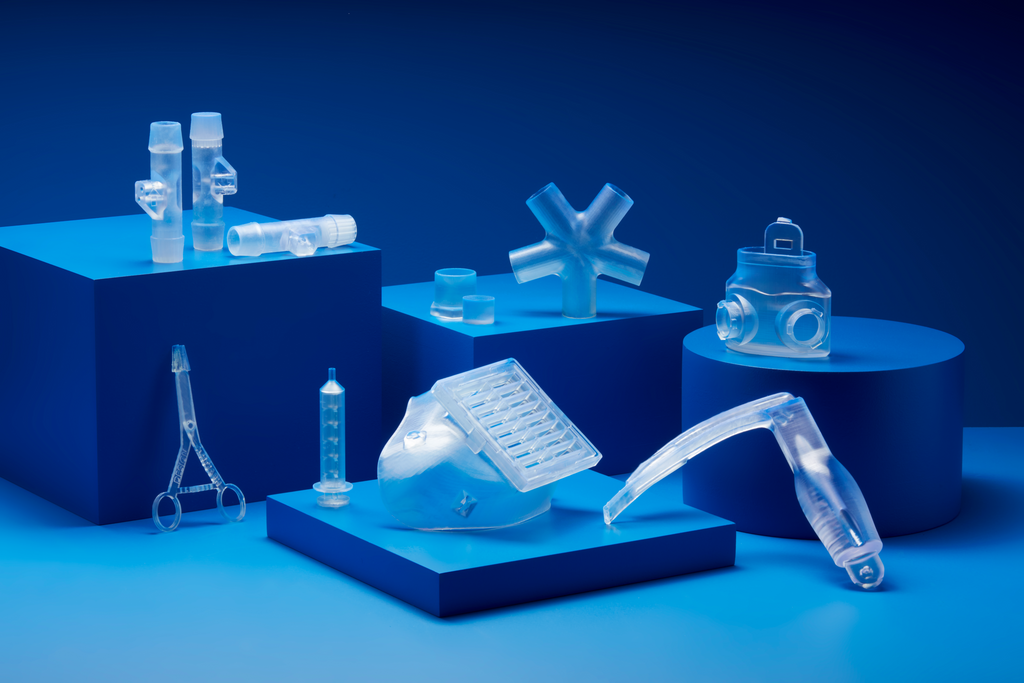

BioMed Clear Resin from Formlabs is a rigid and USP Class VI certified material for biocompatible applications requiring long-term skin or mucosal membrane contact. Parts printed in this material are compatible with common sterilization methods, and is suitable for manufacturing durable parts and parts requiring low water absorption.

BioMed Resins from Formlabs are biocompatible, ISO 13485 compliant, medical-grade materials developed for healthcare professionals globally. These medical materials can be used for applications that require patient skin and mucosal membrane contact.

Certification of Biocompatibility

BioMed Clear Sterilization Results

Tested by Formlabs — All samples were printed on Form 3B SLA printers equipped with clean Build Platforms, Form 3 Resin Tanks and Biomed Amber Resin v1 cartridges. Part orientations and placement were kept constant for all samples.

All sterilization, biocompatibility, autoclave (steam), and mechanical results can be found in the Biomed Clear Sterilization Results.
