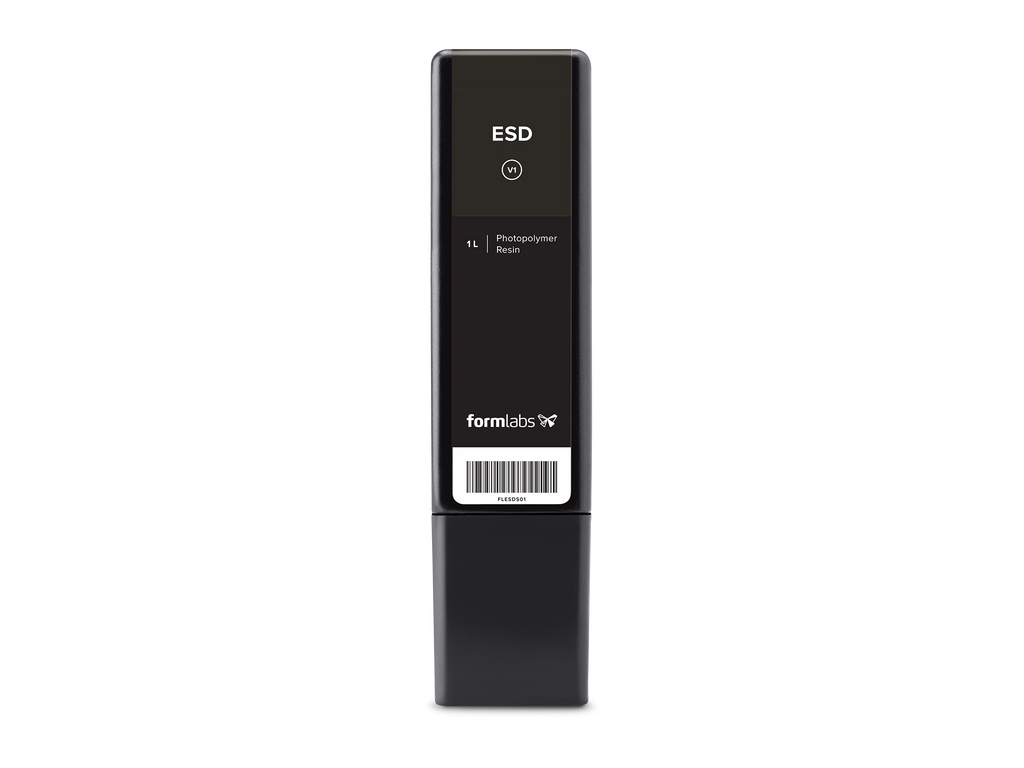

Formlabs ESD Resin Cartridge (1 Litre OEM)

Product SKU: RS-F2-ESDS-01

$314.00

Available Stock:
Loading...

Formlabs ESD Resin 1L
Increase the operational efficiency and improve the yield of your electronics manufacturing lines with ESD Resin, a cost-effective solution to create custom ESD-safe production tooling. Use ESD Resin to prototype and validate electronics production workflows, print static-dissipative parts that repel dust and powder, and create enclosures to protect sensitive electronics from static discharge Support print resolutions: 100 µm and 50µm Post-curing required

Compatibility

Printer compatibility: Form 3+, Form 3L, Form 3B+, Form 3BL, Form 3, Form 3B Compatible with these resin tanks: Form 3 v2.1, Form 3L
Compatible with these build platforms: Form 3 Build Platform, Form 3 Build Platform 2, Form 3 Stainless Steel Build Platform, Form 3L Build Platform
Note: Print settings for this material may not be available yet on Form 3L and Form 3BL printers. Please visit our support page for more information. Additional resin compatibility information is available on our Support site

Why Choose ESD Resin

Use ESD Resin to reduce risk and increase the yield on your manufacturing line by 3D printing custom tools, jigs, and fixtures for automotive, aerospace, electronics manufacturing.

Static-Dissipative Protect your critical electronics from unregulated static discharge to prevent component failures.
High toughnes With its high modulus and impact strength, ESD Resin is made to withstand operation on the production line.

Applications

ESD Resin is a cost-effective solution for producing static-dissipative parts designed to endure use on the factory floor.

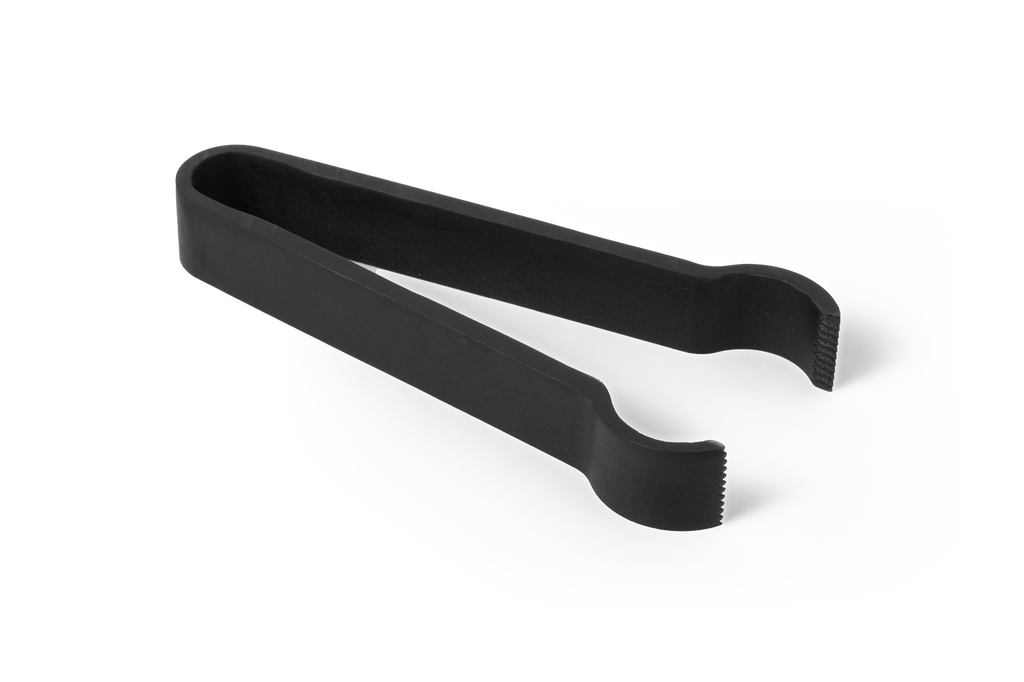

Tooling & fixturing for electronics manufacturing
Custom trays for component handling and storage

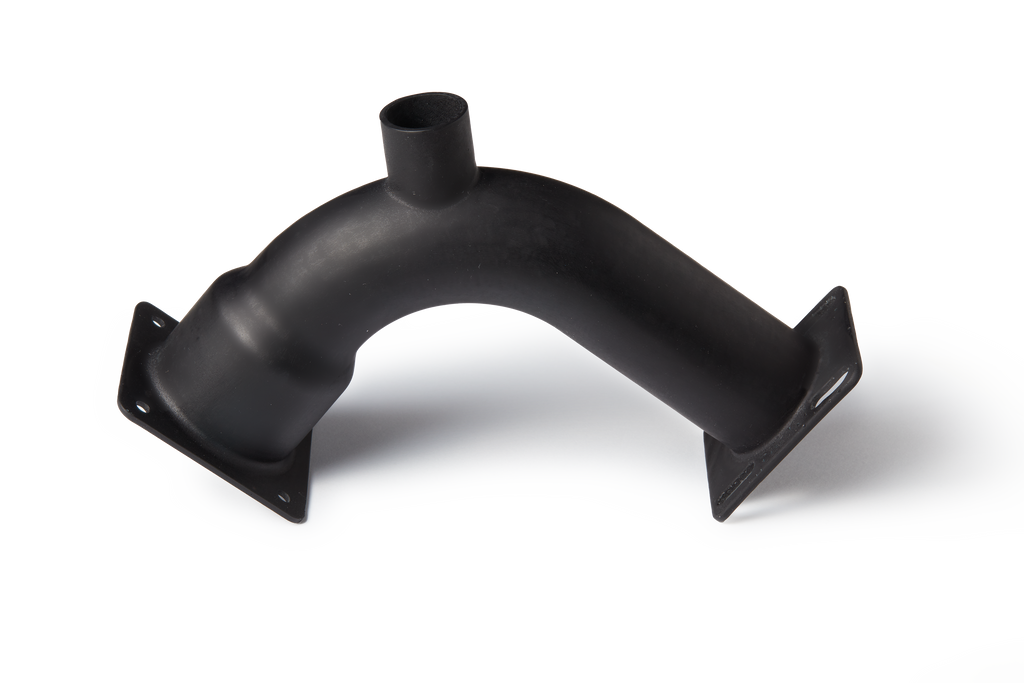

Anti-static prototype and end-use components

Material Properties

Property	Post-cured at 70ºC
Surface Resistivity	105 - 108
Ultimate Tensile Strength	44.2 MPa
Tensile Modulus	1.937 GPa
Strain @ break	12%
Notched Izod	26J/m
Heat Deflection Temperature 0.45 MPA	54.2ºC
Heat Deflection Temperature 1.8 MPA	62.2ºC

Post-Processing

Form Wash Settings
Duration: 20 Minutes in IPA/TPM
Notes: Do not leave ESD Resin in solvent for longer than 20 minutes, as excessive solvent exposure affects the quality of the final part. We recommend washing ESD Resin separately from other resins to avoid staining.

Form Cure Settings
Duration: 60 Minutes
Temperature: 70° C
Notes: Follow the post-curing indications to achieve maximum material properties.
