Formlabs

Formlabs Colour Base Resin Cartridge (1 Litre OEM) - Form 4

Product SKU: RS-C2-GPCB-01

$165.00

Available Stock:
Loading...

This product is exclusively for use with the Formlabs Form 4.

Formlabs Colour Base Resin Cartridge (1 Litre OEM)
Color Kit is the first integrated color mixing solution for resin 3D printing. It enables 3D printing in a range of colors without the manual work of finishing, dying, or painting. Color Base Resin is the foundation to mix with any Color Kit pigment and create Color Resin. Restock on Color Base Resin to mix with any Color Kit pigment and create Color Resin.

Compatibility

Printer compatibility: Form 4 and Form 4B

Compatible with these resin tanks: Form 4 Resin Tank

Compatible with these build platforms: Form 4 Build Platform, Form 4 Build Platform Flex

Additional resin compatibility information is available on our Support site

Why Choose Color Base Resin?

Restock on Color Base Resin to create color models right off the printer with pigments available in Color Kit.

A Perfect Foundation Pair Color Base Resin and Color Kit to create consistent colors throughout the entire part.
Minimize Waste Use every bit of Color Pigment by replenishing your Color Base Resin.
Smooth Surface Finish Print parts that have the polish and finish of a final product.

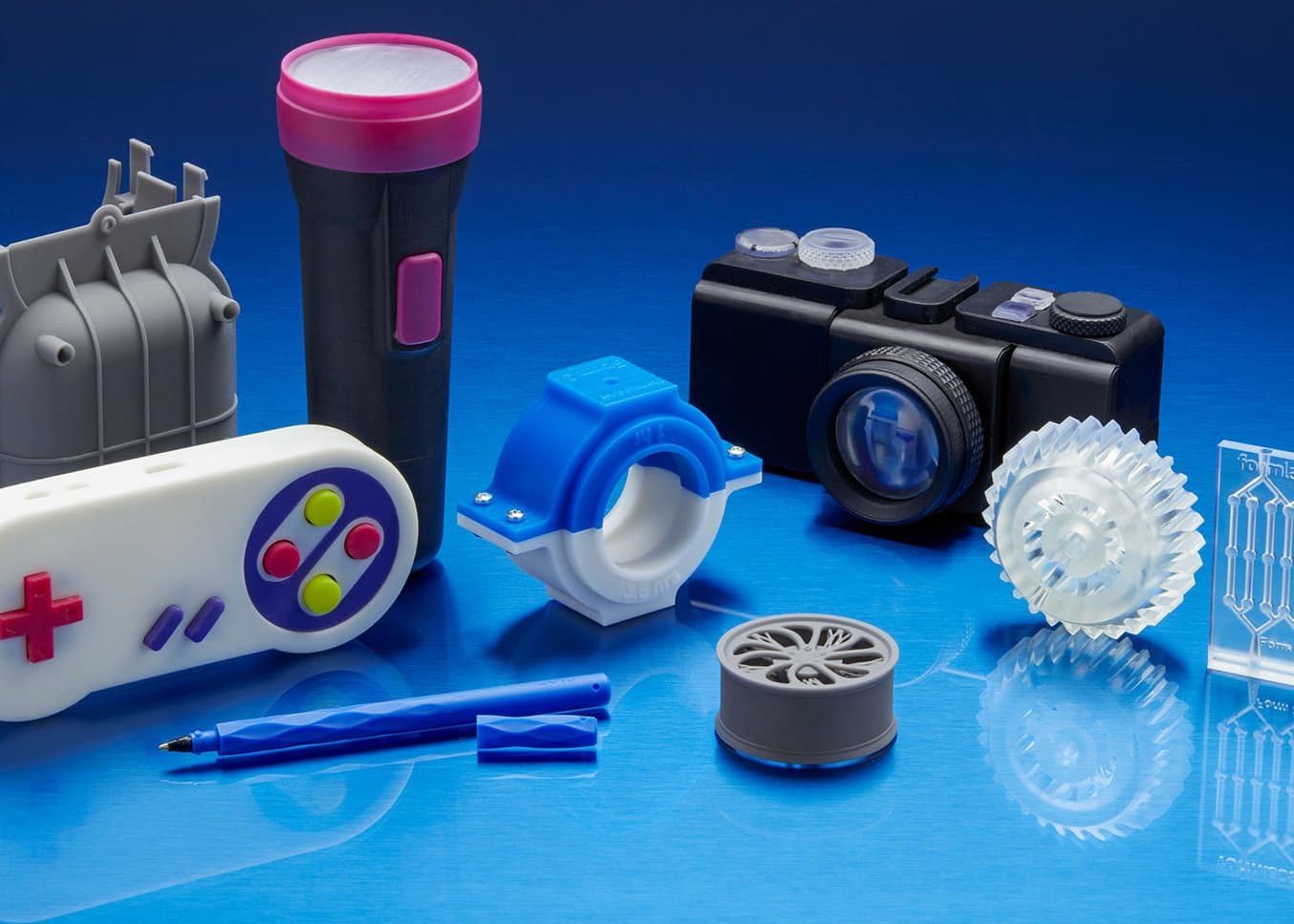

Applications

Color Base Resin paired with Color Kit is ideal for field testing aesthetic prototypes and concept models.

Solid color parts with a matte finish
Concept models
Looks-like prototypes
Props and figurines

16 Recipes, Infinite Potential!

Cherry

RGB: 218, 89, 89
HEX: #DA5959
Pigment Recipe:
- Cyan: 0mL
- Magenta: 65mL
- Yellow: 35ml
- Black: 0mL
- White: 0mL

Apricot

RGB: 238, 127, 75
HEX: #EE7F4B
Pigment Recipe:
- Cyan: 0mL
- Magenta: 20mL
- Yellow: 80ml
- Black: 0mL
- White: 0mL

Magenta

RGB: 209, 66, 141
HEX: #D1428D
Pigment Recipe:
- Cyan: 0mL
- Magenta: 100mL
- Yellow: 0ml
- Black: 0mL
- White: 0mL

Grape

RGB: 148, 75, 150
HEX: #994B96
Pigment Recipe
- Cyan: 10mL
- Magenta: 90mL
- Yellow: 0ml
- Black: 0mL
- White: 0mL

Yellow

RGB: 255, 232, 0
HEX: #FFE800
Pigment Recipe:
- Cyan: 0mL
- Magenta: 0mL
- Yellow: 100ml
- Black: 0mL
- White: 0mL

Peach

RGB: 238, 127, 75
HEX: #EE7F4B
Pigment Recipe:
- Cyan: 0mL
- Magenta: 3mL
- Yellow: 4ml
- Black: 0mL
- White: 93mL

Walnut

RGB: 209, 66, 141
HEX: #D1428D
Pigment Recipe:
- Cyan: 0mL
- Magenta: 30mL
- Yellow: 50ml
- Black: 5mL
- White: 15mL

Twilight

RGB: 94, 88, 139
HEX: #5E599B
Pigment Recipe
- Cyan: 50mL
- Magenta: 50mL
- Yellow: 0ml
- Black: 0mL
- White: 0mL

Grass

RGB: 18, 148, 71
HEX: #129447
Pigment Recipe:
- Cyan: 35mL
- Magenta: 0mL
- Yellow: 65ml
- Black: 0mL
- White: 0mL

Sand

RGB: 218, 171, 156
HEX: #DAAB9C
Pigment Recipe:
- Cyan: 2mL
- Magenta: 8mL
- Yellow: 10ml
- Black: 0mL
- White: 80mL

Coffee

RGB: 119, 92, 80
HEX: #775C50
Pigment Recipe:
- Cyan: 0mL
- Magenta: 35mL
- Yellow: 50ml
- Black: 15mL
- White: 0mL

Azure

RGB: 35, 91, 168
HEX: #235BA8
Pigment Recipe
- Cyan: 80mL
- Magenta: 20mL
- Yellow: 0ml
- Black: 0mL
- White: 0mL

Lime

RGB: 131, 211, 70
HEX: #83D346
Pigment Recipe:
- Cyan: 10mL
- Magenta: 0mL
- Yellow: 90ml
- Black: 0mL
- White: 0mL

Forest

RGB: 56, 116, 105
HEX: #387469
Pigment Recipe:
- Cyan: 65mL
- Magenta: 10mL
- Yellow: 25ml
- Black: 0mL
- White: 0mL

Ocean

RGB: 60, 92, 120
HEX: #3C5C78
Pigment Recipe:
- Cyan: 75mL
- Magenta: 15mL
- Yellow: 0ml
- Black: 10mL
- White: 0mL

Cyan

RGB: 0, 131, 195
HEX: #0083C3
Pigment Recipe
- Cyan: 100mL
- Magenta: 0mL
- Yellow: 0ml
- Black: 0mL
- White: 0mL

More custom colors can be created at Formlabs' webpage

Material Properties

Property	Post-cured at 60ºC
Ultimate Tensile Strength	65 MPa
Tensile Modulus	2.6 GPa
Elongation	6%
Flexural Modulus	2.2 GPa
Notched Izod	25 J/m
Heat Deflection Temperature 0.45 MPA	73ºC

* Material properties may vary based on part geometry, print orientation, print settings, and temperature. Data was obtained from parts printed using Form 2, 100 μm, Clear settings and post-cured with 1.25 mW/cm³ of 405 nm LED light for 60 minutes at 60°C.

Post-Processing

Form Wash Settings
Duration: 10 Minutes
Notes: When using a single wash bucket, residue from previously washed parts deposits on part surfaces. If washing darker-colored materials like Black Resin in the same wash bucket as lighter-colored materials like White Resin or Clear Resin, some color transfer may occur.

Form Cure Settings
Duration: 30 Minutes
Temperature: 60° C
Notes: All standard opaque Formlabs resins (including Grey, Black, White, Color, and Model Resin) have equivalent mechanical properties. While the recommended post-cure time is 30 minutes, post-curing for 60 minutes will result in a small additional gain in tensile modulus. This post-cure setting can be used with any of these resins.

How To Use Formlabs Color Kit

Downloads

Technical Data Sheet
