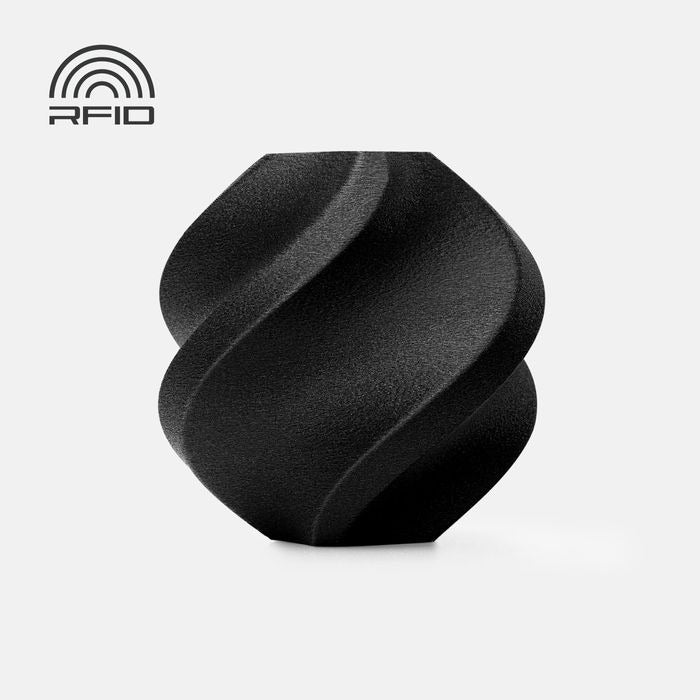

Bambu Lab PA6-GF (1.75mm) 1kg
Product SKU: N08-K0-1.75-1000-SPL
$101.99
Loading...
Benefits of Buying Bambu Lab from Shop3D.ca
Certified & Approved Products
- ESA-approved and SGS certified printers for the Canadian market
- Approved vendor for government, education, and diversity-certified supplier
Comprehensive Training & Support
- Free onboarding training for educational institutions
- Account managers providing recommendations and best practices
Warranty & Repair Services
- Bambu Lab warranty with local troubleshooting and parts
- Local repair facility and warranty facilitation
Convenient & Responsive Local Support
- Immediate response via phone or chat
- Local pickup available in Vancouver and Mississauga
Bambu PA6-GF, also known as Nylon 6 with Glass Fiber, stands at the forefront of high-performance engineering plastics. Engineered to deliver exceptional strength, durability, dimensional stability. The PA6-GF is also more cost effective when compared to other top tier engineering filaments.
Built to last
Bambu PA6-GF is exceptionally strong and durable due to reinforced glass fibers, making it the perfect choice for prints that need to withstand heavy use and resist bending or breaking. * Note: The printed part achieves better toughness after exposure to moisture.
Dimensional Stability
PA6-GF boasts unparalleled dimensional stability thanks to its glass fiber reinforcement, minimizing warping in comparison to standard PA filaments. Print with precise dimensions, even in the most intricate geometries.
Exceptional Thermal Properties
PA6-GF boasts a high heat deflection temperature and superior dimensional stability, enabling it to retain its mechanical properties even under elevated temperatures. This makes it ideal for demanding industrial and automotive applications.
| Filament Type | PLA Basic | ABS | Normal PA | PC | PA6-GF | PA6-CF | PAHT-CF | PET-CF |
|---|---|---|---|---|---|---|---|---|
| Heat Deflection Temperature / ℃ (0.45 MPa) | 57 ℃ | 87 ℃ | 89 ℃ | 117 ℃ | 182 ℃ | 186 ℃ | 194 ℃ | 205 ℃ |
Chemical Resistance
PA6-GF offers excellent resistance to chemicals, oils, and many kinds of solvents, ensuring long-term performance in challenging environments.
Smooth Surface and More Colors
Bambu PA6-GF filaments are compatible with the Bambu AMS system, ready to print in multi-color. The special surface texture also blurs the layer lines, providing a smooth surface quality.
Parameters Comparison
| PA6-GF | PA6-CF | PAHT-CF | |
|---|---|---|---|
| Composition | PA6, glass fiber | PA6, carbon fiber | PA12 and other long-chain PA, carbon fiber |
| AMS Compatibility | YES | NO | YES |
| Dry Out Before Use | Required | Required | Required |
| Printing Speed | < 130 mm/s | < 100 mm/s | < 100 mm/s |
| Printer Type | Enclosure | Enclosure | Enclosure |
| Toughness (Impact Strength - XY, dry state) | 27.2 kJ/m² | 40.3 kJ/m² | 57.5 kJ/m² |
| Toughness (Impact Strength - XY, wet state) | 55.8 kJ/m² | 57.2 kJ/m² | 62.3 kJ/m² |
| Strength (Bending Strength - XY, dry state) | 120 MPa | 151 MPa | 125 MPa |
| Strength (Bending Strength - XY, wet state) | 71 MPa | 95 MPa | 115 MPa |
| Layer Strength (Bending Strength - Z, dry state) | 51 MPa | 80 MPa | 61 MPa |
| Layer Strength (Bending Strength - Z, wet state) | 33 MPa | 45 MPa | 49 MPa |
| Stiffness (Bending Modulus - XY, dry state) | 3670 MPa | 5460 MPa | 4230 MPa |
| Stiffness (Bending Modulus - XY, wet state) | 2120 MPa | 3560 MPa | 3640 MPa |
| Layer Adhesion (Impact Strength - Z, dry state) | 4.1 kJ/m² | 15.5 kJ/m² | 13.3 kJ/m² |
| Heat Resistance (HDT, 0.45 MPa, Dry State) | 182 ℃ | 186 ℃ | 194 ℃ |
| Saturated Water Absorption Rate / % (25 ℃, 55% RH) | 2.56 | 2.35 | 0.88 |
Accessory Compatibility
| Recommended | Not Recommended | |
|---|---|---|
| Build Plate |
Smooth PEI Plate, Textured PEI Plate Cool Plate SuperTack |
|
| Hotend | Hotend with Hardened Steel 0.4mm / 0.6mm (recommended) / 0.8 mm | Hotend with Stainless Steel Nozzle All Size |
| Glue | Bambu Glue Stick | Bambu Liquid Glue |
| AMS & AMS lite | AMS | AMS lite |
- Drying Settings before Printing: 80 °C, 8 – 12 h
- Printing and Keeping Container's Humidity: < 20% RH (Sealed, with Desiccant)
- Nozzle Temperature: 260 – 290 °C
- Bed Temperature (with Glue): 80 – 100 °C
- Printing Speed: < 130 mm/s
- Density: 1.14 g/cm³
- Vicat Softening Temperature: 210 °C
- Heat Deflection Temperature: 182 °C
- Melting Temperature: 219 °C
- Melt Index: 9.0 ± 0.8 g/10 min
- Tensile Strength: 75 ± 6 MPa
- Breaking Elongation Rate: 3.9 ± 0.8 %
- Bending Modulus: 3670 ± 140 MPa
- Bending Strength: 120 ± 6 MPa
- Impact Strength: 27.2 ± 2.2 kJ/m²
