2.85mm 1.75mm

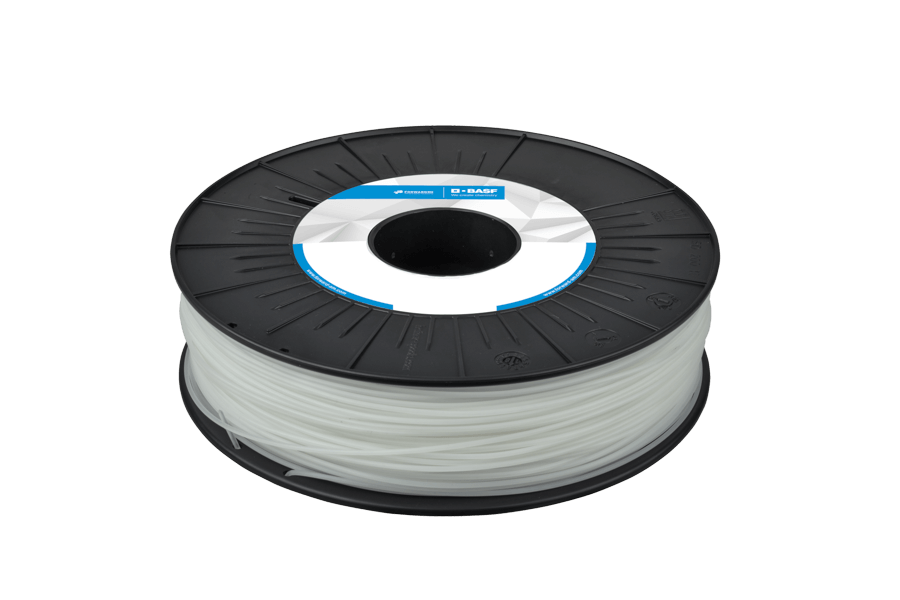

Forward AM | Ultrafuse® Natural Nylon (PA) - 750g

Product SKU: 50677232

$79.00

Available Stock:
Loading...

Forward AM Material is proudly produced in Europe

This is an industrial-grade material that requires experienced 3D printing knowledge. Please consult the technical data sheet. It is recommended to print with an enclosure.

For optimal performance and longevity for this filament. Keep in a dry sealed bag with desiccant or PrintDry container when not in use.

Ultrafuse® PA Natural Filament

Ultrafuse PA is specially developed for 3D printing and it is based on Forward AM s polyamide portfolio known as Ultramid®. The filament has unique mechanical properties due to its chemical structure. This makes it suitable for a wide range of applications working within a larger temperature range.

Technical Specs

750 gr. spools with 2.85mm diameter
750 gr. spools with 1.75mm diameter

Print Settings

Print Speed 30 – 60 mm/sec
Nozzle temperature 220 – 250 °C
Nozzle: ≥ 0.4 mm diameter
Bed temperature > 90 – 120 °C
Bed modification: Clean glass + PVA glue stick / Kapton tape / PA adhesive

Key Properties

Suitable for a wide range of different components and machine elements, such as high-grade electrical insulation material
Good fatigue resistance
High mechanical strength
Low melting point makes it printable for many FFF printers
Good wear resistance / lubricity
Good impact resistance at low temperatures

Overview

The key features of Forward AM Ultrafuse PA are the high strength and high modulus. Furthermore, Ultrafuse PA shows a good thermal distortion stability.

Forward AM Ultrafuse® PA is the translation of Forward AM s Ultramid® to the 3D printing space. It is based on a copolyamide 6/66 grade of intermediate viscosity. With Forward AM Ultrafuse® PA, it is possible to print semi-flexible thin parts; however, it is very rigid at higher thicknesses.

It has a lower melting temperature than PA6 and PA66, meaning it can be printed at a lower temperature and also has better impact resistance versus PA6 and PA66, opening up a whole new application field for end-users.

Printing Profiles

To print the best possible way with Forward AM filaments

Forward AM provides you with a large range of printing profiles for their materials based on different well-known printer manufacturers like Ultimaker, Raise3D and BCN3D

View Printing Profiles Here

Product Safety

Recommended: Process materials in a well ventilated room, or use professional extraction systems. For further and more detailed information please consult the corresponding material safety data sheets.

Forward AM Ultrafuse PA filament should be stored at 15 - 25°C in its originally sealed package in a clean and dry environment. If the recommended storage conditions are observed the products will have a minimum shelf life of 12 months.
