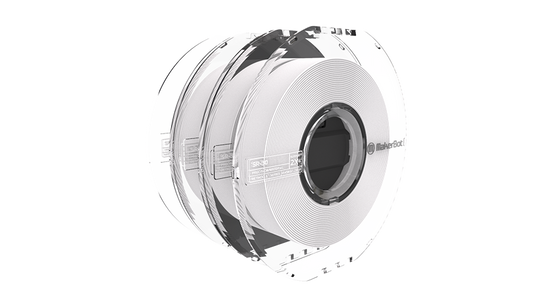

AquaSys® 120 | Water-Soluble Support Filament (500g)

Product SKU: 821175500G

$140.00

Available Stock:
Loading...

AquaSys® 120 | Water-Soluble Support Filament (500g)

High-performance, water-soluble support filament–500g spool. Stable at chamber temperatures up to 120ºC.

Technical Specs

Material Safety Data Sheet | Technical Data Sheet

Weight: 500g.
Dimensions: 13 × 12 × 4 cm
Diameter: 1.75mm / 2.85mm
Extruder temperature: 220-245ºC
Build plate temperature: Up to RT-130ºC
Chamber temperature: 80-120ºC

General Properties

Drying recommendations to ensure printability = 60 °C in a hot air dryer or vacuum oven for 4 to 16 hours
Density 1138 kg/m3 / 71.0 lb/ft3
Glass Transition Temperature = 69 °C / 156 °F
Crystallization Temperature = 122 °C / 252 °F
Melting Temperature = 175 °C / 347 °F
Melt Volume Rate = 11.4 cm3 /10 min / 0.7 in3 /10 min (210 °C, 2.16 kg)

Product Description

AquaSys^® 120 is a water-soluble support filament that’s unmatched in the industry. Designed for manufacturers looking to 3D print more parts in less time, it dissolves rapidly in warm tap water—all while giving engineering-grade build materials and complex designs the high-quality support they need.

AquaSys 120 has universal adhesion characteristics, and it’s stable at high temperatures—making it the ideal support filament for just about any commonly used FFF or FDM 3D printing material. Pair AquaSys 120 with any of the following: ABS, PC/ABS, Nylon, TPU, CPE, PC, and PP.

Overview

Pathway Temperature: Keep the filament below 80°C prior to extrusion. Material that sits idle at temperatures of 80°C or above for extended periods of time prior to extrusion will not extrude properly. Nozzle temperature: 230-245°C

Build Plate Requirements: AquaSys filaments will adhere to a wide range of build plate materials. If poor adhesion is persistent, increase the temperature of the build plate, but not past the maximum build plate temperature of 120°C.

Adhesives: Glue is not necessary if you use a raft made out of AquaSys 120. Follow your printer model’s material guidelines when printing a raft with another material.

FFF 3D printing material. Pair AquaSys 120 with any of the following: ABS, PC/ABS, Nylon, TPU, CPE, PC, and PP.
