CNC Milling Toolhead - Zmorph Fab

Product SKU: ZmorphMillTool

$389.99

Available Stock:
Loading...

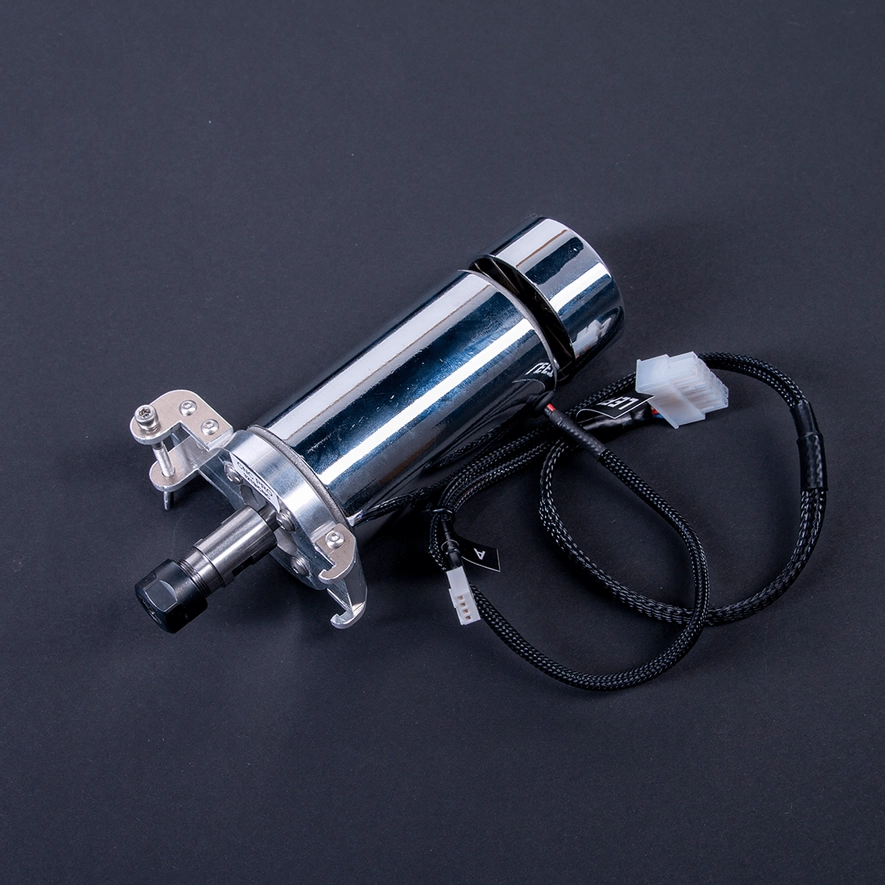

Zmorph Fab All-in-One CNC Milling Toolhead Part

Thanks to the rigid construction of Zmorph you can turn the 3D printer into a CNC milling machine with the CNC Milling Toolhead. The toolhead is made of stainless steel and is capable of milling in different types of wood and plastic, as well as soft metals like aluminum or brass.

Compatible materials include: ABS, Nylon, HDPE, PTFE, PC, PP, POM, PMMA, PVC, HIPS, LDPE, PET, Carbon, CCL FR4, Dibond, TCF, Wood, Plywood, Wood fiber boards, Aluminum, Brass, Copper, Cardboard, Machining Wax, Modeling Board and Styrodur.

Technical Specs

Technical Data Sheet

Construction: Stainless steel housing
Spindle Motor: DC motor
Tool Holding: ER-11 1/8" COLLET
Power: 300 W
Default Work Speed: 5 mm/s
Max Work Speed: 120 mm/s
Work Area: up to 250 x 235 x 85 mm
Recommended Cutting Depth: 0.5 mm for soft wood and polymers
Max Cutting Depth: 15 mm for ø 3 mm bit
Dimensions: 90 x 55 x 175 mm

What's Included

CNC Milling Toolhead for the Zmorph Fab All-in-One 3D Printer
