BASF | Innofil 3D 2.85mm Ultrafuse BVOH Filament (Netherlands)

Available Stock:
Loading...

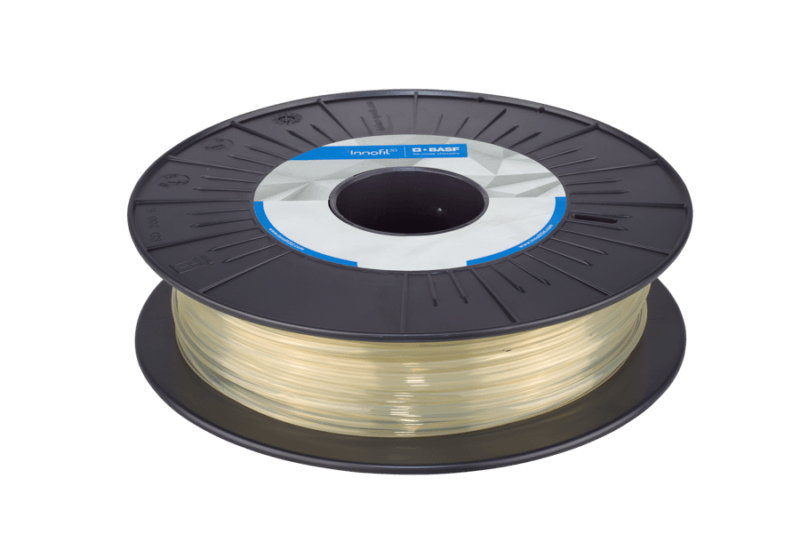

Ultrafuse BVOH Filament 2.85mm by Innofil3D

Ultrafuse BVOH, an ideal water-soluble support material for your 3D print Printing complex designs may only be possible with temporary support structures. Ultrafuse BVOH water-soluble support filament has been designed to easily dissolve in water. The solubility is increasing with higher water temperature.

Technical Specs
Material Safety Data Sheet | Technical Data Sheet
  • Nozzle Temperature = 190 – 210 °C / 374 – 410 °F
  • Bed Temperature = 60 – 100 °C / 140 – 212 °F
  • Bed Material = Glass
  • Nozzle Diameter = ≥ 0.4 mm
  • Print Speed = 30 – 60 mm/s
    General Properties
    • Drying recommendations to ensure printability = 60 °C in a hot air dryer or vacuum oven for 4 to 16 hours
    • Density 1138 kg/m3 / 71.0 lb/ft3
    • Glass Transition Temperature = 69 °C / 156 °F
    • Crystallization Temperature = 122 °C / 252 °F
    • Melting Temperature = 175 °C / 347 °F
    • Melt Volume Rate = 11.4 cm3 /10 min / 0.7 in3 /10 min (210 °C, 2.16 kg)
      Product Description

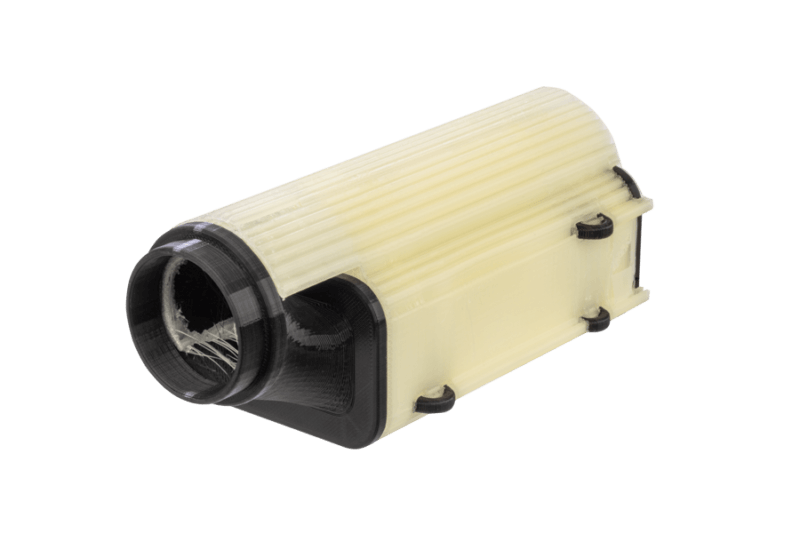

      Printing complex designs may only be possible with temporary support structures. Ultrafuse BVOH water-soluble support filament has been designed to easily dissolve in water. The solubility is increasing with higher water temperature. It offers great compatibility to a variety of materials: PLA, PRO1, ABS, ABS Fusion+, PA and PAHT CF15. Store this monofilament in a sealed bag or container to prevent moisture uptake.
      Overview

      The components of this filament are butenediol vinyl alcohol copolymer based filament for Fused Filament Fabrication.

      Ultrafuse BVOH filament should be stored at 15 - 25°C in its originally sealed package in a clean and dry environment. If the recommended storage conditions are observed, the products will have a minimum shelf life of 12 months.

      The data contained in this publication are based on our current knowledge and experience. In view of the many factors that may affect processing and application of our product, these data do not relieve processors from carrying out their own investigations and tests; neither do these data imply any guarantee of certain properties, nor the suitability of the product for a specific purpose. Any descriptions, drawings, photographs, data, proportions, weights etc. given herein may change without prior information and do not constitute the agreed contractual quality of the product. It is the responsibility of the recipient of our products to ensure that any proprietary rights and existing laws and legislation are observed.

      This spool comes in 2.85mm diameter filament spool of 750gr
