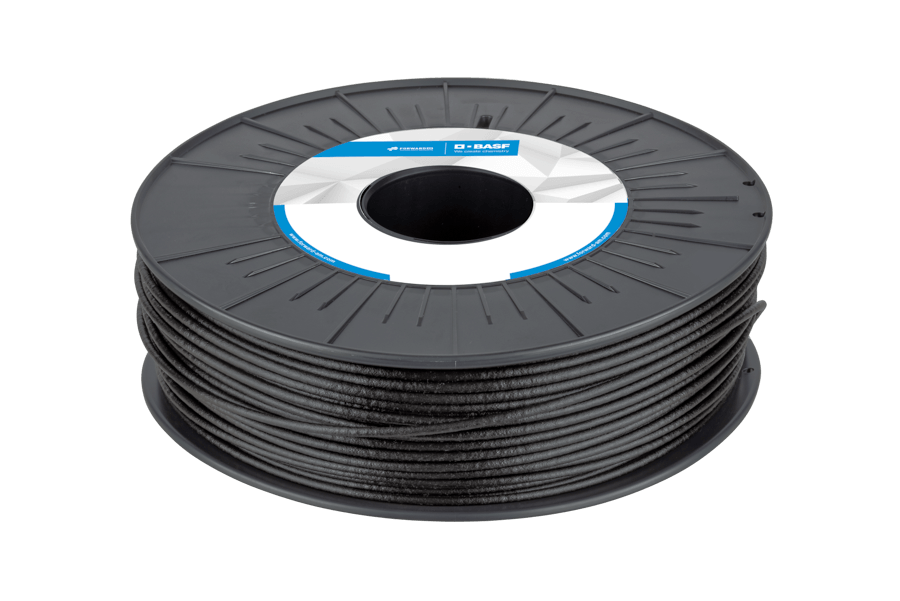

Forward AM Ultrafuse® PA6 GF30 - 700 grams

Forward AM Ultrafuse® PA6 GF30 - 700 grams

Forward AM Ultrafuse® PA6 GF30 - 700 grams

Glass fiber reinforced PA6 with high strength, stiffness, and heat resistance.
Size
SKU: 50768382
$75.00 CAD
Sale
Sold out

Price

$75.00 CAD $103.00

Stock

Request a Quote | Email This Page

Filament Details

Performance ratings are intended as a general comparison guide. Refer to the Technical Data Sheet (TDS) for detailed specifications and certified values.
Ultrafuse® PA6 GF30 contains 30% of special glass fibers, which are designed for filament making and 3D printing. PA6 GF30 has a reduced warping compared to neat PA6 which makes Ultrafuse® PA6 GF30, with its excellent layer adhesion and its compatibility with the water soluble Ultrafuse® BVOH, the right solution for industrial parts printable on any standard FFF printer. With its high wear and chemical resistance and the high stiffness and strength, Ultrafuse® PA6 GF30 is perfect for various applications in transportation or industrial tooling.
Applications
  • industrial tooling
  • transportation
  • electronics
  • small appliances, sports & leisure

    \

Advanced Material

See TDS for information

Adhesion aid Required

Explore Options

Enclosed Chamber Recommended

Helps prevent warping and layer separation

Abrasive Material

A hardened nozzle is Required

Technical Specs

Overview
Function Filament
Net Weight 700g
Material Compatibility
Material Diameter / Thickness 2.85mm | 1.75mm

Links

View Printing Profiles Here

Product Highlights

Top Features

Ultrafuse® PA6 GF30 is a unique compound specifically developed for FFF printing. Due to the glass fiber content of 30%, parts tend to warp less. In addition the excellent layer adhesion and its compatibility with the water soluble support Ultrafuse® BVOH make this material the perfect solution to develop industrial applications on an FFF printer.

With its high wear and chemical resistance, high stiffness and strength, Ultrafuse® PA6 GF30 is perfect for a wide variety of applications in automotive, electronics or transportation.

Benefits at a Glance

  • Very high stiffness and strength
  • Good chemical resistance
  • Resistance to UV light exposure
  • High wear resistance
  • Excellent layer adhesion
  • Works with Ultrafuse® BVOH

Material Properties

  • Tensile Strength (MPa): 78.3 / 46.4 (XY) , 14.9 / 12.2 (ZX)
  • Englogation at Break (%): 2.2 / 3.2 (XY) , 0.8 / 1.9 (ZX)
  • Flexural Modulus (MPa): 4694 / 2861 (XY) , 8103 / 4300 (XZ) , 2371 / 1070 (ZX)
  • Impact Strength Charpy Unnotched (kJ/m2): 38.9 / 41.8 (XY) , 45.5 / 48.8 (XZ) , 2.2 / 3.1 (ZX)
  • Impact Strength Izod Unnotched (kJ/m2): 38.4 / 36.9 (XY) , 38.7 / 41.4 (XZ) , 2.6 / 3.8 (ZX)
  • HDT @ 0.45 MPa (°C): 110/114

Printing Guidelines*

  • Nozzle Temperature: 240 - 280 °C
  • Build Chamber Temperature: -
  • Bed Temperature: passively heated, closed chamber
  • Bed Material: Glass
  • Nozzle Diameter: ≥ 0.6 mm
  • Print Speed: 30 - 150** mm / s
  • Support Materials: BVOH

* The product data is provided in good faith and represents typical properties based on our current knowledge and experience; these data are not to be construed as specification limits or mini- mum values. Product properties may be changed without notice. This document does not create any liability, warranty or guarantee of product performance. It is the buyer’s responsibility to determine the suitability of Ultrafuse® products for the intended application.

** To achieve faster printing speeds, it may be necessary to raise the nozzle temperature. The highest speed mentioned has been determined through our latest tests, ensuring optimal surface quality with a 0.6mm nozzle and 0.24mm layer height. layer height. Please note that as printing technology and equipment evolve, we anticipate the possibility of achieving even faster speeds in the future.
