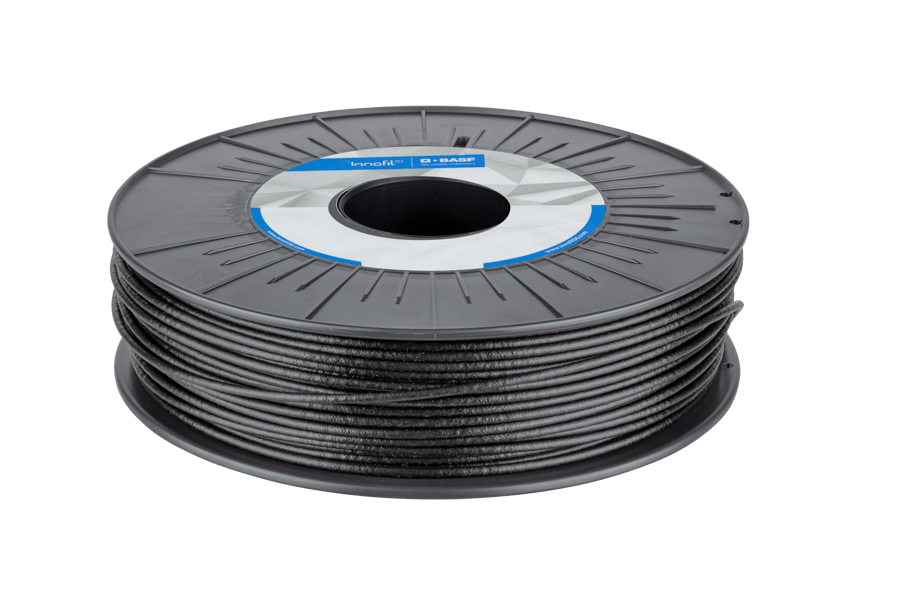

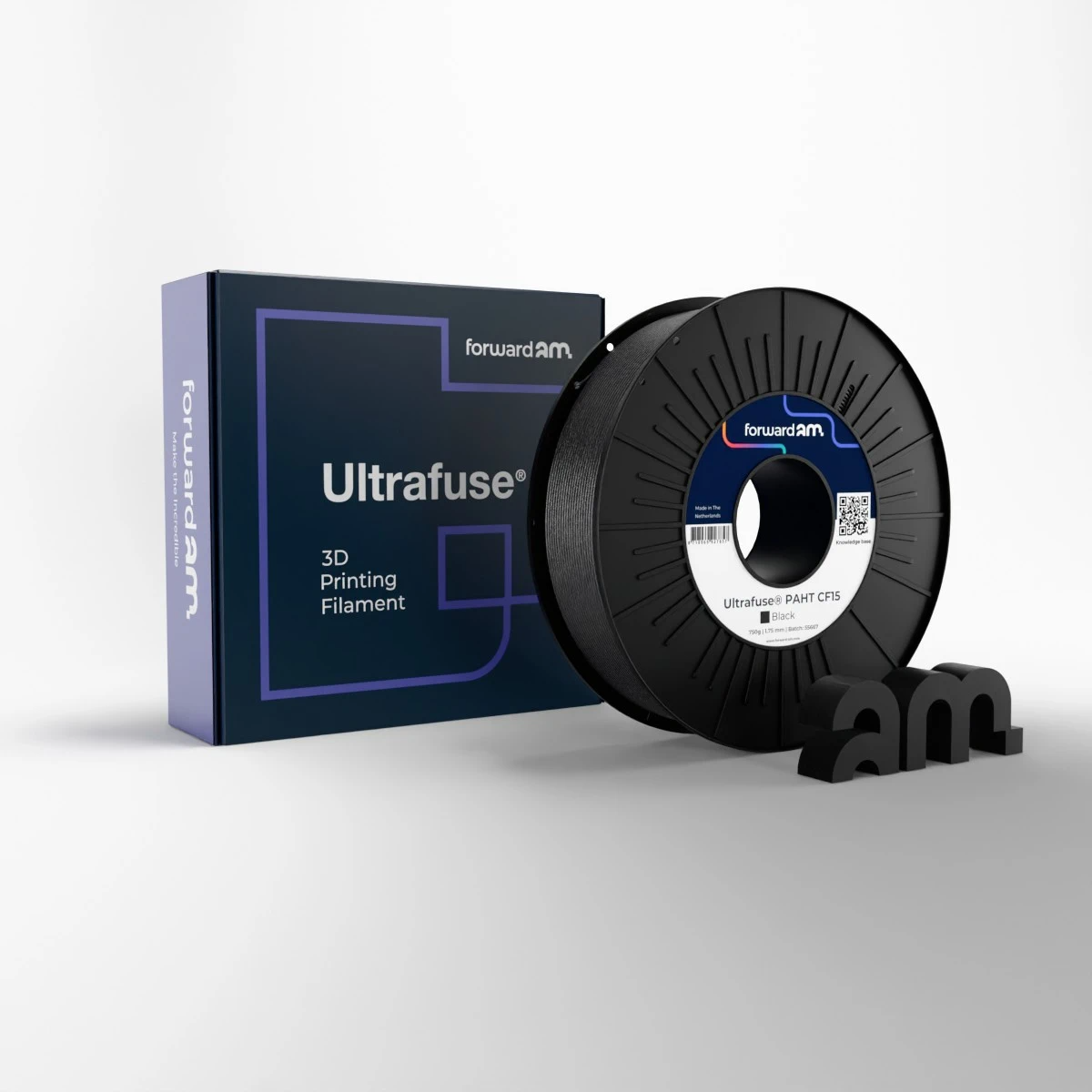

Forward AM | Ultrafuse® PAHT CF15 - 750g

Forward AM | Ultrafuse® PAHT CF15 - 750g

Forward AM | Ultrafuse® PAHT CF15 - 750g

Carbon fiber nylon filament with extreme strength, heat resistance, and dimensional stability.
Filament Diameter
SKU: 50677520
$119.00 CAD
Sale
Sold out

Price

$119.00 CAD $119.00

Stock

Request a Quote | Email This Page

Filament Details

Performance ratings are intended as a general comparison guide. Refer to the Technical Data Sheet (TDS) for detailed specifications and certified values.
BASF Forward AM Ultrafuse® PAHT CF15 1.75mm Filament (750g) is a high-performance polyamide filament reinforced with 15% carbon fiber, designed for demanding industrial applications. It combines exceptional mechanical strength, rigidity, chemical resistance, and high-temperature performance with excellent dimensional stability and low moisture absorption. PAHT CF15 produces strong, precise parts for challenging environments and is ideal for functional prototypes, tooling, and end-use components requiring advanced performance.
Applications
  • Complex geometries in challenging environments
  • Automotive

Resistant to Temperature Cycling.

See TDS for Details

Advanced Material

See TDS for information

Adhesion aid Required

Explore Options

Heated Chamber Recommended

Needs elevated chamber temperatures

Abrasive Material

A hardened nozzle is Required

Technical Specs

Overview
Net Weight 750g
Material Compatibility
Material Diameter / Thickness 2.85mm | 1.75mm

Notes

This filament might not be compatible with the Ultimaker Material Station.

This is an abrasive filament that will wear down brass nozzles. We recommend upgrading to a steel or ruby nozzle.For optimal performance and longevity for this filament. Keep in dry in a sealed desiccant bag or printdry when not in use. On dual extrusion Ultimakers, use with extruder 2 to reduce tension on the filament.

Product Highlights

Top Features

Ultrafuse® PAHT CF15 combines high temperature and chemical resistance with outstanding mechanical resilience. Due to its excellent dimensional stability your printed component will display low shrinkage during printing, ensuring an easy print experience. The nature of the fibers ensures that the parts remain very strong and highly rigid.

Benefits at a Glance

  • Higher chemical resistance than most PA grades
  • High temperature resistance up to 150 °C
  • Strong, rigid components High dimensional stability
  • Easy to process
  • Low moisture absorption
  • ESD SAFE (Surface resistivity 10^5-10^11 Ω)

Material Properties

  • Tensile Strength (MPa): 18.2 (ZX), 103.2 (XY)
  • Flexural Modulus (MPa): 2715 (ZX), 7669 (XZ), 8258 (XY)
  • Elongation at Break: 0.5 % (ZX), 1.8 % (XY)
  • Impact Strength Izod notched (kJ/m2): 5.1 (XZ), 4.9 (XY)
  • Impact Strength Izod unnotched (kJ/m2): 2.9 (ZX), 18.1 (XZ), 16.4 (XY)
  • HDT at 0.45 MPa: 145 oC

Printing Guidelines*

  • Nozzle Temperature: 250-270 °C
  • Build Chamber Temperature: -
  • Bed Temperature: 65 - 85 °C
  • Bed Material: Glass, PEI
  • Nozzle Diameter: ≥ 0.6 mm, Ruby or hardened
  • Print Speed: 30 - 80 mm / s

*The product data is provided in good faith and represents typical properties based on our current knowledge and experience; these data are not to be construed as specification limits or mini- mum values. Product properties may be changed without notice. This document does not create any liability, warranty or guarantee of product performance. It is the buyer’s responsibility to determine the suitability of Ultrafuse® products for the intended application.
