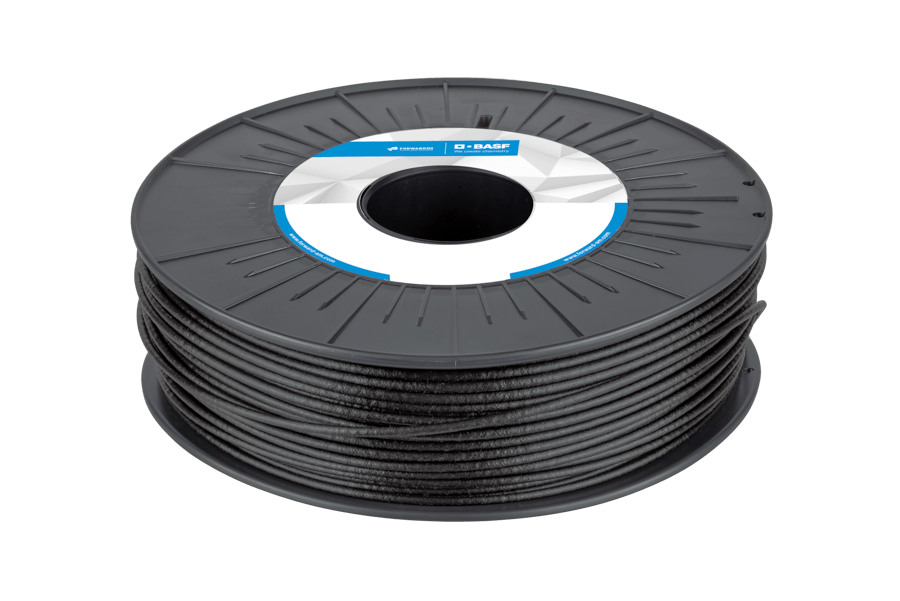

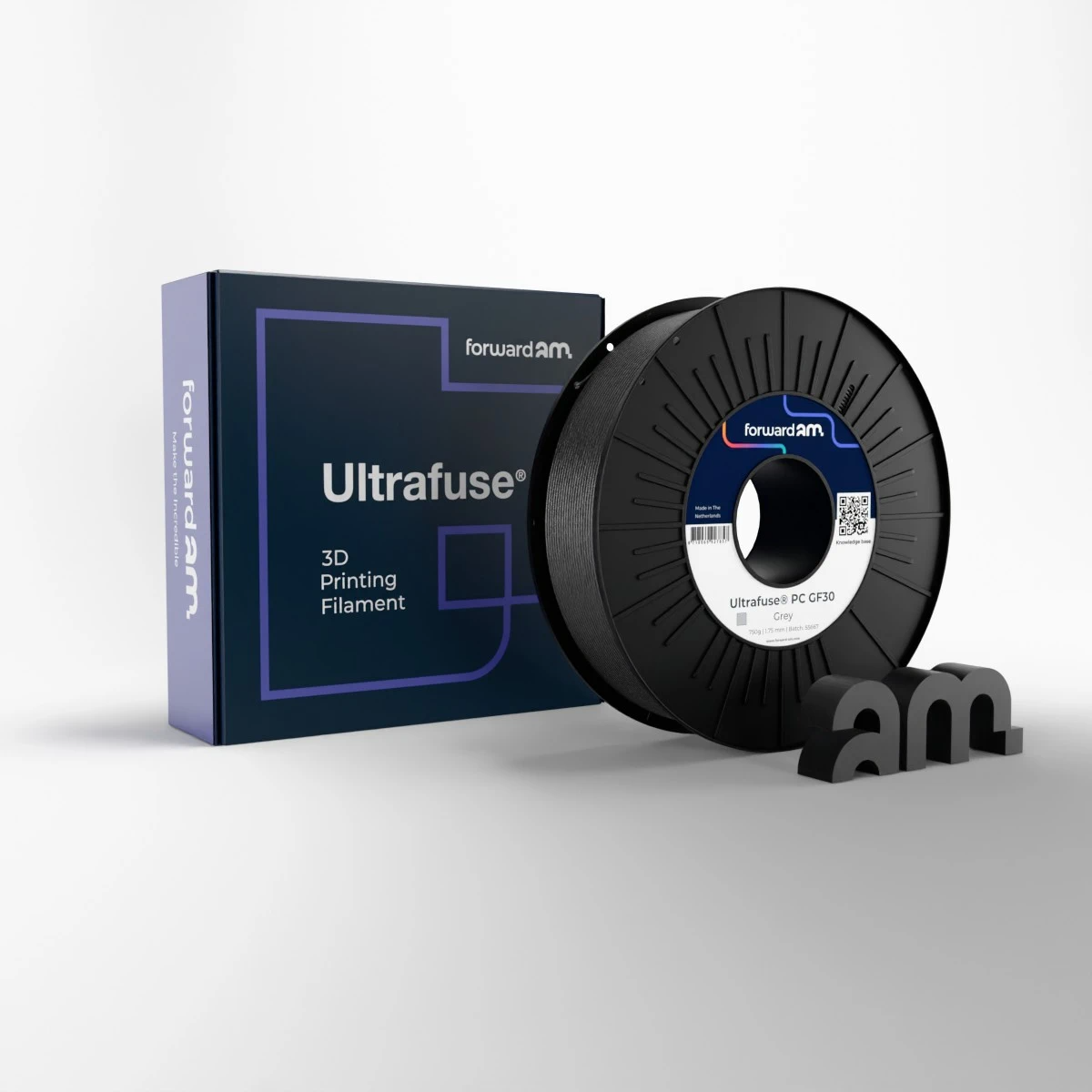

Ultrafuse® PC GF30 contains 30% of special glass fibers that are designed for filament making and 3D printing. With its high heat deflection temperature and good dimensional stability, Ultrafuse® PC GF30 is the right material to use in an industrial environment where good temperature resistance and high strength is needed. Its flame class rating of V0 makes PC GF30 the perfect solution for applications in the transportation industry. The resilience to UV light of Ultrafuse® PC GF30 and its low moisture uptake makes it usable for interior and exterior applications.

Benefits

• V0 flame class rated
• Resilience to UV light
• Good temperature resistance
• Flame retardant
• High stiffness and strength
• Good heat deflection temperature
• High dimensional stability
• Very low moisture absorption

Material Properties

• Tensile Strength (MPa): 36.1 (XY) , 11.2 (ZX)
• Elongation at Break (%): 2.4 (XY) , 1.1 (ZX)
• Flexural Modulus (MPa):2690 (XY) , 3450 (XZ) , 934 (ZX)
• Impact Strength Charpy Unnotched (kJ/m2): 17.1 (XY) , 18.9 (XZ) , 3.7 (ZX)
• Impact Strength Izod Unnotched (kJ/m2): 13.9 (XY) , 17.8 (XZ) , 3.4 (ZX)
• HDT @ 0.45 MPa (°C): 134

Printing Guidelines*

• Nozzle Temperature: 280 - 330 °C
• Build Chamber Temperature: -
• Bed Temperature: 80 - 100 °C
• Bed Material: Perforated plate, DimaFix or Magigoo PC glue*
• Nozzle Diameter: ≥ 0.6 mm
• Print Speed: 30 - 60 m / s
