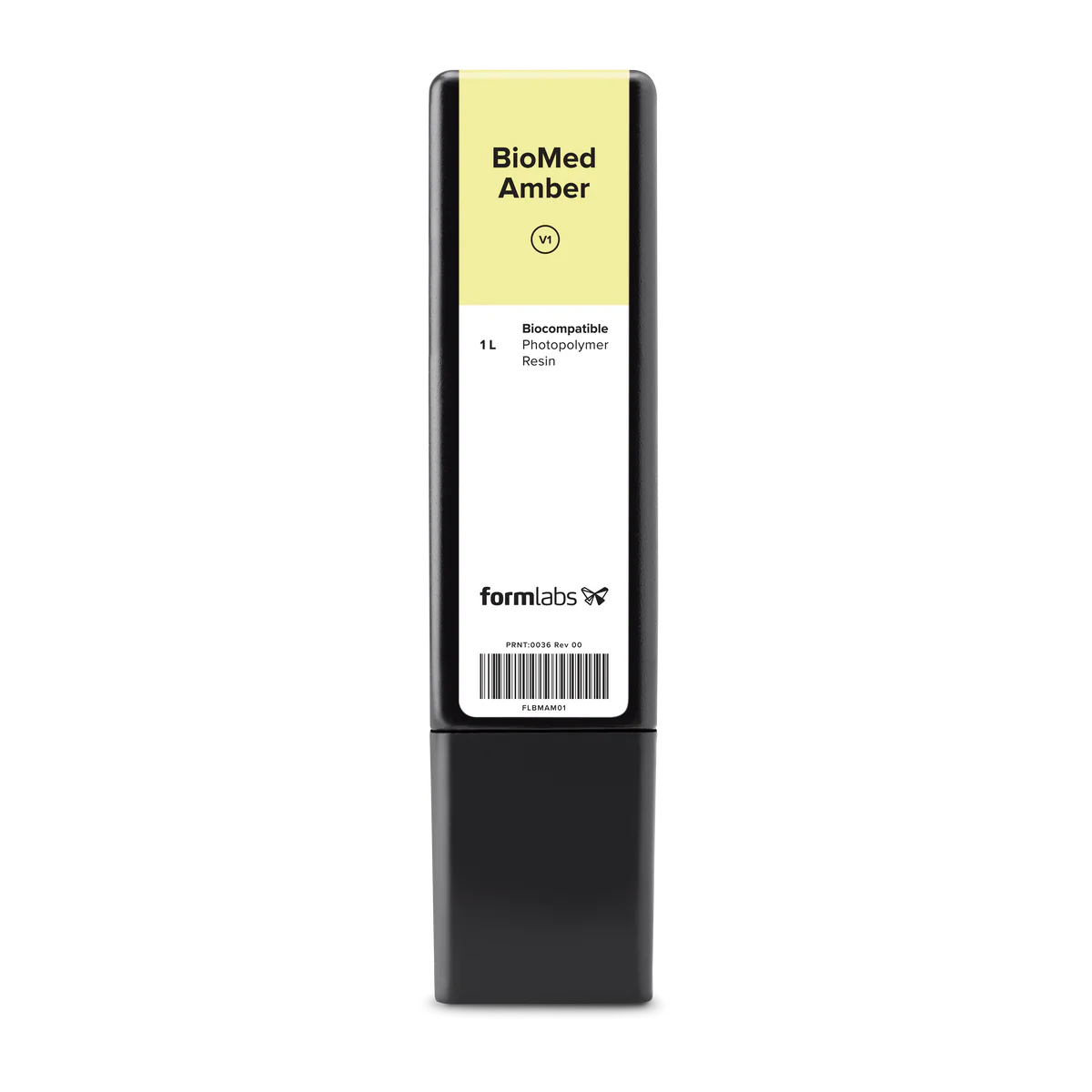

Formlabs BioMed Amber Resin Cartridge V1.1 (1 Litre OEM)

Formlabs BioMed Amber Resin Cartridge V1.1 (1 Litre OEM)

Formlabs BioMed Amber Resin Cartridge V1.1 (1 Litre OEM)

For biocompatible 3D printed parts with high dimensional accuracy, stiffness, and strength.
SKU:RS-F2-BMAM-01
Printer Compatibility
$358.00 CAD
Sale
Sold out

Price

$358.00 CAD

Stock

Request a Quote | Email This Page

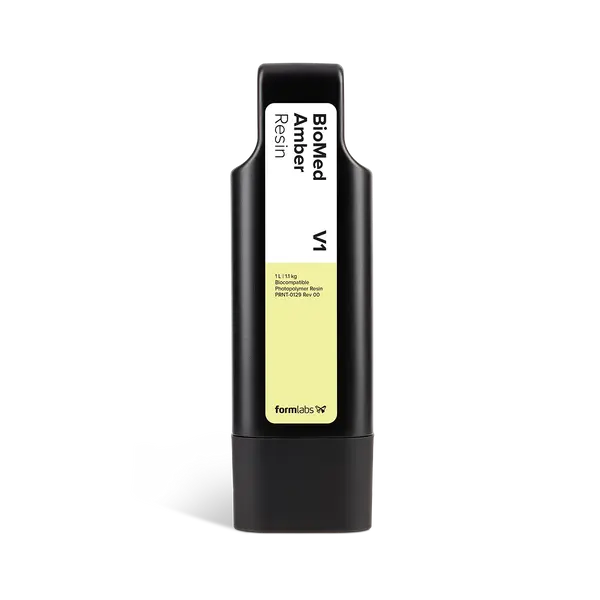

This product is exclusively for use with the Formlabs Form 4B


This resin requires post curing

Biocompatible Photopolymer Resin for the Form 4B

BioMed Amber Resin is designed for the manufacture of biocompatible 3D printed parts with high dimensional accuracy, stiffness, and strength. This material is developed specifically for Formlabs printers, rigorously tested, and manufactured in a clean room at our own ISO 13485 certified facility for consistent cross-batch quality. The parts printed with BioMed Amber Resin are compatible with common solvent disinfection and sterilization methods.

Resin Details

BioMed Amber Resin is designed for the manufacture of biocompatible 3D printed parts with high dimensional accuracy, stiffness, and strength. This material is developed specifically for Formlabs printers, rigorously tested, and manufactured in a clean room at our own ISO 13485 certified facility for consistent cross-batch quality. The parts printed with BioMed Amber Resin are compatible with common solvent disinfection and sterilization methods.
Applications

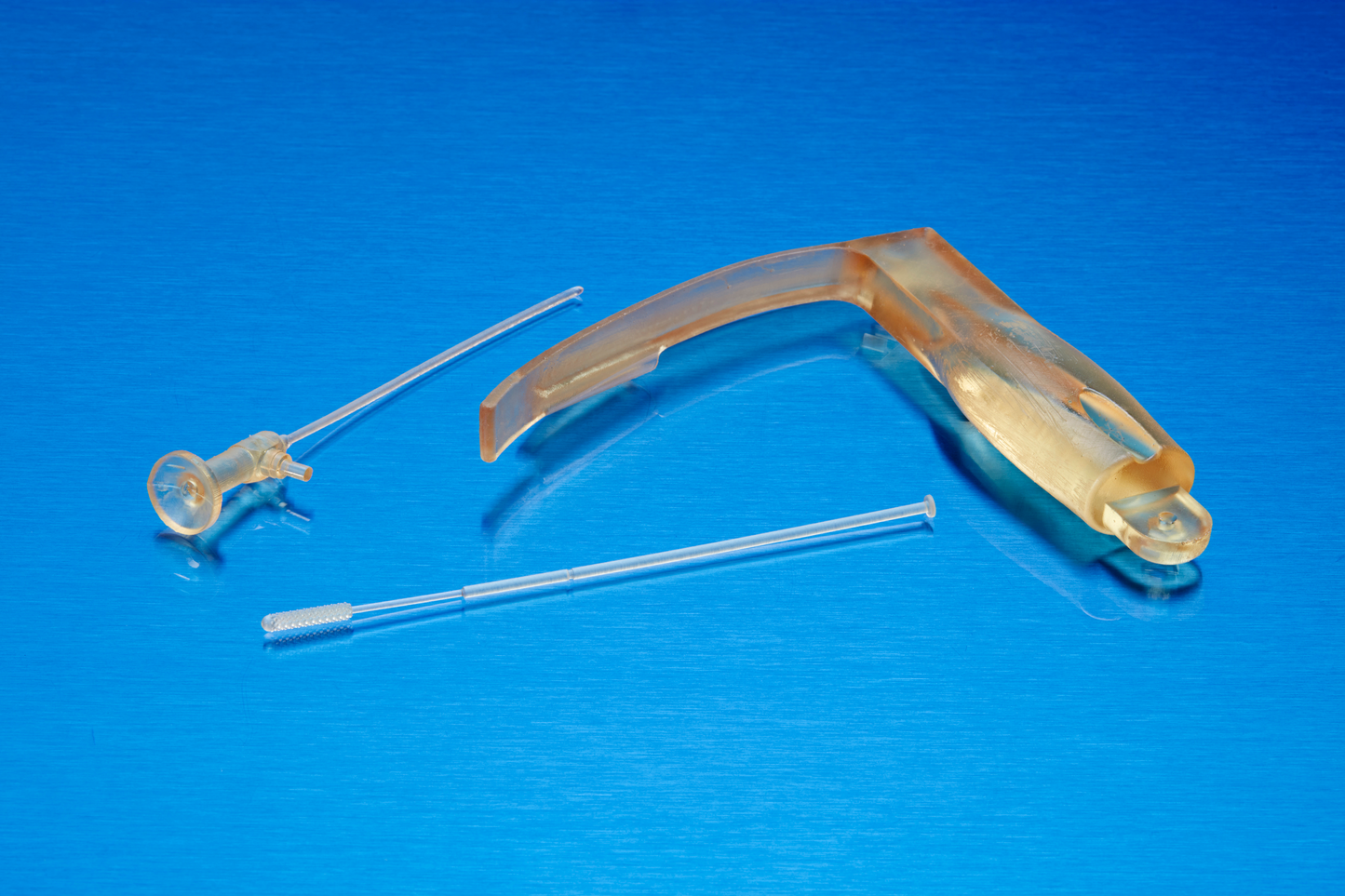

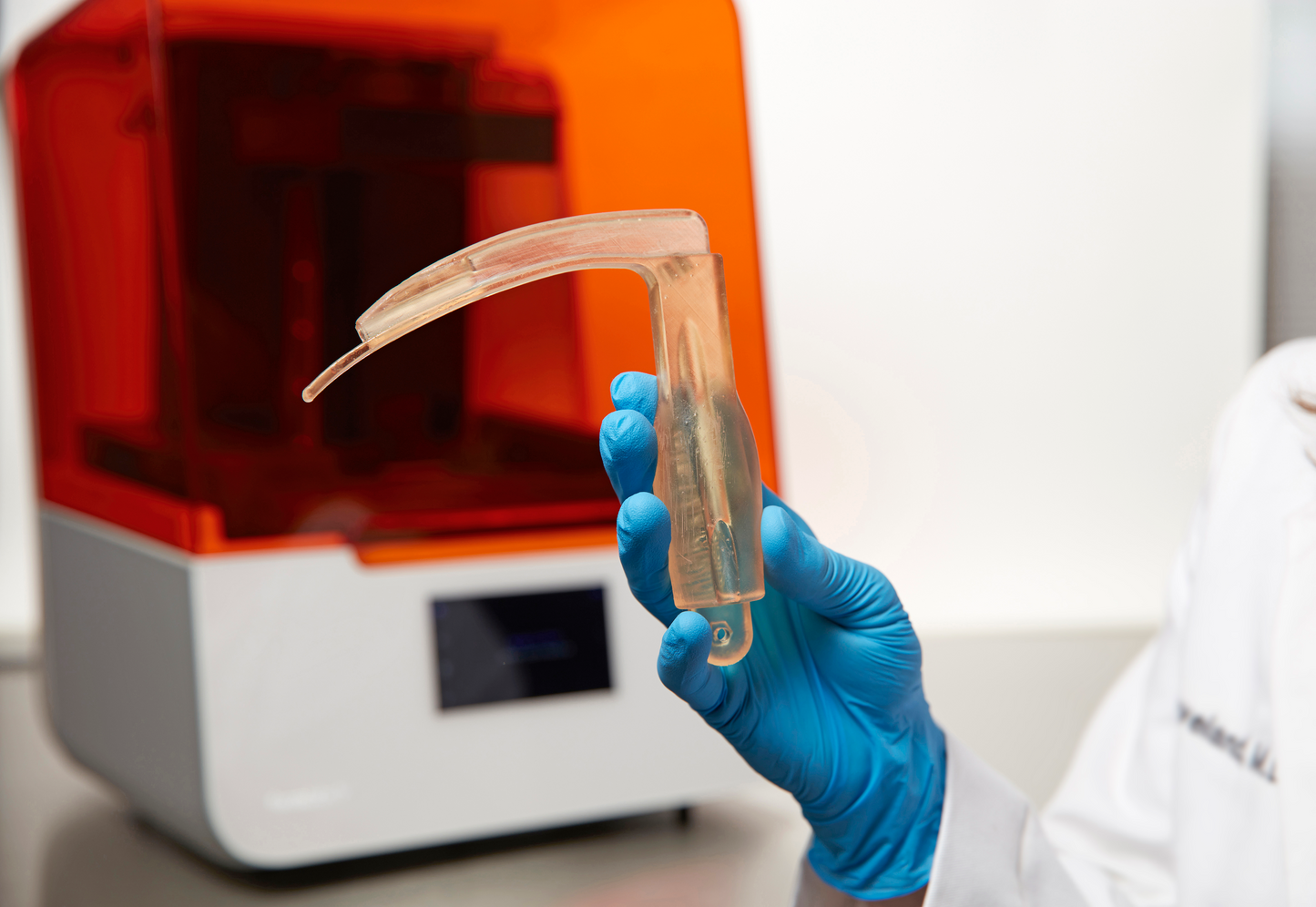

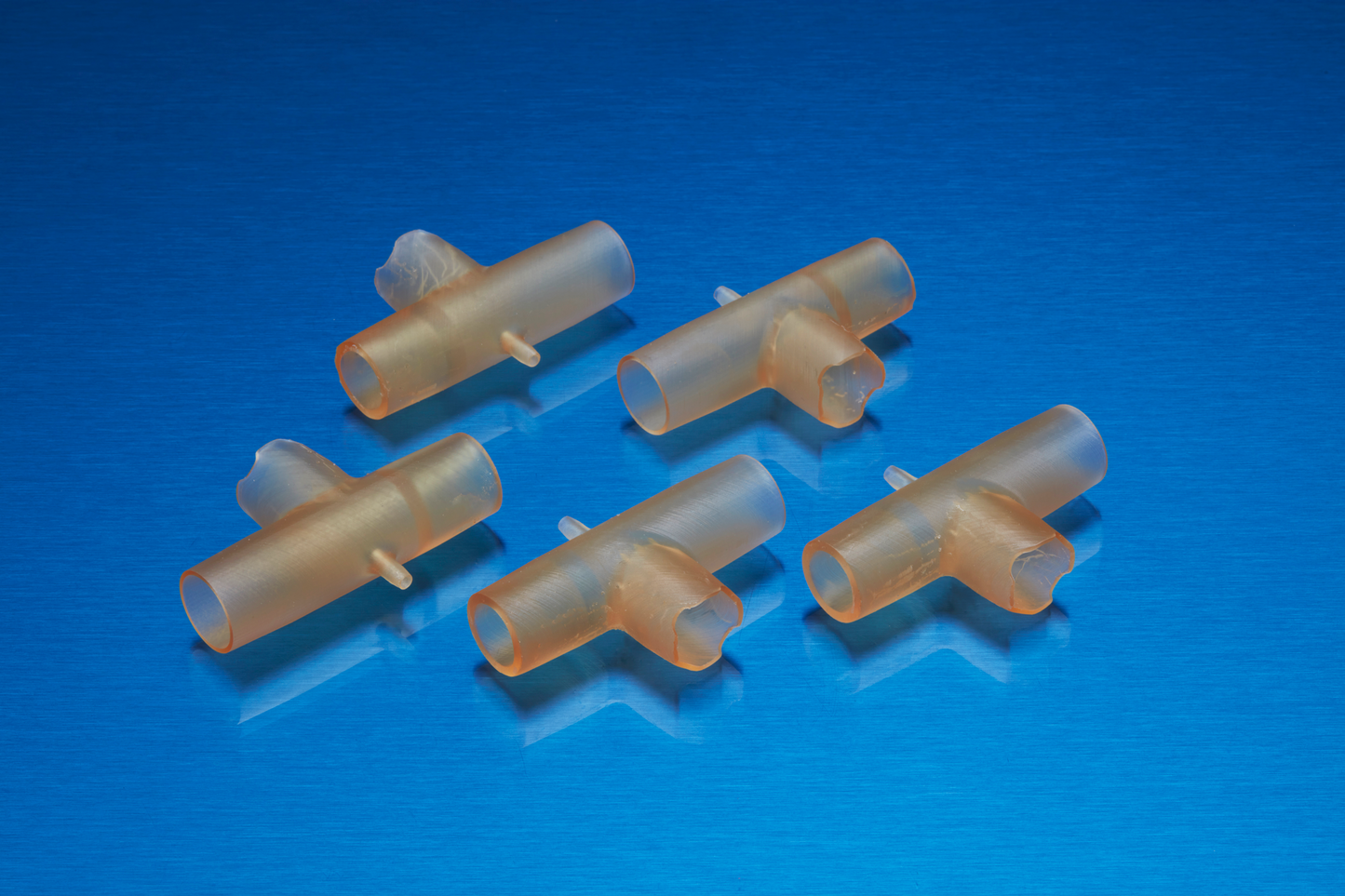

Biocompatible parts, surgical/drilling guides, medical device components, implant templates

Documentation

Medical

Formlabs Material

Part of the Formlabs ecosystem

Technical Specs

Overview
Technology SLA
Material Compatibility
Printer Compatibility
  • Form 4B
  • Form 4BL
  • Form 3B
  • Form 3BL
  • Form 2
Build Platform Compatibility Form 4 Build Platform, Form 4 Flex Build Platform, Form 3 Build Platform, Form 3 Build Platform 2, Form 3 Stainless Steel Build Platform, Form 3L Build Platform, Form 3L Build Platform 2L, Form 4L Build Platform, Form 4L Flex Build Platform
Tank Compatibility
  • Form 4 Resin Tank, Form 4L Resin Tank, Form 2 LT Tank, Form 3 Resin Tank V2.1, Form 3L Resin Tank V3
Safety and Compliance
Certifications ISO 13485; ISO 10993-1 biocompatible (non-cytotoxic, non-irritating, non-sensitizing)
Material Properties
Unnotched Izod 142.0 J/m
Thermal Expansion 66 µm/m/°C
Heat Deflection Temp. @ 0.45 MPa 78 °C
Notched Izod 28 J/m
Flexural Modulus 2.5 GPa
Tensile Modulus 2.9 GPa
Elongation at Break 12%
Ultimate Tensile Strength 73 MPa

Resin Cheat Sheet

Product BioMed Amber
Cure Temperature --
Cure Time (Form Cure V1)
Cure Time (Form Cure V2) --
Wash Time --
Special Notes

Refer to the Manufacturing Guide for washing and post-curing instructions for this resin.
Extra Abrasive to Tanks --

Product Highlights

Top Features

BioMed Amber Resin is a stiff, functionally strong medical grade material for parts that require short-term skin and mucosal membrane contact. This material is suitable for manufacturing strong and rigid parts such as functioning threads.BioMed Resins from Formlabs are biocompatible, ISO 13485 compliant, medical-grade materials developed for healthcare professionals globally. These medical materials can be used for applications that require patient skin and mucosal membrane contact. Certification of Biocompatibility

BioMed Amber Sterilization Results

Tested by Formlabs —  Part orientations and placement were kept constant for all samples.All sterilization, biocompatibility,  autoclave (steam), and mechanical results can be found in the Biomed Amber Sterilization Results document.

BioMed Amber Resin was tested at NAMSA World Headquarters, OH, USA.

Disinfection Compatibility

  • Chemical Disinfection - 70% Isopropyl Alcohol for 5 minutes
  • Steam Sterilization: Autoclave at 134 °C for 20 minutes or Autoclave at 121 °C for 30 minutes

Resin Comparison Tool
