Due to this item being an aerosol, it can only be shipped via Fedex Ground with special handling. Other combined items will also be limited to Fedex ground. Free shipping does not apply.

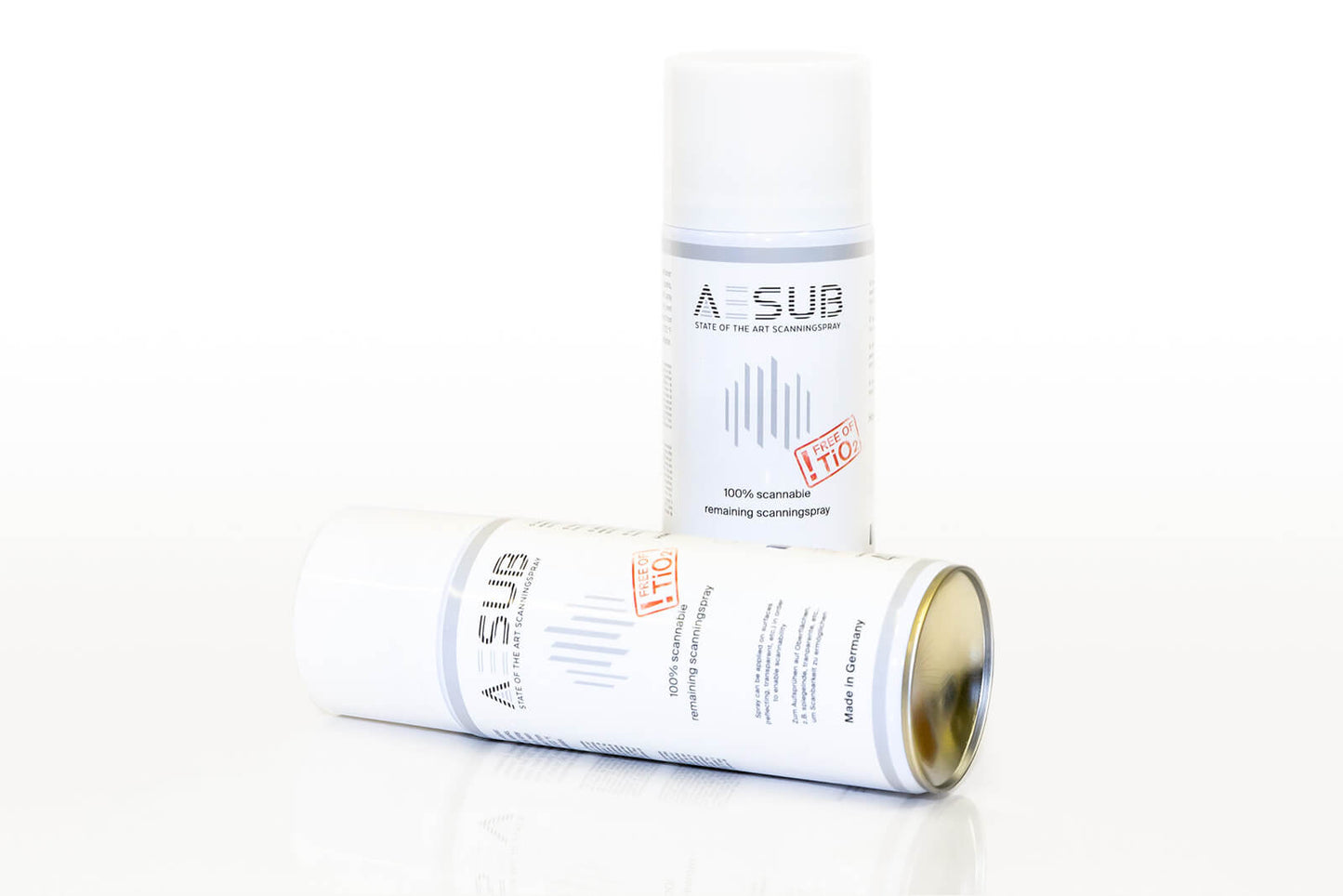

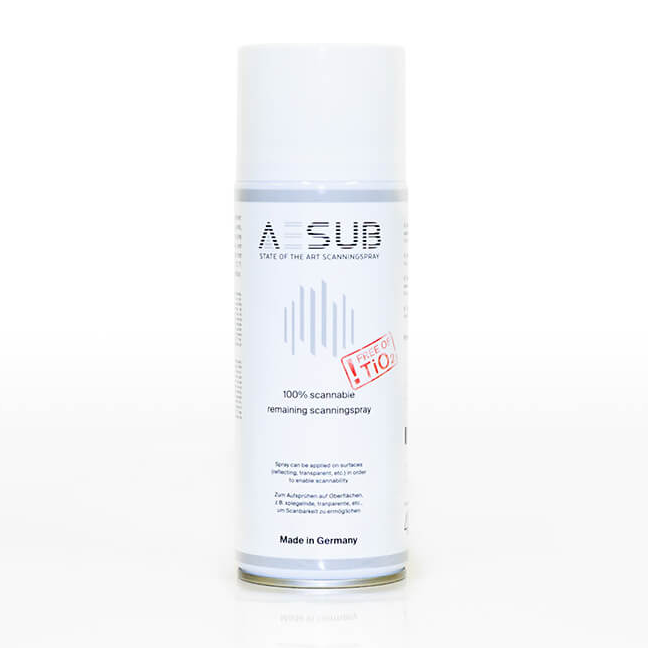

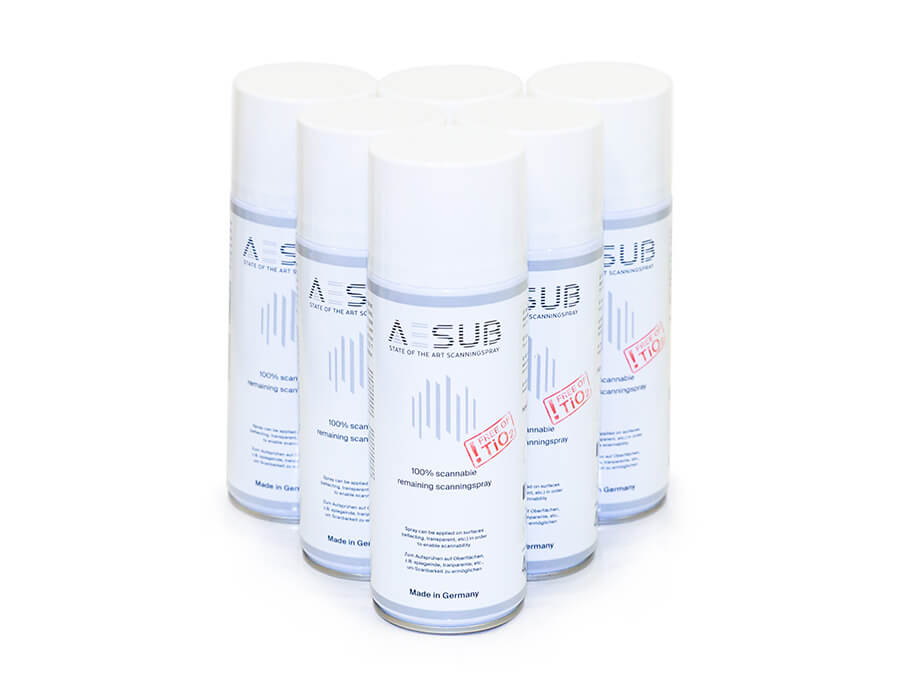

AESUB is a spray formulated specifically to aid in 3D scanning. The spray imparts an even, thin, matte white surface finish onto the part allowing white light 3D scanners to resolve even the most challenging surfaces. It makes previously impossible to scan materials like glass, metal and clear plastics and rubbers a breeze. As well as providing a consistent scan surface for increased scan accuracy and easier feature tracking.
AESUB WHITE is a NON-sublimating spray. This is a more economical version of spray that provides the same quality of matte, white reflective surface that is ideal for scanning, but does not sublimate away. Use only on objects you intend to discard after scanning, or remain white permanently. Allows for handling unlike the SK3 Developer scanning solutions.
AESUB products works ideally with White light scanners. (scanners that project white light patterns onto the object to be read by cameras for point cloud triangulation.) This includes all of the Shining Einscan scanners.
Use on the following materials for successful scan:
As we are dealing with optical technologies, light needs to be reflected off the surface back into the sensor of the scanner. In case of a transparent surface, however, the light will go through the surface instead of being reflected by the same. In consequence, the scanner is not able to capture the surface structure.
In case of reflective parts, such as a mirror, the light beams will be reflected in a focused way instead of in a diffused way. This means that the chance of a beam hitting the reflector of the scanner is greatly reduced and the scanner will only capture a fraction of the reflected light beams.
When the object to be scanned has deep pockets, the scanner receives a reflection from the walls of the pocket onto the bottom. This causes disturbance in the pattern of the light manifesting in the scan as “artifacts” or bad data.
When quality and accuracy are important, AESUB aides in scanning by controlling for as many visual quality differences as possible, such as colour, reflection, texture, etc. The use of spray creates a matte, white coat reducing reflection and other inhomogeneities and thus provides ideal scanning conditions.
Aesub Product Range | Scanning Sprays
1L, 5L, 200L
|Spraying Distance:||15-20 cm||5-10 cm|
|Effective Scan Time:||1-2 h||4-8 h||permanent||1-2 h||1-2 h||2-4 h|
|Sublimation time:||4 h||12-24 h||--||4 h||6 h||4-6 h|
|Contain titan dioxide:||no|
|Layer Thickness||8-15 μm||2-6 μm||7 μm||15-20 μm||10-20 μm||0.5-1 μm|
|Adhesion of Reference Points:||yes||yes||no||yes||yes||yes|
|Coverage Area:||4 m² / can||4 m² / can||4 m² / can||4 m² / can||15 m² / L||20 mm² / ml|
|Optimal Processing Temperature:||21°C (69.8°F)|
|Shelf Life:||5 years|

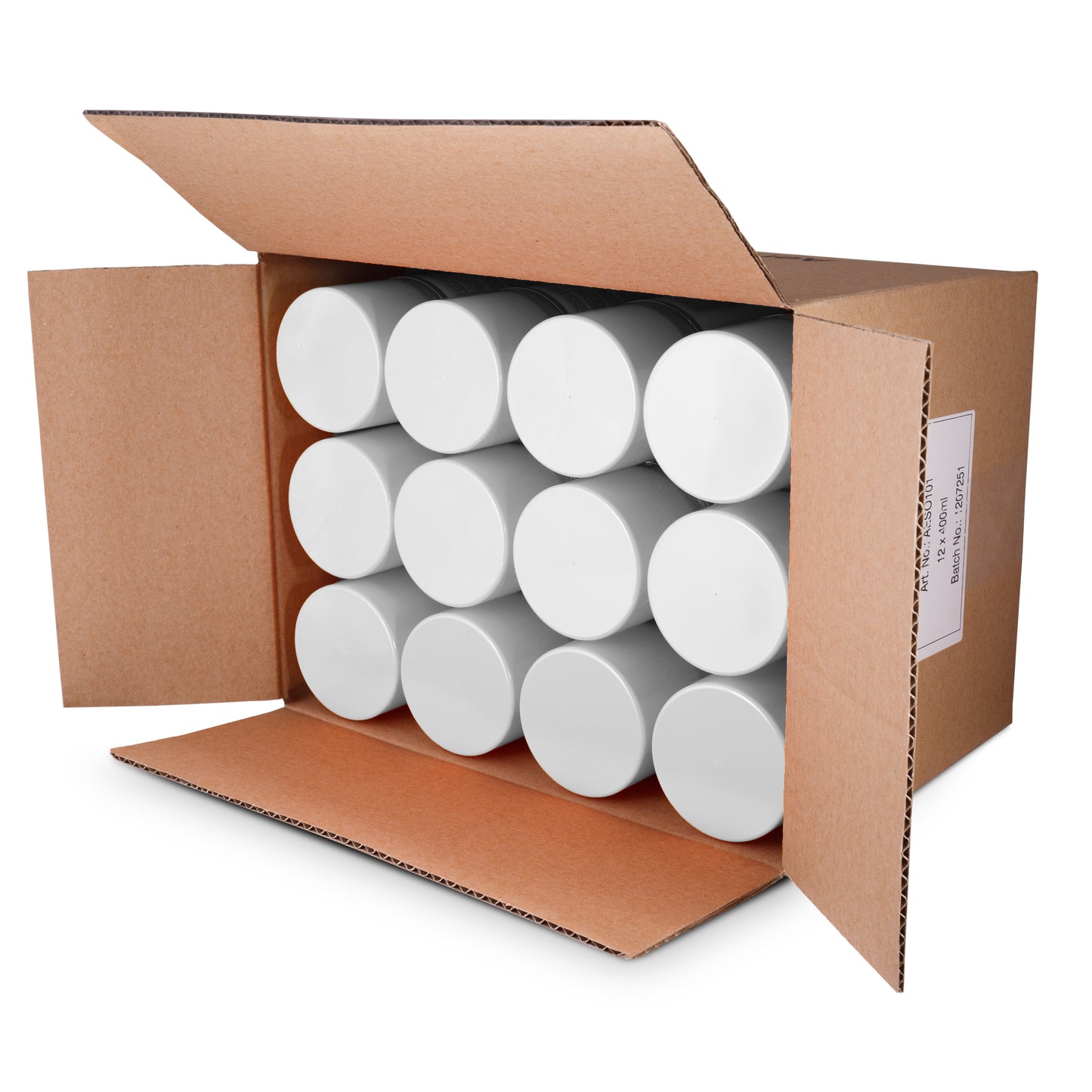

|Packaging Unit:||12 / box||12 / box||12 / box||12 / box||6 x 1L / box
|12 x 200 ml
