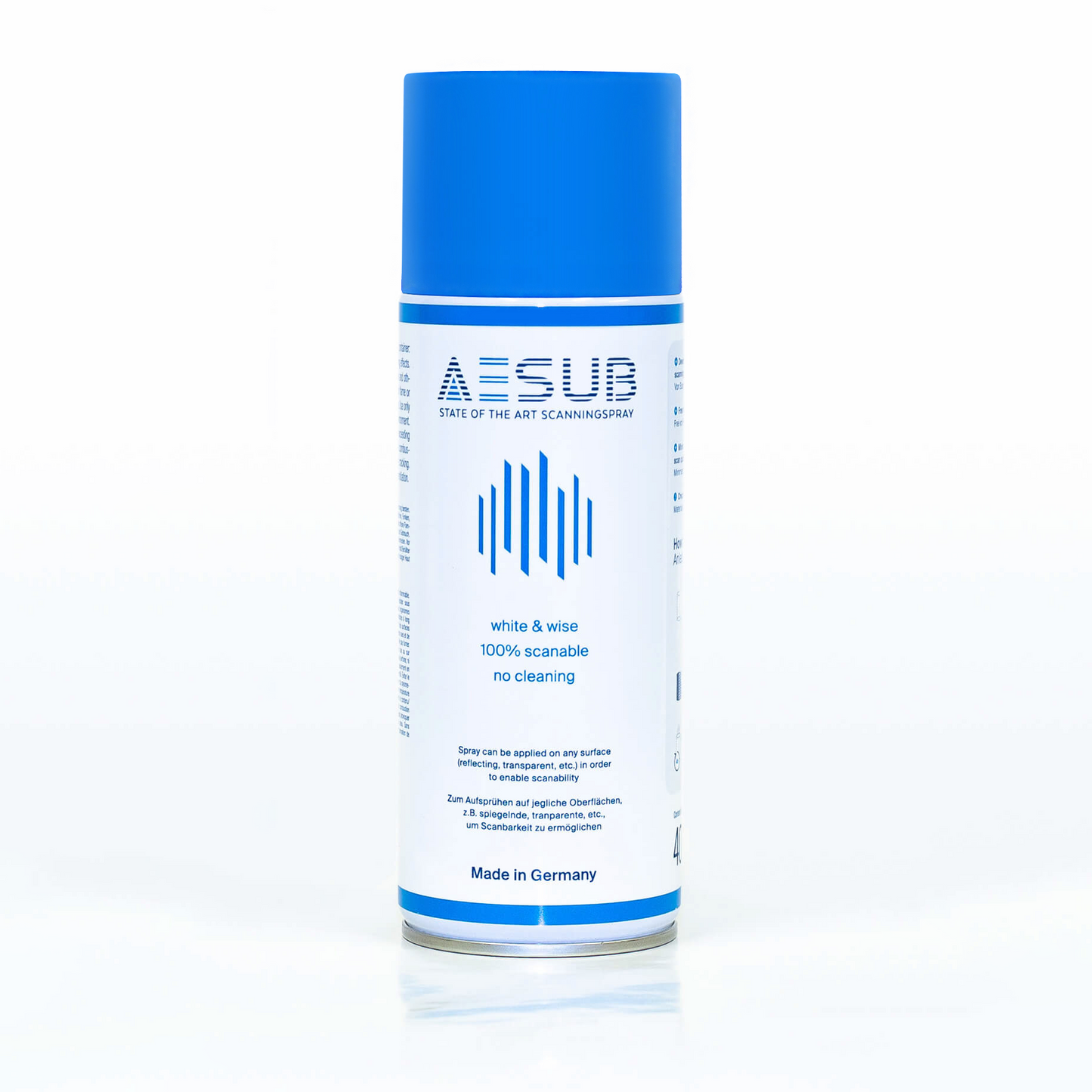

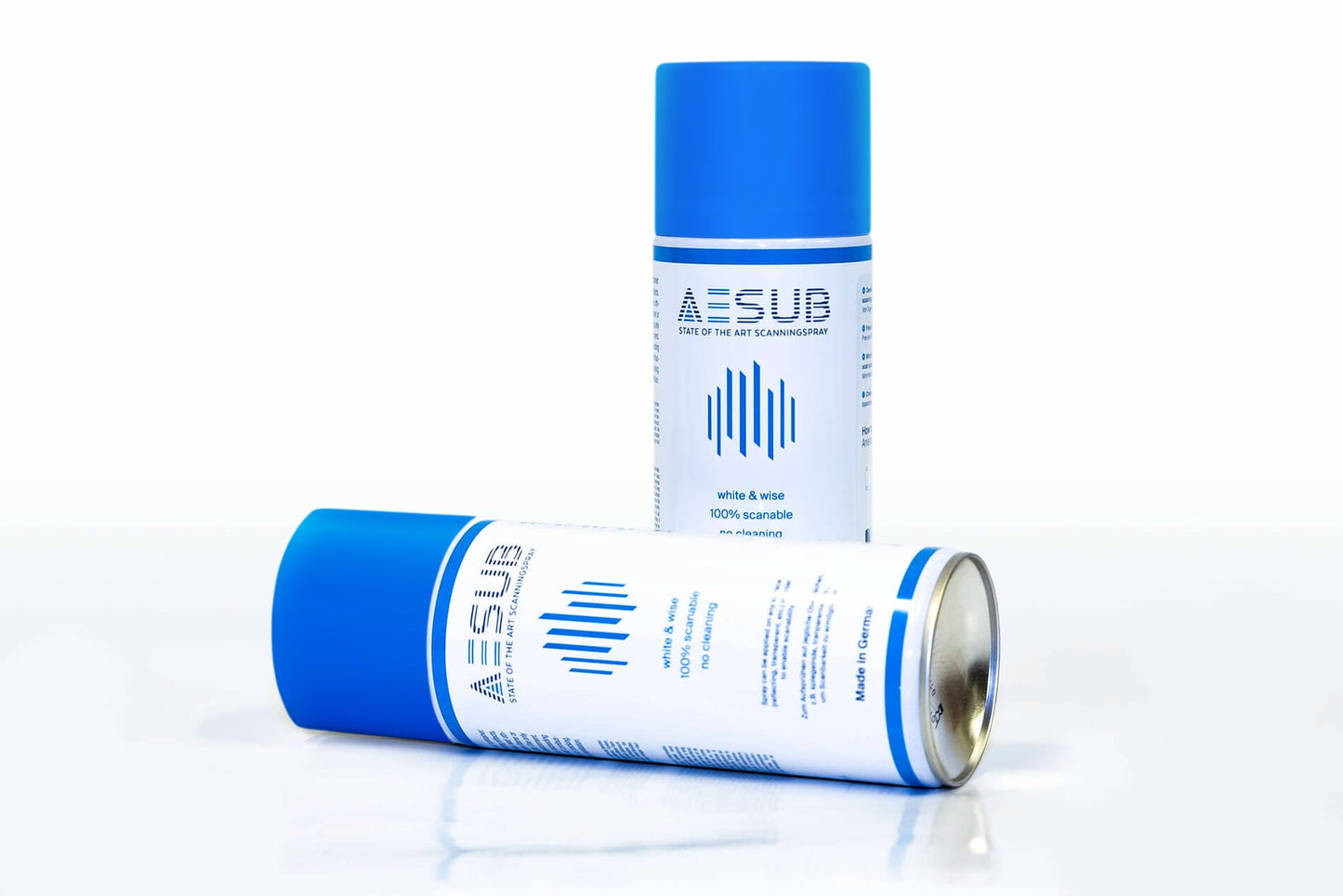

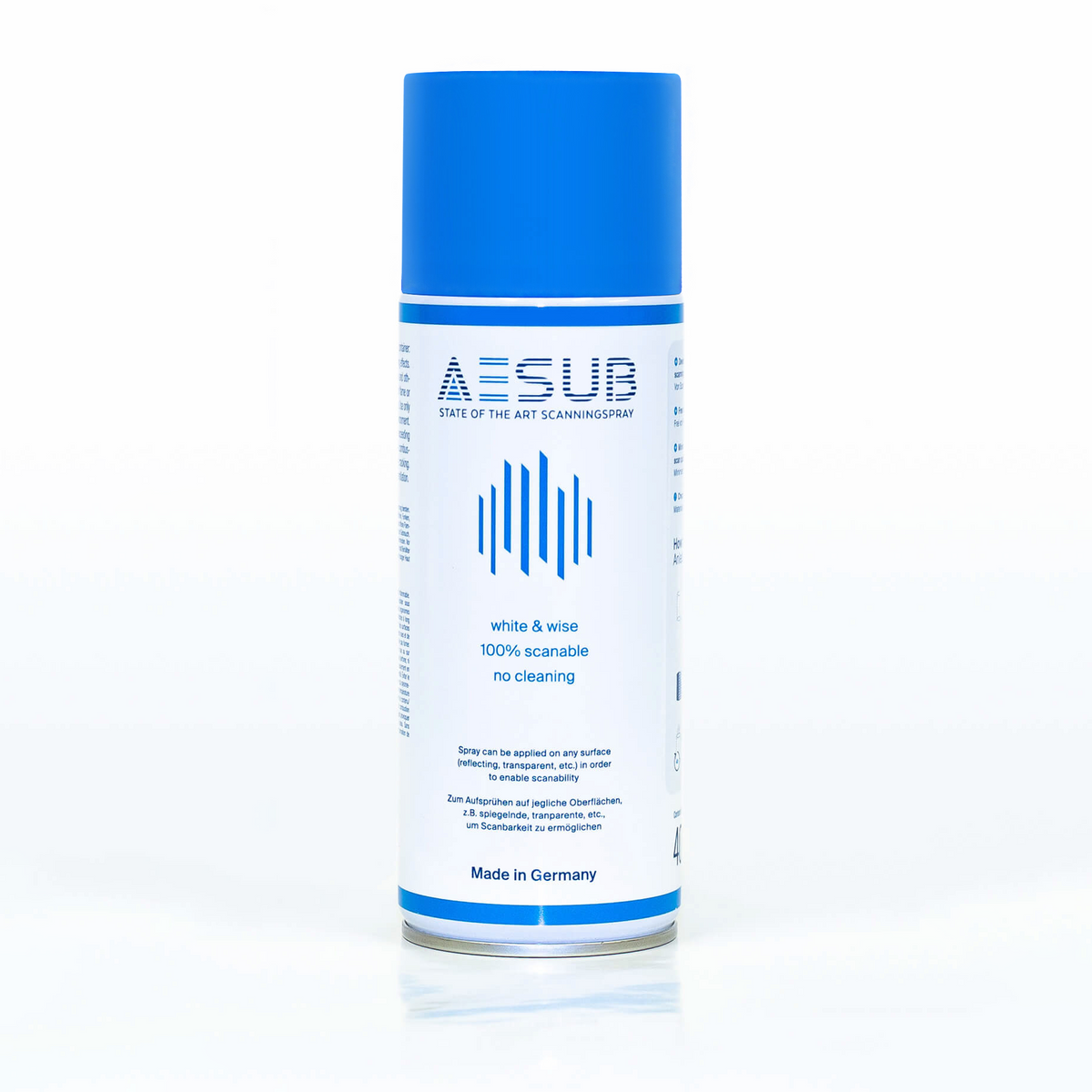

AESUB Blue - Matte Disappearing Spray for 3D Scanning

Product SKU: AESUB-Blue

$44.50

Available Stock:
Loading...

Quantity

Single

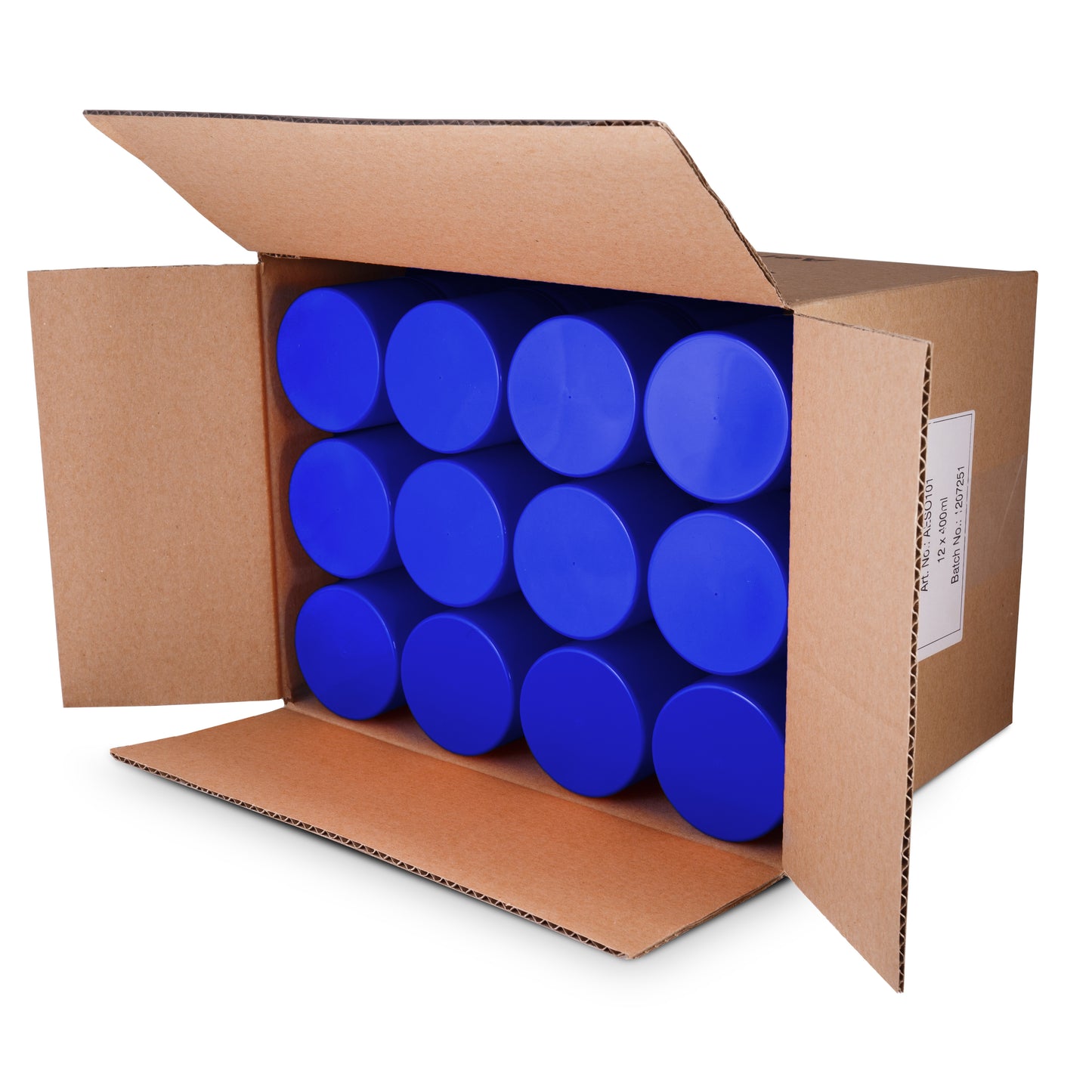

12-Pack

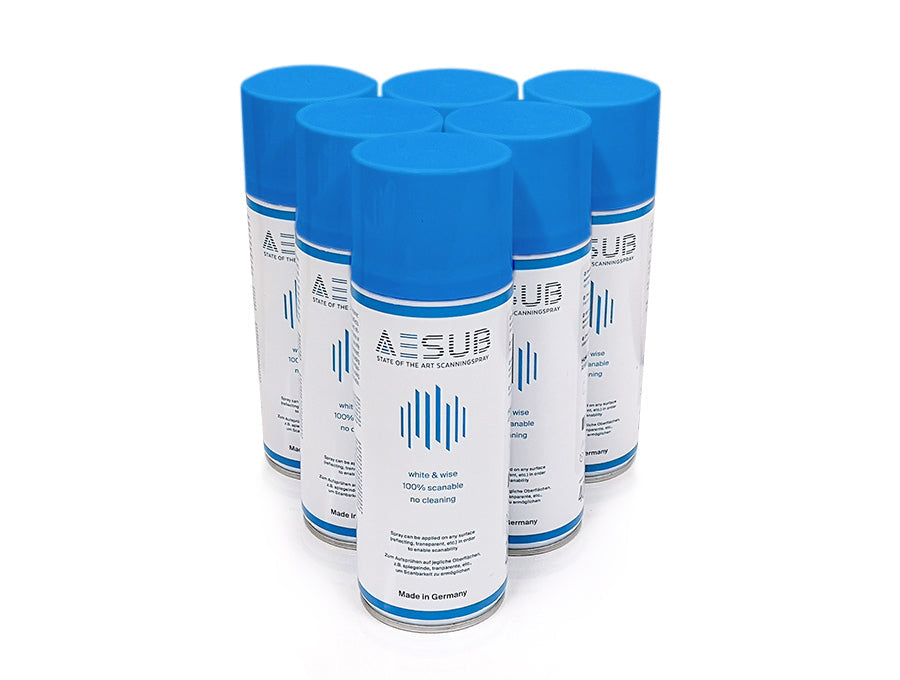

6-pack

Free Delivery does not apply for this order. Contact Us for Shipping Estimates.

Quantity

Due to this item being an aerosol, it can only be shipped via Fedex Ground with special handling. Other combined items will also be limited to Fedex ground. Free shipping does not apply.

AESUB 3D Scanning Spray

AESUB is a spray formulated specifically to aid in 3D scanning. The spray imparts an even, thin, matte white surface finish onto the part allowing white light 3D scanners to resolve even the most challenging surfaces. It makes previously impossible to scan materials like glass, metal and clear plastics and rubbers a breeze. As well as providing a consistent scan surface for increased scan accuracy and easier feature tracking.

AESUB BLUE is a sublimating (Vanishing) Spray. The spray coats your part in a material that slowly sublimates (turns from solid to gas) so you can 3D scan your part without worry of damaging or altering your part permanently. After 1-3 hours, the white spray dissapears leaving little to no trace it was there in the first place. Ideal for client parts or sensitive, expensive equipment you can't afford to have damaged or altered after scanning.

AESUB products works ideally with White light scanners. (scanners that project white light patterns onto the object to be read by cameras for point cloud triangulation.) This includes all of the Shining Einscan scanners.

REQUIRED
Use on the following materials for successful scan:

Transparent materials - Glass, plastic
Translucent materials - Polypropylene, wax, semi-translucent plastics
Mirrored surfaces - Including Polished or raw metal, mirrors, chrome etc.
Anisotropic surfaces - hair, brushed metal etc.

Recommended (Optional):

High contrast materials - black and white stripes
Surfaces with fine ripples/texture (ie FDM 3D prints)
Shiny/Polished surfaces - Car paint, reflective plastics

AESUB Blue Spray

Produces a white matte finish ideal for scanning with white light scanners (such as the Shining3D EinScan family)
This is a sublimating spray. You spray your parts, and the material slowly sublimates (solid -> gas). You can scan and the material disappears. Your subject remains unharmed and unaltered
Leaves no residue and easy to handle
Dissipates in approximately 1-3 hours

Overview

Even with state-of-the-art scanners, it is necessary to apply matting spray in several application cases:

Transparent parts
As we are dealing with optical technologies, light needs to be reflected off the surface back into the sensor of the scanner. In case of a transparent surface, however, the light will go through the surface instead of being reflected by the same. In consequence, the scanner is not able to capture the surface structure.
Reflective parts
In case of reflective parts, such as a mirror, the light beams will be reflected in a focused way instead of in a diffused way. This means that the chance of a beam hitting the reflector of the scanner is greatly reduced and the scanner will only capture a fraction of the reflected light beams.
Deep Pocket
When the object to be scanned has deep pockets, the scanner receives a reflection from the walls of the pocket onto the bottom. This causes disturbance in the pattern of the light manifesting in the scan as “artifacts” or bad data.
High quality and accuracy
When quality and accuracy are important, AESUB aides in scanning by controlling for as many visual quality differences as possible, such as colour, reflection, texture, etc. The use of spray creates a matte, white coat reducing reflection and other inhomogeneities and thus provides ideal scanning conditions.

Aesub Product Range | Scanning Sprays

Product	AESUB Blue	AESUB Orange	AESUB White	AESUB Transparent	AESUB Green	AESUB Yellow
Delivery From:	aerosol can 400 ml				bulk 1L, 5L, 200L	bulk 200 ml
Measurement Volume:	S-M	S-L	S-XL	S-M	L-XL	XS-S
Application:
Spraying Distance:	15-20 cm					5-10 cm
Coating:	vanishing	vanishing	permanent	vanishing	vanishing	vanishing
Effective Scan Time:	1-2 h	4-8 h	permanent	1-2 h	1-2 h	2-4 h
Sublimation time:	4 h	12-24 h	--	4 h	6 h	4-6 h
Colour	white	white	white	transparent	white	white
Contain pigments:	no	no	yes	no	no	no
Contain titan dioxide:	no
Layer Thickness	8-15 μm	2-6 μm	7 μm	15-20 μm	10-20 μm	0.5-1 μm
Adhesion of Reference Points:	yes	yes	no	yes	yes	yes
Coverage Area:	4 m² / can	4 m² / can	4 m² / can	4 m² / can	15 m² / L	20 mm² / ml
Optimal Processing Temperature:	21°C (69.8°F)
Shelf Life:	5 years
Packaging Unit:	12 / box	12 / box	12 / box	12 / box	6 x 1L / box 5L 200L	12 x 200 ml / box

Downloads

Material Safety Data Sheet

Technical Data Sheet
