• Produces a transparent finish ideal for scanning with white light scanners (such as the Shining3D EinScan family)
• This is a sublimating spray. You spray your parts, and the material slowly sublimates (solid -> gas). You can scan and the material disappears. Your subject remains unharmed and unaltered
• Dissipates in approximately 4 hours
• Leaves no residue and easy to handle
• Disappearing state-ofthe-art dulling spray
• Perfect for colour capture
• Free of pigments – free of titanium dioxide
• Fine, semi-transparent layer
• No cleaning required
• Developed & approved by scanning experts

• Transparent parts

  As we are dealing with optical technologies, light needs to be reflected off the surface back into the sensor of the scanner. In case of a transparent surface, however, the light will go through the surface instead of being reflected by the same. In consequence, the scanner is not able to capture the surface structure.

• Reflective parts

  In case of reflective parts, such as a mirror, the light beams will be reflected in a focused way instead of in a diffused way. This means that the chance of a beam hitting the reflector of the scanner is greatly reduced and the scanner will only capture a fraction of the reflected light beams.

• Deep Pocket

  When the object to be scanned has deep pockets, the scanner receives a reflection from the walls of the pocket onto the bottom. This causes disturbance in the pattern of the light manifesting in the scan as “artifacts” or bad data.

• High quality and accuracy

  When quality and accuracy are important, AESUB aides in scanning by controlling for as many visual quality differences as possible, such as colour, reflection, texture, etc. The use of spray creates a matte, white coat reducing reflection and other inhomogeneities and thus provides ideal scanning conditions.

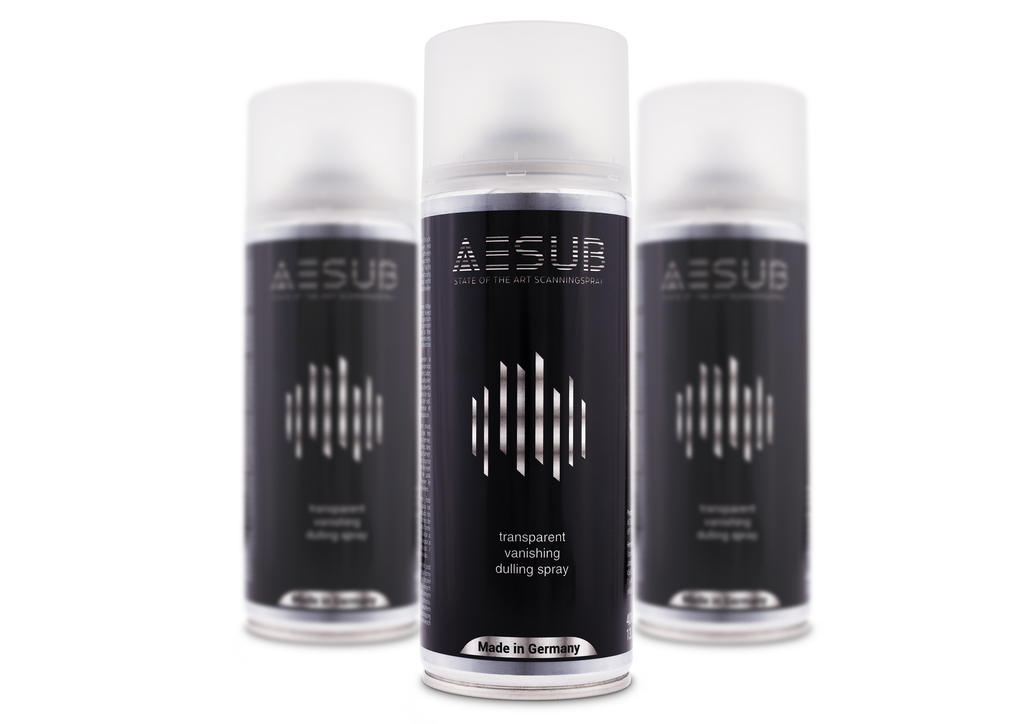

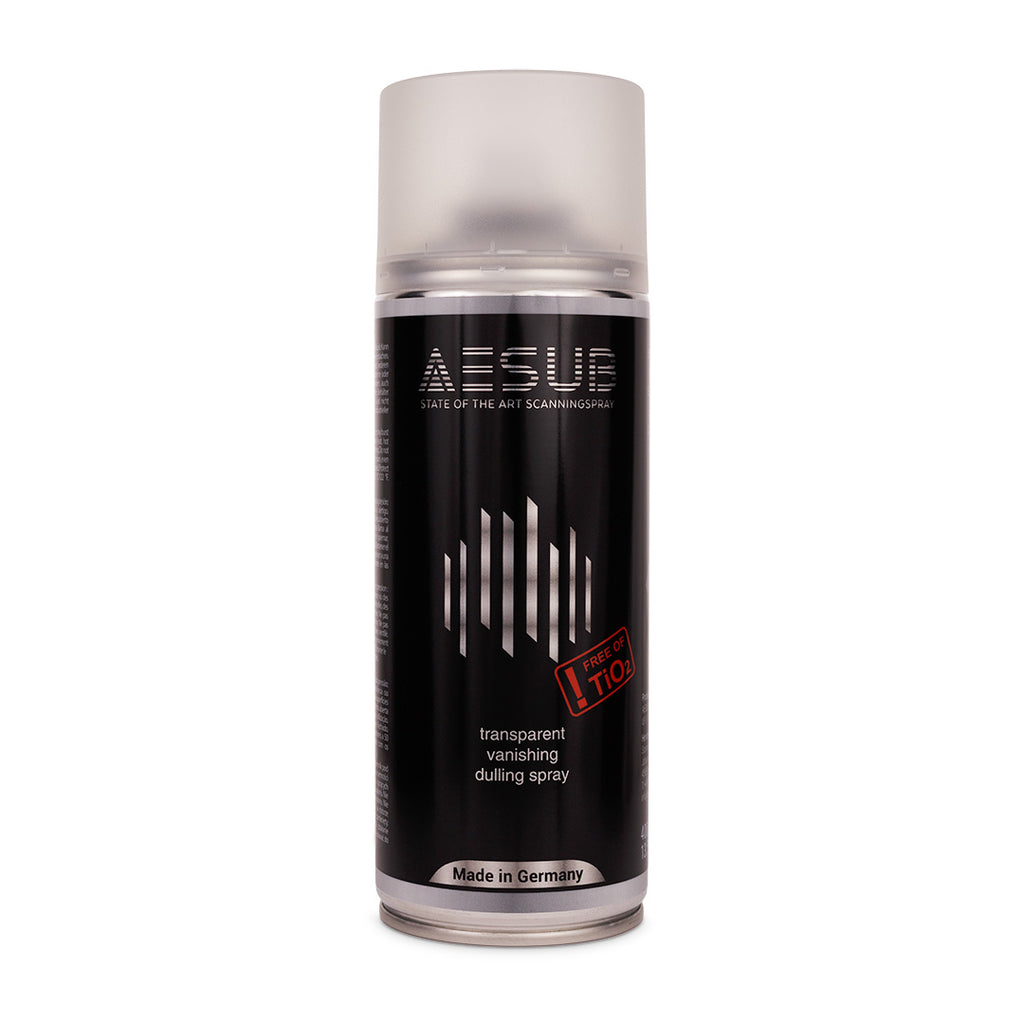

Aesub Product Range | Scanning Sprays

Product	AESUB Blue	AESUB Orange	AESUB White	AESUB Transparent	AESUB Green	AESUB Yellow
Delivery From:	aerosol can 400 ml				bulk 1L, 5L, 200L	bulk 200 ml
Measurement Volume:	S-M	S-L	S-XL	S-M	L-XL	XS-S
Application:
Spraying Distance:	15-20 cm					5-10 cm
Coating:	vanishing	vanishing	permanent	vanishing	vanishing	vanishing
Effective Scan Time:	1-2 h	4-8 h	permanent	1-2 h	1-2 h	2-4 h
Sublimation time:	4 h	12-24 h	--	4 h	6 h	4-6 h
Colour	white	white	white	transparent	white	white
Contain pigments:	no	no	yes	no	no	no
Contain titan dioxide:	no
Layer Thickness	8-15 μm	2-6 μm	7 μm	15-20 μm	10-20 μm	0.5-1 μm
Adhesion of Reference Points:	yes	yes	no	yes	yes	yes
Coverage Area:	4 m² / can	4 m² / can	4 m² / can	4 m² / can	15 m² / L	20 mm² / ml
Optimal Processing Temperature:	21°C (69.8°F)
Shelf Life:	5 years
Packaging Unit:	12 / box	12 / box	12 / box	12 / box	6 x 1L / box 5L 200L	12 x 200 ml / box
